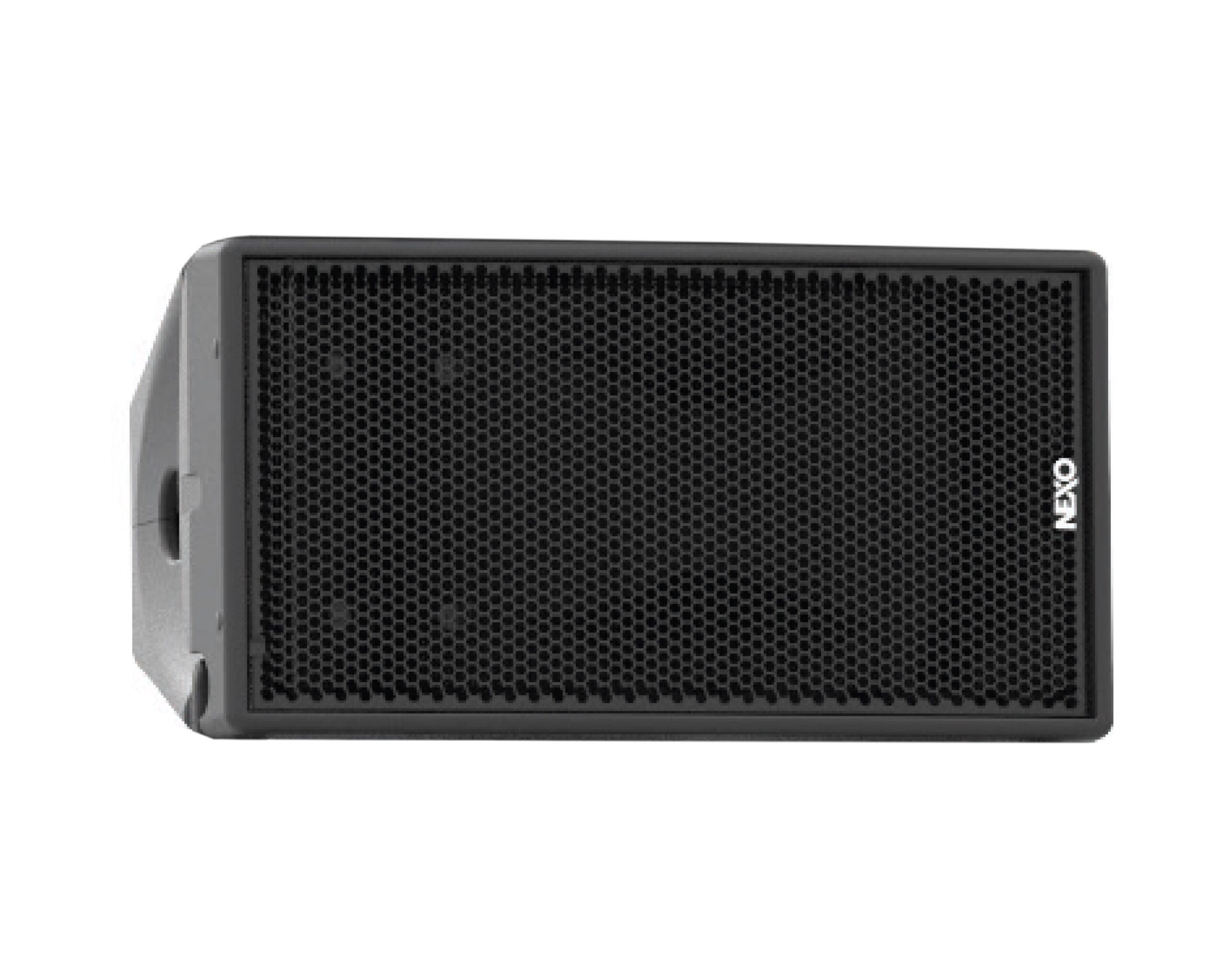

The NEXO GEO M1012-I is the installation version of the GEO M10 line array element, with 12° vertical dispersion. Built around a 10-inch neodymium LF driver in a lightweight moulded enclosure, it is aimed at fixed installations in venues, houses of worship and multipurpose spaces that need a compact, discreet line source with switchable horizontal coverage.
10″
LF Driver · Neodymium
12°
Vertical Dispersion · Fixed
80° / 120°
Horizontal · Switchable
21 kg
Weight · Per element
Tool-free coverage changeHorizontal dispersion is 80° as standard and can be changed to 120° by adding the optional GMT-FLGM10 magnetic flanges to the waveguide, with no tools required, allowing the same cabinet to be tuned to the room during commissioning.
Features
10-inch neodymium LF driver
12° vertical dispersion (install version)
Switchable 80° / 120° horizontal coverage
Optional tool-free magnetic 120° waveguide flanges (GMT-FLGM10)
Reticulated urethane co-polymer enclosure

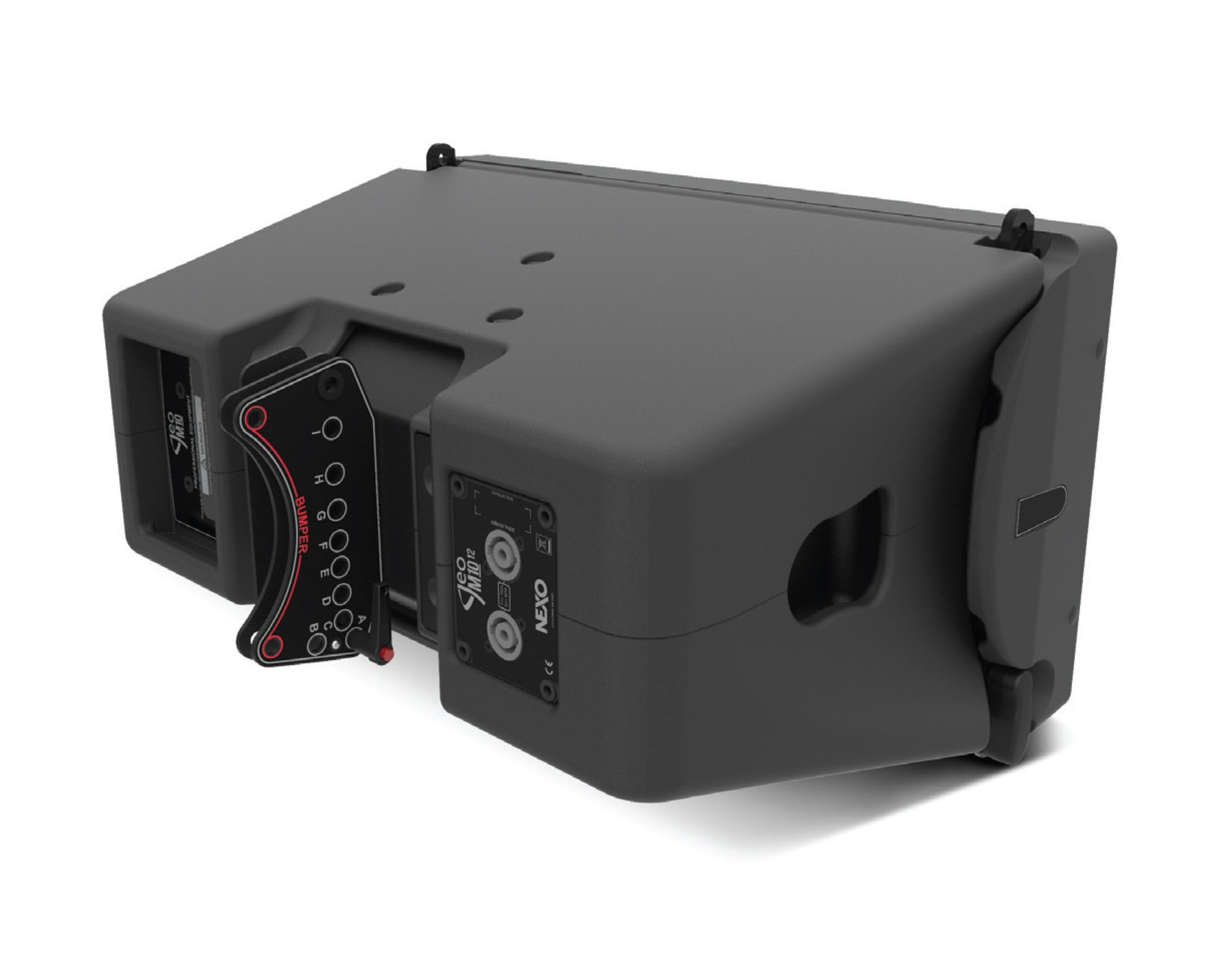

Integral rigging
Handles on rear and sides
Available in black, white or custom RAL colours
Specifications
| Type | Line array element (install) |
| LF driver | 10-inch neodymium |
| Vertical dispersion | 12° |
| Horizontal dispersion | 80°, or 120° with optional GMT-FLGM10 flanges |
| Enclosure | Reticulated urethane co-polymer |
| Finish | Black, white or custom RAL |
| Dimensions (W x H x D) | 531 x 288 x 355 mm |
| Weight | 21 kg |
