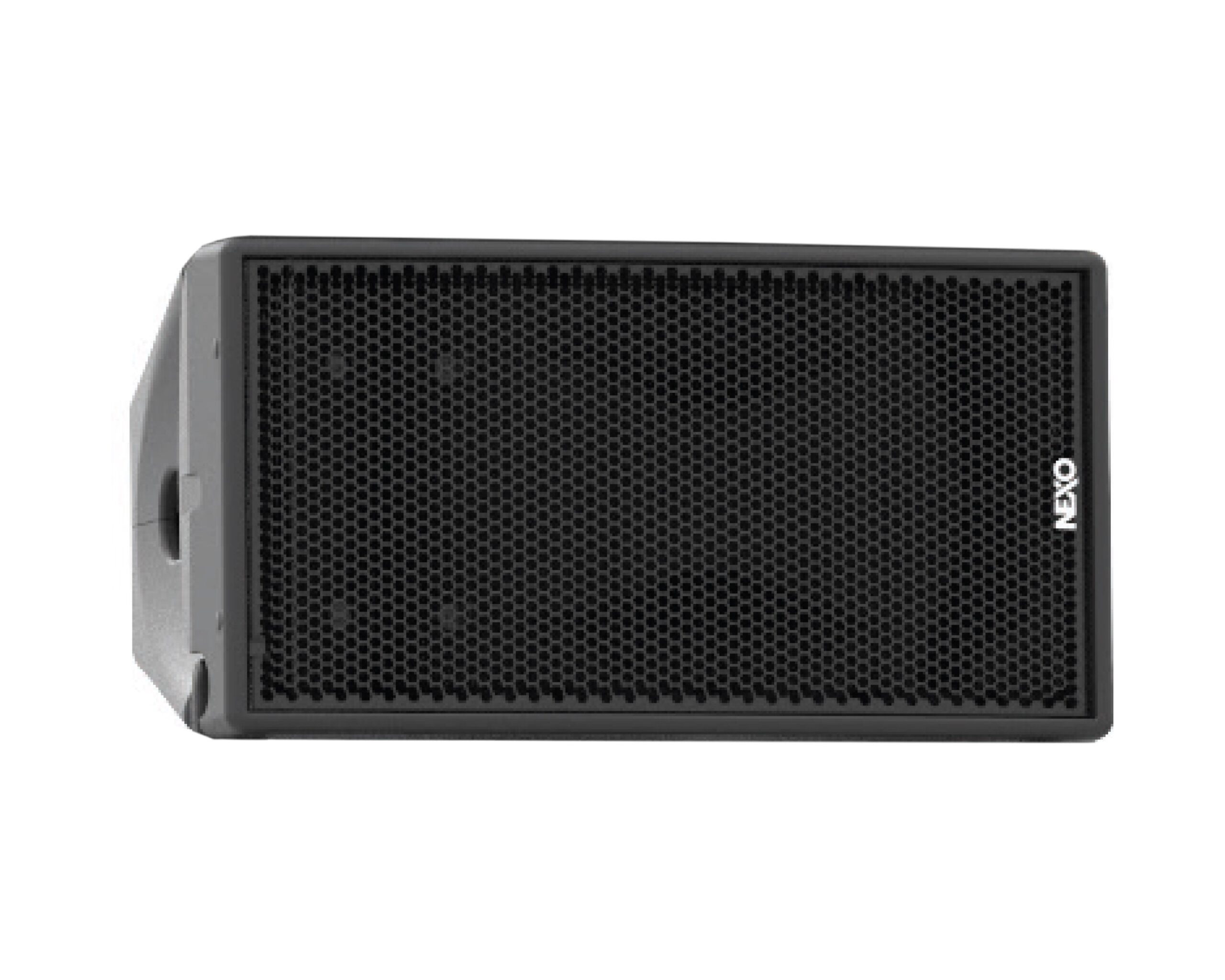

The NEXO GEO M1025 is the 25° vertical dispersion element of the GEO M10 compact line array series, built for touring and rental applications. Based around a 10″ neodymium LF driver, it pairs wide vertical coverage with switchable horizontal dispersion, making it well suited to short-throw front-fill, delay and fill duties within a GEO M10 array.
10″
LF Driver · Neodymium
25°
Vertical Dispersion · Fixed
80° / 120°
Horizontal · Switchable
21 kg
Weight · Per cabinet
Tool-free horizontal switchingHorizontal dispersion is 80° as standard, or 120° by adding the optional GMT-FLGM10 magnetic flanges to the waveguide, with no tools required. This lets a single cabinet type be reconfigured on site to match the coverage the room demands.
Features
10″ neodymium LF driver for high output at low weight
Fixed 25° vertical dispersion for wide short-throw coverage
Tool-free 80° / 120° horizontal switching via optional magnetic waveguide flanges (GMT-FLGM10)
Reticulated urethane co-polymer cabinet construction

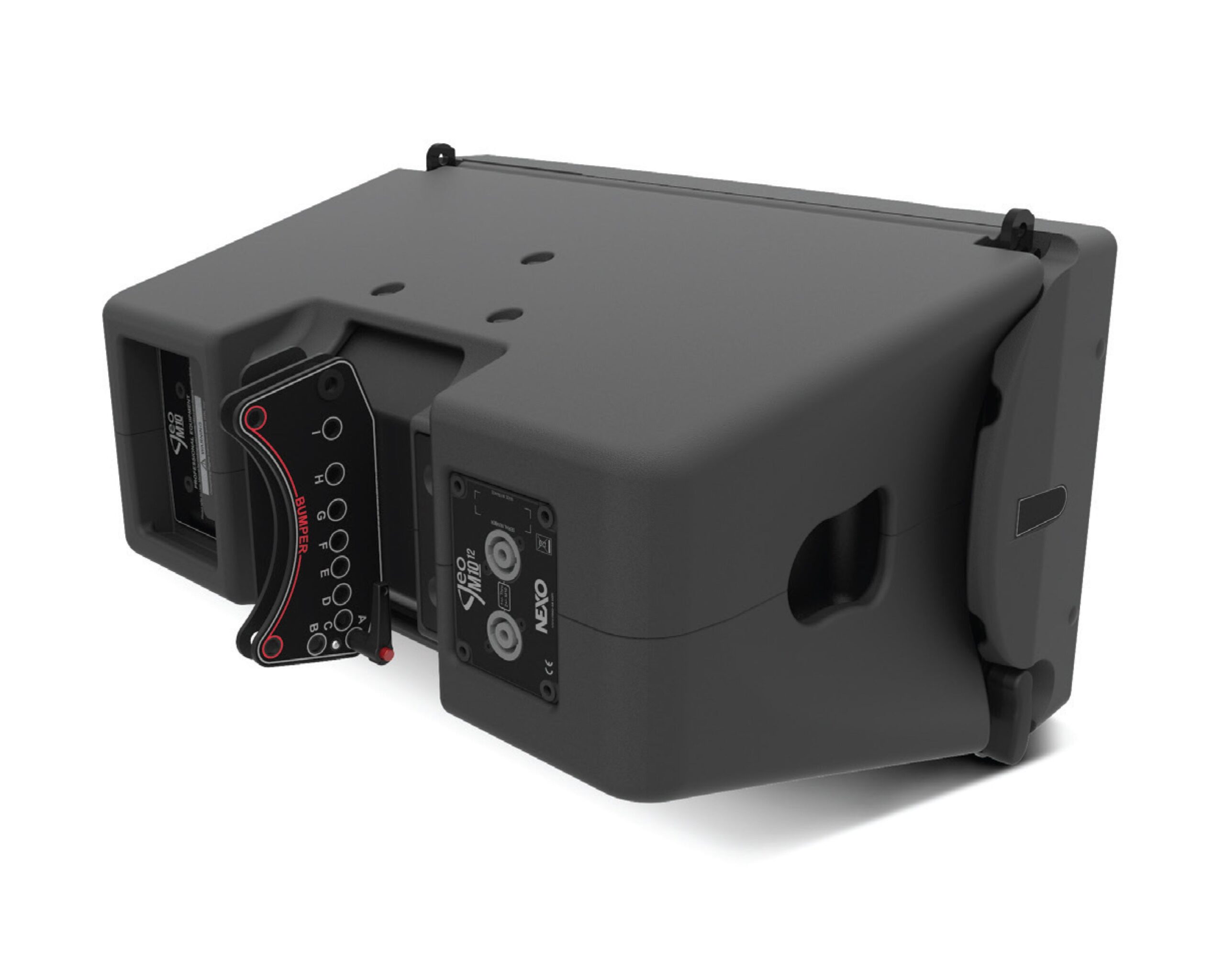

Integral rigging with no loose parts
Rear and side handles for handling and deployment
Available in black, white or custom RAL colours

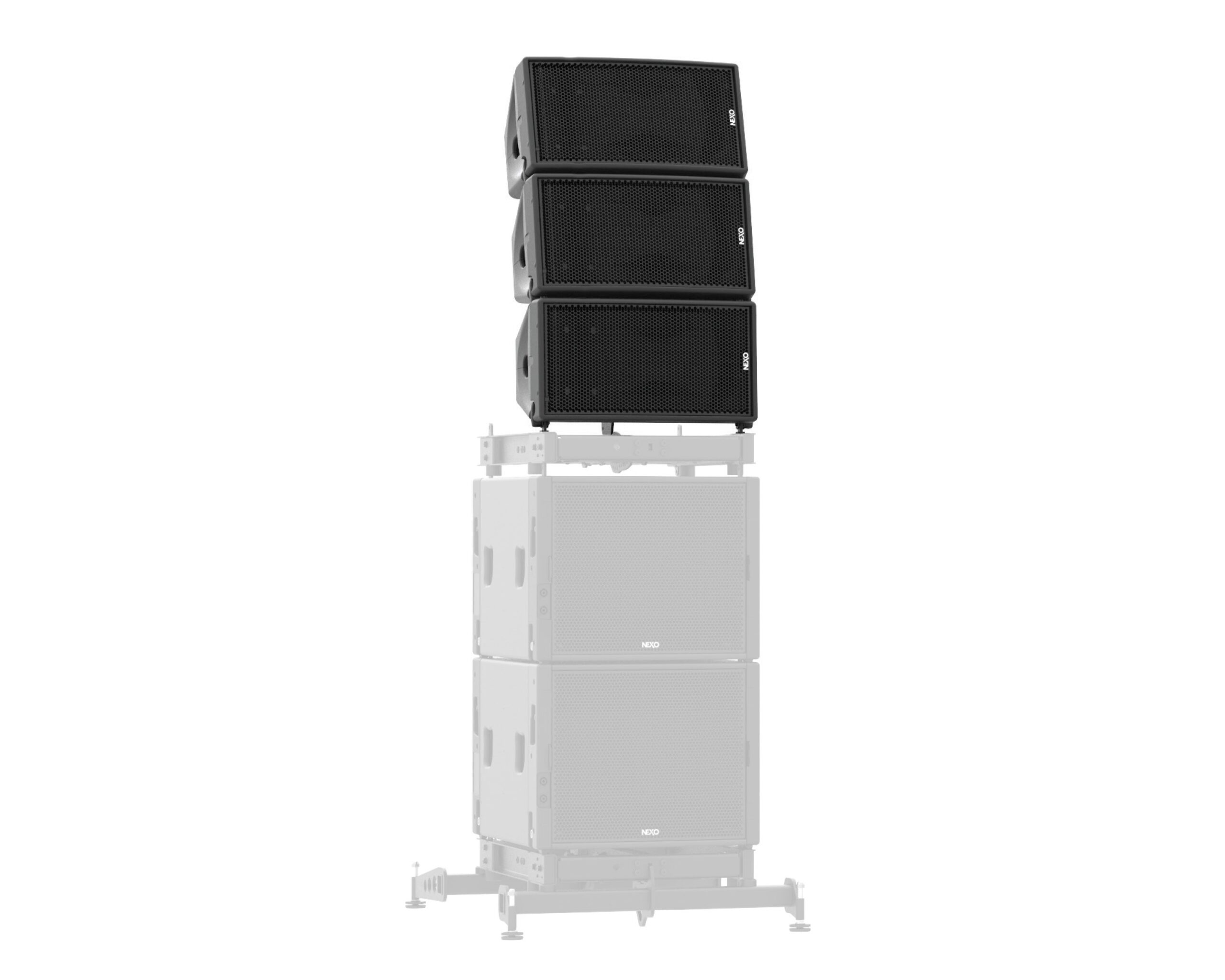

Arrays and combines with other GEO M10 elements
NoteThis is the 25° wide-dispersion GEO M10 element. For the install-specification variant see the GEO M1025-I; both share the same drivers and dispersion, but the -I version uses cable glands with captive cables instead of NL4, an acoustic-cloth front grille and rigging secured with safety nuts instead of AutoRig.
Specifications
| Type | GEO M10 line array element |
| LF driver | 10″ neodymium |
| Vertical dispersion | 25° |
| Horizontal dispersion | 80°, or 120° with optional GMT-FLGM10 flanges |
| Dimensions (W x H x D) | 531 x 288 x 355 mm |
| Weight | 21 kg |
| Cabinet | Reticulated urethane co-polymer |
| Finish | Black, white or custom RAL |
