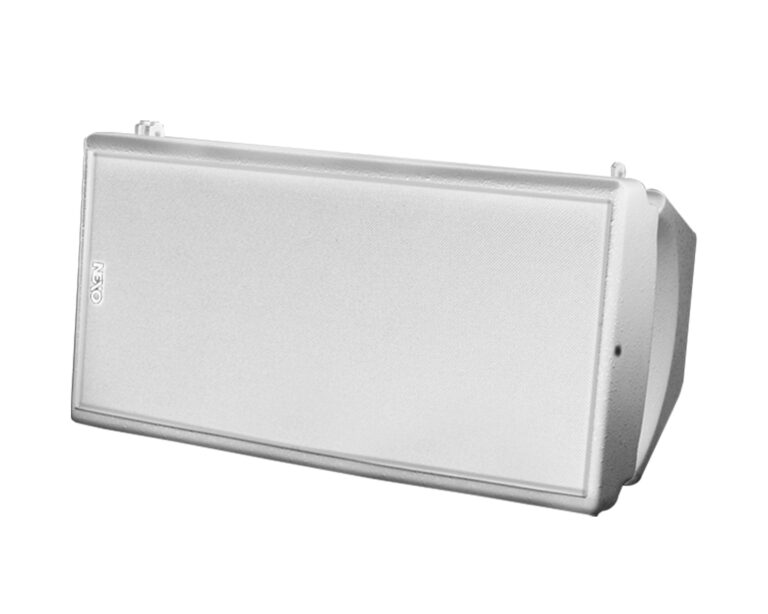

NEXO GEOM620PW Line Array Element (White)

Product code: 36661

£1,160.00 inc VAT
£966.67 ex VAT

SKU: 01GEOM620PW
4 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
3 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The NEXO GEO M620 is a compact, full-range line array element that weighs under 10kg yet delivers 127dB nominal peak SPL from a NEXO-designed 6.5″ long-excursion LF driver and 1″ throat HF compression driver on an optimised HR Wavesource. Equally at home as a standalone point source, a curved array, or a true line array, the M620 suits everything from corporate AV and houses of worship to touring side-fills and delay systems. This is the white finish variant.

6.5″
LF Driver · Long excursion
80Hz-19kHz
Frequency Range · ±3dB
127dB
Peak SPL · Nominal
<10kg
Weight ·
80° / 120°
HF Dispersion · Horizontal
Deployment VersatilityThe GEO M620 can be deployed as a standalone point source, configured as a curved array for shaped coverage, or rigged as a conventional line array with 0°-20° splay between elements. Its fully integrated 3-point rigging system keeps array assembly fast and secure without additional hardware.

Features

Full-range operation: standalone, curved array, or line array
NEXO-designed 6.5″ long-excursion LF driver
1″ throat HF on BEA/FEA optimised HR Wavesource
HRW patented waveguide for consistent HF coupling in arrays
80° or 120° horizontal HF dispersion options
20° vertical dispersion per element
0°-20° inter-element splay when arrayed
Fully integrated 3-point rigging system
Under 10kg, manageable for single-person handling
White finish for architecturally sensitive installations

Specifications

NEXO GEOM620PW Line Array Element (White) specifications
LF Driver 6.5″ NEXO-designed long excursion
HF Driver 1″ throat on HR Wavesource
Frequency Range 80Hz-19kHz (±3dB)
Peak SPL 127dB nominal
Horizontal Dispersion 80° or 120°
Vertical Dispersion 20°
Inter-Element Splay 0°-20°
Dimensions (H x W x D) 191 x 373 x 260mm
Weight <10kg
Finish White
SKU 01GEOM620PW

Full features

  • Internal 3-point rigging system
  • Long-excursion high-efficiency 6.5" LF driver and a 1" throat drive
  • 80Hz-19kHz ±3dB frequency response
  • 0° to 20° splay when arrayed
  • HF dispersion is 80° or 120° horizontal, with 20° vertical coverage
  • Extremely compact in size (191 x 373 x 260 mm) (Weight: Net 9.7kg)

Full specifications

General

  • Frequency Response: 80Hz – 19kHz ±3dB
  • Usable Range @-6dB: 75Hz – 20kHz
  • Sensitivity 1W @ 1m: 95dB SPL Nominal
  • Nominal Peak SPL @ 1m: 127dB
  • HF Dispersion: 80˚or 120˚Horizontal (CCD)
  • Crossover Frequencies: LF-HF: 2kHz Passive
  • Nominal Impedance: 8Ω
  • Recommended Amplifiers: 450W per box (3 boxes max in parallel on one channel amplifier)
  • Components: LF: 1 x 6.5" 8Ω long excursion driver
  • HF: 1 x 1" throat driver on a BEA/FEA optimised HR Wavesource

Physical & Dimensions

  • Dimensions: 191mm x 373mm x 260mm (HxWxD)
  • Weight: Net 9.7kg
  • Connectors: 2 x NL4 Speakon 4 poles
  • Construction: Lightweight Polyurethane composite
  • Fittings: Handles Side Handles
  • Front Finish: Acoustic Fabric fitted front grille

System Operation

  • Electronic Controller: The NEXO TDController’s presets are precisely matched to the GEO M6 Series cabinets and include sophisticated protection. Using GEO M6 Series cabinets without a properly connected NEXO TDController will result in poor sound quality and can damage components.
  • Speaker Cabling: 2+/2-
Compare the Range
NEXO GEOM620PW Line Array Element (White)
NEXO GEOM620PW Line Array Element (White)
£1,160.00 inc VAT
£966.67 ex VAT
  • Weight: <10kg
  • Peak SPL: 127dB nominal
Viewing Now

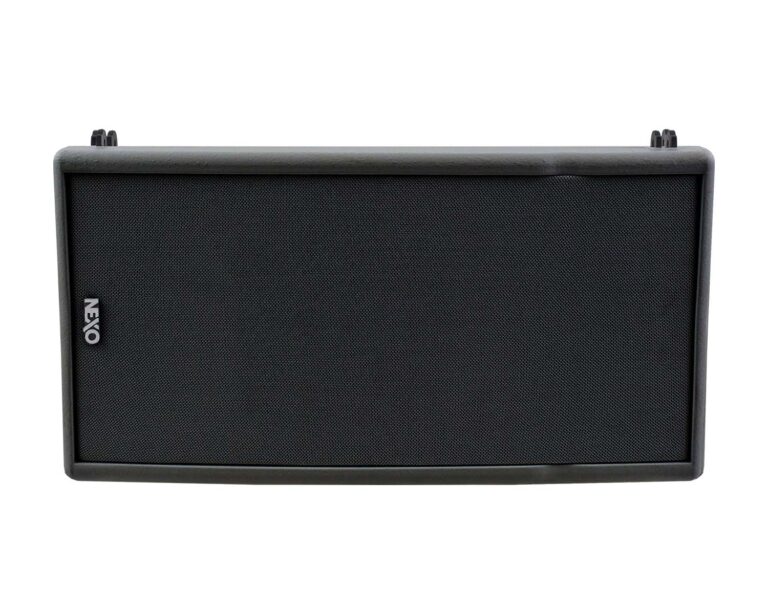

NEXO GEOM620 1×6.5” Compact Curved / Line Array Element Black
£1,518.00 inc VAT
£1,265.00 ex VAT
  • Weight: Under 10 kg
  • Peak SPL: 127 dB nominal
View →
NEXO GEOM6B 1×6.5″ Compact Bass Subwoofer Black
£1,062.00 inc VAT
£885.00 ex VAT
  • Weight: 7.6 kg
View →
