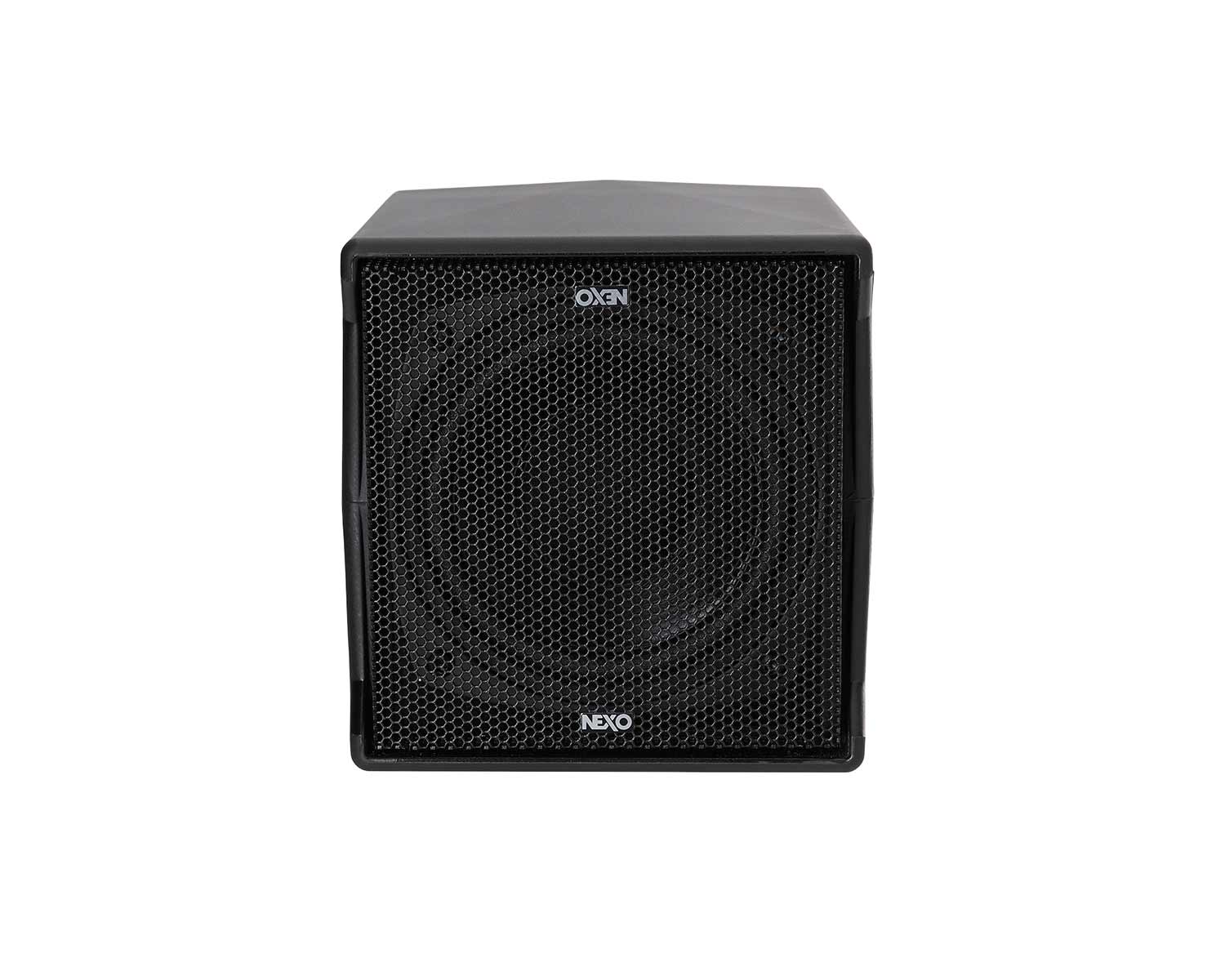

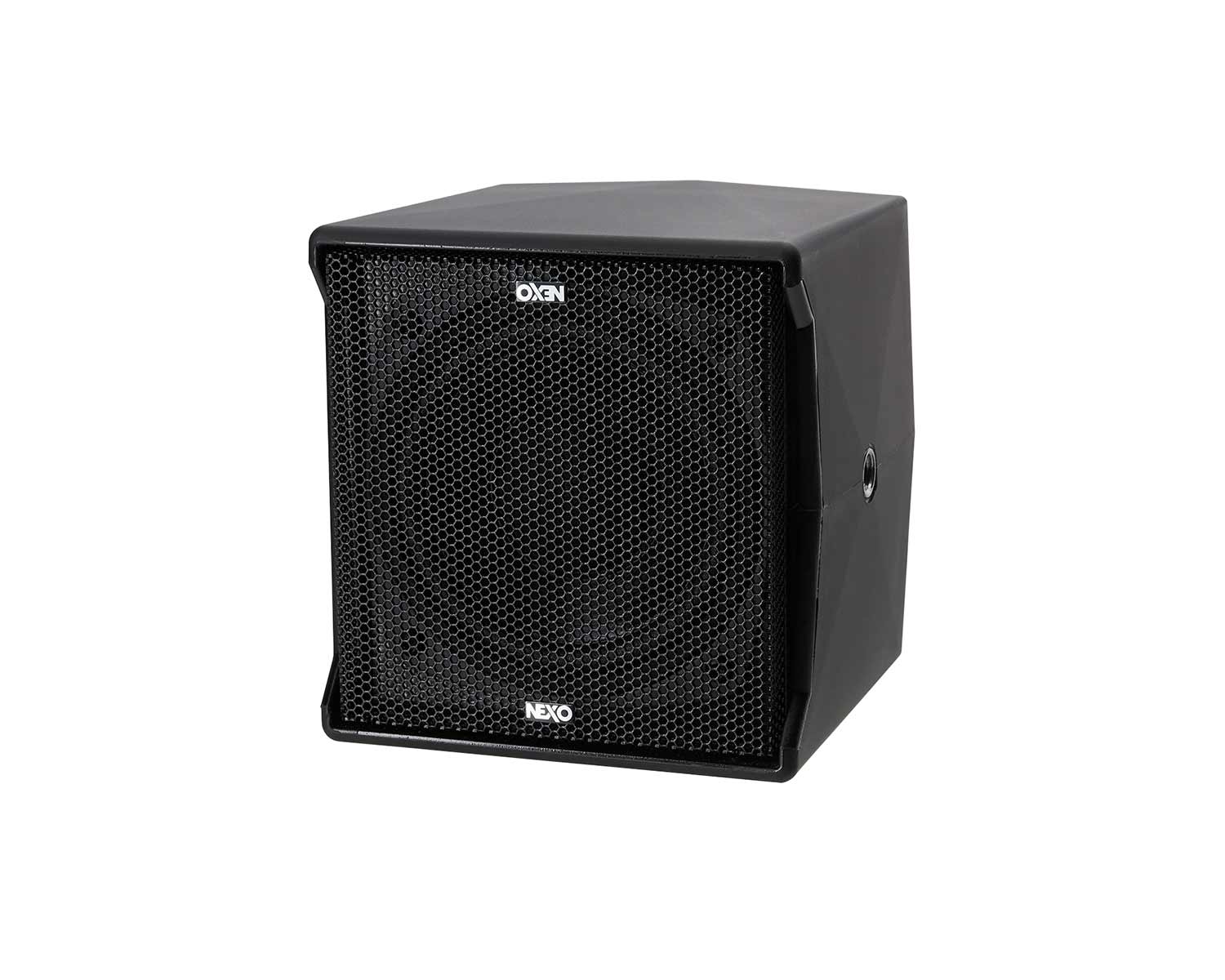

The NEXO ID14 is a compact coaxial point-source loudspeaker built around a custom 4" driver, delivering the smooth, powerful sound NEXO is known for in a rugged enclosure. This is the Touring (ID14-T) version, fitted with a protective Magnelis steel front grille and twin Speakon® connectors, configured with the 100° x 100° horn. Ideal for FOH fills, front-fill, wedge monitoring and portable point-source duties.
Driver
4" Coaxial
Single point source
Dispersion
100° x 100°
Symmetric
Grille
Magnelis
Steel, touring
Connectors
2x Speakon®
Loop-through
Requires NXAMP powered controller
The ID14 is a passive enclosure driven and processed by a NEXO NXAMP powered TDcontroller. A dedicated setup preset for the 100° x 100° horn ensures correct coverage and protection across the full frequency range. The ID14’s acoustic phase response follows the NEXO phase signature, allowing inter-operability with other NEXO cabinets at all crossover points – except in monitor setups, where latency is minimised.
Features
✓
Custom-designed coaxial driver: 4" LF with 1.3" voice coil, 1.4" diaphragm HF motor
Custom-designed coaxial driver: 4" LF with 1.3" voice coil, 1.4" diaphragm HF motor
✓
100° x 100° horn for well-controlled coverage
100° x 100° horn for well-controlled coverage
✓
Touring build: Magnelis steel front grille for road-going protection
Touring build: Magnelis steel front grille for road-going protection
✓

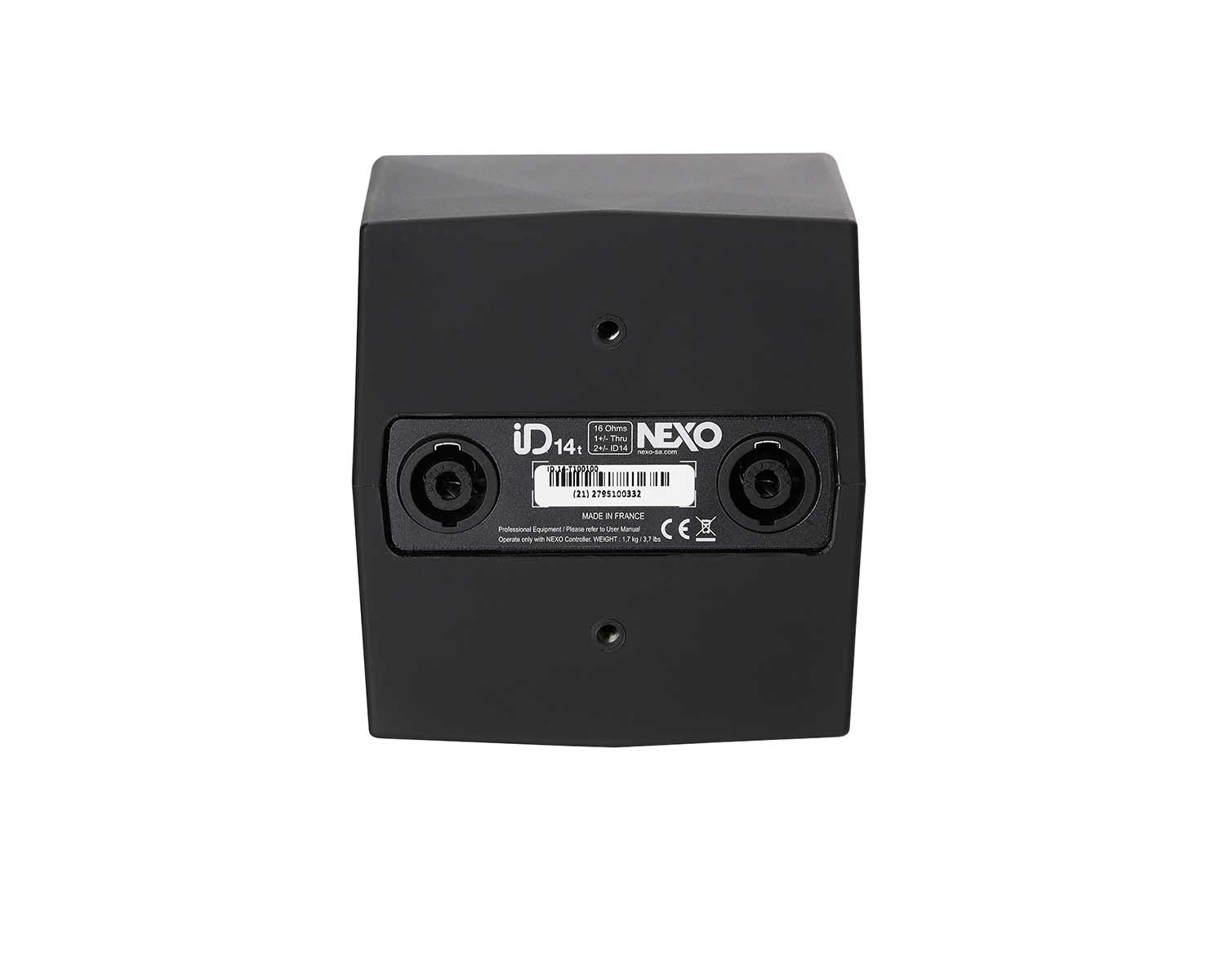

Two Speakon® connectors on the back plate for easy loop-through
Two Speakon® connectors on the back plate for easy loop-through
✓
Robust Polyurethane shell enclosure inherited from the ID24
Robust Polyurethane shell enclosure inherited from the ID24
✓
Threaded M10 insert on each side for the dedicated U-bracket or a mic stand
Threaded M10 insert on each side for the dedicated U-bracket or a mic stand
✓
Two rear M6 inserts (73 mm pitch) for ID-WM01 / ID-WB02 wall-mount accessories
Two rear M6 inserts (73 mm pitch) for ID-WM01 / ID-WB02 wall-mount accessories
✓
Fully symmetric design – no left/right version, every unit is interchangeable
Fully symmetric design – no left/right version, every unit is interchangeable
Note
This is the 100° x 100° symmetric Touring variant in black. The alternative horn option covers 90° x 140°. Choose the horn to match the space – each has its own NXAMP setup preset.
Specifications
| Type | Compact coaxial point-source loudspeaker (passive) |
| Transducer | Coaxial 4" LF (1.3" voice coil) + 1.4" HF diaphragm |
| Dispersion | 100° x 100° (symmetric) |
| Version | Touring – Magnelis steel grille, 2x Speakon® |
| Enclosure | Polyurethane shell |
| Mounting | M10 side inserts; 2x rear M6 (73 mm pitch) |
| Amplification | NEXO NXAMP powered TDcontroller (dedicated preset) |
| Finish | Black |
