The driver complement has been engineered for exemplary performance in all bands. The Hybrid® low frequency section comprises a horn-loaded 15″ (380mm)/4″ (100mm) voice coil driver that is reflex loaded to extend the LF output to below the natural horn cut-off point. The LF driver features a water resistant cone and triple roll surround for increased excursion.
15″
Driver
70° x 40°
Coverage · H x V
Applications
Installed sound
Larger clubs
Large-scale installs
Houses of worship
Theatres
Features
The LF driver features a water resistant cone and triple roll surround for increased excursion
The internal mid/ high passive crossover allows this three-way system to be driven in a bi-amp configuration

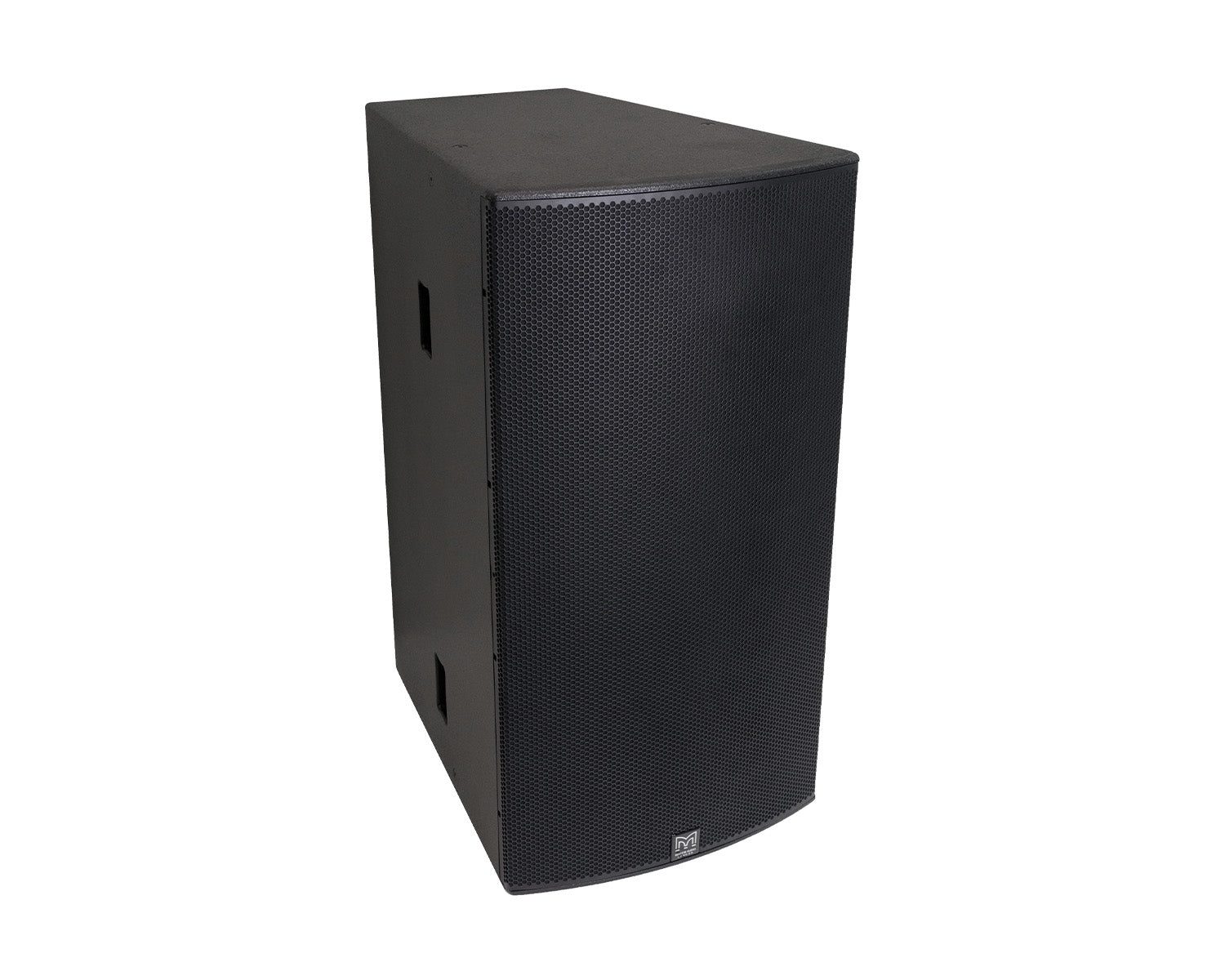

The THV is configured in a vertically formatted, trapezoidal birch ply cabinet and fitted with twelve M10 inserts to facilitate ease of mounting
The enclosure has generous pocket handles on the sides and rear castors are fitted as standard
70° x 40° coverage pattern
Rugged plywood enclosure with hard-wearing finish
Specifications
| Driver Size | 15″ |
| Voice Coil | 4″ (100mm) |
| Coverage | 70° x 40° |
| SKU | THV |
