NEXO nanoNXAMP4 Amplifier & Controller

Product code: 36691

£1,378.00 inc VAT
£1,148.33 ex VAT

SKU: 03NANONXAMP4
2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
3 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The NEXO nanoNXAMP4 is a compact 4-channel amplifier and controller designed for smaller NEXO installations using the ID Series and ePS Series loudspeakers. Delivering 4 x 250W of Class D power with the same sonic signature as the full-size NXAMPMK2 platform, it brings FIR-based system EQ, an on-board mixer and matrix, and built-in loudspeaker presets to venues and installations where the larger NXAMP models would be overkill.

4 x 250W
Output Power · Class D
FIR
Filtering · Linear phase EQ
SMPS + PFC
Power Supply · Switch-mode
Web Page
Configuration · Ethernet or Wi-Fi
Ideal For Smaller InstallationsThe nanoNXAMP4 includes factory presets optimised for NEXO ID Series and ePS Series loudspeakers, making it a straightforward choice for bars, restaurants, houses of worship, meeting rooms, and other venues using these compact speaker systems. Setup is handled entirely via an embedded web page accessible over Ethernet or Wi-Fi, no additional software is required.

Features

4 x 250W Class D amplification
Same sonic signature as the NXAMPMK2 platform
FIR filtering for system EQ and linear phase processing
Factory presets for NEXO ID and ePS Series loudspeakers
On-board mixer and matrix routing
Embedded web page for setup, no software needed
Ethernet and Wi-Fi connectivity for configuration
SMPS with PFC for efficient, reliable power

Specifications

NEXO nanoNXAMP4 Amplifier & Controller specifications
Output Power 4 x 250W
Amplifier Class Class D
Power Supply SMPS with PFC
DSP FIR filtering, system EQ, linear phase
On-board Processing Mixer and matrix
Configuration Embedded web page (Ethernet / Wi-Fi)
Loudspeaker Presets NEXO ID Series, ePS Series
SKU 03NANONXAMP4

Full features

  • Speaker controller and four channels of power amplifier in a 1U, 1/2 rack
  • Four Balanced (+ unbalanced) Analog inputs (line or microphone level), SPDIF digital in/out
  • Four channel Class-D amplifiers with ultra-low distortion for uncompromised sound quality, 4 x 250 Watts/4 ohms
  • Universal Power Supply (100~240 Volts) using PFC technology for best efficiency and smooth current drawn
  • Remote control through integrated WiFi Access Point or through the ethernet port

Full specifications

  • Power Specifications:
    • Number of channels: 4x amplifier channels, 2 by 2 bridgeable
    • Max. output voltage (no load): 4x 70 Volts
    • Max. output power (4 channels mode /8 Ohms load per channel): 4x 200 Watts
    • Max. output power (4 channels mode /4 Ohms load per channel): 4x 250 Watts
    • Max. output power (2 channels mode /8 Ohms load per bridged channels): 2x 200 Watts
    • Max. output power (2 channels mode /4 Ohms load per bridged channels): 2x 350 Watts
    • Power consumption (Idle): 20 Watts
    • Power consumption (Standby): <2 Watts
    • Power consumption (Standby without network): <0.5 Watts
  • Input to Power Out Specifications:
    • Frequency response: +0/-0.25 dB from 20 Hz to 20 kHz
    • Input impedance / Input Sensitivity: 20 K ohms  / +13 dBU
    • Dynamic range / TDH + N: >106 dB A-weighted / <0.05% on a flat setup
    • Latency: 1 ms on a flat setup
    • Audio AD and DA Converters: 24 bits @ 48 kHz
    • Processing: 64 bits processing DSPs
  • Back Panel Features:
    • Analog audio inputs: 4x balanced analogue inputs on Euroblock 3.5 mm pitch or unbalanced on RCA
    • Power outputs: 4x Euroblock 5 mm pitch outputs
    • Digital audio input/output: 1x SPDIF 2ch input/output on RCA
    • GPIO port: 1x Euroblock 3.5 mm pitch with 4x Global purpose Inputs and 1x Global purpose Output
    • Network inputs: 1x 100 Mb Ethernet port (Remote control)
    • Mains sockets: 1x IEC C14 socket
  • Front Panel and Remote Control:
    • Front panel LEDs: 5x LEDs (WiFi / Network / Output / Input / Status)
    • Remote control: Through 100 Mb Ethernet port or through integrated WiFi (Access Point or client)
  • Mains Requirements:
    • Mains voltage: Universal Power Supply with Active PFC 100 - 240 Volts (50/60 Hz)
    • Power consumption 1/8 max. 4 Ohms: 250 Watts
  • Dimensions and Certifications:
    • Dimensions and weight: 1U, 1/2 19" Rack, 44 x 220 x 319 mm (1.7 x 8.7 x 12.6"), 2.0 kg (4.4 lbs)
    • Electrical safety certification: IEC62368-1 2nd edition and UL62368-1
    • EMC certification: FCC Part 15 Class B, CAN/CSA-CISPR 22-10, EN55032/CISPR32, EN61000
    • Green status: Compliant with ROHS & Reach directive
Compare the Range
NEXO nanoNXAMP4 Amplifier & Controller
NEXO nanoNXAMP4 Amplifier & Controller
£1,378.00 inc VAT
£1,148.33 ex VAT
  • 4 ch Compact
  • No Dante
Viewing Now

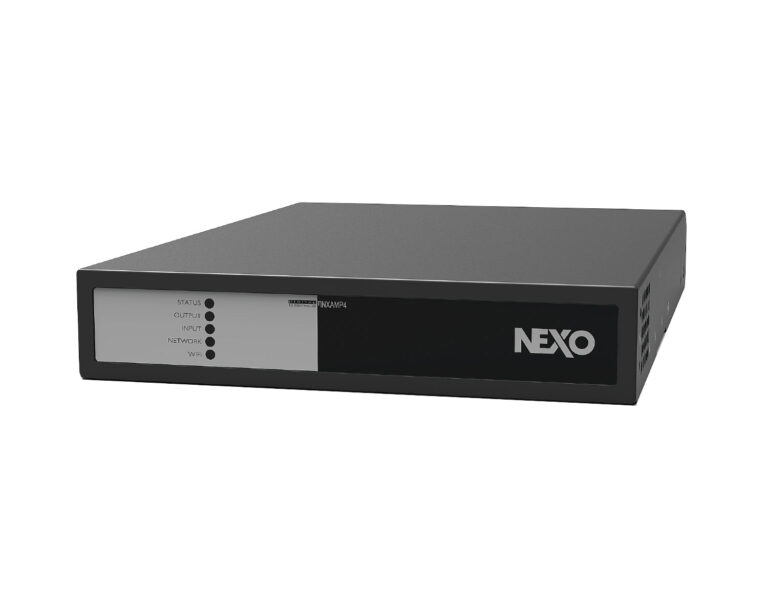

NEXO nanoNXAMP4-D Amplifier & Controller with Dante
£1,756.00 inc VAT
£1,463.33 ex VAT
  • 4 ch Compact
  • Dante Network
View →
NEXO NXAMP4X1MK2 Power Amplifier & Controller
£3,658.00 inc VAT
£3,048.33 ex VAT
  • 4 ch / 4 x 1300W
  • Touring/Install Standard
View →

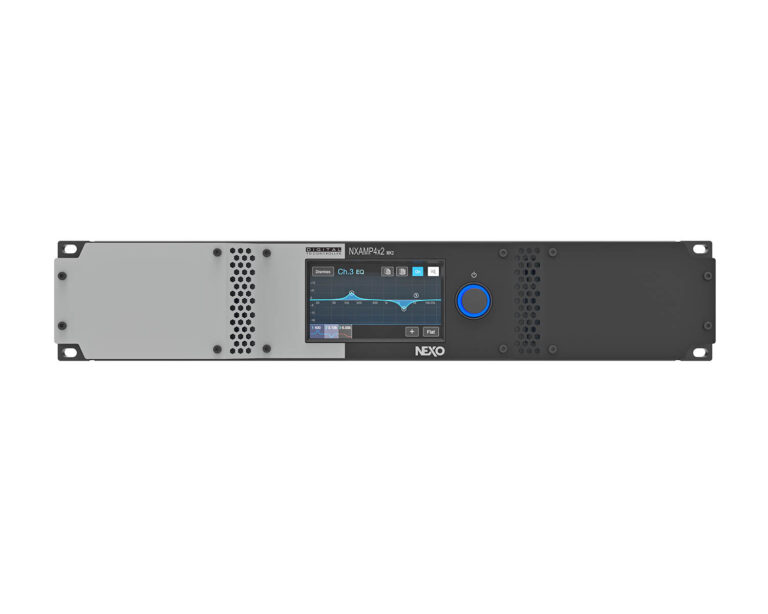

NEXO NXAMP4X2MK2 Power Amplifier & Controller
£5,718.00 inc VAT
£4,765.00 ex VAT
  • 4 ch / 4 x 2500W
  • Touring/Install High-Power
View →

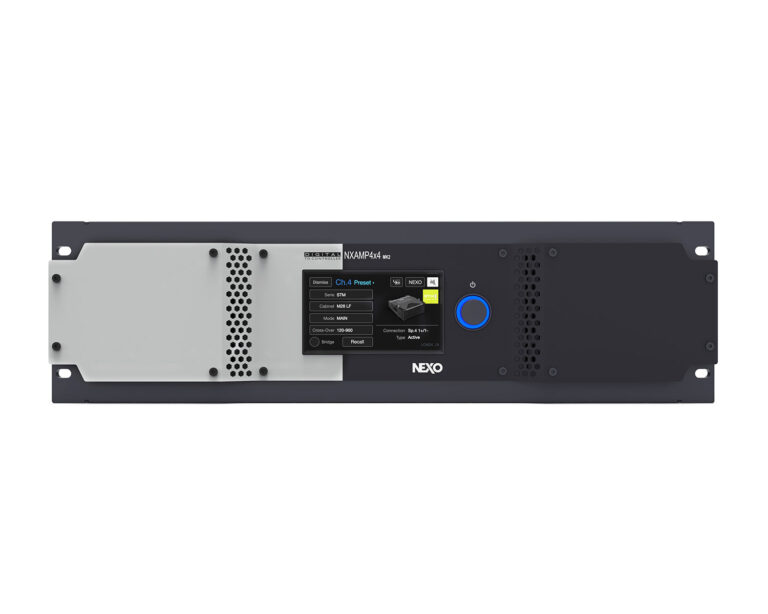

NEXO NXAMP4X4MK2 Amplifier & Controller
