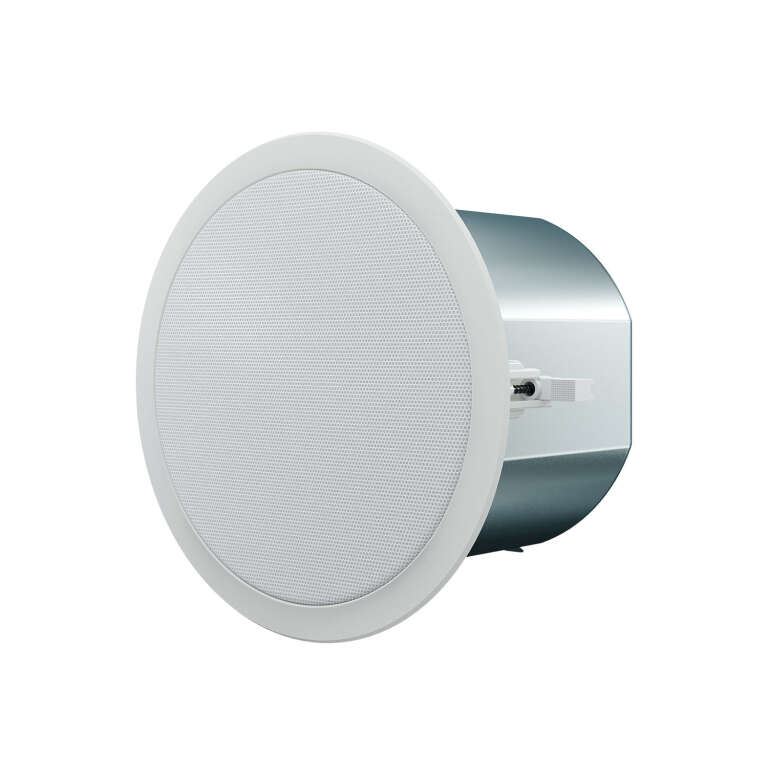

The Optimal Audio Up 6 is the flagship of the Up ceiling speaker range — a 6-inch two-way model with integrated steel backcan and 60W power handling. Its larger LF driver and metal dome tweeter deliver the extended low-end and high-frequency clarity needed for foreground music in bars, restaurants, event spaces and premium retail environments where audio quality is a priority.
LF Driver
6″ (162mm)
Low frequency
HF Driver
0.7″ (20mm)
Metal dome
Power Handling
60W
100V line
Coverage
110°
Conical
Features
✓
6-inch (162mm) LF driver for extended bass response
6-inch (162mm) LF driver for extended bass response
✓
0.7-inch metal dome tweeter for detailed, consistent high frequencies
0.7-inch metal dome tweeter for detailed, consistent high frequencies
✓
60W power handling for foreground music at higher SPLs
60W power handling for foreground music at higher SPLs
✓
Integrated steel backcan for fire compliance and acoustic isolation
Integrated steel backcan for fire compliance and acoustic isolation
✓
110° conical dispersion for controlled, even coverage
110° conical dispersion for controlled, even coverage
✓
70V and 100V transformer taps plus 16-ohm low-impedance operation
70V and 100V transformer taps plus 16-ohm low-impedance operation
✓
White steel grille for a clean ceiling aesthetic
White steel grille for a clean ceiling aesthetic
Specifications
| Model | Up 6 |
| SKU | UP6-W |
| Type | Two-way passive ceiling speaker |
| LF Driver | 6″ (162mm) |
| HF Driver | 0.7″ (20mm) metal dome tweeter |
| Power Handling | 60W |
| Line Voltage | 70V / 100V + 16Ω Low-Z |
| Coverage | 110° conical |
| Backcan | Integrated steel |
