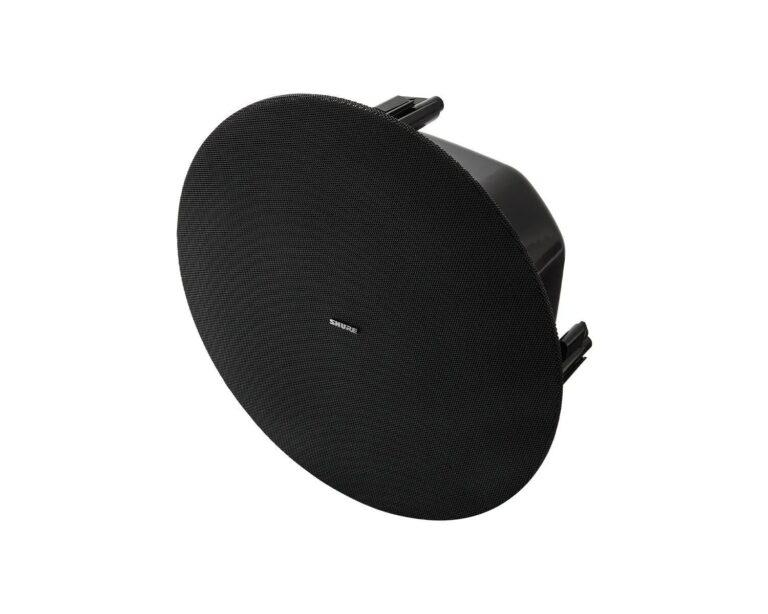

Shure MXP-5B 4" Ceiling Speaker 4Ω 28W / 100V 15W

Product code: 5036

£246.00 inc VAT
£205.00 ex VAT

SKU: MXP-5B
Ordered from supplier, allow 1–3 weeks
Delivered by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
Other colours available
2 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 15 / 7.5 / 3.75W) or low impedance (4Ω).

The Shure MXP-5B is a shallow ceiling-mount conferencing loudspeaker from the Microflex range, in black. It recesses into the ceiling (310 mm cut-out, 112 mm deep), with a shallow depth suited to retrofits, and has a 4-inch driver and 1-inch neodymium tweeter voiced to match the MXP-6 pendant for mixed installs. A faceplate switch selects 70/100V line or low-impedance operation.

Features

Shallow in-ceiling design (112 mm deep), ideal for retrofit
4-inch driver + 1-inch neodymium tweeter
Switchable 70/100V or low-impedance operation
Voiced to blend with MXP-6 pendants
Optional A-MXP5-TB tile bridge or A-MXP5-NCB bracket
Plenum rated UL2043
Up to eight per MXN-AMP in 70/100V mode
NoteShure recommends a safety tether for overhead mounting.

Specifications

Shure MXP-5B 4″ Ceiling Speaker 4Ω 28W / 100V 15W specifications
Impedance 4 ohms nominal / 70-100V line
Max input power 28 W
Frequency response ~90 Hz – 20 kHz
Coverage 95 degrees
Sensitivity 92 dB SPL 1W/1m
Dimensions 340 x 340 x 112 mm
Weight 3.28 kg
Colour Black
Model MXP-5B

Full features

  • Dual-driver architecture delivers full-fidelity, premium audio reproduction and optimum speech intelligibility
  • The 4-inch main driver features a large, well-vented motor for increased power handling; the 1-inch tweeter features a neodymium magnet and heatsink fins for high efficiency
  • Identical voicing to MXP-6 Pendant Loudspeaker for consistent tonality in blended installations
  • Up to eight MXP-5 loudspeakers can be used with the MXN-AMP PoE+ multichannel amplifier in 70/100V mode
  • MXN-AMP provides optimised presets and user-configurable EQ for each speaker output
  • Shure Audio Encryption protects audio content between the MXN-AMP and other Shure Microflex Ecosystem devices in the room
  • Shallow depth is ideal for retrofit applications or ceilings with limited mounting space
  • A similar diameter to the MXA901 ceiling array microphone creates a symmetrical appearance and allows MXP-5 to replace smaller speakers by enlarging the mounting hole in the existing ceiling tile
  • Switch on front faceplate allows for quick adjustment between 70/100V or 4 ohm operation
  • Available A-MXP5-TB Tile Bridge and A-MXP5-NCB New Construction Bracket allow for easy installation.  (Note:  Shure recommends the use of an additional safety tether for overhead components)
  • Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams

Full specifications

  • Connector Type:  4-pin connector, 0.2 in. (5.08 mm) pitch
  • Coverage Angle:  95°
  • Frequency Response:  ~90Hz - 20kHz
  • Nominal Impedance:  4Ω
  • Maximum Input Power:  28 W
  • Maximum SPL:   at an RMS input level of 23 dBV AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA
  • Sensitivity at 2.83 V:  92 db SPL 1W/m
  • Operating Temperature Range:  -7 to 40°C (19.4 to 104°F)
  • Storage Temperature Range:  -29 to 74°C (-20 to 165°F)
  • Transformer Taps
    • 70V:  4Ω, 1.875 W, 3.75 W, 7.5 W, 15 W
    • 100V:  4Ω, 3.75 W, 7.5 W, 15 W
  • Weight:  7.23 lbs (3.28 kg)
  • Dimensions:  13.39 x 13.39 x 4.41 in. (340 x 340 x 111.9 mm)
