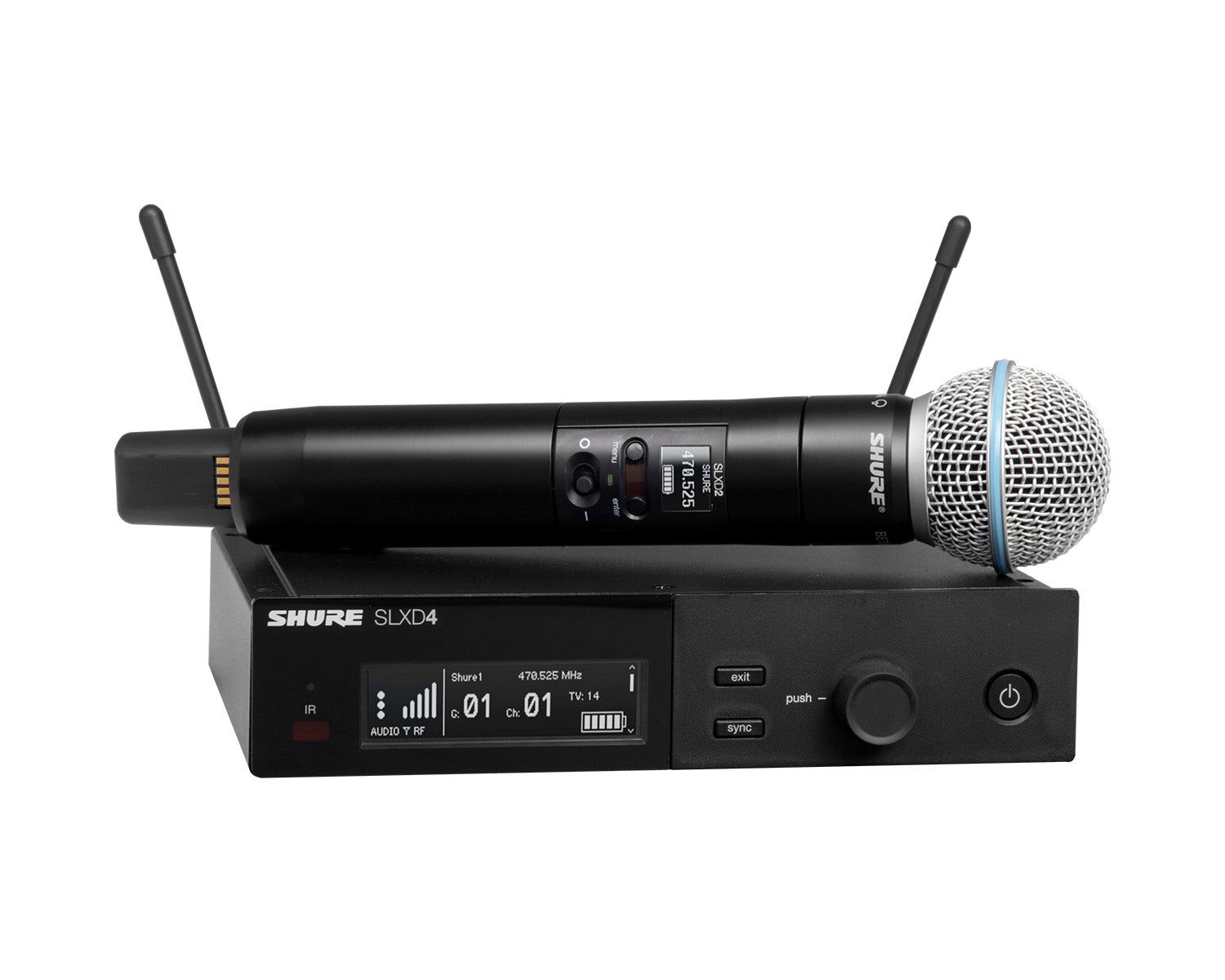

Shure SLX-D single-channel handheld vocal system supplied with one SLXD2 handheld transmitter fitted with the Shure Beta 58A capsule and a matching single-channel SLXD4-series diversity receiver. Operates in the K59 band (606 to 650 MHz). UK Ch38 PMSE plus coordinated UHF. Requires an Ofcom licence; Ch38 (606 to 614 MHz) is covered by the Ofcom Shared PMSE licence and the upper range requires a coordinated PMSE licence. Aimed at houses of worship, corporate presentation, small live vocal and education deployments.
Key Features
Specifications
| Platform | SLX-D |
| Frequency band | K59 (606 to 650 MHz) |
| Audio frequency response | 20 Hz to 20 kHz (microphone dependent) |
| Audio bit depth | 24-bit |
| System latency | 3.2 ms |
| Dynamic range | 118 dB (A-weighted) |
| Encryption | None (added in SLX-D+) |
| RF power | 1 mW or 10 mW, selectable |
| Tuning bandwidth | 44 MHz |
| Capsule | Shure Beta 58A |
| Capsule type | dynamic |
| Polar pattern | supercardioid |

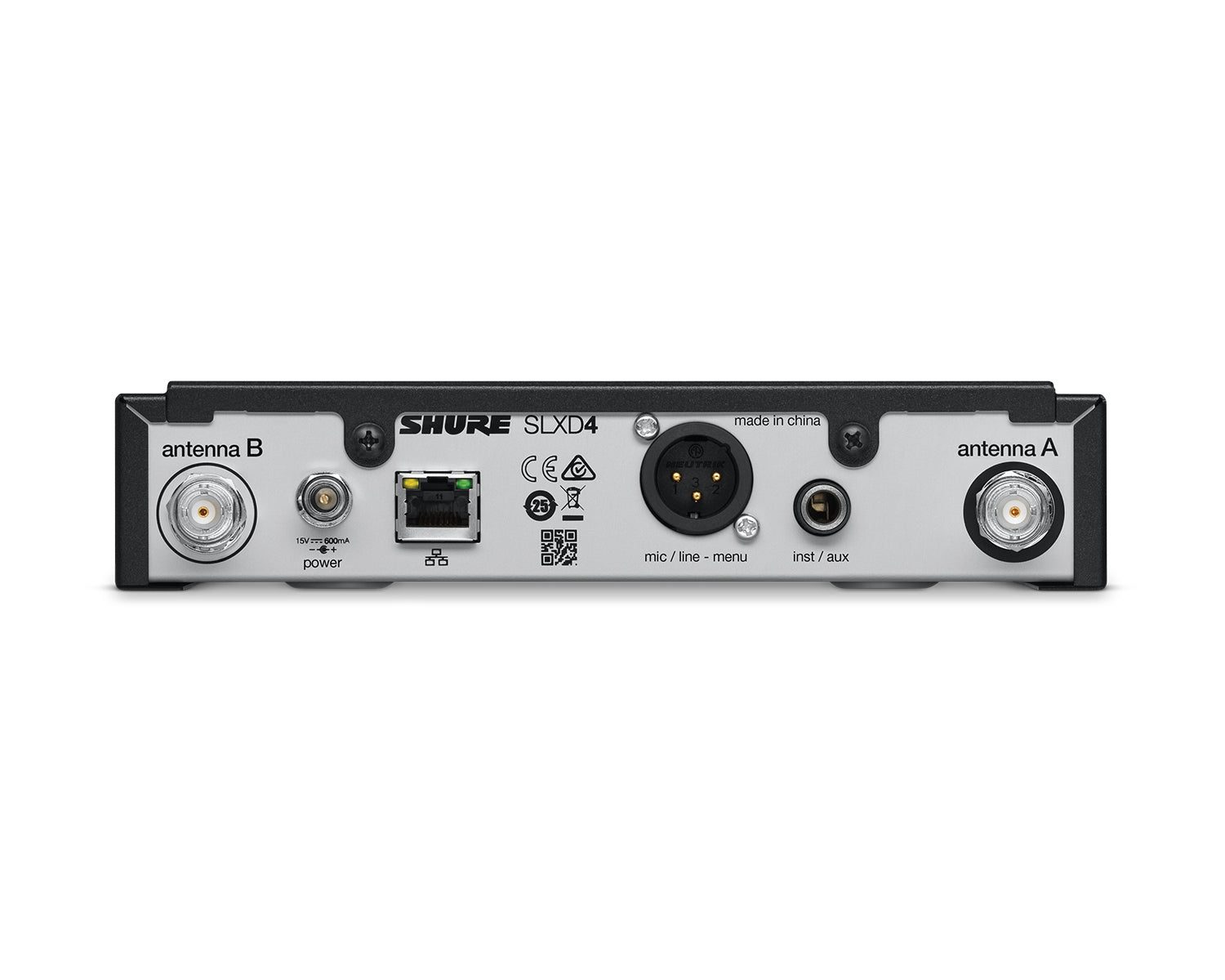

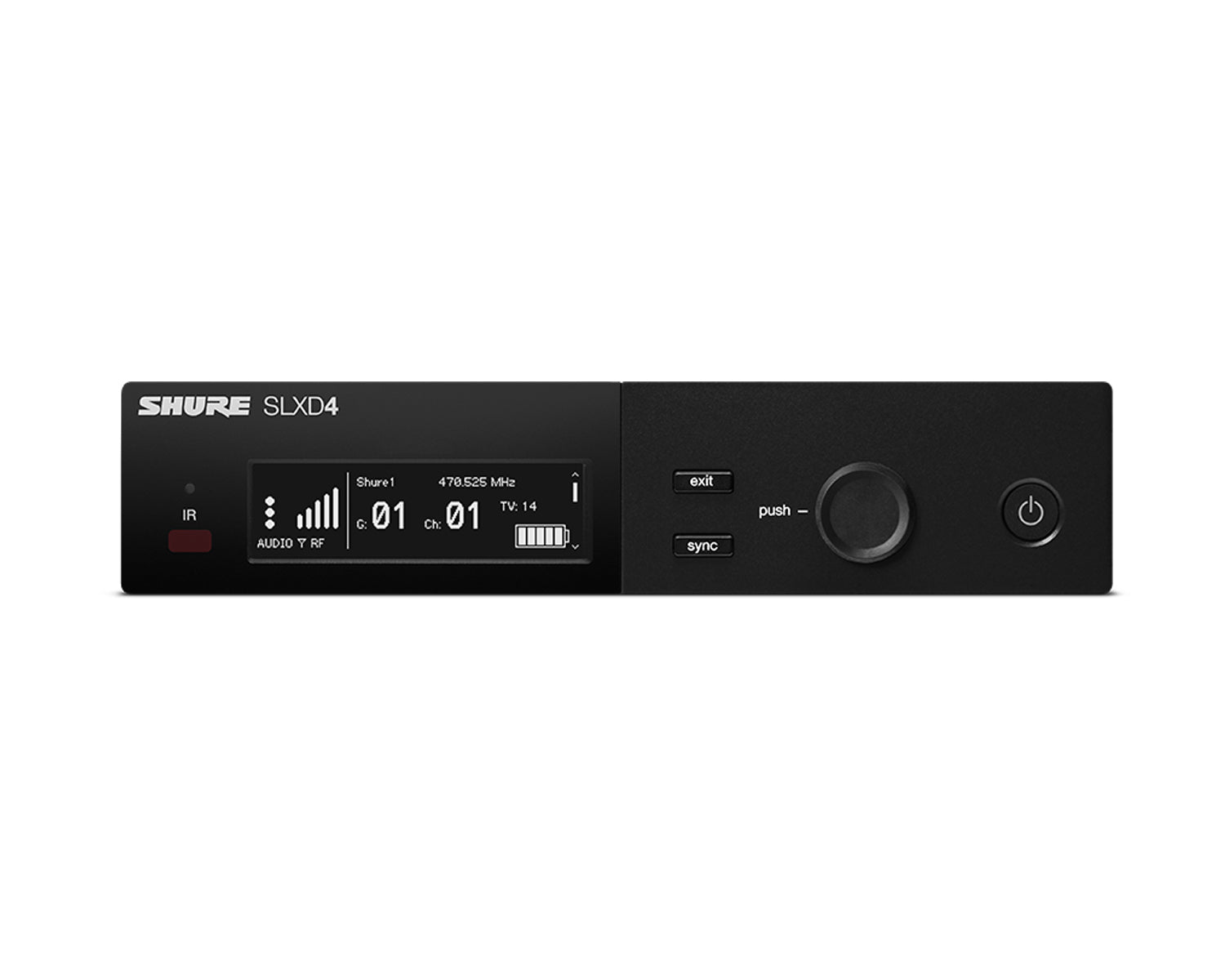

| Receiver | Single-channel half-rack |
| Transmitter power | 2 x AA or Shure SB903 Li-ion rechargeable |
| Battery life | Up to 8 hours (2 x AA); over 8 hours (SB903, fully charged) |
| In the box | SLXD4 receiver, SLXD2 handheld transmitter with Beta 58A cartridge, microphone clip, power supply, 2 x 1/4-wave antennas, 2 x 1.5 V AA batteries, rack mounting hardware |
