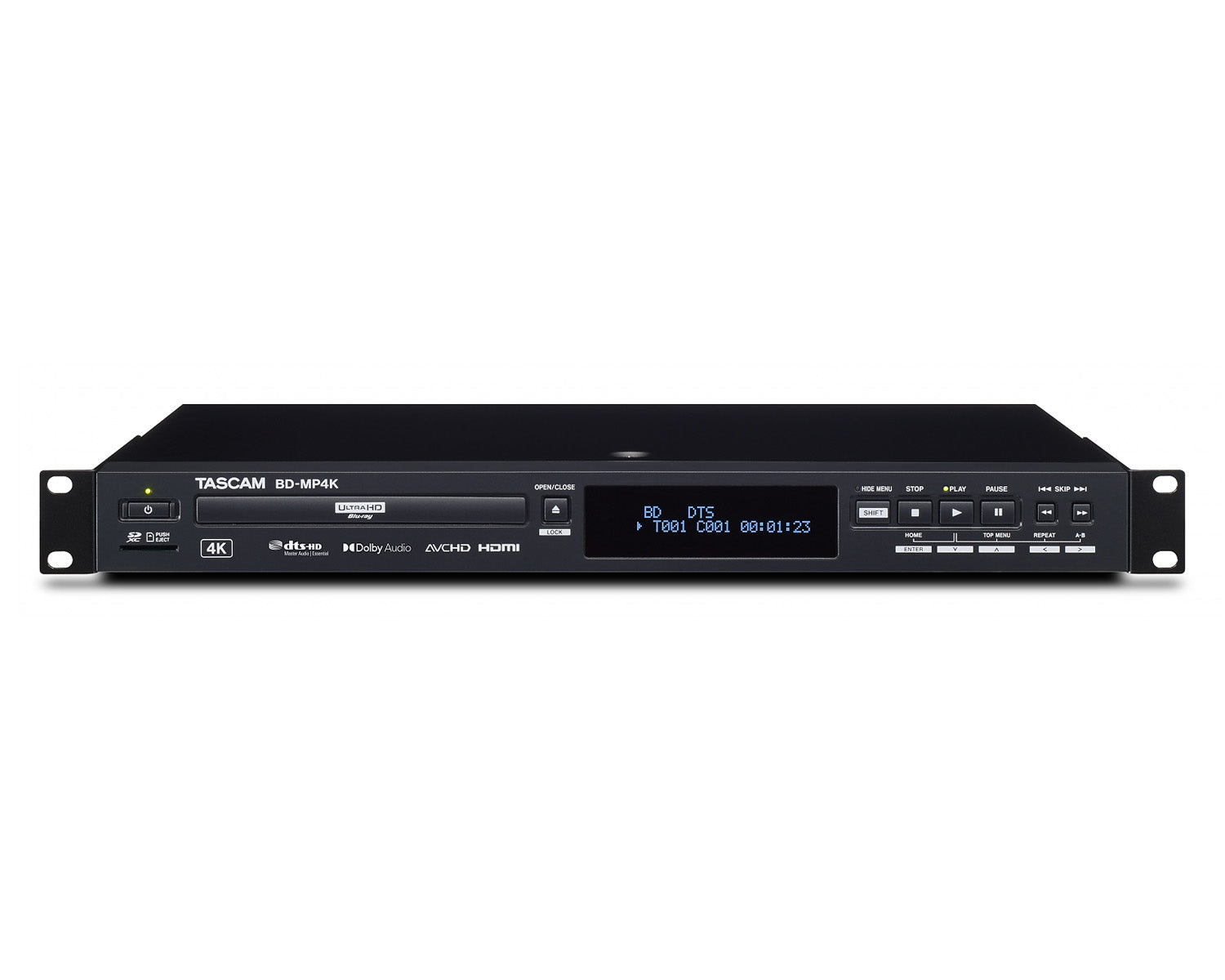

Tascam BD-MP4K Professional 4K UHD Blu-ray Player 1U-7.1 Surround, RS-232C & Gigabit Ethernet

Product code: 179546

£720.00 inc VAT
£600.00 ex VAT

SKU: BD-MP4K

21 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

A 4K UHD Blu-ray player in a single rackspace, built for commercial installation where image quality and remote control both matter. It plays from discs, USB, SD cards and Samba network shares over Gigabit Ethernet, so a single unit covers what would otherwise need separate playback devices in the rack. Audio output is unusually complete for a disc player, discrete 7.1, balanced XLR stereo, RCA and coaxial digital.

4K UHD
Video resolution

1U
Rack height

7.1
Surround outputs

RS-232C + IP
Control

One box instead of threeBecause it reads Blu-ray, DVD and CD discs plus USB flash, SD cards and Samba shares on a NAS, the BD-MP4K usually replaces a separate disc player and file player in an install rack. Worth confirming your file formats against the manual before committing on a fixed spec.

Features

4K UHD Blu-ray playback
Single rackspace (1U) chassis
Playback from Blu-ray, DVD and CD discs
Playback from USB flash devices and SD cards
Samba network share playback over Gigabit Ethernet
RS-232C two-way control with status feedback
IP network control over Gigabit Ethernet
Two HDMI outputs, HDMI 2.0 and 1.4 (audio only)
Discrete 7.1 surround analogue outputs
Balanced stereo XLR analogue outputs
Unbalanced stereo RCA outputs
Coaxial digital output for Dolby, DTS and linear PCM
Separate lock functions for panel, tray and IR remote
Full front-panel operation of playback functions

Specifications

Tascam BD-MP4K Professional 4K UHD Blu-ray Player 1U-7.1 Surround, RS-232C & Gigabit Ethernet specifications
Type Professional 4K UHD Blu-ray / multimedia player
Rack height 1U
Video resolution 4K UHD
Disc formats Blu-ray, DVD, CD
Other media USB flash devices, SD cards, Samba network shares
Video outputs 2 x HDMI (HDMI 2.0 and 1.4 audio only)
Analogue audio outputs 7.1 surround discrete, balanced stereo XLR, unbalanced stereo RCA
Digital audio output Coaxial (SPDIF), Dolby, DTS, 2-channel linear PCM
Network Gigabit Ethernet
Control RS-232C, IP network, IR remote, front panel
Lock functions Panel, disc tray and IR remote, independently

Full features

  • Single-rackspace 4K/UHD Blu-ray, DVD, CD and solid-state player
  • Controllable via Ethernet network, RS-232C or wireless remote control
  • Plays video and audio material stored on following media:
    • 4K/UHD BD, BD25, BD50, BD-ROM, BD-R, BD-RE
    • DVD-ROM, DVD+R, DVD-R, DVD+RW, DVD-RW
    • CD-DA, CD-R, CD-RW
    • SD cards (up to 512 GB)
    • USB flash media (up to 2 TB)
  • Supports exFAT file format and playback of various formats of video, image and audio from SD cards and USB flash memory
  • Can access a Samba share on the network to play files located on an external server
  • Comprehensive menu with many detailed setting options for image and sound
  • Power-on playback with the following disc media: 4K/UHD BD, BD, DVD, CD-DA
  • Seamless repeat by chapter, title or marked section (A–B)
  • Last memory function allows to resume playback of disc media
  • Several lock functions (panel lock, IR remote lock, tray lock)
  • On-screen menu can be hidden
  • Many outputs available (can all be used simultaneously)
    • HDMI 2.0 audio/video output, HDMI 1.4 audio output
    • Separate 7.1 surround sound outputs (RCA)
    • XLR balanced and RCA unbalanced stereo outputs
    • SPDIF/Dolby/DTS digital output (coaxial)
  • Up to 40 dB attenuation for audio outputs
  • USB 3.0 port for high-speed data transfer
  • Built-in power supply with IEC socket and removable mains cable
  • Rugged metal enclosure
  • 1U rack-mount size

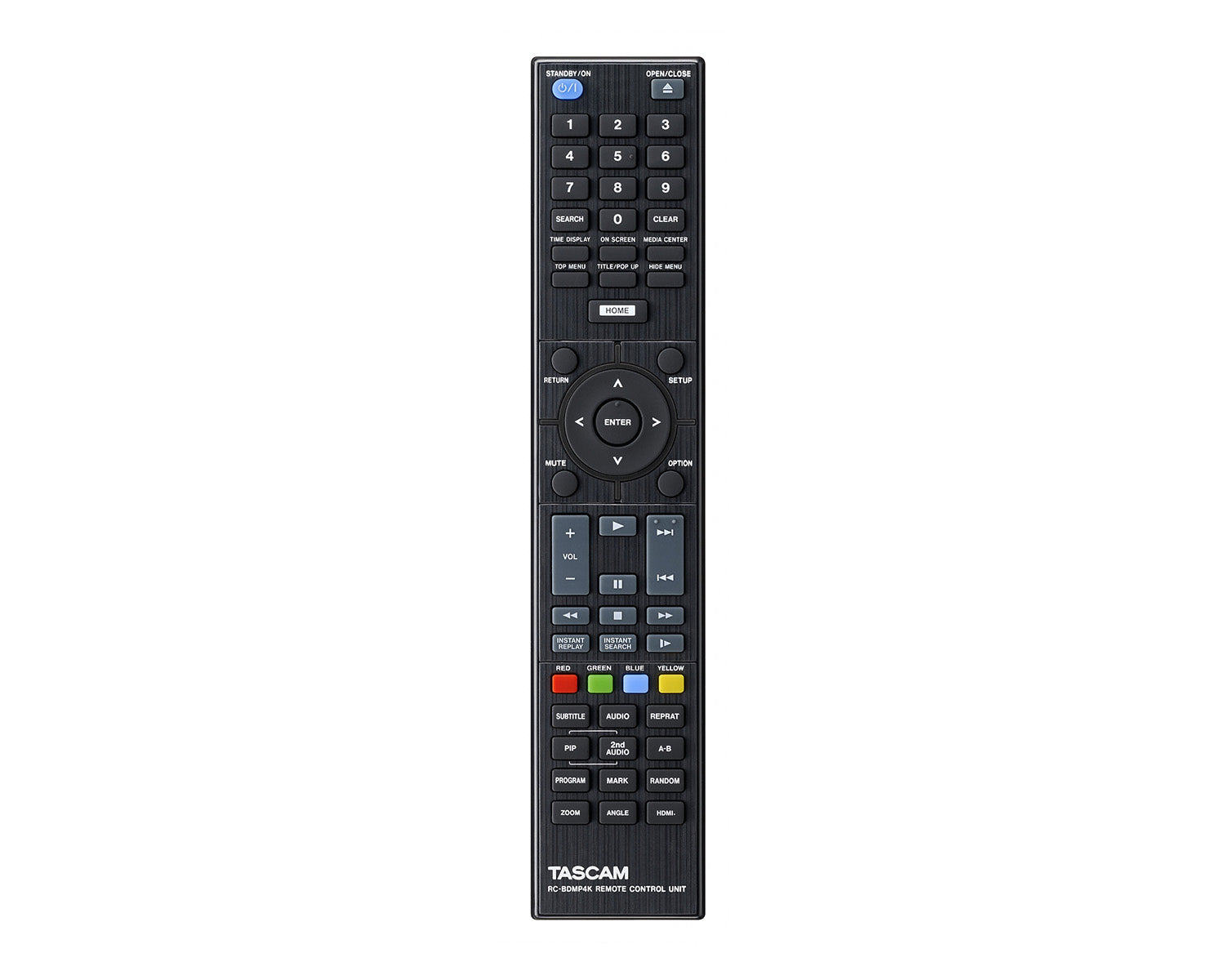

  • Included: Infrared remote control (RC-BDMP4K), mains cable, 3p-2p conversion adapter, rack-mounting kit, owner’s manual

Full specifications

Media

  • Blu-ray: 4K/UHD BD, BD25, BD50, BD-ROM, BD-R, BD-RE
    • Disc formats: BDMV, BDAV
  • DVD: DVD-ROM, DVD+R, DVD-R, DVD+RW, DVD-RW
    • Disc formats: DVD-Video, DVD-VR, AVCHD
  • CD: CD-DA, CD-R, CD-RW
  • SD: SD card with up to 512 GB total capacity
    • Supported file systems: FAT16, FAT32, exFAT, NTFS
  • USB: USB flash drive (mass storage class) with up to 2 TB total capacity
    • Supported file systems: FAT16, FAT32, exFAT, NTFS

Supported file formats

  • Video: 3GP, ASF, AVI, DAT, M2TS, MKV, WMV, MOV, MP4, MPG, OGM, TP, TS
  • Audio: AAC, APE, FLAC, MP3, WAV, WMA
  • Still image: JPEG, GIF, PNG

Audio resolution

  • BD/DVD/USB/SD
    • Sampling frequency:
    • 44.1/48/64/88.2/96/176.4/192 kHz
    • Bit width: 16/24 bit
  • CD
    • Sampling frequency: 44.1/48 kHz
    • Bit width: 16/24 bit
  • MP3/WMA
    • Sampling frequency: 32/44.1/48 kHz
    • Bit width: 16/24 bit
    • MP3 bit rate: 112–320 kbit/s
    • WMA bit rate: 48–192 kbit/s (WMA v9 only, DRM not supported)

Video

  • Resolutions: Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p*
    • *Monitor and cable must support this resolution
  • Aspect ratios: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
  • Colour systems: NTSC, PAL, Multi (if supported by TV)
  • HDMI colour space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)

Analogue audio outputs

  • Balanced: XLR-3-32 (1: GND, 2: HOT, 3: COLD)
    • Nominal output level: +4 dBu (1.23 Vrms)
    • Maximum output level: +20 dBu (7.75 Vrms)
    • Output impedance: 200 Ω
  • Unbalanced: RCA pin jacks
    • Nominal output level: –10 dBV (0.316 Vrms)
    • Maximum output level: +6 dBV (2.0 Vrms)
    • Output impedance: 200 Ω
  • 7.1: 8 × RCA pin jacks
    • Nominal output level: –10 dBV (0.316 Vrms)
    • Maximum output level: +6 dBV (2.0 Vrms)
    • Output impedance: 200 Ω

Audio performance

  • Frequency response: 20 Hz – 20 kHz, ±0.5 dB
  • Signal-to-noise ratio: > 96 dB (JEITA)
  • Total harmonic distortion: < 0.03 % (1 kHZ, JEITA)
  • Dynamic range: > 96 dB (JEITA)
  • Channel separation: > 89 dB

Digital outputs

  • HDMI output (VIDEO/AUDIO): 19-pin HDMI, Type A, Version 2.0
  • HDMI output (AUDIO ONLY): 19-pin HDMI, Type A, Version 1.4
  • Coaxial audio output: RCA pin jack
    • Format: IEC 60958-3 (SPDIF)
    • Output impedance: 75 Ω

Other inputs and outputs

  • RS-232C: D-sub 9-pin
    • Mode: Full duplex
    • Baud rate: 9600, 38400 bits/s (selectable)
  • Ethernet: RJ45
    • Compatible standards: 10BASE-T, 100BASE-TX, 1000BASE-T
    • Supported protocols
      • SMB/CIFS for network storage
      • TCP/IP for control using a dedicated protocol
    • Supported Samba version: 3.0.37
  • USB: USB A-type (1 × rear)
    • Protocol: USB 3.0 compliant
    • Rated supply voltage: DC 5 V, 1 A

Power supply and other specifications

  • Power connector: IEC receptacle
  • Power requirements: AC 100–240 V, 50/60 Hz
  • Power consumption
    • 30 W (typical)
    • < 0.5 W (standby)
  • Dimensions (W × H × D): 483 mm × 44 mm × 281 mm
  • Weight: 2.8 kg
  • Permissible operating temperature: 5–35 °C
  • Permissible operating humidity: 25–85 %, no condensation
  • Included accessories: IR remote control (RC-BDMP4K), AC power cable, 3-pin to 2 -pin adapter, rack-mounting kit (4 screws, 4 washers), Owner’s manual
