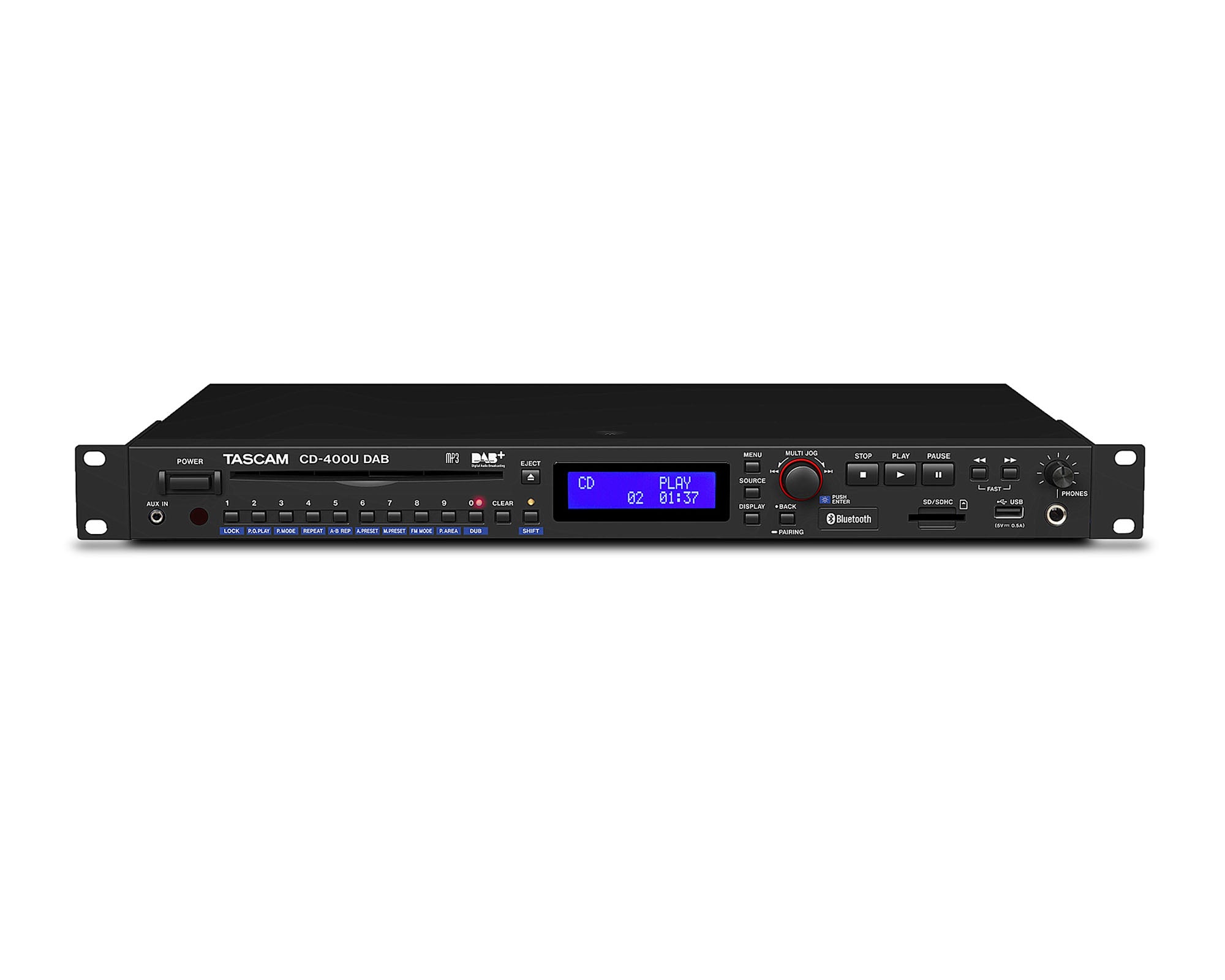

Tascam CD-400UDAB Media Player 1U - CD, USB, SD, Bluetooth & DAB+/FM Tuner

Product code: 179574

£573.00 inc VAT
£477.50 ex VAT

SKU: CD-400UDAB

8 in stock (more available subject to additional lead time)

8 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

An all-in-one 1U media player covering practically every source a commercial venue is likely to need: CD, USB, SD card, Bluetooth, a front AUX input and a DAB+/FM tuner with 20 presets each. The tuner has its own separate output, so one unit can feed two rooms with different material at the same time. Balanced XLR outputs make it suitable for fixed installs where the run back to the amplifier is long.

1U
Rack height

6
Source types

DAB+ / FM
Tuner with 20 presets

XLR + RCA
Outputs

Two rooms from one rack unitBecause the FM/DAB+ tuner has an independent output, the CD-400UDAB can send radio to one zone while a CD, USB stick or Bluetooth device plays to another, useful in a pub with a separate function room, or a store with a back-of-house area, without buying a second player.

Features

Plays audio CDs and data CDs
Playback from USB memory devices and SD/SDHC cards
WAV, MP3, AAC and WMA file support
Bluetooth playback from phones, tablets and players
One-button pairing after first connection
DAB+/FM tuner with 20 presets each
Independent tuner output for a second zone
Front-panel stereo mini AUX input
Dubbing from CD or tuner to USB or SD card
Incremental play for presentation use
Continuous, single and random playback modes with repeat
Balanced XLR and unbalanced RCA outputs
RS-232C serial remote control
Telnet network control via the optional IF-E100 card
RC-CD400 wireless remote included

Specifications

Tascam CD-400UDAB Media Player 1U – CD, USB, SD, Bluetooth & DAB+/FM Tuner specifications
Type Rack-mount multi-source media player
Rack height 1U
Disc playback Audio CD, data CD
Other media USB memory, SD / SDHC card
File formats WAV, MP3, AAC, WMA
Wireless Bluetooth
Tuner FM and DAB+, 20 presets each, independent output
Front input Stereo mini jack AUX in
Analogue outputs Balanced XLR, unbalanced RCA
Dubbing CD or tuner to USB memory or SD card
Control RS-232C, IR remote; Telnet with optional IF-E100
Supplied with RC-CD400 wireless remote control

Full features

  • Ultra-compact, rack-mountable media player with DAB+/FM tuner and Bluetooth receiver
  • Multiple playback sources:
    • Audio CD playback
    • MP3 and WMA file playback from CD
    • Audio file playback from SD and USB memory (MP3, AAC, WAV, WMA)
    • DAB+/FM radio playback (can be output from the main or separate output connectors)
    • Playback via Bluetooth connection with a smartphone or computer
    • Playback from other audio sources via AUX IN connector
  • CD standards supported: CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
  • Slot-loading CD drive mechanism
  • Numeric keys for direct track selection
  • Playback modes include Continuous, Single, Random
  • Repeat playback (All, Single, A–B)
  • Incremental play (skip to each next track by pressing the PLAY button; available for CD, USB, SD)
  • Resume function (start playback from the track where the unit was last stopped)
  • Folder playback with SD and USB memory
  • Dubbing from CD or tuner to SD or USB memory (MP3 format)
  • Time display (track elapsed / track remain / total elapsed / total remain)
  • Power-on play (timer function)
  • Lock function to avoid accidental operation
  • Anti-shock memory
  • XLR balanced analogue output (main)
  • RCA unbalanced analogue output (main)
  • RCA unbalanced analogue output (tuner)
  • Remote control via RS-232C serial connector (D-sub 9-pin)
  • Optional Ethernet interface card (IF-E100) available for external control over a network (Telnet protocol)
  • Headphones output with dedicated volume control
  • Backlit LC display
  • Wireless remote control included
  • Included accessory: Removable mains power cable, RC-CD400 wireless remote control, rack-mounting screw kit, FM antenna, owner’s manual with warranty

Full specifications

General

  • Supported media
    • USB memory: 512 MB – 64 GB
    • SD card: 512 MB – 2 GB
    • SDHC card: 4–32 GB
    • CD: CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
  • Supported file systems: FAT16, FAT32
  • Supported file formats:
    • CD-DA: 44.1 kHz, 16 bit
    • MP3: 44.1 / 48 kHz, 32–320 kbit/s and VBR (MPEG1/2 Audio Layer 3)
    • WAV (USB/SD only): 44.1/48 kHz, 16 bit
    • WMA: 44.1/48 kHz, 32–320 kbit/s and VBR (WMA v9 standard, DRM not supported)
    • AAC (USB/SD only): 44.1/48 kHz, 8–320 kbit/s and VBR (MPEG4 AAC-LC audio stream)
  • Number of audio channels: 2 channels (stereo), 1 channel (mono)
  • Recording file format: MP3 (44.1 kHz, 96/128/192/320 kbit/s)

Bluetooth receiver

  • Bluetooth version: v4.2
  • Output class: Class 2
  • Supported profiles: A2DP, AVRCP
  • Supported A2DP codecs: SBC, AAC, aptX
  • Supported A2DP content protection: SCMS-T

Tuner

  • Frequency range: FM: 87.5–108 MHz
  • DAB: Band III, 174–240 MHz
  • Antenna connector: F-type (female), 50 Ω, unbalanced

Analogue audio inputs and outputs

  • AUX analogue audio input (unbalanced): 3.5-mm TRS mini-jack
    • Nominal input level: –20 dBV (0.1 Vrms)
    • Maximum input level: –4 dBV (0.63 Vrms)
    • Input impedence: ≥10 kΩ
  • Main analogue audio outputs (balanced): XLR-3-32 (1: GND, 2: HOT, 3: COLD)
    • Nominal output level: +4 dBu (1.23 Vrms, Output Attenuation: 0 dB)
    • Maximum output level: +20 dBu (7.75 Vrms, Output Attenuation: 0 dB)
    • Output impedance: 100 Ω
  • Main analogue audio outputs (unbalanced): RCA
    • Nominal output level: –10 dBV (0.316 Vrms, Output Attenuation: 0 dB)
    • Maximum output level: +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)
    • Output impedance: 200 Ω
  • Tuner analogue audio outputs (unbalanced): RCA
  • Nominal output level: –10 dBV (0.316 Vrms, Output Attenuation: 0 dB)
    • Maximum output level: +6 dBV (2.0 Vrms, Output Attenuation: 0 dB)
    • Output impedance: 200 Ω
  • Headphones output: 6.3 mm stereo jack
    • Maximum output power: ≥20 mW + 20 mW (THD+N ≤0.1 %, 32 Ω load)

Control I/O

  • RS-232C: D-sub 9 pin

Audio performance

  • Frequency response: 20 Hz – 20 kHz, ±1 dB (Fs: 44.1 kHz, 48 kHz, JEITA)
  • Total harmonic distortion: ≤0.005 % (JEITA)
  • S/N ratio: ≥95 dB (JEITA)
  • Dynamic range: ≥90 dB (JEITA)
  • Channel crosstalk: ≥90 dB (JEITA)

Power supply and other specifications

  • Mains power: AC 100–240 V, 50/60 Hz
  • Power consumption: 20 W
  • Overall dimensions (W × H × D): 483 mm × 47 mm × 296 mm
  • Weight: 3.3 kg
  • Operating temperature range: 5–35 °C
  • Included accessories: Removable mains power cord, wireless remote control (RC-CD400), rack-mounting screw kit, FM antenna, owner’s manual/warranty
  • Optional accessory: IF-E100 Ethernet option card, allows the unit to be controlled over a network (Telnet protocol)
