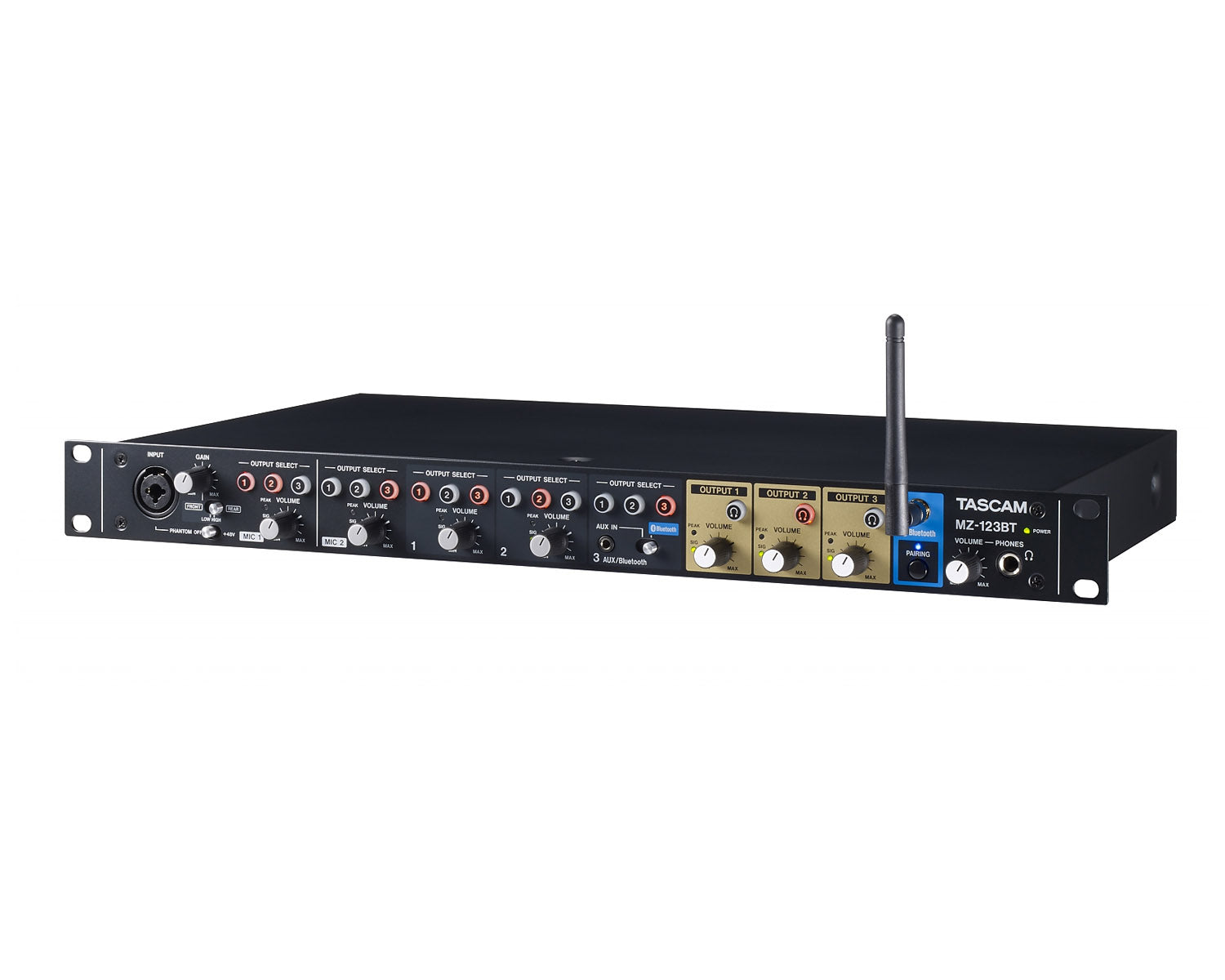

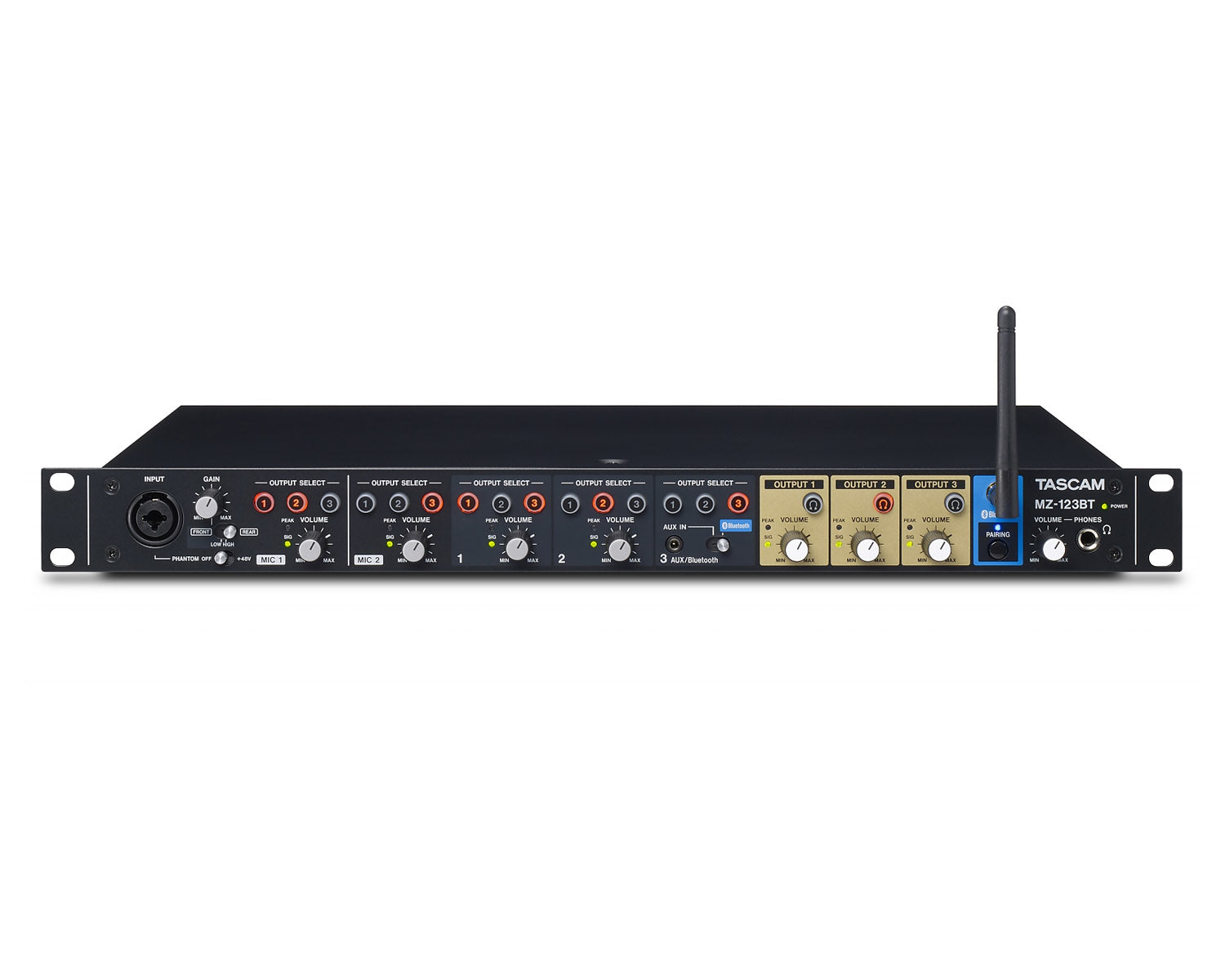

Tascam MZ-123BT 3-Zone Install Mixer 1U - Bluetooth, 2 Mic Inputs & Auto Ducking

Product code: 179566

£450.00 inc VAT
£375.00 ex VAT

SKU: MZ-123BT

11 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

A compact 1U three-zone mixer for commercial installation, retail, bars, restaurants, hotels and anywhere that needs independent music routing plus paging. It takes up to three channels of music and two mic inputs, and automatically attenuates the background music when an announcement is made so speech stays intelligible. The layout is deliberately simple for staff who are not audio operators.

1U
Rack height

3
Output zones

2
Mic inputs

Bluetooth
Music source

Ducking is what makes paging workTurning the music down by hand before an announcement never happens reliably in a busy venue. The MZ-123BT drops the background music automatically when the mic is used and restores it afterwards, which is the difference between an announcement that gets heard and one that competes with the music.

Features

Three independent output zones
Compact 1U rack-mount chassis
Bluetooth music input
Two versatile microphone inputs
Automatic background music attenuation during announcements
Versatile routing, mixing and distribution
Simple, intuitive layout for non-technical operators
Designed for retail, hospitality and commercial install

Specifications

Tascam MZ-123BT 3-Zone Install Mixer 1U – Bluetooth, 2 Mic Inputs & Auto Ducking specifications
Type Multi-zone install mixer
Rack height 1U
Output zones 3
Music channels Up to 3
Microphone inputs 2
Wireless input Bluetooth
Ducking Automatic attenuation of background music for announcements
Typical applications Retail, restaurants, bars, cafes, hotels

Full features

  • Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
  • Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
  • Bluetooth antenna installed on the front panel ensures a stable wireless connection within the specified range
  • Three stereo line inputs
  • Two RCA unbalanced line inputs on rear panel
  • Bluetooth/Aux input on front panel
  • Gain controls on rear panel
  • Two mic inputs for announcements or moderation

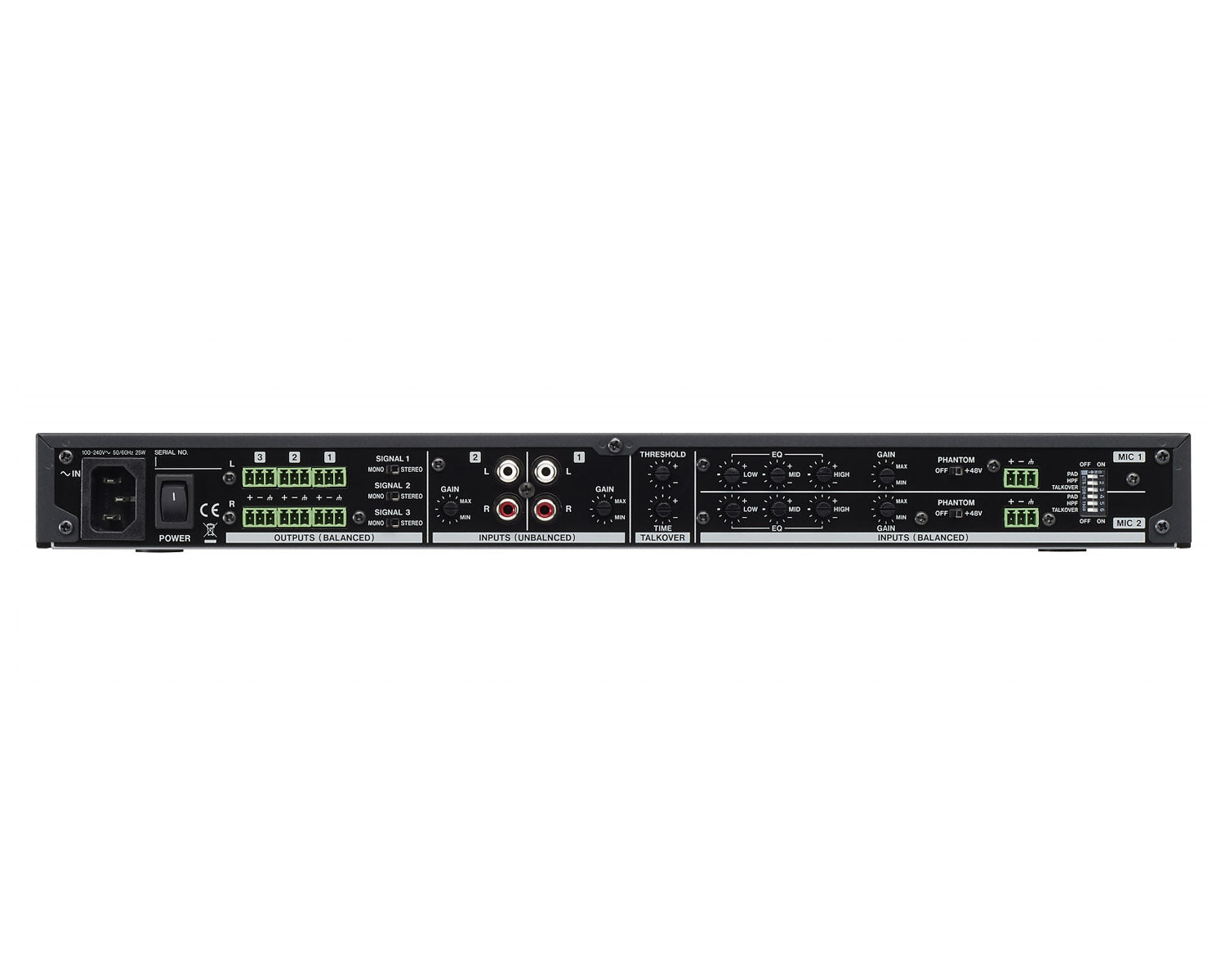

  • Connection via Euroblock connectors on the rear panel
  • Mic 1 can also be connected via the front-panel XLR/TRS combo connector (input level switchable HIGH/LOW)
  • Talkover function automatically lowers background music volume according to mic volume (with rear-panel controls for threshold, time and on/off)
  • PAD, high-pass filter and 48-volt phantom power on each mic input (switchable on/off on the rear panel)
  • Rear-panel controls for gain and three-band EQ
  • Level controls and zone selection buttons on each mic and stereo line input
  • Signal and peak indicators on each mic and stereo line input
  • Three zone outputs with level controls, signal and peak indicators and monitor selection buttons
  • Headphones output with level control for monitoring the zone outputs
  • Compact 1U rackmount size

Full specifications

Analogue audio inputs

  • Connector, front panel:

    • XLR/TRS combo connector
    • XLR-3-31 (1: GND, 2: HOT, 3: COLD)
    • 6.3-mm TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
  • Connector, rear panel: 2 × Euroblock
  • Input impedance: 2.4 kΩ
  • Nominal input level:

    • –26 dBu (front connector set to HIGH or rear connector PAD OFF)
    • –2 dBu (front connector set to LOW or rear connector PAD ON)
  • Maximum input level:

    • –10 dBu (front connector set to HIGH or rear connector PAD OFF)
    • +14 dBu (front connector set to LOW or rear connector PAD ON)
  • Minimum input level:

    • –65 dBu (front connector set to HIGH or rear connector PAD OFF)
    • –41 dBu (front connector set to LOW or rear connector PAD ON)
  • Line inputs (unbalanced): RCA pin jacks
  • Nominal input level: –10 dBV
  • Maximum input level: +6 dBV
  • Input impedance: ≥10 kΩ
  • Aux inputs (unbalanced): 3.5-mm stereo mini jack
  • Nominal input level: –20 dBV
  • Maximum input level: –4 dBV
  • Input impedance: ≥10 kΩ

Analogue audio outputs

  • Outputs 1–3 (balanced): 3 × Euroblock
  • Nominal output level: +4 dBu (volume knob set to 0 dB)
  • Maximum output level: +24 dBu
  • Output impedance: 200 Ω
  • Headphones output: 6.3-mm stereo jack
  • Maximum output power: 80 mW + 80 mW (THD+N ≤0.1 %, 32 Ω load)

Audio performance

  • Equivalent input noise (EIN):

    • ≤–125 dB(A)
    • (mic input to line output, 150 Ω, 20-kHz LPF)
  • Mic input to line output:

    • 20 Hz – 20 kHz, +0.5 dB / –1 dB
    • (GAIN at min., VOLUME at 0 dB, JEITA)
  • Line input to line output:

    • 20 Hz – 20 kHz, ±0.5 dB
    • (GAIN at min., VOLUME at 0 dB, JEITA)
  • Mic input (front) to line output: ≤0.02 %
  • Mic input (rear) to line output: ≤0.01 %
  • Line input to line output: ≤0.01 %
  • S/N ratio: ≥90 dB
  • Crosstalk attenuation: ≥80 dB

Bluetooth

  • Bluetooth version: 4.2
  • Output class: Class 2
  • Supported profile: A2DP
  • Supported A2DP codecs: SBC, AAC, aptX™
  • A2DP content protection: SCMS-T
  • Antenna: RP-SMA (female)

Power supply and other specifications

  • Power supply: AC 100–240 V, 50/60 Hz
  • Power consumption: 25 W
  • Overall dimensions (width × height × depth): 483 mm × 47 mm × 275 mm
  • Weight: 3.0 kg
  • Permissible operating temperature: 0–40 °C
