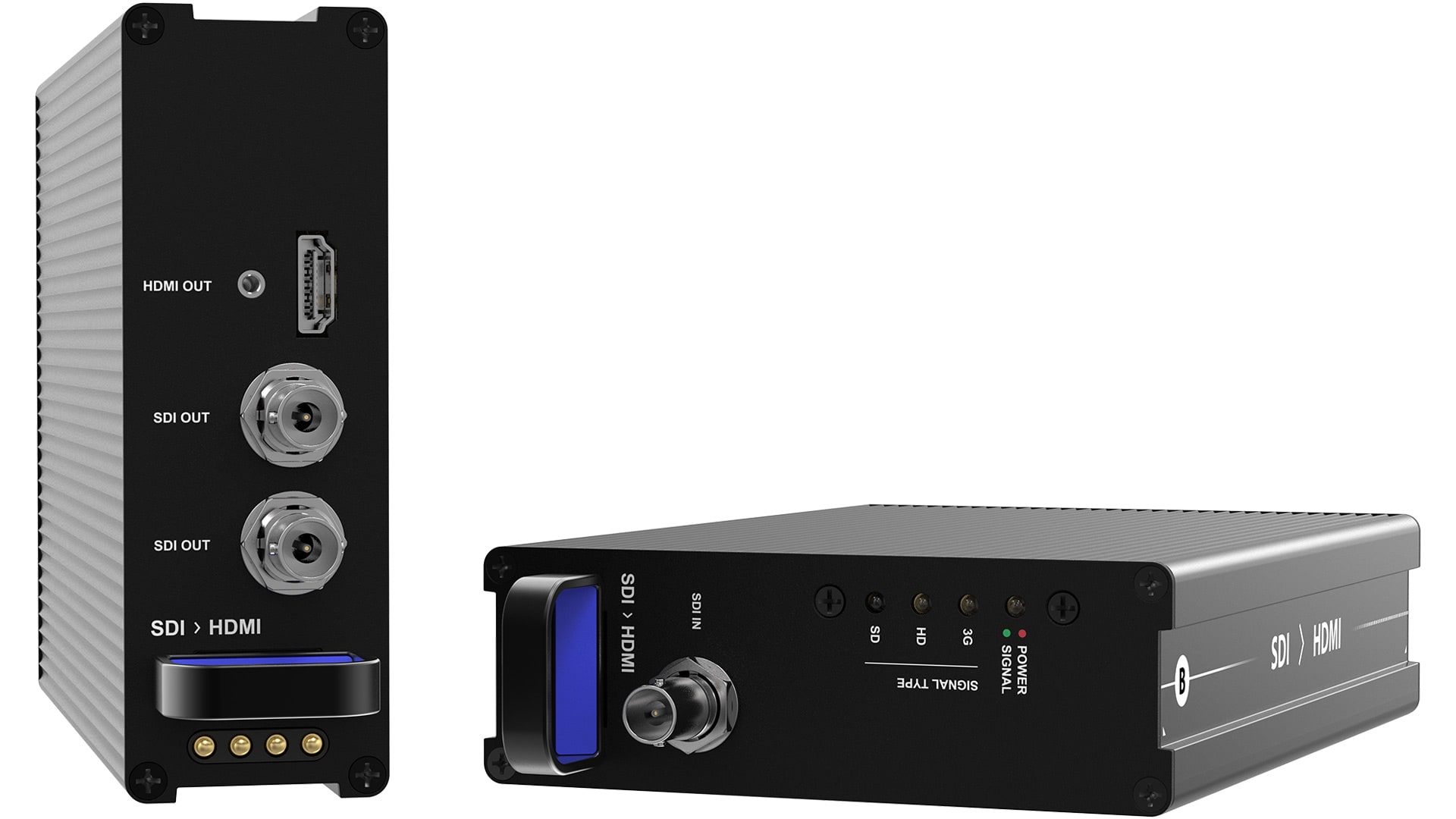

A hot-swappable conversion module that takes 3G-SDI input and delivers HDMI 1.2 output plus two SDI outputs, the Theatrixx xVision Reversible SDI to HDMI module bridges professional SDI infrastructure to HDMI displays, monitors, and projectors. Slides into any xVision Reversible frame from either direction – no tools, no power bricks, no fuss.
3G-SDI
Input · BNC connector
HDMI 1.2
Output · Type A connector
1080p60
Max Resolution · Full HD
Single
Module Size · Standard slot
Features
Converts 3G-SDI input to HDMI 1.2 output up to 1080p60, plus 2x SDI outputs
Reversible design – insert from front or rear of frame
Hot-swappable – no need to power down the frame
Fully enclosed module – no exposed PCBs, protected against static and dust
Gold-plated redundant spring pins with magnetic retention
Embedded audio pass-through from SDI to HDMI
No external power supplies or additional cabling needed
NoteRequires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMSDI2HDMI |
| Input | 3G-SDI (BNC) |
| Output | 1x HDMI 1.2 (locking Type A) + 2x 3G-SDI (BNC) |
| Maximum Resolution | 1920 x 1080p @ 60Hz |
| SDI Standard | SD / HD / 3G-SDI |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
