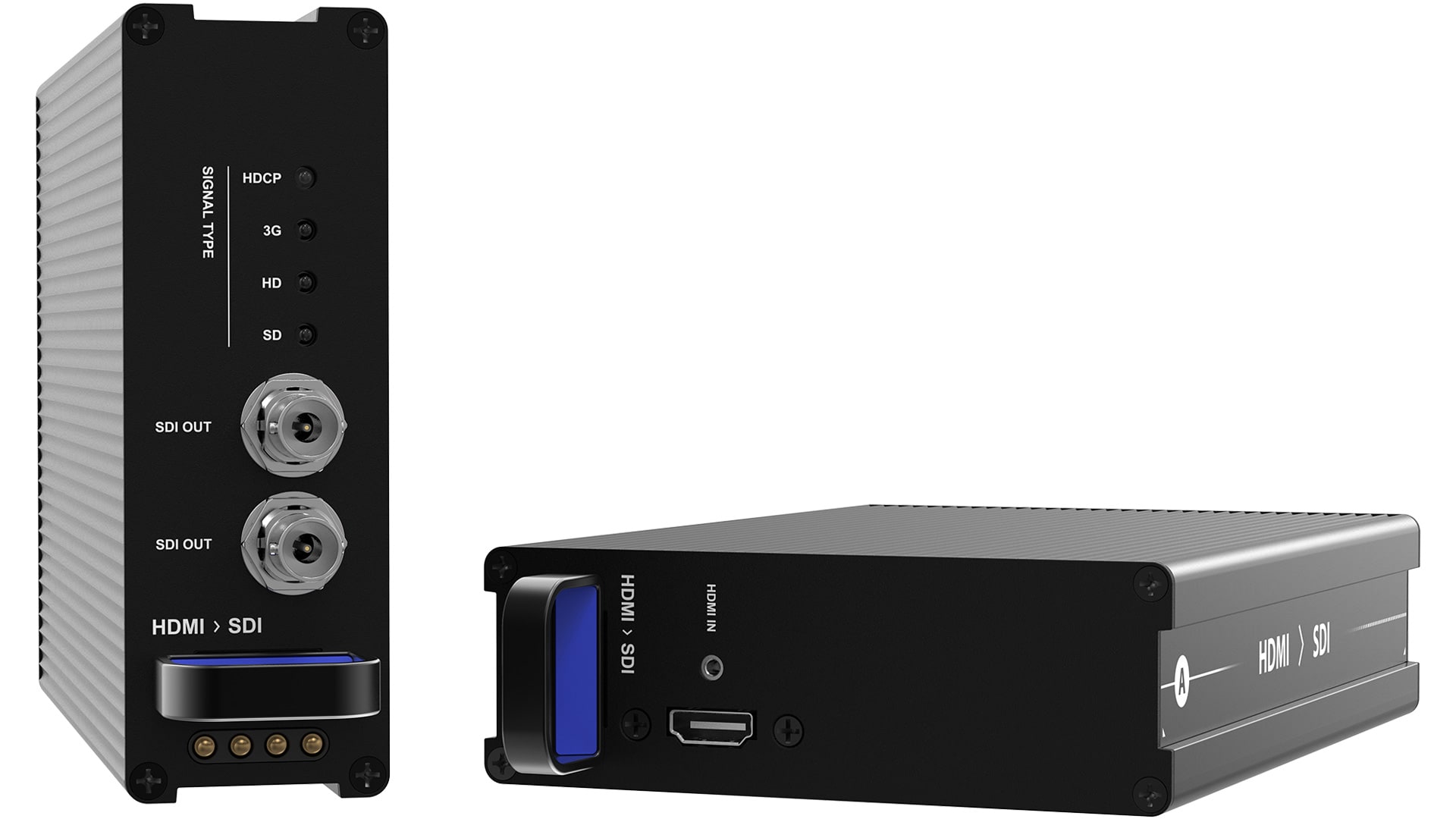

The Theatrixx xVision Reversible HD HDMI1.2 to 3G-SDI module converts HDMI signals up to 1080p60 into 3G-SDI output, making it ideal for integrating consumer-format sources into professional SDI workflows. As a hot-swappable module for the xVision Reversible frames, it slots in from either end with no tools, no cabling, and no external power required.
HDMI 1.2
Input · Up to 1080p60
3G-SDI
Output · BNC connector
1080p60
Max Resolution · Full HD
Single
Module Size · Standard slot
Features
Converts HDMI 1.2 input to 3G-SDI output up to 1080p60
Reversible design – insert from front or rear of frame
Hot-swappable – swap modules without powering down the frame
Fully enclosed housing protects against static, dust, and wear
Gold-plated redundant spring pins with magnetic retention for DC power
No external power supplies or additional cabling required
Embedded audio pass-through from HDMI to SDI
NoteRequires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMHDMI2SDI |
| Input | HDMI 1.2 (Type A connector) |
| Output | 3G-SDI (BNC) |
| Maximum Resolution | 1920 x 1080p @ 60Hz |
| SDI Standard | SD / HD / 3G-SDI |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
