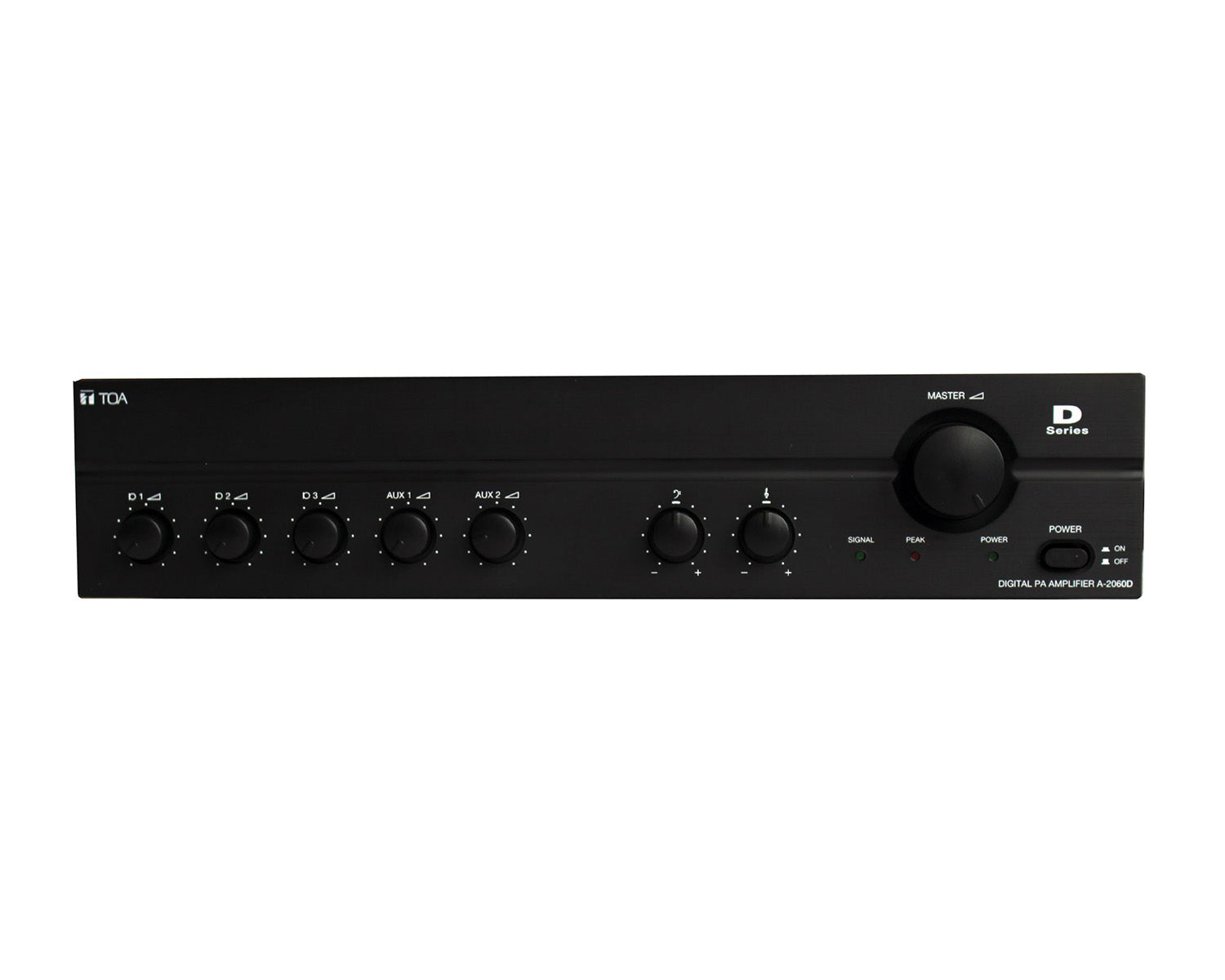

TOA A-2120DD Digital Mixer Amplifier 120W 100V

Product code: 191637

£271.00 inc VAT
£225.83 ex VAT

SKU: A-2120DD

11 in stock (more available subject to additional lead time)

11 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line.

The TOA A-2120DD is a 120W single-channel Class D mixer amplifier for 100V line speaker systems, with three balanced microphone inputs and two AUX inputs. MIC 1 has priority muting, switchable phantom power and a 5-pin DIN socket that suits TOA paging microphones. It is used for paging and background music in schools, offices, shops, factories and churches.

120W
Class D
100V
Line output
3 mic + 2 AUX
Inputs
MIC 1
Priority

Features

120W Class D output to a 100V line
3 balanced microphone inputs: MIC 1 on 5-pin DIN, MIC 2 and 3 on phone jacks
Switchable +21V phantom power on MIC 1
MIC 1 priority: mutes other inputs, triggered by a contact on the DIN socket
2 unbalanced AUX inputs on RCA
Record output on RCA
Bass and treble boost/cut controls
Current limiter and over-temperature protection
Rack mountable with the MB-25B kit (sold separately)

Specifications

TOA A-2120DD Digital Mixer Amplifier 120W 100V specifications
Rated output 120W
Speaker output 100V (83 ohms), balanced floating
Amplifier Class D
Frequency response 50 Hz to 20 kHz (±3 dB)
Distortion <1% (1 kHz, 1/3 rated output)
S/N ratio 60 dB or more
MIC 1 -60 dBV, 600 Ω, balanced, 5-pin DIN, +21V phantom selectable
MIC 2-3 -60 dBV, 600 Ω, balanced, phone jack
AUX 1-2 -20 dBV, 10 kΩ, unbalanced, RCA
Rec out 0 dBV, 600 Ω, unbalanced, RCA
Control input Mute via DIN socket
Power source 220 to 240V AC, 50/60 Hz
Power consumption 34W (1/8 rated output, EN 62368-1)
Finish ABS resin, steel plate, black
Dimensions (W x H x D) 420 x 100.6 x 280.3 mm
Weight 4 kg

Full features

  • 4 versions available: 30 W, 60 W, 120 W or 240 W
  • 3 microphone inputs, 2 AUX input and 1 recording output
  • DD-varieties with 2 phone jacks and 1 5-pin DIN input
  • D-varieties with 3 phone jacks
  • Speaker output of constant voltage distribution system (100 V)
  • Independent tone control of boost and cut type for both high and low frequency
  • MIC 1 with phantom power and mute function
  • Current limiter to prevent damage due to current overload
  • Excess heat limit to protect the transistor and power transformer

Applications

  • Educational facilities
  • Office buildings
  • Retail stores
  • Factories
  • Houses of worship

Full specifications

  • Power source: 220 - 240 V AC, 50 / 60 Hz
  • Rated output: 120 W
  • Frequency response: 50 Hz - 20 kHz (±3 dB)
  • Distortion: < 1 % (at 1 kHz, 1/3 rated output power)
  • Power consumption: 34 W (EN 62368-1: AC operation at 1/8 rated output)
  • Speaker output: 100 V (83 ohm)
  • Amplifier: Class D
  • S/N ratio: 60 dB (or more)
  • Number of channels: 1
  • Connectable microphones: 3
  • Inputs
    • MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, phantom power selectable, + 21V
    • MIC 2-3: -60dBV, 600 Ohm, balanced, phone jack
    • AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack
  • Control input: Mute: via DIN jack
  • Outputs: Speaker: balanced (floating) / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
  • Finish: ABS resin, Steel plate, black
  • Dimensions: 420 x 100.6 x 280.3 mm (W x H x D)
  • Weight: 4 kg
