TOA A-3248DZ Digital Mixer Amplifier 480W 5-Zone

Product code: 191689

£527.00 inc VAT
£439.17 ex VAT

SKU: A-3248DZ

3 in stock (more available subject to additional lead time)

4 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

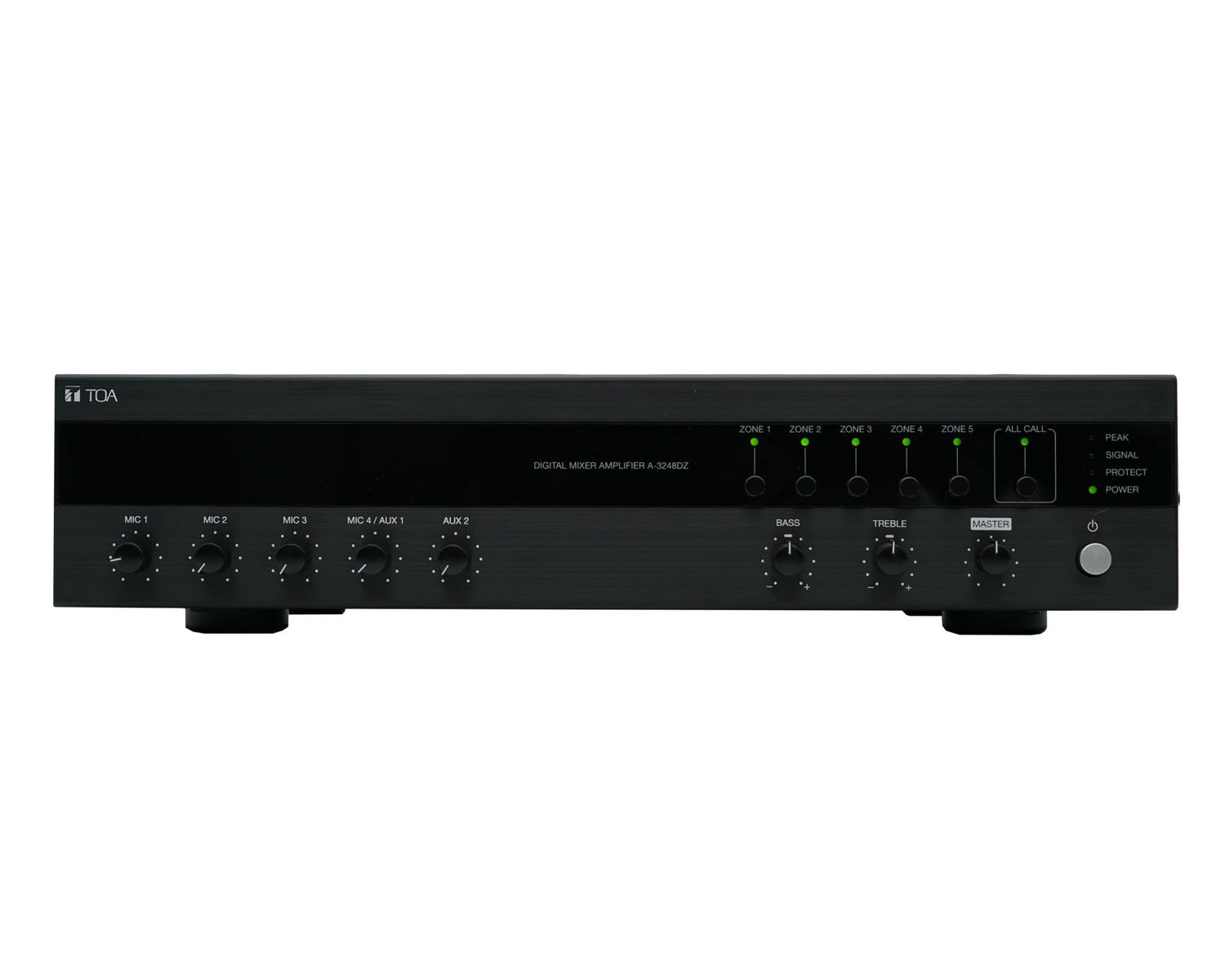

The TOA A-3248DZ is a 480W digital mixer amplifier with a 5-zone speaker selector and a switch for 100V line or 4 ohm speaker output. It has four microphone inputs, two AUX inputs and a priority input, and MIC 1 can be switched to an RJ45 socket to connect a chime paging microphone over CAT5 cable. It is used for paging and background music in retail stores, supermarkets, schools, factories and churches.

480W
Rated output
5 zones
Selector
4 mic + 2 AUX
Inputs
100V / 4Ω
Output

Features

480W rated output
100V line or 4 ohm speaker output, selectable
5-zone selector, any combination of zones at once

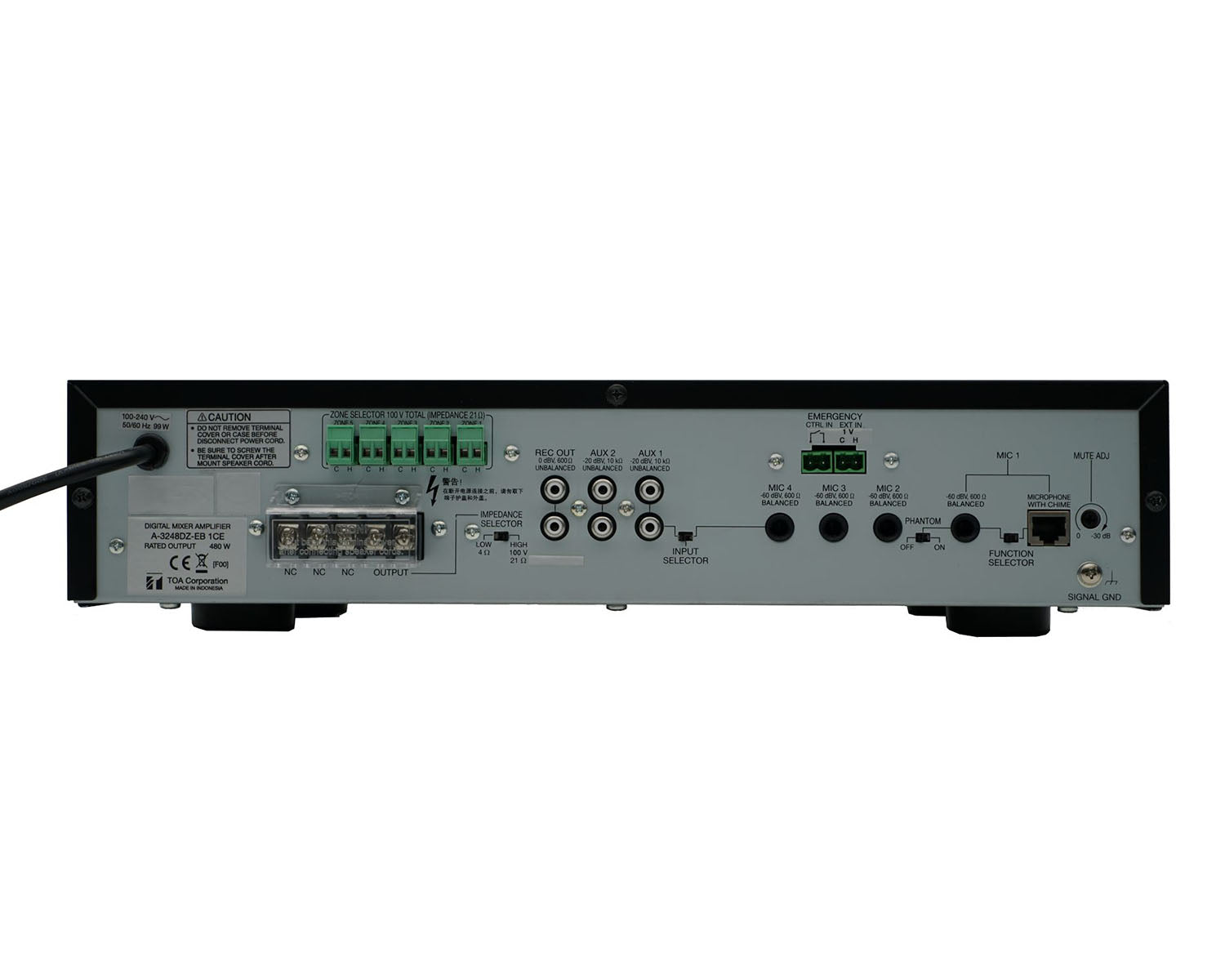

4 balanced mic inputs on phone jacks
MIC 1 switchable to RJ45 for a chime microphone over CAT5
MIC 4 switchable to AUX 1
2 AUX inputs on RCA
Priority input with control contact on removable terminal block
Record output on RCA

Specifications

TOA A-3248DZ Digital Mixer Amplifier 480W 5-Zone specifications
Rated output 480W
Speaker output 100V (21 Ω) or 4 Ω, screw terminals
Zones 5, selectable simultaneously
Frequency response 50 Hz to 20 kHz
S/N ratio 60 dB
MIC 1 -60 dB, 600 Ω, balanced, phone jack, switchable to RJ45
MIC 2-3 -60 dB, 600 Ω, balanced, phone jack
MIC 4 -60 dB, 600 Ω, balanced, phone jack, switchable to AUX 1
AUX 1-2 -20 dB, 10 kΩ, unbalanced, RCA
Priority input 0 dB, 600 Ω, unbalanced, terminal block
Rec out 0 dB, 600 Ω, unbalanced, RCA
Power source 100 to 240V AC, 50/60 Hz
Power consumption 99W (1/8 maximum output)
Operating temperature 0 to +40°C
Finish ABS resin, steel plate, black
Dimensions (W x H x D) 420 x 100.9 x 357 mm
Weight 5 kg

Full features

  • A high-performance digital mixer amplifier
  • Available in 120W, 240W, and 480W to suit any applications
  • High impedance / low impedance selector
  • Zones selector for selecting 5 zones simultaneously
  • 5 inputs, 2 AUX, 1 REC out
  • Ideal for broadcasting, paging and background music

Application Examples

  • Retail stores
  • Supermarkets
  • Houses of worship
  • Educational facilities
  • Factories

Full specifications

General

  • Power source: 100 - 240 V AC, 50 / 60 Hz
  • Rated output: 480 W
  • Frequency response: 50 Hz - 20 kHz
  • Power consumption: 99 W (AC operation at 1/8 maximum output without clip)
  • S/N ratio: 60 dB
  • Number of channels: 5
  • Connectable microphones: 4
  • Inputs
    • MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45
    • MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack
    • MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1
    • AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
    • AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack
    • PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block
  • Control input: Priority Control Input, removable terminal block
  • Outputs
    • Speaker Output : in screw type terminal
    • Direct Line (selectable) : 21 Ω (100V) or 4 Ω
    • Zone Selection : 5 zones simultaneously selectable
    • Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack
  • Operating temperature: 0°C to +40°C (32°F to 104°F)

Physical

  • Finish: ABS resin, Steel plate, black
  • Dimensions: 420 x 100.9 x 357 mm (W x H x D)
  • Weight: 5 kg
