TOA A-3524D Digital Mixer Amplifier 240W 2-Zone 5-Input

• 5 Inputs: 1 Mic, 1 AUX, 3 MIC / AUX (selectable), 2x Phantom power
• 2 Zone speaker selector (high impedance only)
• 2 Line out, 1 Rec out
• 2 Zone control inputs / outputs
• 1 Emergency output

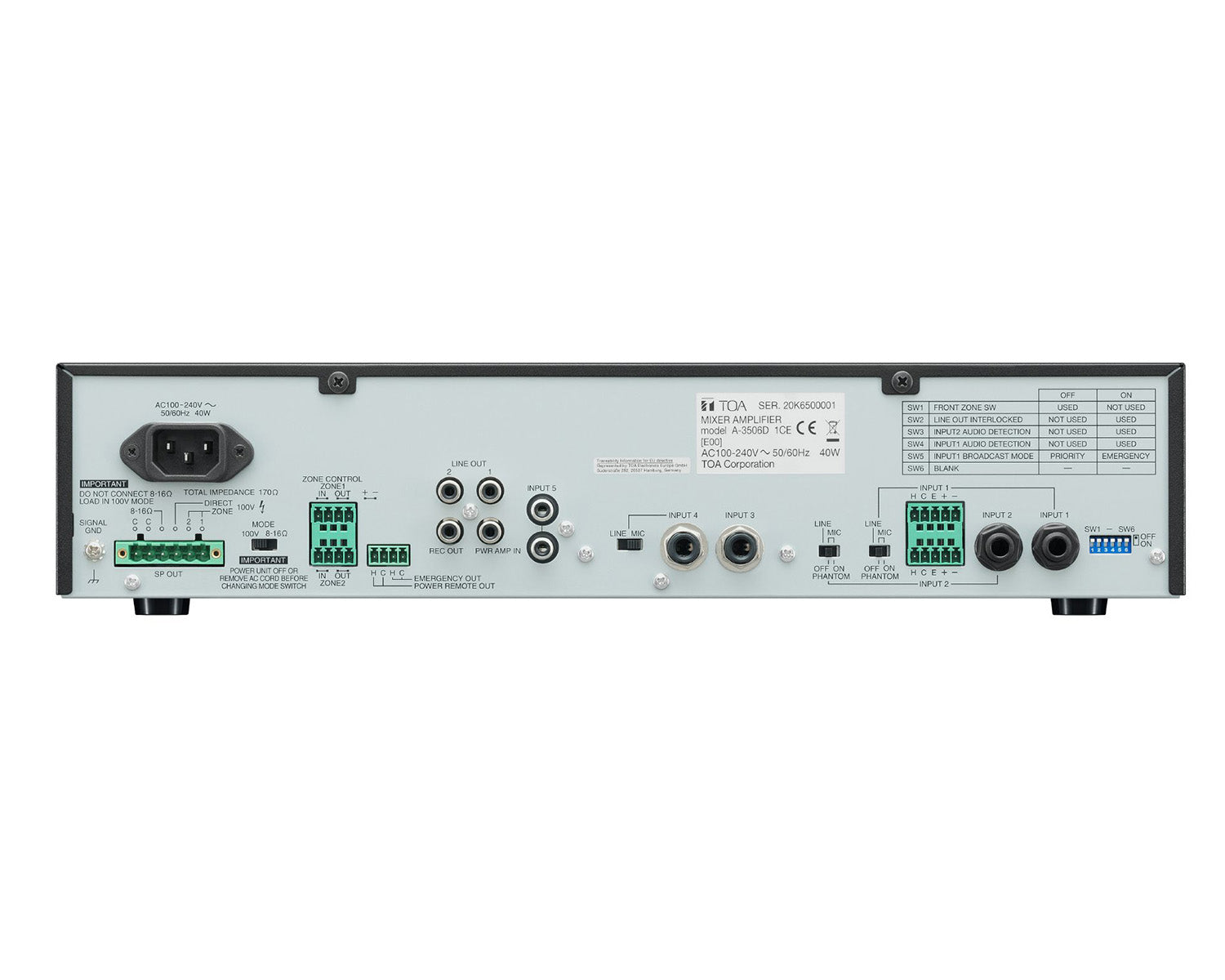

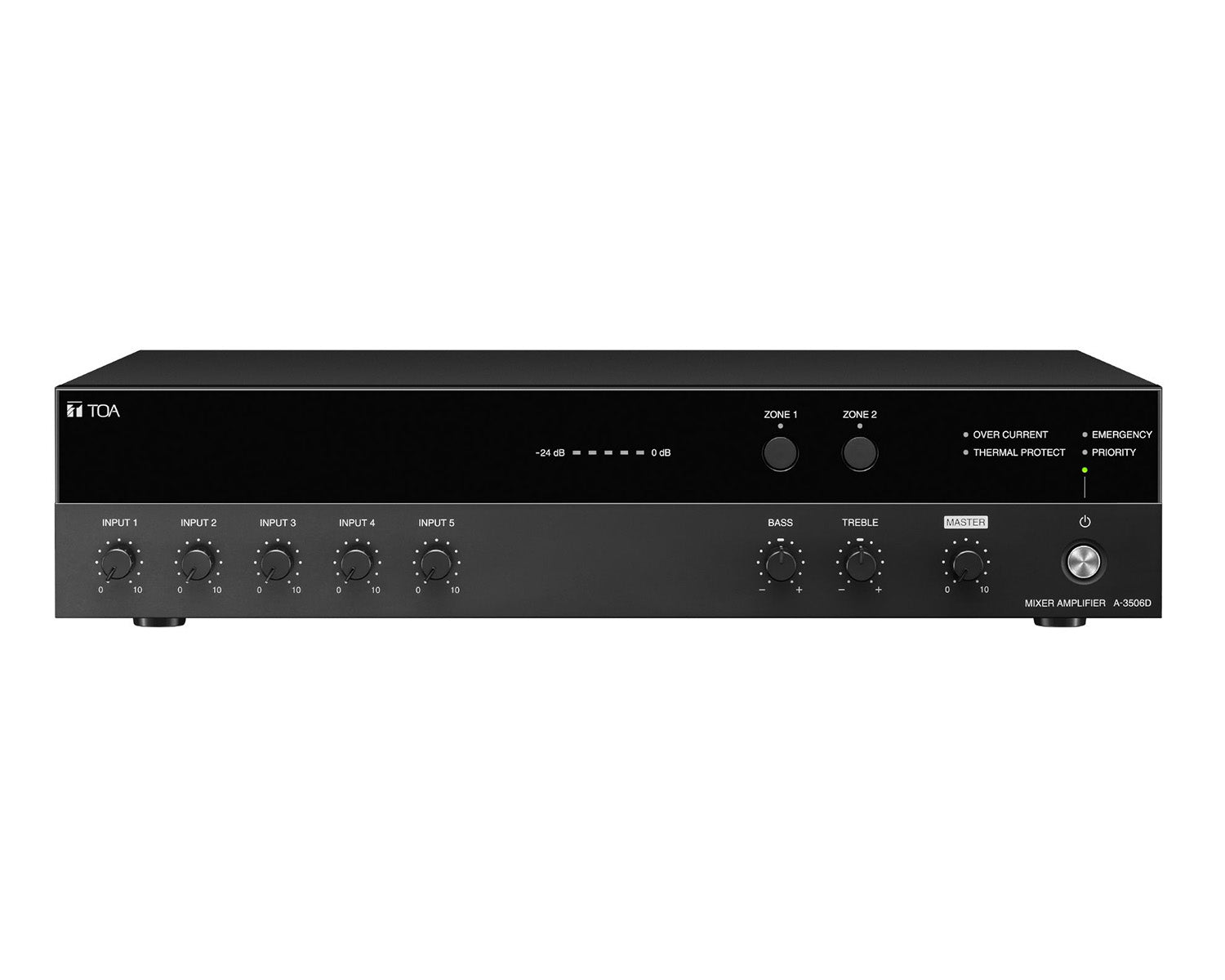

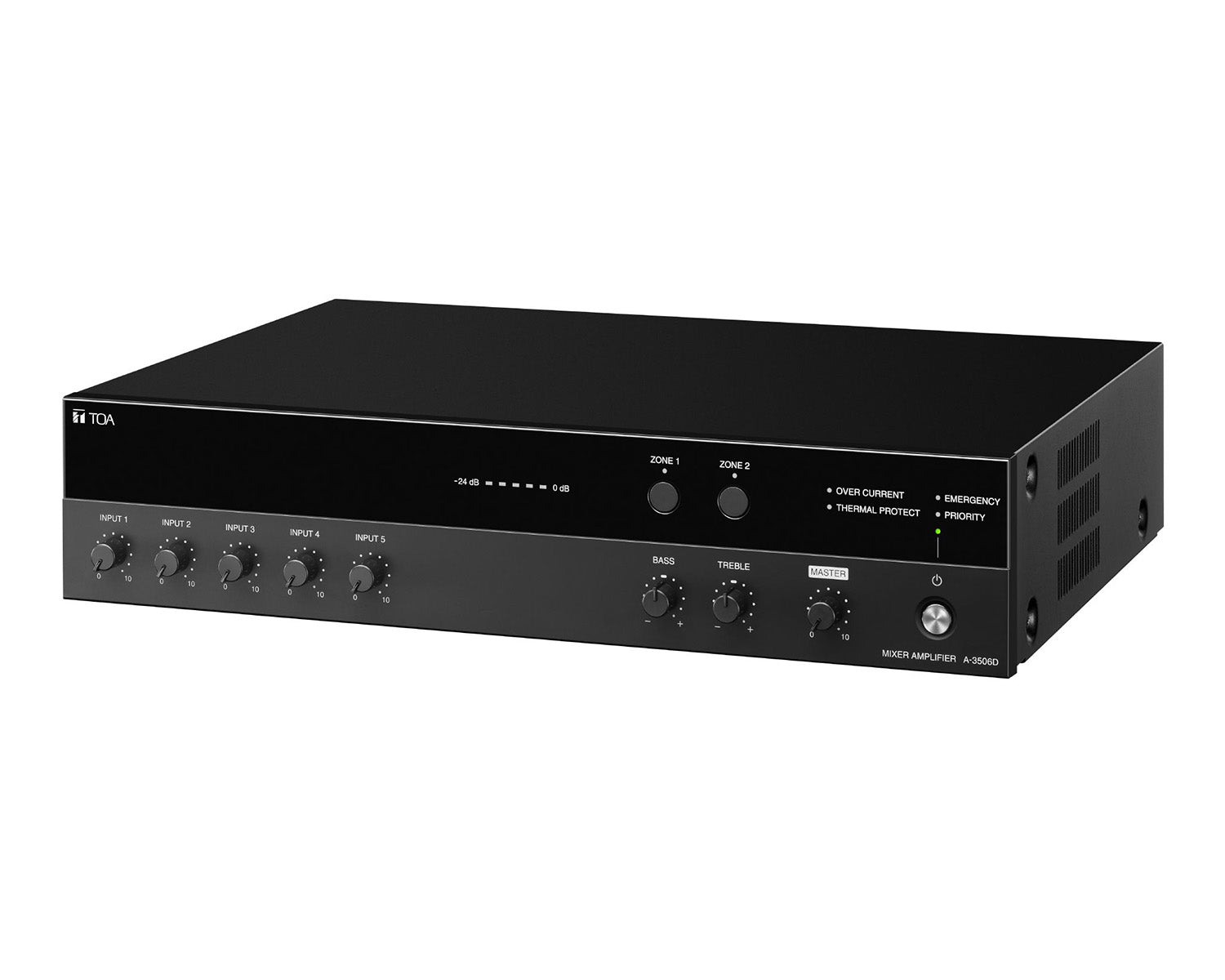

• A-3506D 60W Digital Mixer Amplifier Pictured

Applications

• Bars
• Supermarkets
• Sport facilities
• Restaurants
• Houses of worship

Product Specifications

• Power source: 100 - 240 V AC, 50 / 60 Hz
• Rated output: 240 W
• Frequency response: 50 Hz - 20 kHz (±3 dB (1/8 rated output)
• Distortion: ≤ 1 % (at 1 kHz, rated power)
• Power consumption: 314 W (at rated output), 70W (EN62368-1)
• Speaker output: direct, zones 1 & 2
• Amplifier: Class D
• S/N ratio: 88 dB (A-weighted)
• Connectable microphones: 3
• Inputs:
  • INPUT 1, 2: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3.81 mm, 5 pins)/ø6.3 mm phone jack (2P)
  • INPUT 3: –60 dB*, 600 Ω, electronically-balanced, ø6.3 mm phone jack
  • INPUT 4: –60 dB* (MIC)/–20 dB* (LINE) selectable, 600 Ω, electronically-balanced, ø6.3 mm phone jack (2P)
  • INPUT 5: –20 dB*, 10 kΩ, unbalanced, RCA pin jack x 2
  • PWR AMP:IN: 0 dB*, 600 Ω, unbalanced, RCA pin jack
• Control input:
  • 2 channels, no-voltage make contact input, open voltage: 35 V DC or less, short-circuit current: 10 mA or less, removable terminal block (3.81 mm, 5 pins);
  • ZONE control: No-voltage make contact input, open voltage: 35 V DC or less, short-circuit
  • current: 10 mA or less, removable terminal block (3.81 mm, 4 pins)
• Outputs:
  • REC, LINE 1/1: 0 dBV, 600 ohms, unbalanced, RCA pin jack
  • SPEAKER direct, zones 1 and 2: 4-16 ohms in total or 100 V
• Control output: Power remote, emergency, zone control: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (3.50 mm, 4 pins)
• Operating humidity: 85%RH or less (no condensation)
• Operating temperature: –10 to +40 °C
• Finish: ABS resin, Steel plate, paint, black
• Dimensions: 420 x 96 x 313 mm (W x H x D)
• Weight: 4.9 kg

• MB25B Rack Kit
