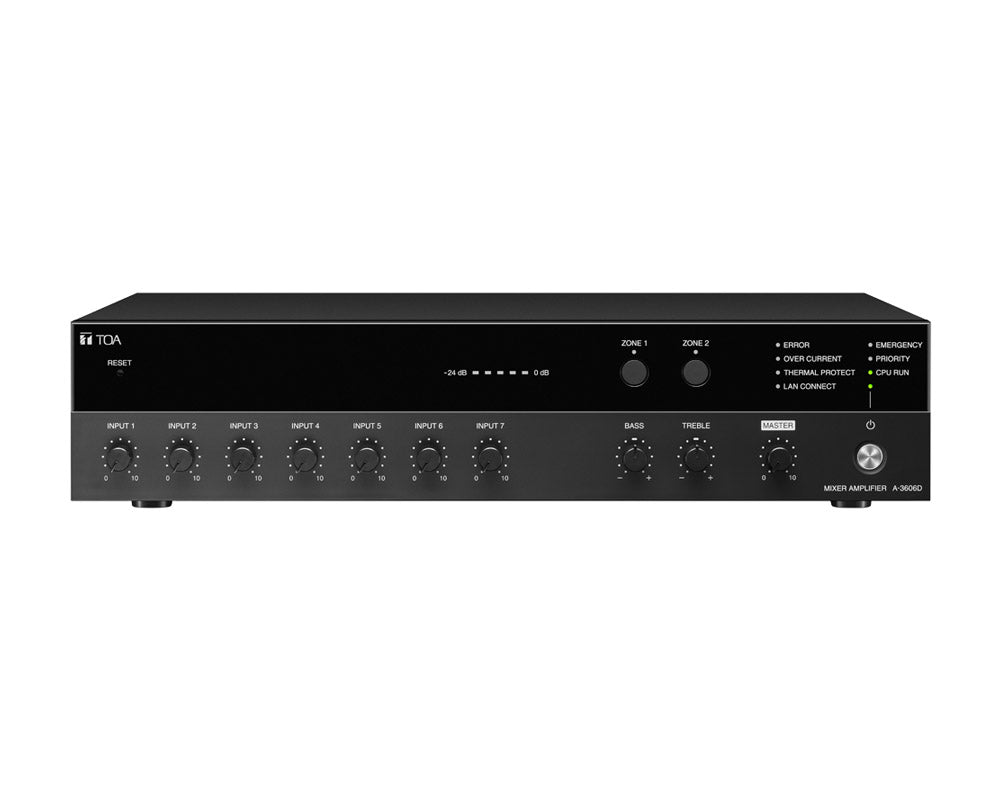

TOA A-3624D Digital Mixer Amplifier 240W 2-Zone 7-Input

Product code: 191713

£586.00 inc VAT
£488.33 ex VAT

SKU: A-3624D

2 in stock (more available subject to additional lead time)

3 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

The TOA A-3624D is a 240W Class D mixer amplifier with seven inputs, built-in DSP and a 2-zone speaker selector for 100V line or low impedance speakers. It adds a feedback suppressor, speaker EQ, assignable input priorities, a pre-announce chime and a web browser interface for remote set-up and diagnostics. It is used for paging and background music in schools, offices, supermarkets and other commercial buildings.

240W
Class D
7 inputs
6 mic + 1 aux
2 zones
Plus direct
Web
Browser control

Features

240W Class D output, 100V line or 4 to 16 ohm
2-zone selector plus direct output, up to 240W per output
7 inputs: 2 mic/line, 2 mic, 2 mic or line (switchable bus), 1 AUX
24V phantom power on inputs 1 to 4, switchable
Two input buses for separating paging and music
Feedback suppressor with dynamic filters
3-point speaker EQ, bass and treble controls
Assignable input priorities and built-in chime (1, 2 or 4-note)
Web browser interface over LAN for remote control and diagnostics
Remote volume input, zone control and emergency I/O

Specifications

TOA A-3624D Digital Mixer Amplifier 240W 2-Zone 7-Input specifications
Rated output 240W
Amplifier Class D
Speaker output 100V (direct, zone 1, zone 2, total 42 Ω) or 4 to 16 Ω, removable terminal block
Frequency response 50 Hz to 20 kHz ±3 dB (1/8 rated output)
Distortion 1% or less (1 kHz, rated output)
S/N ratio 88 dB (master min), 76 dB (master max), A-weighted
Tone controls Bass ±10 dB at 100 Hz, treble ±10 dB at 10 kHz
INPUT 1, 2 -60 dB mic / -20 dB line, 600 Ω, balanced, terminal block, 24V phantom
INPUT 3, 4 -60 dB, 600 Ω, balanced, terminal block, 24V phantom
INPUT 5, 6 Mic (-60 dB, balanced, terminal block) or line (-20 dB, RCA), selectable
INPUT 7 -20 dB, 10 kΩ, unbalanced, 2 x RCA
Power amp in 0 dB, 600 Ω, unbalanced, RCA
Outputs Rec out and 2 line outs, 0 dB, 600 Ω, RCA
Control inputs 4 channels dry contact, remote volume, zone control
Control outputs Power remote, emergency, zone control; open collector, 30V DC, 25 mA
Chime 1-note, 2-note, ascending 4-note or none
Power source 100 to 240V AC, 50/60 Hz
Power consumption 314W at rated output, 70W (EN 62368)
Operating temperature -10 to +40°C
Dimensions (W x H x D) 420 x 96.1 x 313.1 mm
Weight 5 kg
Options MB-25B rack kit, PF-013B perforated panel

Full features

  • 2 zone control
  • TOA class D amplification
  • 4 configurable mic/line, balanced inputs, 2 balanced mic, and 1 unbalanced line input
  • Feedback Suppressor (Dynamic feedback filters)
  • Speaker EQ (3 point equalizer)
  • Assignable input priorities
  • Built-in pre-announce chime
  • Web browser interface allows remote diagnostics and tablet control

Full specifications

  • Power Source: 100 - 240 V AC, 50/60Hz
  • Rated Output: 240 W
  • Power/Current Consumption:
    • 314 W (Rated output), 70 W (based on EN62368),
    • 200 mA or less (when power switch is OFF)
  • Frequency Response: 50 Hz - 20 kHz ±3 dB (1/8 rated output)
  • Distortion: 1 % or less at 1 kHz, rated power (20 kHz LPF (AUX-0025))
  • Tone Control:
    • Bass: ±10 dB at 100 Hz
    • Treble: ±10 dB at 10 kHz
  • S/N Ratio:
    • 88 dB or more (Master volume: min.)
    • 76 dB or more (Master volume: max.)
    • 55 dB or more (INPUT 1 - 6)
    • 72 dB or more (INPUT 7)
    • (A-weighted)

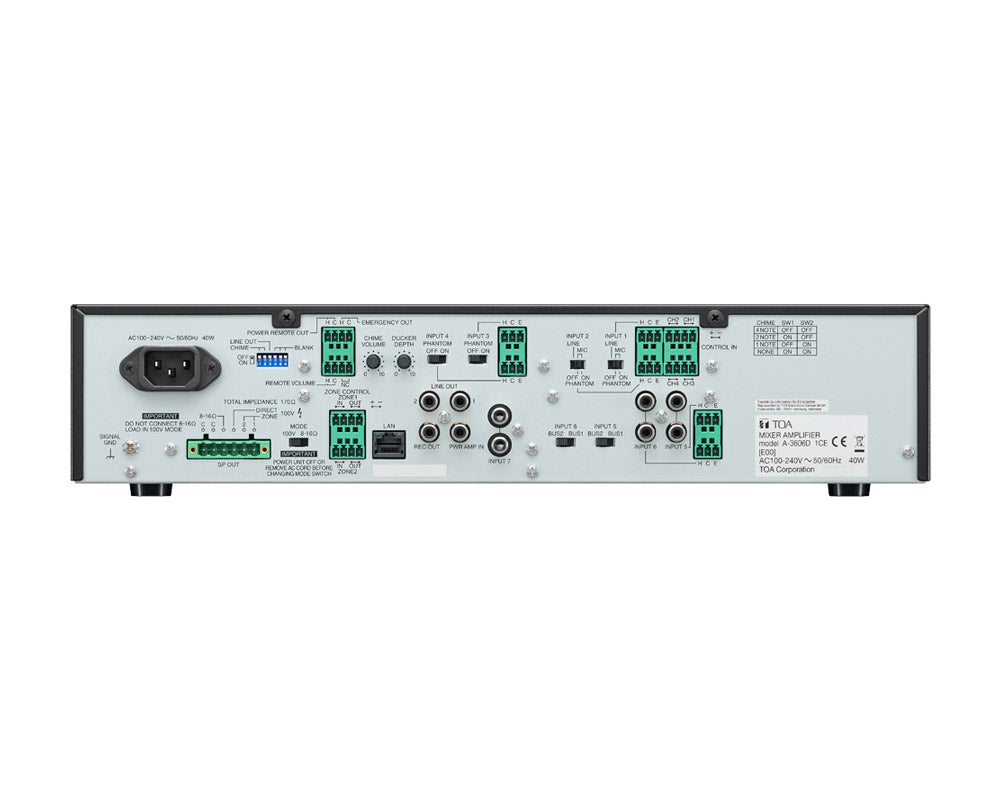

  • Audio Input:
    • INPUT 1, 2: -60 dB(*1)(MIC) / -20 dB (*1) (LINE) selectable, 600 Ω, electronically-balanced, removable terminal block (3 pins)
      • Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable)
    • INPUT 3, 4: -60 dB(*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
      • Note: MIC inputs are equipped with phantom power (24V DC, ON/OFF switchable)
    • INPUT 5, 6: MIC (BUS 1) / LINE (BUS 2) selectable
      • MIC : -60 dB(*1), 600 Ω, electronically-balanced, removable terminal block (3 pins)
      • LINE: -20 dB (*1), 10 kΩ, unbalanced, RCA pin jack x 2
    • INPUT 7: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack x 2
    • PWR AMP IN: 0 dB (*1), 600 Ω, unbalanced, RCA pin jack
  • Input Bus:
    • INPUT 1 - 4: BUS 1
    • INPUT 5 - 6: BUS 1/BUS 2 selectable
    • INPUT 7: BUS 2
  • Audio Output:
    • Speaker out: Low impedance (4 - 16 Ω) /
      • High impedance (DIRECT, ZONE 1, ZONE 2: 100 V / total 42 Ω), removable terminal block (6 pins)
      • (ZONE 1 / ZONE 2 is selectable, max. 240 W per output)
    • Rec out: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack
    • Line out 1, 2: 0 dB (*1) , 600 Ω, unbalanced, RCA pin jack (Interlock with zone selection is possible)
  • Control Input:
    • 4 channels. no-voltage make contact input, open voltage: 35 V DC or less,
    • Short circuit current: 10 mA or less, removable terminal block (4 pins)
    • REMOTE VOLUME: Removable terminal block (4 pins)
    • ZONE CONTROL IN: No-voltage make contact input, even voltage: 35 V DC or less,
    • short-circuit current: 10 mA or less, removable terminal block (4 pins)
  • Control Output:
    • POWER REMOTE OUT: Open collector output, withstand voltage: 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
    • EMERGENCY OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
    • ZONE CONROL OUT: Open collector output, withstand voltage 30 V DC or less, control current: 25 mA or less, removable terminal block (4 pins)
  • Chime: 1-note, 2-note, or ascending, 4-note chime, or None selectable with switch setting

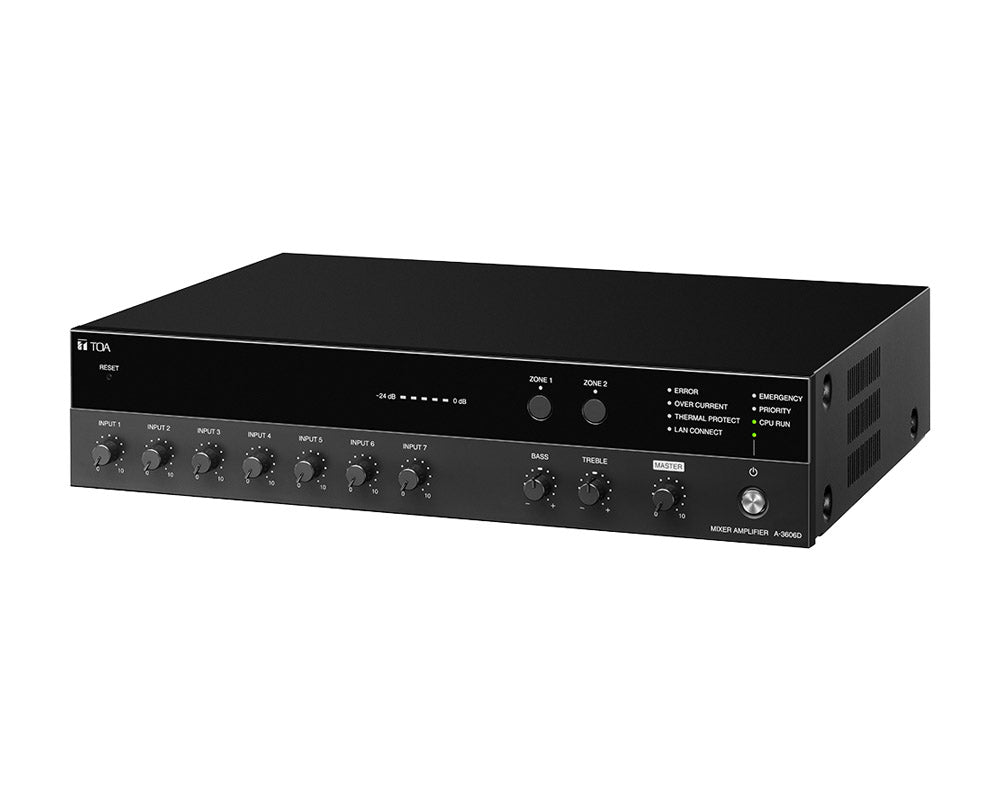

  • Indicator: 5-point LED output level meter, Power LED, LAN connect LED, Priority LED, Emergency LED, Thermal protection LED, Over current protection indicator LED, CPU RUN LED, Error LED, Zone 1 LED, Zone 2 LED
  • Operating Temperature: -10°C to +40°C
  • Operating Humidity: 85 %RH or less (no condensation)
  • Finish:
    • Panel: ABS resin, black
    • Case: Surface-treated steel plate, black, paint
  • Dimensions: 420 (W) × 96.1 (H) × 313.1 (D) mm
  • Weight: 5 kg
  • Accessory:
    • Power Cord (2 m) x 1
    • Audio Input Removable Terminal Plug (3.81 mm, 3 pins) x 6
    • Control I/O Removable Terminal Plug (3.81 mm, 4 pins) x 4
    • Remote Control Removable Terminal Plug (3.5 mm, 4 pins) x 2
    • Speaker Out Removable Terminal Plug (5 mm, 6 pins) x 1
    • Volume Control Cover x 4
  • Option:
    • Rack mounting bracket: MB-25B
    • Perforated panel: PF-013B

(*1) 0 dB = 1 V
