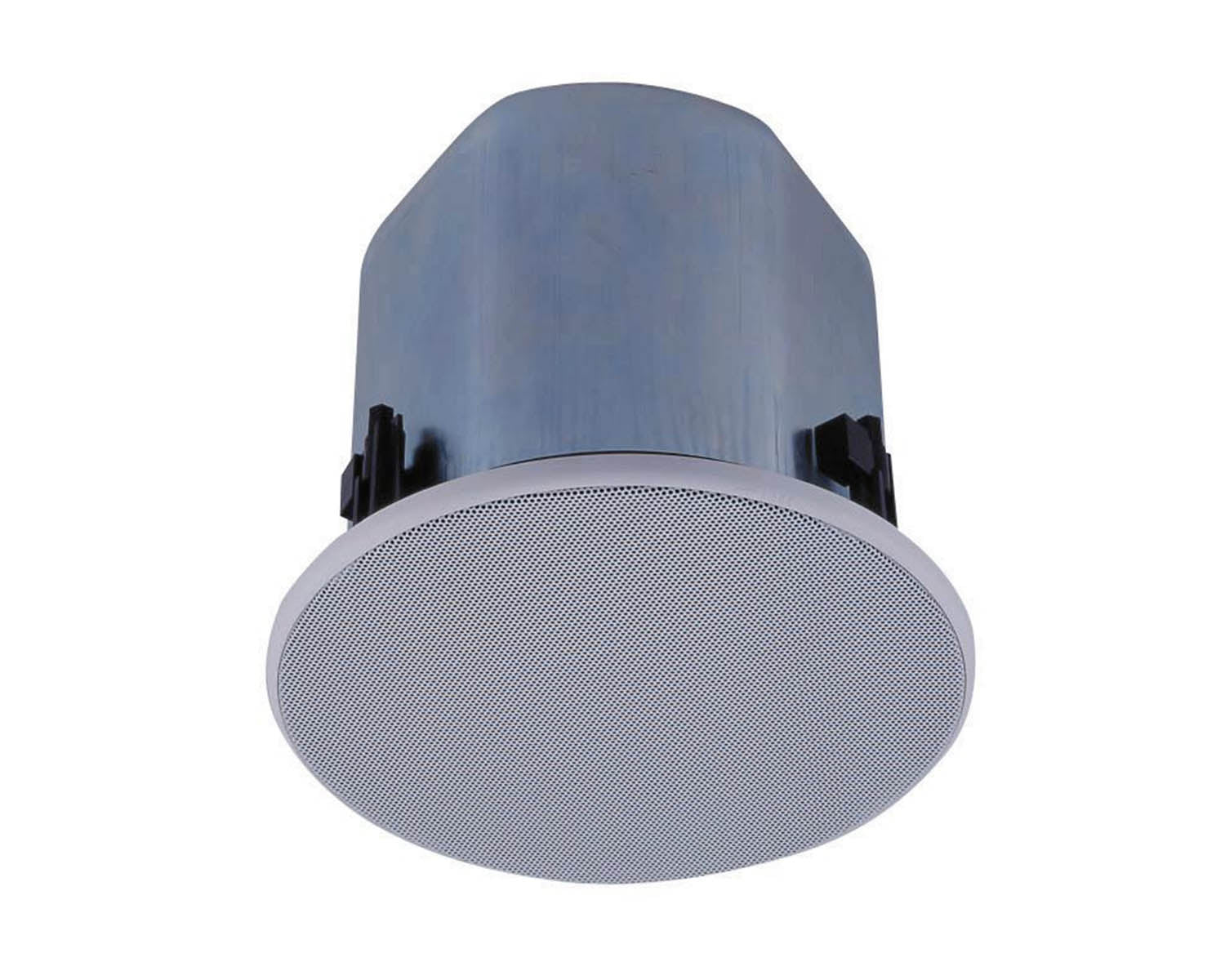

TOA F-2322C 5" Ceiling Speaker with Back Can 100V

Product code: 191727

£102.00 inc VAT
£85.00 ex VAT

SKU: F-2322C

2 in stock (more available subject to additional lead time)

2 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 30 / 10 / 3 / 1W) or low impedance (8Ω).

The TOA F-2322C is a 30W ceiling speaker with a 12 cm full-range cone in a bass reflex enclosure with a steel back can, for 100V, 70V and 25V lines or 8/16 ohm low impedance. It is designed for wide dispersion with little high-frequency loss off axis, so fewer speakers can cover a room evenly. It suits music and speech in restaurants, retail, hotels, offices and meeting rooms.

30W
100V / 70V
8 / 16 Ω
Or low-Z
90 dB
Sensitivity
200 mm
Cut-out

Features

30W on 100V and 70V lines, with 25V line and 8/16 ohm settings
12 cm full-range cone driver
Bass reflex enclosure with steel back can
Wide dispersion with minimal high-frequency roll-off
Removable locking connector with screw terminals, input and bridge
Fire-resistant ABS baffle and rim (UL-94 V-0 or equivalent)
200 mm cut-out, ceilings up to 37 mm thick
Rotating front grille for quick fitting

Specifications

TOA F-2322C 5″ Ceiling Speaker with Back Can 100V specifications
Rated input 30W (high impedance)
Taps, 100V 330 Ω (30W), 1 kΩ (10W), 3.3 kΩ (3W), 10 kΩ (1W)
Taps, 70V 170 Ω (30W), 330 Ω (15W), 1 kΩ (5W), 3.3 kΩ (1.5W), 10 kΩ (0.5W)
Taps, 25V 170 Ω (3.7W), 330 Ω (1.9W), 1 kΩ (0.6W), 3.3 kΩ (0.2W), 10 kΩ (0.06W)
Low impedance 8 Ω or 16 Ω
Power handling Pink noise: 60W (8 Ω), 30W (16 Ω); programme: 120W (8 Ω), 60W (16 Ω)
Sensitivity 90 dB (1W, 1m)
Frequency response 70 Hz to 20 kHz (-10 dB), 50 Hz to 20 kHz (-20 dB), half space
Driver 12 cm cone
Enclosure Bass reflex, steel back can
Cable 0.5 to 1.6 mm solid or 0.2 to 2.5 mm stranded (AWG 24 to 14)
Cut-out 200 mm (max ceiling thickness 37 mm)
Dimensions ø230 x 200 mm (D)
Weight 3.7 kg including mounting hardware

Full features

  • Designed to blend into ceilings with a smooth, low-profile design.
  • Extra ease of use and higher cost-effectiveness with the metal "back can" enclosure for the speaker rear.
  • Minimal high frequency roll-off allows clear and well-balanced sound reproduction over a wide listening area.
  • Quick and easy installation to precisely mount speaker onto ceilings and walls. Rotating front grille also installs quickly and conveniently.
  • Built-in overload protection circuitry protects the speaker against excessive input power.

Full specifications

General

  • Enclosure: Bass reflex type
  • Rated Input: 30W (high impedance)
  • Power Handling Capacity: Continuous pink noise: 60W(8Ω), 30W (16Ω), Continuous program: 120W(8Ω), 60W(16Ω)
  • Impedance(100V Line): 330Ω (30W), 1k (10W), 3.3kΩ (3W), 10kΩ (1W)
  • Impedance(70V Line): 170Ω (30W), 330Ω (15W), 1kΩ (5W), 3.3kΩ (1.5W),10kΩ (0.5W)
  • Impedance(25V Line): 170Ω (3.7W), 330Ω (1.9W), 1kΩ (0.6W), 3.3kΩ (0.2W), 10kΩ (0.06W)
  • Low (Adjustable): 16Ω, 8Ω
  • Sound Pressure Level: 90dB (1W, 1m)
  • Frequency Response: 70 - 20,000Hz (-10dB), 50 - 20,000Hz (-20dB) at installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling.)
  • Speaker Component: 12cm full-range cone-type (single driver)
  • Mounting Hole: 200(maximum ceiling thickness: 37mm)
  • Input Terminal: Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
  • Usable Cable: Solid copper wire: 0.5 - 1.6mm (equivalent to AWG No. 24 - 14) Stranded copper wire: 0.2 - 2.5mm (equivalent to AWG No. 24 - 14)
  • Finish: Enclosure: Steel plate, plating
  • Baffle: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), black
  • Rim: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), white, paint
  • Punched net: Steel plate, white, paint

Physical & Dimensions

  • Dimensions: 230 x 200 (D)mm
  • Weight: 3.7kg (including mounting accessories)
