TOA F-2352SC 5" Shallow Ceiling Speaker 100V

Product code: 191754

£48.00 inc VAT
£40.00 ex VAT

SKU: F-2352SC

1 in stock (more available subject to additional lead time)

1 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 6 / 3 / 1 / 0.5W) or low impedance (8Ω).

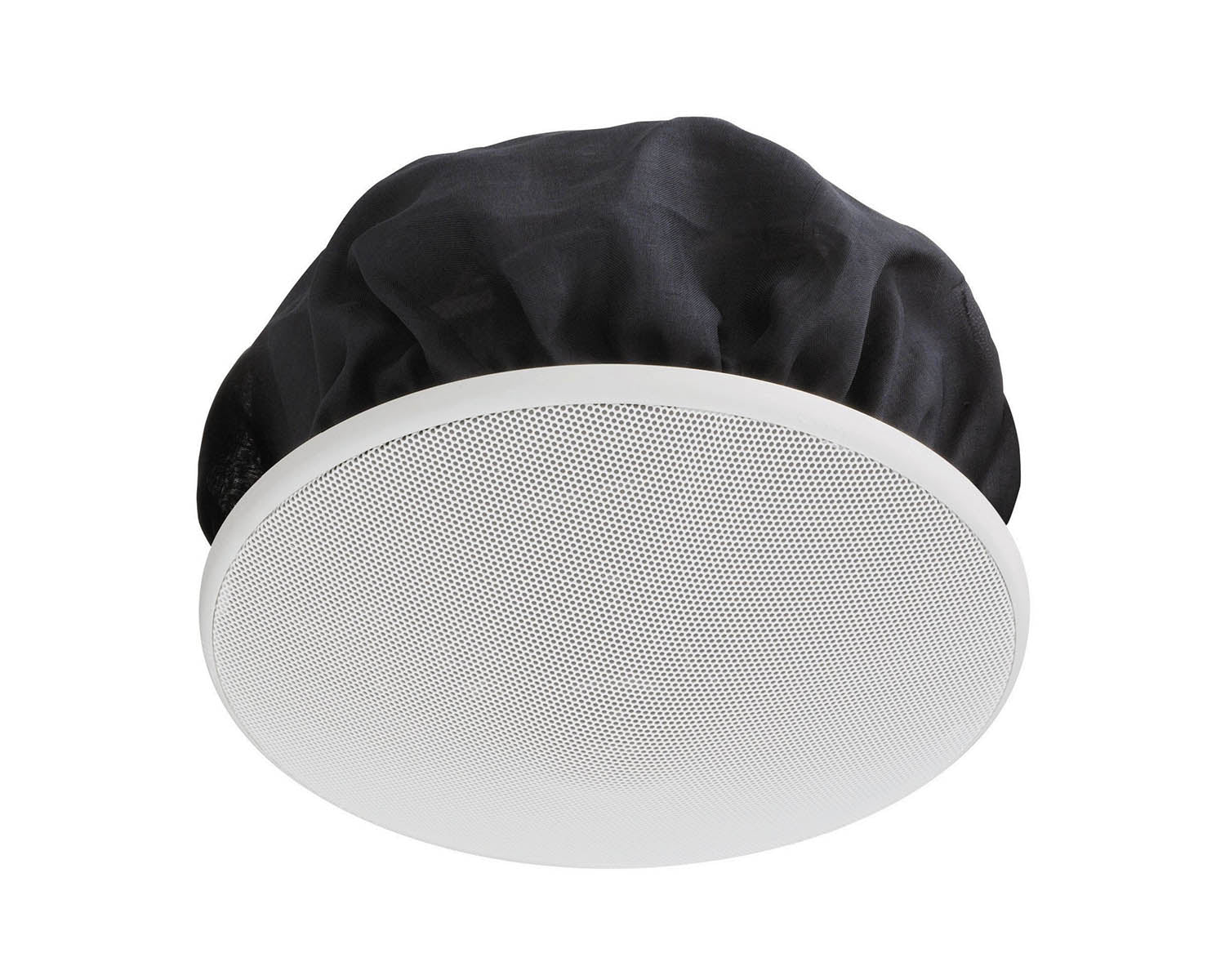

The TOA F-2352SC is a 6W shallow ceiling speaker with a 12 cm cone and balanced dome tweeter, for 100V, 70V and 25V lines or 8/16 ohm low impedance. Its 154 mm depth suits ceiling voids with limited space; the rear is covered by a dust-proof bag, with the HY-BC1 back can available as an option, and its wide dispersion keeps treble even across the room. It is used for background music and paging in shops, cafes, offices, hotels and corridors.

6W
100V / 70V
154 mm
Depth
89 dB
Sensitivity
200 mm
Cut-out

Features

6W on 100V and 70V lines, with 25V line and 8/16 ohm settings
12 cm cone with balanced dome high-frequency unit
Shallow 154 mm depth; dust-proof bag fitted, HY-BC1 back can optional
Wide dispersion with minimal high-frequency roll-off
Push-in connector with bridging terminals
Fire-resistant ABS baffle and rim (UL-94 V-0 or equivalent)
200 mm cut-out, ceilings up to 37 mm thick

Specifications

TOA F-2352SC 5″ Shallow Ceiling Speaker 100V specifications
Rated input 6W (high impedance)

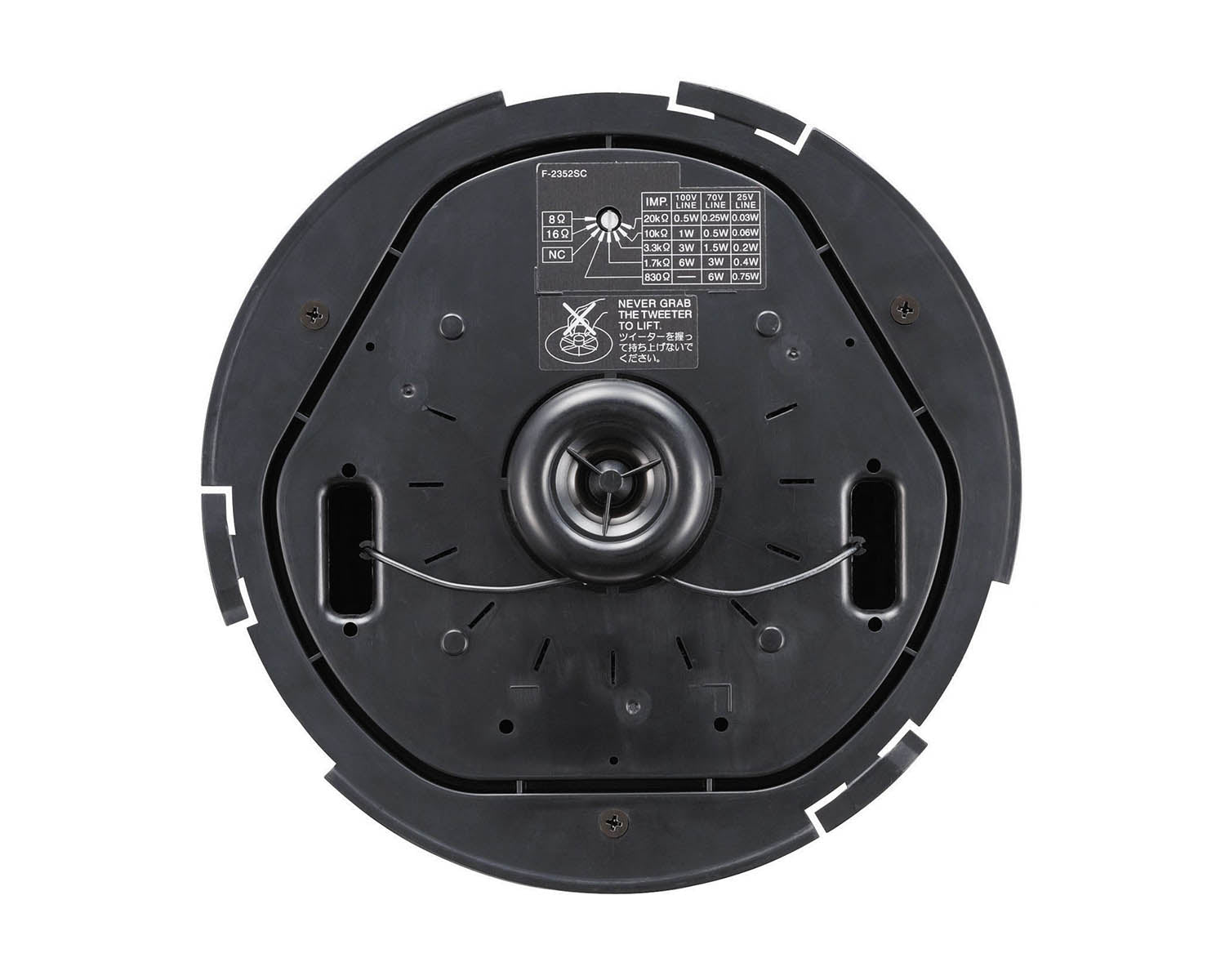

Taps, 100V 1.7 kΩ (6W), 3.3 kΩ (3W), 10 kΩ (1W), 20 kΩ (0.5W)
Taps, 70V 830 Ω (6W), 1.7 kΩ (3W), 3.3 kΩ (1.5W), 10 kΩ (0.5W), 20 kΩ (0.25W)
Taps, 25V 830 Ω (0.75W), 1.7 kΩ (0.4W), 3.3 kΩ (0.2W), 10 kΩ (0.06W), 20 kΩ (0.03W)
Low impedance 8 Ω or 16 Ω
Power handling Pink noise: 9W (8 Ω), 6W (16 Ω); programme: 18W (8 Ω), 12W (16 Ω)
Sensitivity 89 dB (1W, 1m)
Frequency response 80 Hz to 20 kHz (-10 dB), 50 Hz to 20 kHz (-20 dB), half space
Drivers LF 12 cm cone, HF balanced dome
Connection Push-in, bridging
Cut-out 200 mm (max ceiling thickness 37 mm)
Dimensions ø230 x 154 mm (D)
Weight 1.5 kg including panel

Full features

  • Designed to blend into ceilings with a smooth, low-profile design.
  • Dust cover protects the rear components; the HY-BC1 back can is available as an option.
  • Minimal high frequency roll-off allows clear and well-balanced sound reproduction over a wide listening area.
  • Quick and easy installation to precisely mount speaker onto ceilings and walls. Rotating front grille also installs quickly and conveniently.
  • Co-axial 12 cm cone and balanced dome tweeter with a special diffuser for wide off-axis high-frequency response.

Full specifications

General

  • Rated Input: 6W (high impedance)
  • Power Handling Capacity: Continuous pink noise: 9W(8), 6W (16).
  • Continuous program: 18W (8), 12W(16)
  • Impedance (100V Line): 1.7kΩ (6W), 3.3kΩ (3W), 10kΩ (1W), 20kΩ (0.5W)
  • Impedance (70V Line): 830Ω (6W), 1.7kΩ (3W), 3.3kΩ (1.5W), 10kΩ (0.5W), 20kΩ (0.25W)
  • Impedance (25V Line): 830Ω (0.75W), 1.7kΩ (0.4W), 3.3kΩ (0.2W), 10kΩ (0.06W), 20kΩ (0.03W)
  • Low (Adjustable): 16Ω, 8Ω
  • Sound Pressure Level: 89dB (1W, 1m)
  • Frequency Response: 80 - 20,000Hz (-10dB), 50 - 20,000Hz (-20dB) at installation in 1/2 free sound field (measured by installing the unit in the center of a ceiling.)
  • Speaker Component: High frequency: Balance dome- type
  • Speaker Component: Low frequency: 12cm cone- type
  • Mounting Hole: 200mm(maximum ceiling thickness: 37mm)
  • Input Terminal: Push-in connector (Bridging terminal-2 branch type)
  • Usable Cable: 600V Vinyl-insulated cable (IV wire or HIV wire), Solid copper wire; 0.8 - 1.6mm (equivalent to AWG No.20 - 15), 7-core twisted copper wire:0.75 - 1.25mm² (equivalent to AWG No.18 - 17)
  • Baffle: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), black
  • Rim: Fire-resistant ABS resin (resin material grade; UL-94 V-0 or its equivalent), white, paint

Physical & Dimensions

  • Dimensions: 230 x 154 (D)mm
  • Weight: 1.5kg (including panel)
