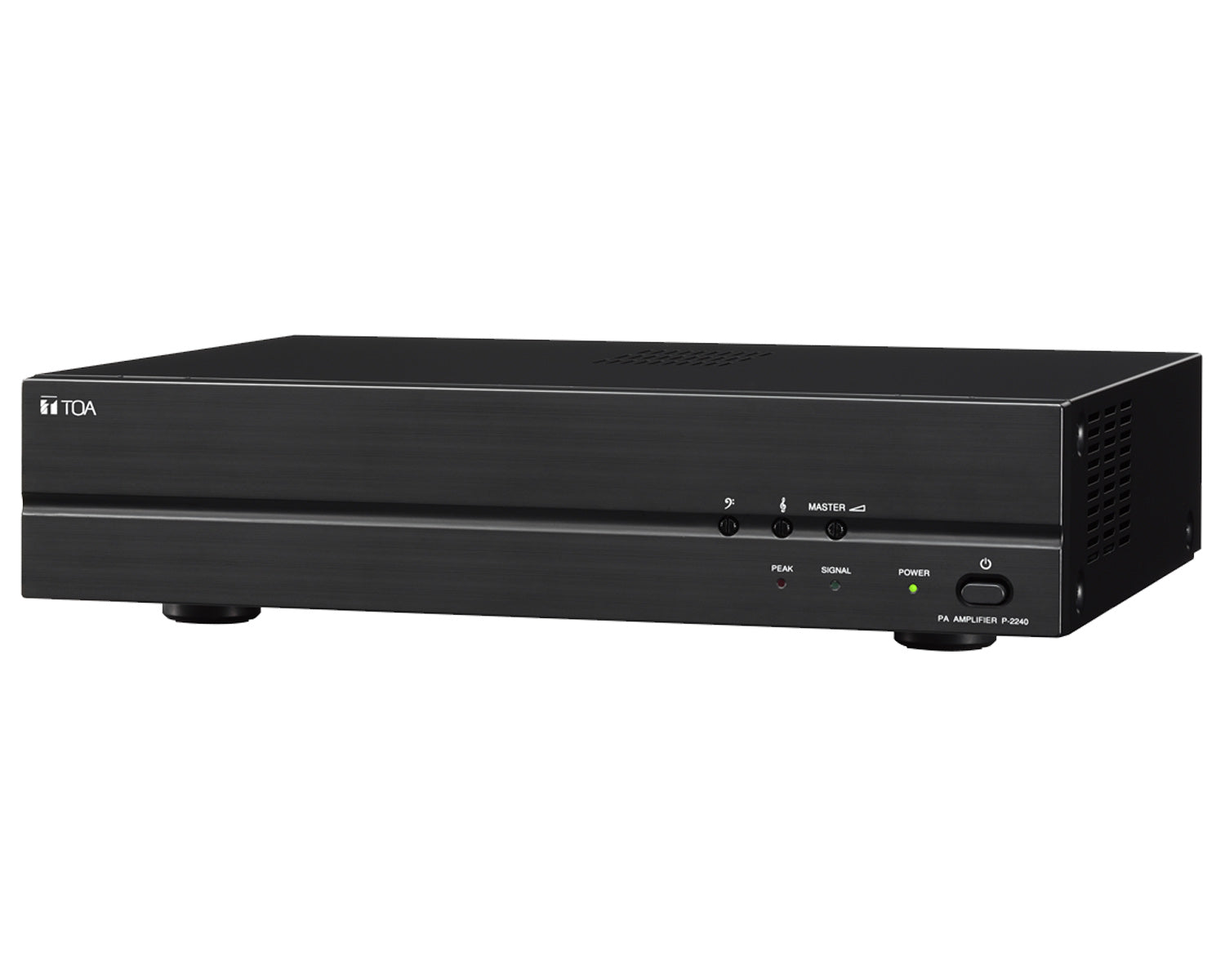

The TOA P-2240 is a 240W single-channel booster amplifier for 100V and 70V line or 4 ohm speaker systems. It takes a balanced line input or a 100V speaker line from another amplifier, such as an A-2000 series mixer amplifier, to add power to an existing paging and background music system. It runs from mains or 24V DC and suits schools, offices, shops and factories.
240W
Rated output
100V / 70V / 4Ω
Outputs
24V DC
Backup input
2U
Height
No microphone inputsThis is a power amplifier for adding capacity to a system. It has line and 100V line inputs only, so microphones and music sources need a separate mixer or mixer amplifier.
Features
240W rated output
Speaker outputs for 100V, 70V or 4 ohms
Balanced line input on screw terminals
100V line input for driving from another amplifier’s speaker output
Balanced loop out for daisy-chaining further boosters
Remote power on/off by contact closure
Emergency bypass of the master volume
Bass and treble controls, ±10 dB
220 to 240V AC or 24V DC operation
2U height, rack mounting with MB-25B kit
Specifications
| Rated output | 240W |
| Speaker output | 42 Ω (100V), 21 Ω (70V), 4 Ω (31V), balanced floating |
| Line input | 0 dBV, 10 kΩ, balanced, screw terminal |
| 100V line input | 40 dBV, 330 kΩ, unbalanced, screw terminal |
| Loop out | 0 dBV, 10 kΩ, balanced, screw terminal |
| Power remote | Make contact |
| Frequency response | 50 Hz to 20 kHz |
| Distortion | <1% (1 kHz, 1/3 rated output) |
| S/N ratio | >60 dB |
| Tone controls | Bass ±10 dB at 100 Hz, treble ±10 dB at 10 kHz |
| Indicators | Power, signal, peak |
| Power source | 220 to 240V AC, 50/60 Hz, or 24V DC |
| Power consumption | 238W (EN 62368-1), 520W at rated output; 15 A on DC |
| Finish | ABS resin, steel plate, black |
| Dimensions (W x H x D) | 420 x 100.9 x 351.3 mm |
| Weight | 13.2 kg |
