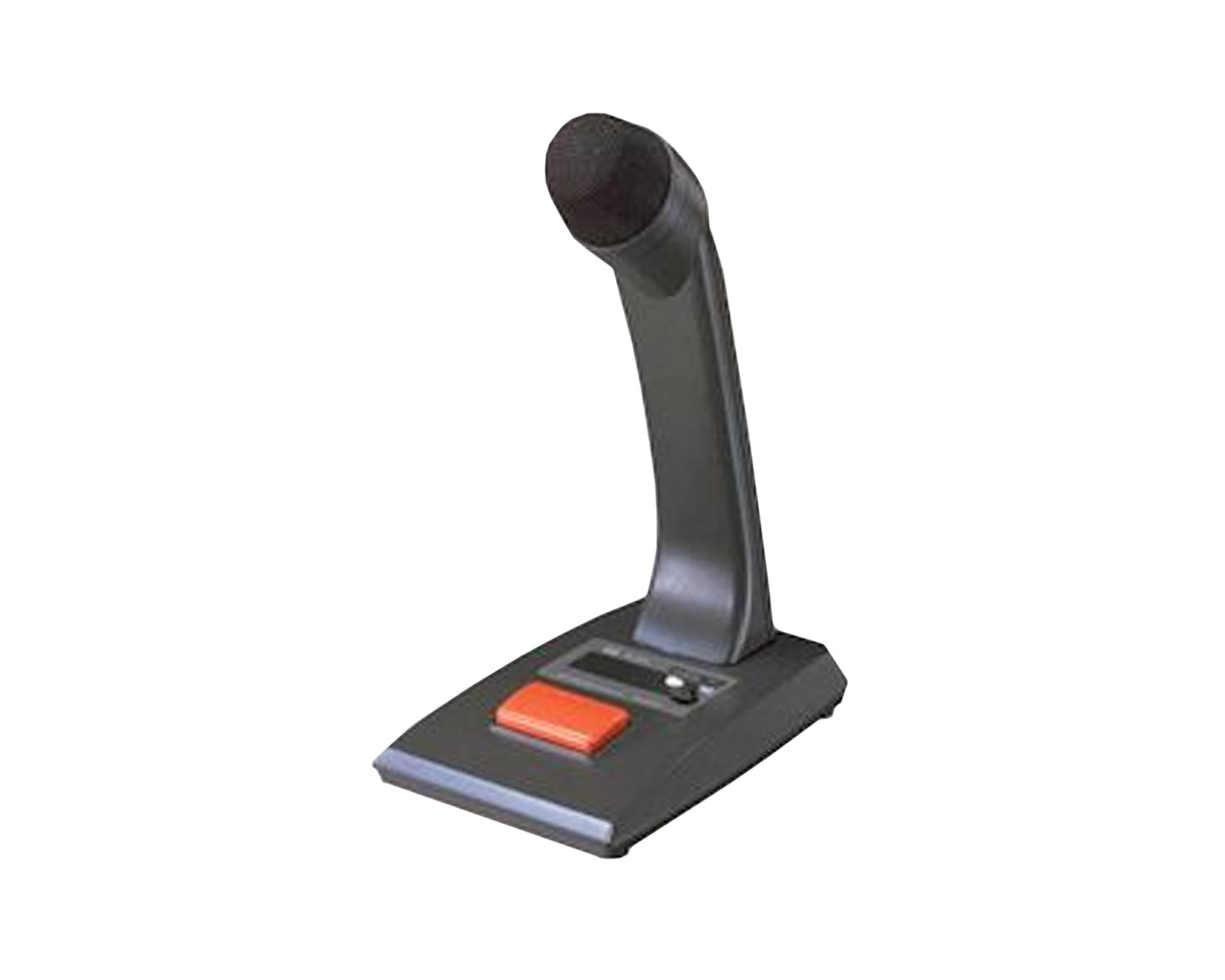

TOA PM-660U Desktop Paging Microphone Bare-End Cable

Product code: 191683

£73.00 inc VAT
£60.83 ex VAT

SKU: PM-660U

3 in stock (more available subject to additional lead time)

4 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The TOA PM-660U is a desktop paging microphone with a cardioid dynamic capsule, push-to-talk bar with lock lever and a 2.5m unterminated cable. It has a balanced 600 ohm output plus a separate switch contact linked to the talk switch for priority, chime or amplifier power control. The bare-end cable lets installers wire it to terminal blocks or any connector, which suits paging systems in schools, offices, factories and transport sites.

Cardioid
Dynamic
600 Ω
Balanced
Bare end
Cable
2.5 m
Cable

Features

Cardioid dynamic capsule with low handling noise
Push-to-talk switch with lock lever
Extra switch contact linked to the talk switch for priority, chime or power remote
600 ohm balanced output
2.5m 4-core cable: 2 shielded conductors for audio, 2 for the switch contact
Unterminated cable ends for terminal block or custom connector

Specifications

TOA PM-660U Desktop Paging Microphone Bare-End Cable specifications
Type Desktop dynamic (moving coil)
Polar pattern Cardioid
Output impedance 600 Ω, balanced
Sensitivity -58 dB (1 kHz, 0 dB = 1V/Pa)
Frequency response 100 Hz to 10 kHz
Cable 2 core shielded + 2 core, 2.5m
Termination Unterminated (bare ends)
Talk switch Push to talk with lock lever
Finish Grey: steel wire head, ABS body
Dimensions (W x H x D) 100 x 212 x 150 mm
Weight 400 g (cable excluded)
Remote switch Leaf spring contact, linked to talk switch

Full features

  • Desktop type dynamic microphone with cardioid polar pattern.
  • Short-off press to talk switch with open OFF type extra switch contact.
  • Low handling noise.
  • 600 Ω balanced output impedance.
  • 2.5m 4-conductor (included twin-core shielded) cable with bare (unterminated) ends.
  • Can be remotely operated with additional components such as priority and transmitting / receiving relays.

Full specifications

General

  • Type: Desktop moving coil microphone
  • Polar Pattern: Cardioid (Unidirectional)
  • Output Impedance at 1kHz: 600 Ω, balanced
  • Rated Sensitivity: -58dB (1kHz, 0dB=1V/Pa)
  • Frequency Response: 100 ~ 10,000Hz
  • Cable: 2 core shielded plus 2 core cable.
  • Cable Length: 2.5m
  • Terminal of Cable: None (bare ends).
  • Talk Switch: Push to talk type (short-off circuit with lock lever)
  • Remote SwitchLeaf spring contact (interlocked with talk switch)
  • Finish: Head; Zinc plated steel wire, baked painting, Grey / Body; ABS resin, Grey.

Physical & Dimensions

  • Height: 212mm
  • Width: 100mm
  • Depth: 150mm
  • Weight: 400g (cable excluded)
