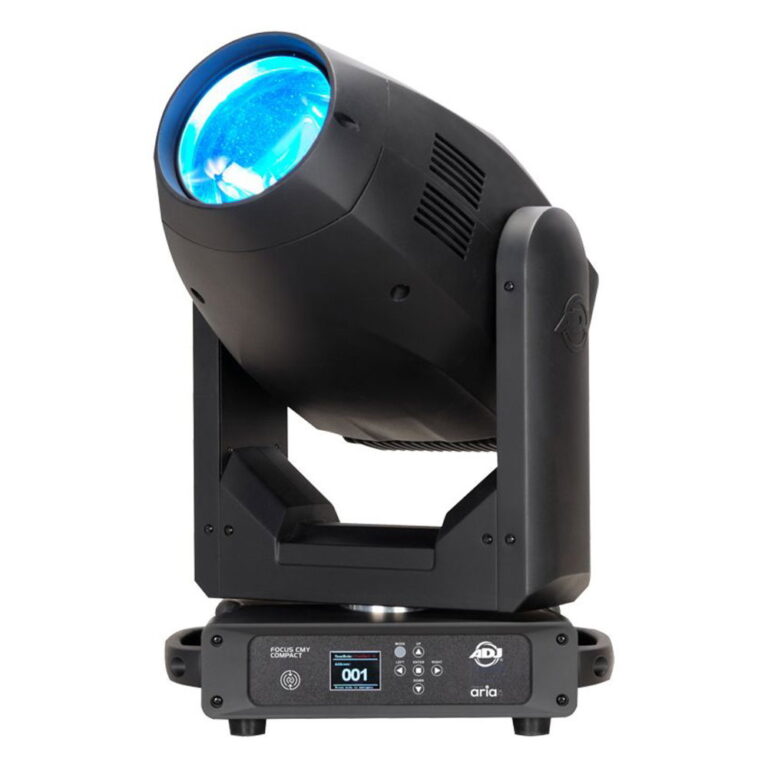

ADJ Focus CMY Compact Moving Head

SKU: ADJ1237000364
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
ADJ Focus CMY Compact Moving Head
Click to enlarge

    £2,330.00 inc VAT
    £1,941.67 ex VAT

    14 available online
    FREE delivery by MondayOrder by 3pm tomorrow
    Click & Collect Friday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Optional Add-Ons
    Global Truss Narrow Half Coupler Silver (812) Narrow Half Coupler Silver
    £6.00 inc VAT
    £5.00 ex VAT
    Add to basket
    Global Truss Narrow Half Coupler Black (812-B) Narrow Half Coupler Black
    £6.00 inc VAT
    £5.00 ex VAT
    Add to basket
    Global Truss Half Coupler 750kg Silver (8121) Half Coupler 750kg
    £14.00 inc VAT
    £11.67 ex VAT
    Add to basket
    Global Truss Coupler with Eye Nut Silver (5033) Coupler with Eye Nut
    £14.00 inc VAT
    £11.67 ex VAT
    Add to basket
    Equinox 30cm PVC Coated Safety Wire 50kg 30cm Safety Wire 50kg
    £3.00 inc VAT
    £2.50 ex VAT
    Add to basket
    Equinox 75cm PVC Coated Safety Wire 50kg 75cm Safety Wire 50kg
    £3.00 inc VAT
    £2.50 ex VAT
    Add to basket

    About this Product

    The ADJ Focus CMY Compact is a 400W LED moving head with full CMY colour mixing and a 3° to 52° motorised zoom, making one fixture cover beam, spot and wash duties from the same hang. Aimed at touring designers, theatre LDs and install jobs where rig count needs to come down without losing output or colour range.

    400 W
    LED ENGINE · White LED source
    14,500 lm
    OUTPUT · Total lumens
    3°-52°
    ZOOM RANGE · Motorised
    CMY
    COLOUR MIXING · Full subtractive
    3-phase
    PAN / TILT · Fast, precise motors
    Features
    400W LED engine, 14,500 lumens total output
    3° to 52° motorised zoom: beam, spot, wash from one fixture
    Full CMY colour mixing for unlimited subtractive colour blends
    3-phase pan and tilt motors for fast, repeatable movement
    Compact form factor relative to equivalent-output fixtures
    Suitable for concert, theatre, corporate and house of worship
    Specifications
    Fixture type LED moving head, beam/spot/wash hybrid
    LED engine 400W white LED
    Total output 14,500 lumens
    Zoom range 3°-52° (motorised)
    Colour system Full CMY colour mixing
    Pan / tilt 3-phase motors
    Compare the Range
    ADJ Focus CMY Compact Moving Head
    ADJ Focus CMY Compact Moving Head
    £2,330.00 inc VAT
    £1,941.67 ex VAT
    • Zoom Range: 3°-52° (motorised)
    Viewing Now

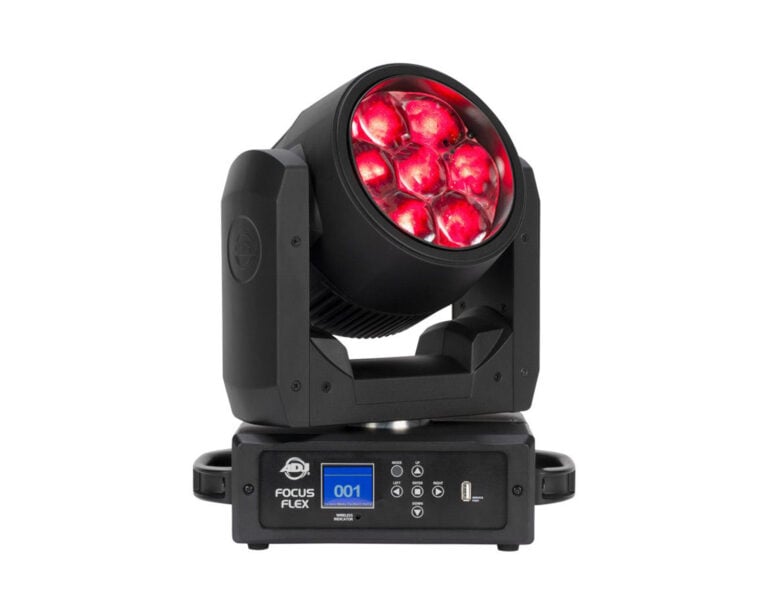

    ADJ Focus Flex LED Moving Head
    ADJ Focus Flex LED Moving Head
    £1,189.00 inc VAT
    £990.83 ex VAT
    • Light Source: 7x 40W RGBW LEDs
    • Zoom Range: 4°-31° (motorised)
    View →

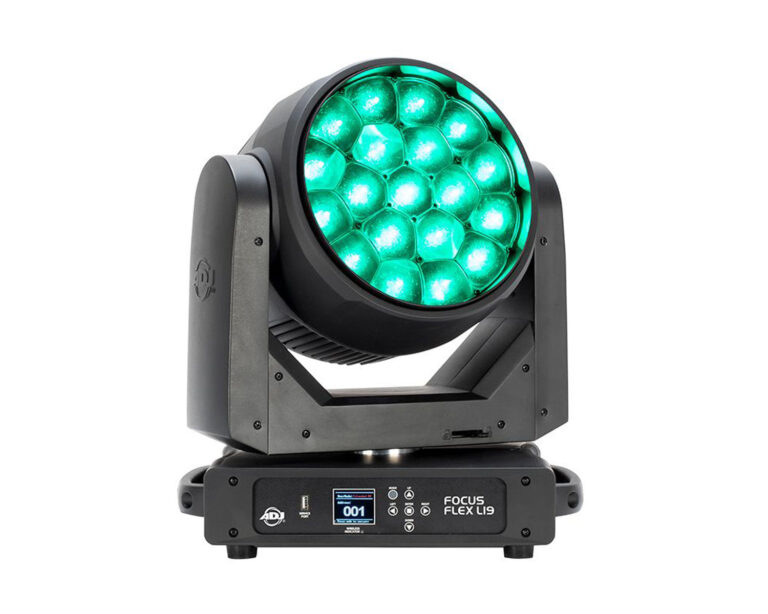

    ADJ Focus Flex L19 LED Moving Head
    ADJ Focus Flex L19 LED Moving Head
    £2,199.00 inc VAT
    £1,832.50 ex VAT
    • Light Source: 19x 40W RGBL LEDs
    • Zoom Range: 5°-50° (motorised)
    View →

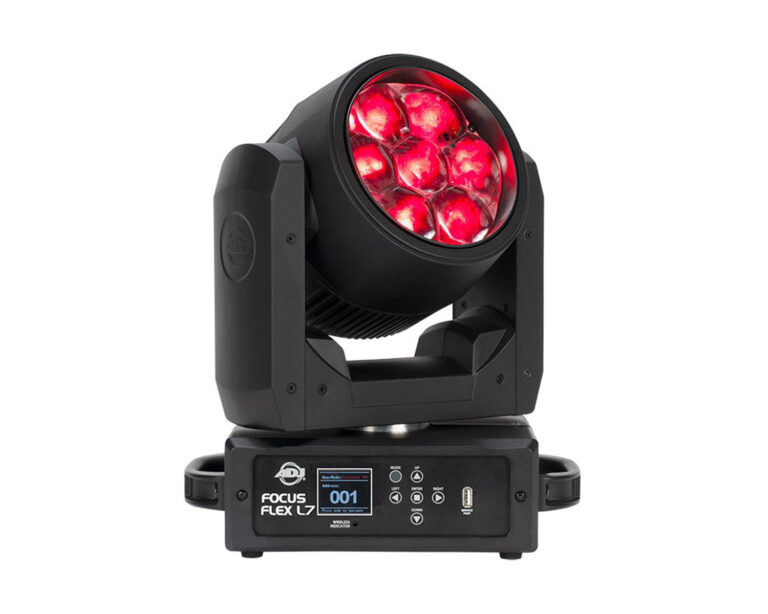

    ADJ Focus Flex L7 LED Moving Head
    ADJ Focus Flex L7 LED Moving Head
    £1,259.00 inc VAT
    £1,049.17 ex VAT
    • Light Source: 7x 40W RGBL LEDs
    • Zoom Range: 6°-55° (motorised)
    View →

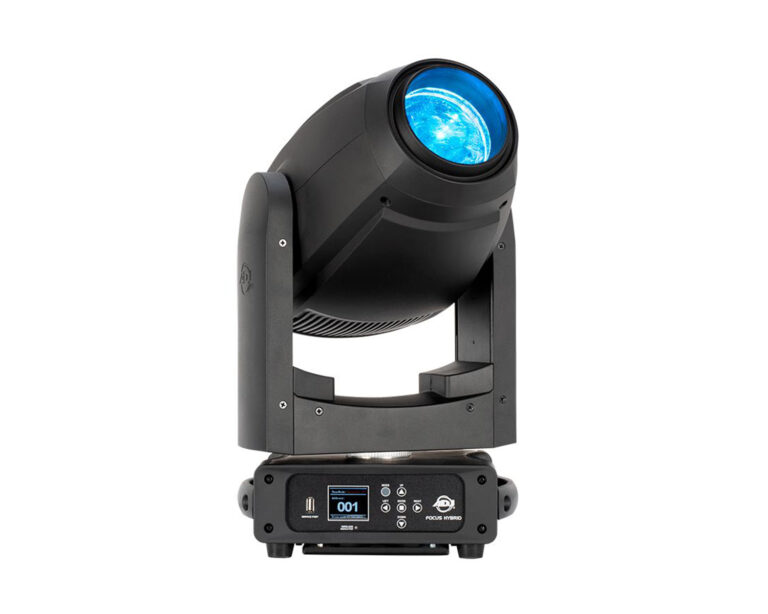

    ADJ Focus Hybrid Spot Beam & Wash Moving Head
    ADJ Focus Hybrid Spot Beam & Wash Moving Head
    £1,550.00 inc VAT
    £1,291.67 ex VAT
    • Light Source: 200W LED
    • Prisms: 2 rotating prisms
    • Zoom: Motorised
    View →

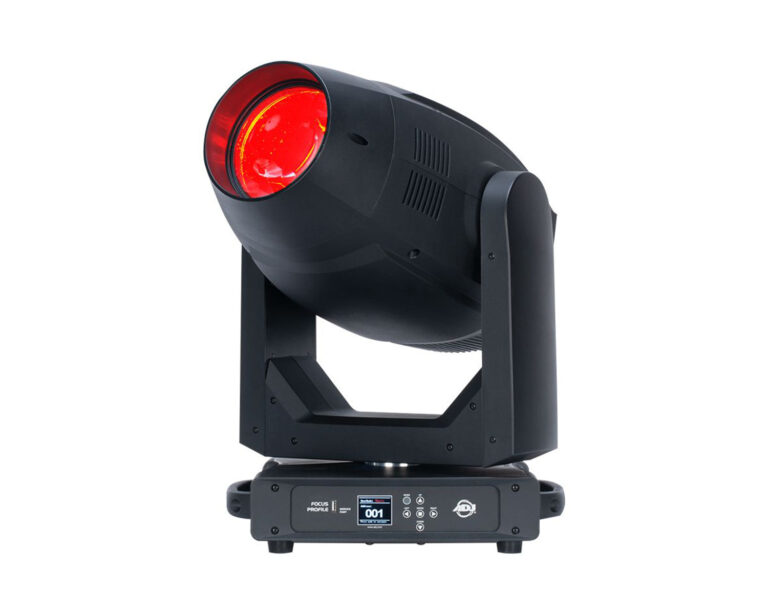

    ADJ Focus Profile Moving Head
    ADJ Focus Profile Moving Head
    £3,860.00 inc VAT
    £3,216.67 ex VAT
    • Light Source: 400W LED
    • Zoom Range: 7°-45° (motorised)
    • Colour Mixing: Full CMY
    View →

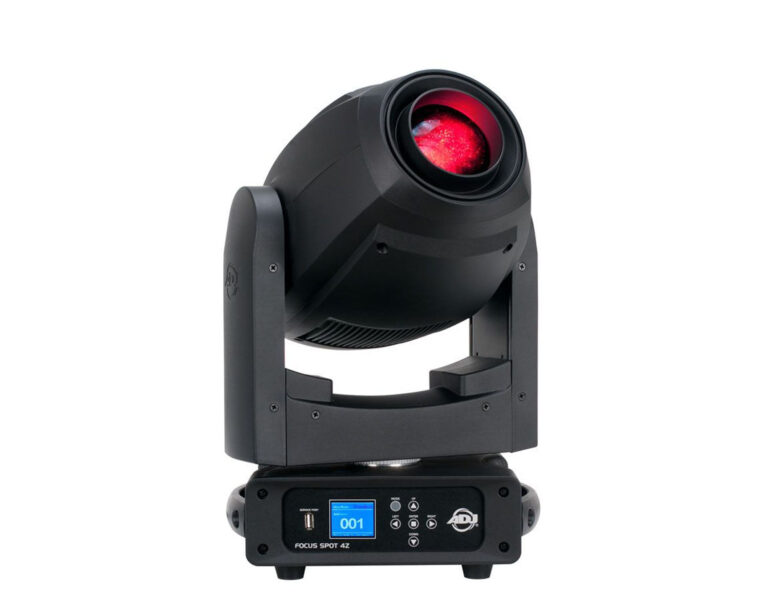

    ADJ Focus Spot 4Z Moving Head
    ADJ Focus Spot 4Z Moving Head
    £1,072.00 inc VAT
    £893.33 ex VAT
    • Light Source: 200W Cool White LED
    • Zoom Range: 11°-22° (motorised)
    • Prisms: 5-facet linear + 6-facet circular
    • Weight: 23 lbs
    View →

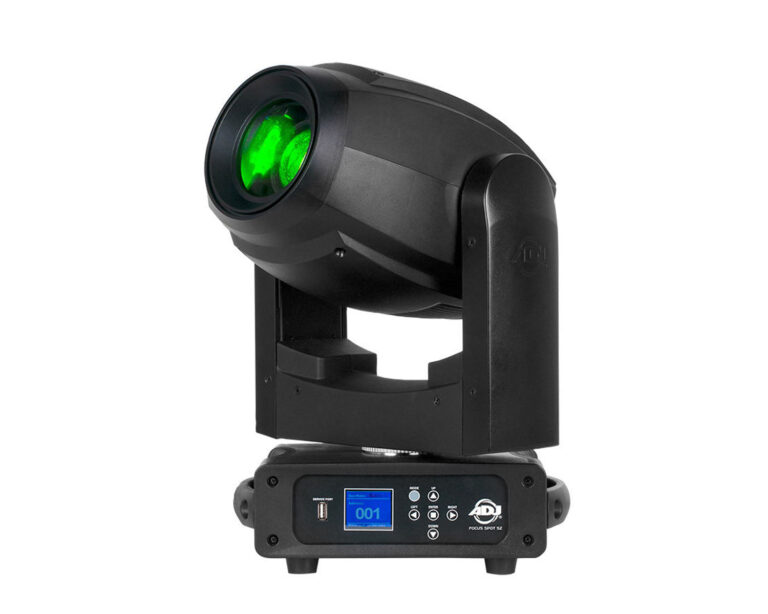

    ADJ Focus Spot 5Z Moving Head
    ADJ Focus Spot 5Z Moving Head
    £1,163.00 inc VAT
    £969.17 ex VAT
    • Light Source: 200W Cool White LED
    • Zoom Range: 11°-22° (motorised)
    • Prisms: 5-facet linear + 6-facet circular
    • Weight: 10 kg (23 lbs)
    View →

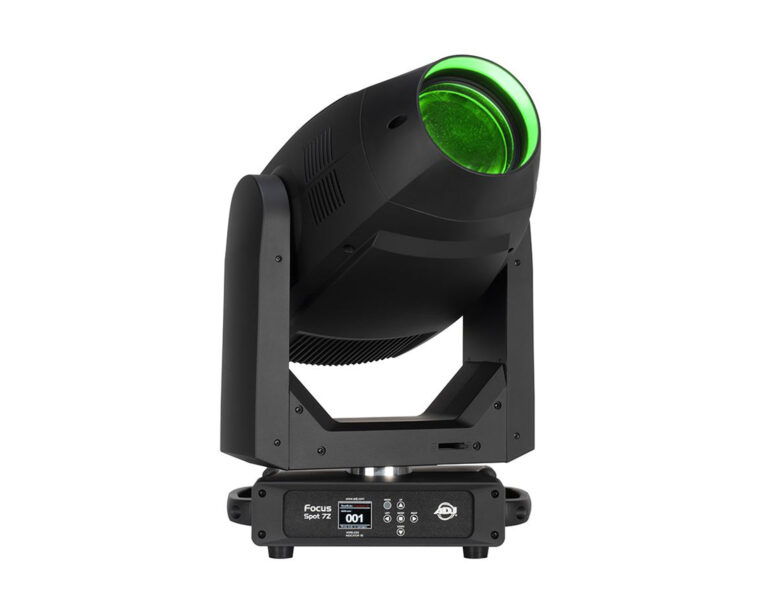

    ADJ Focus Spot 7Z Moving Head
    ADJ Focus Spot 7Z Moving Head
    £3,060.00 inc VAT
    £2,550.00 ex VAT
    • Prisms: 4-facet circular + 6-facet linear
    • Zoom: 6°-48° (motorised)
    • Weight: 23.45 kg (51.7 lbs)
    View →

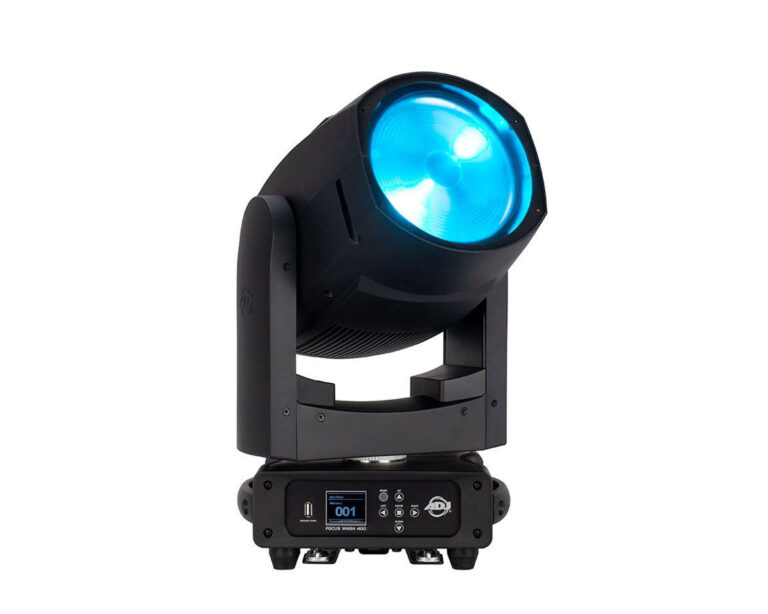

    ADJ Focus Wash 400 Moving Head
    ADJ Focus Wash 400 Moving Head
    £1,260.00 inc VAT
    £1,050.00 ex VAT
    • Light Source: 400W RGBACL LED
    • Zoom: 10°-41° (motorised)
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • 2 year warranty
    • 400W LED Engine
    • Colour Temperature: 6900K (+/-350K)
    • Motorized zoom range: 3°–52°
    • Motorized Focus
    • 14,500 Total Lumens
    • CRI: 64 (80 or 90 with HCRI Filter)
    • 6-Facet Circular & 6-Facet Linear Rotating Prisms
    • 2 x Frost Filters (Light and Heavy)
    • Gobo Wheel 1: 8 Rotating Gobos (Interchangeable and Indexable)
    • Gobo Wheel 2: 10 Static Gobos
    • Full CMY Colour Mixing
    • Variable CTO (3200K to 8500K)
    • Colour Wheel with 7 Dichroic Colours (Includes High CRI Filter in Slot 7)
    • Control protocols: DMX, RDM, sACN and ArtNet
    • 3 DMX Channel Modes (Basic / Standard / Extended)
    • Aria X2 Wireless Management System
    • NFC System
    • Pan/tilt transit lock
    • Pan/tilt auto correction
    • 16-Bit pan/tilt positioning
    • Pan: 540°/630°
    • Tilt: 270°
    • 0–100% dimming
    • Variable strobe
    • Quick release omega clamps included
    • 6 Button Touch Control Panel
    • Full Colour 180° Reversible LCD Menu Display
    • IP65 Power Locking In/Thru
    • Seetronic 5-pin XLR Locking DMX In/Thru
    • Seetronic RJ45 Locking In/Thru
    • Fan cooled
