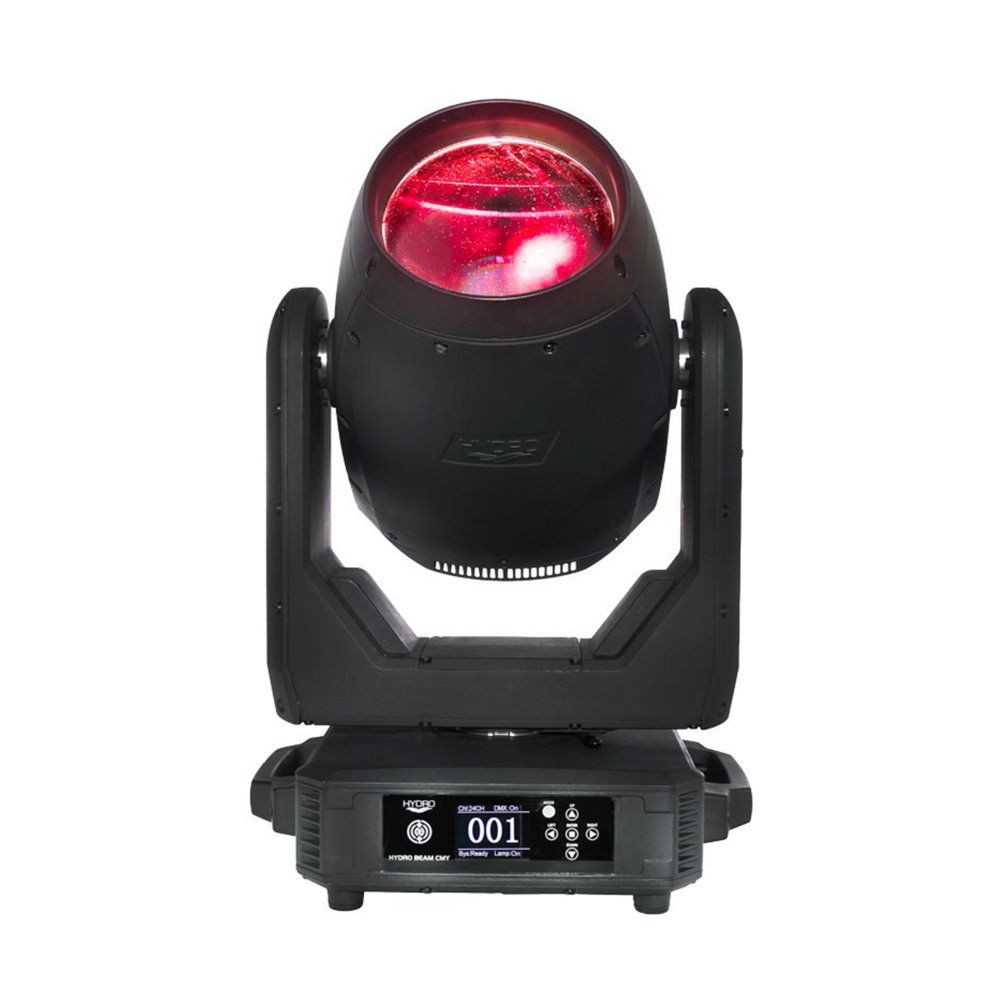

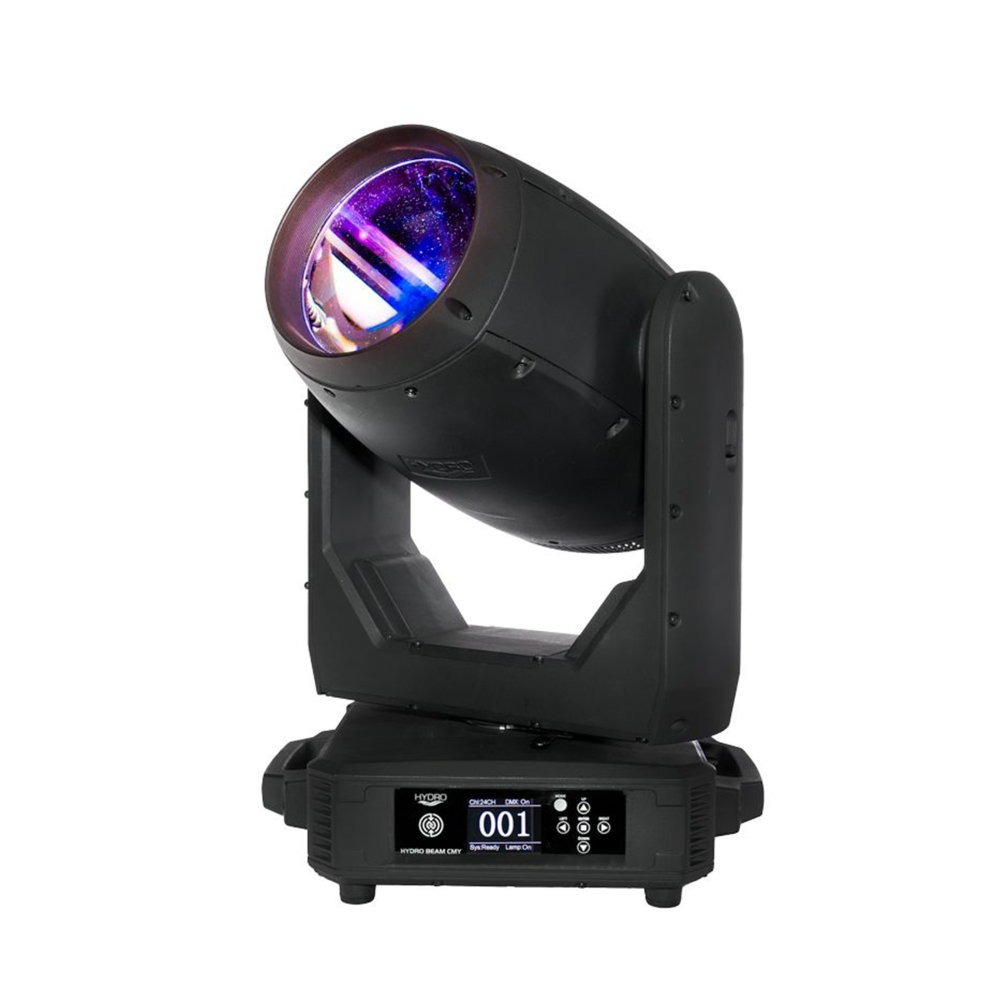

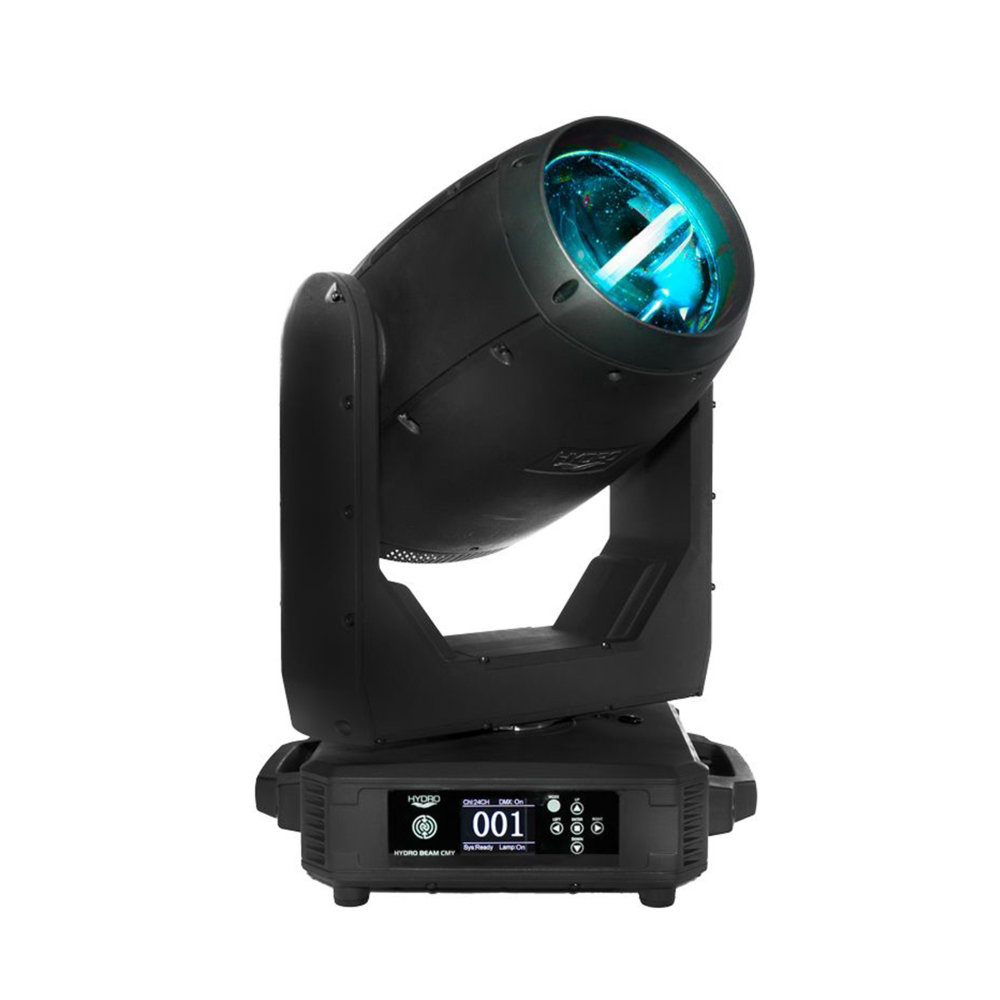

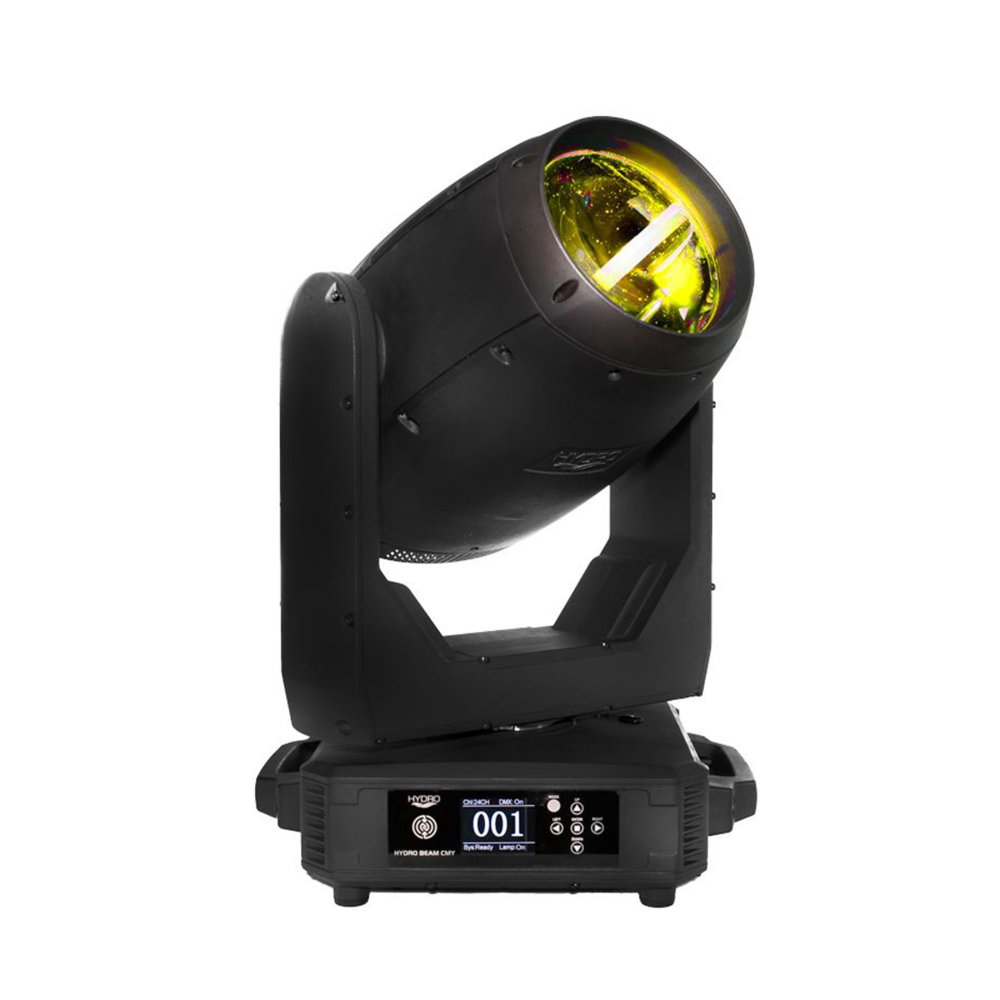

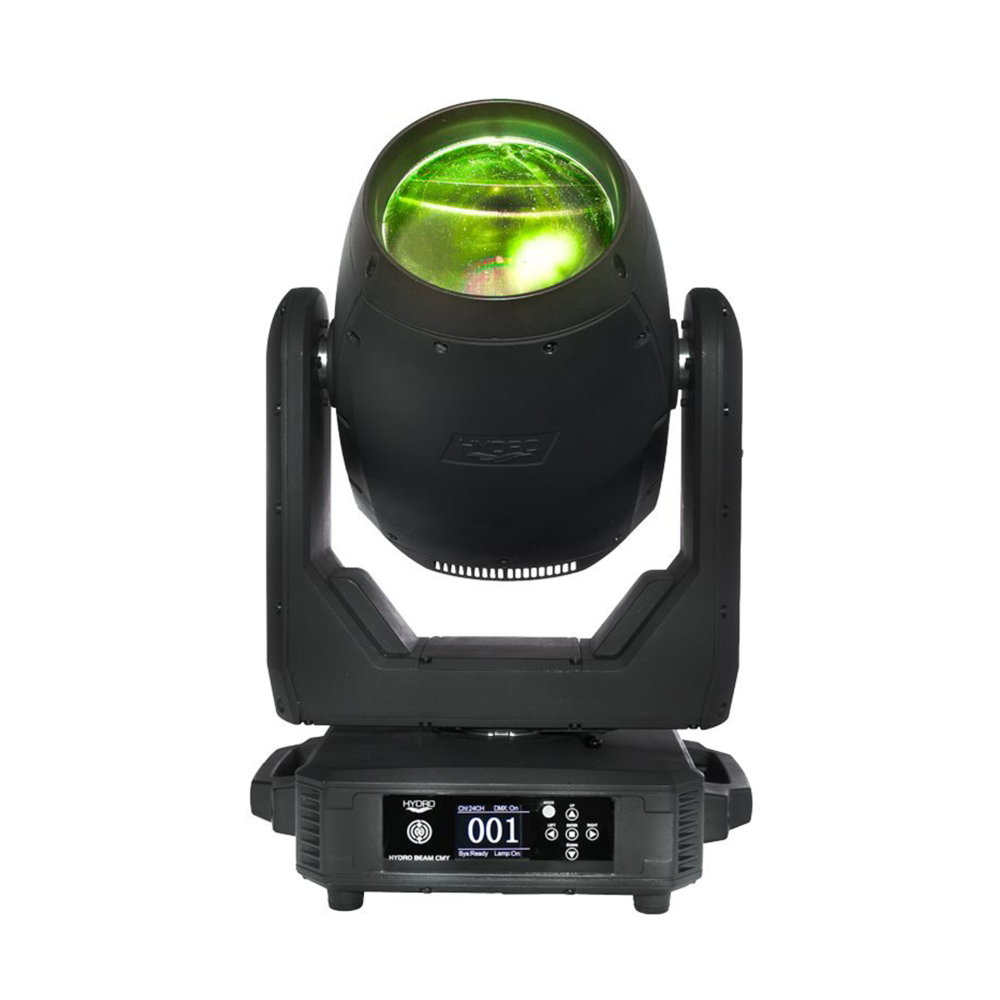

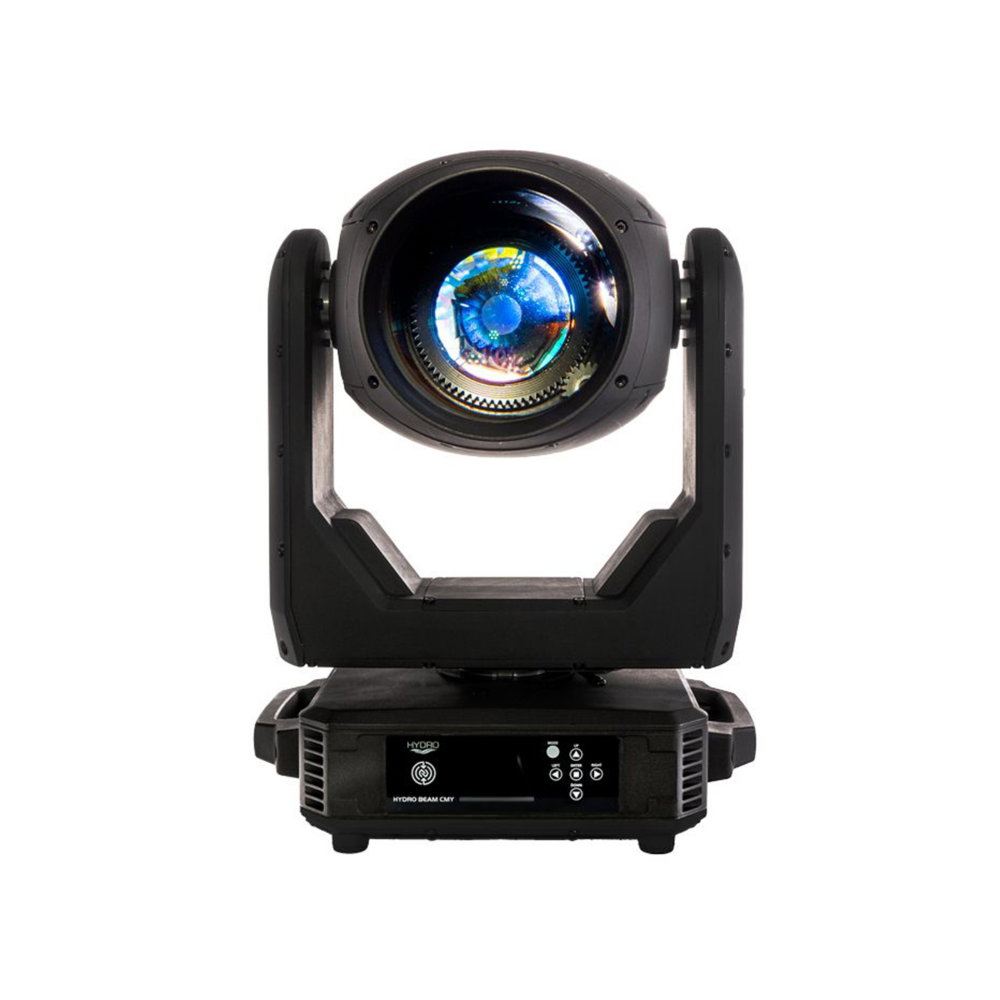

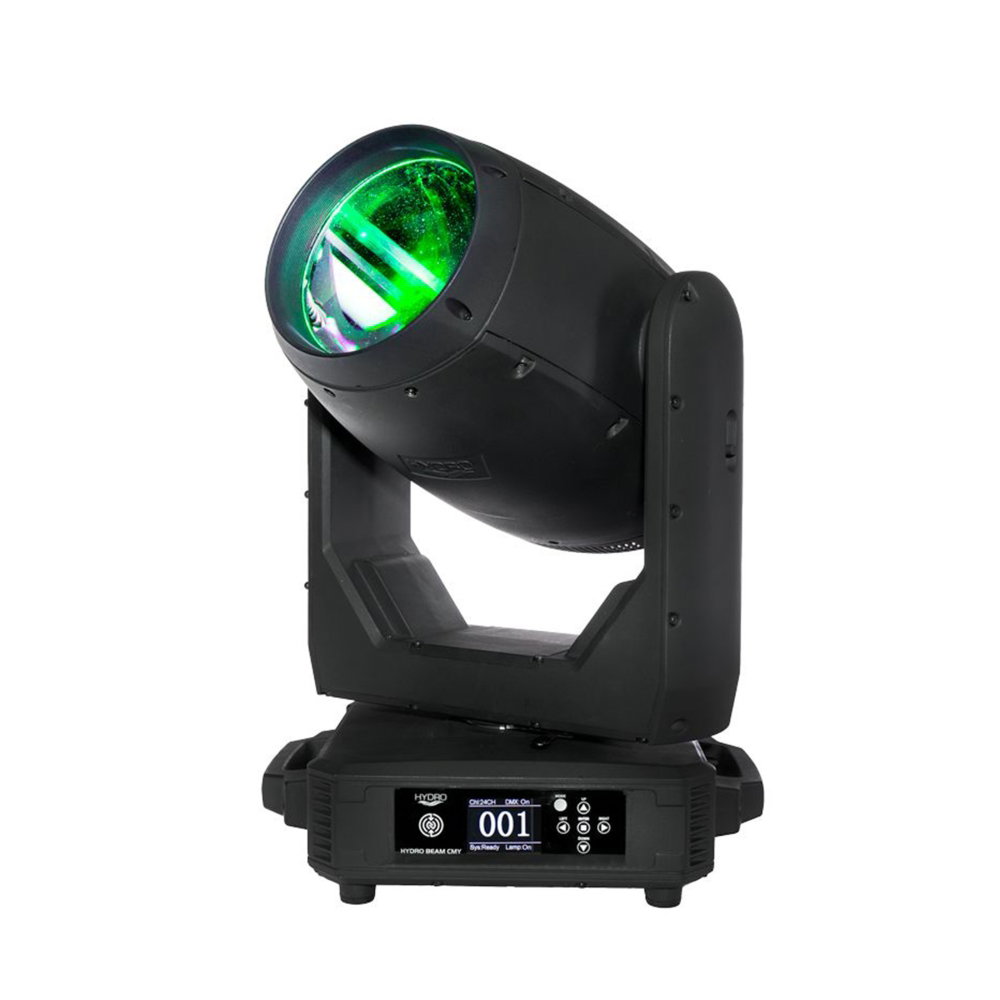

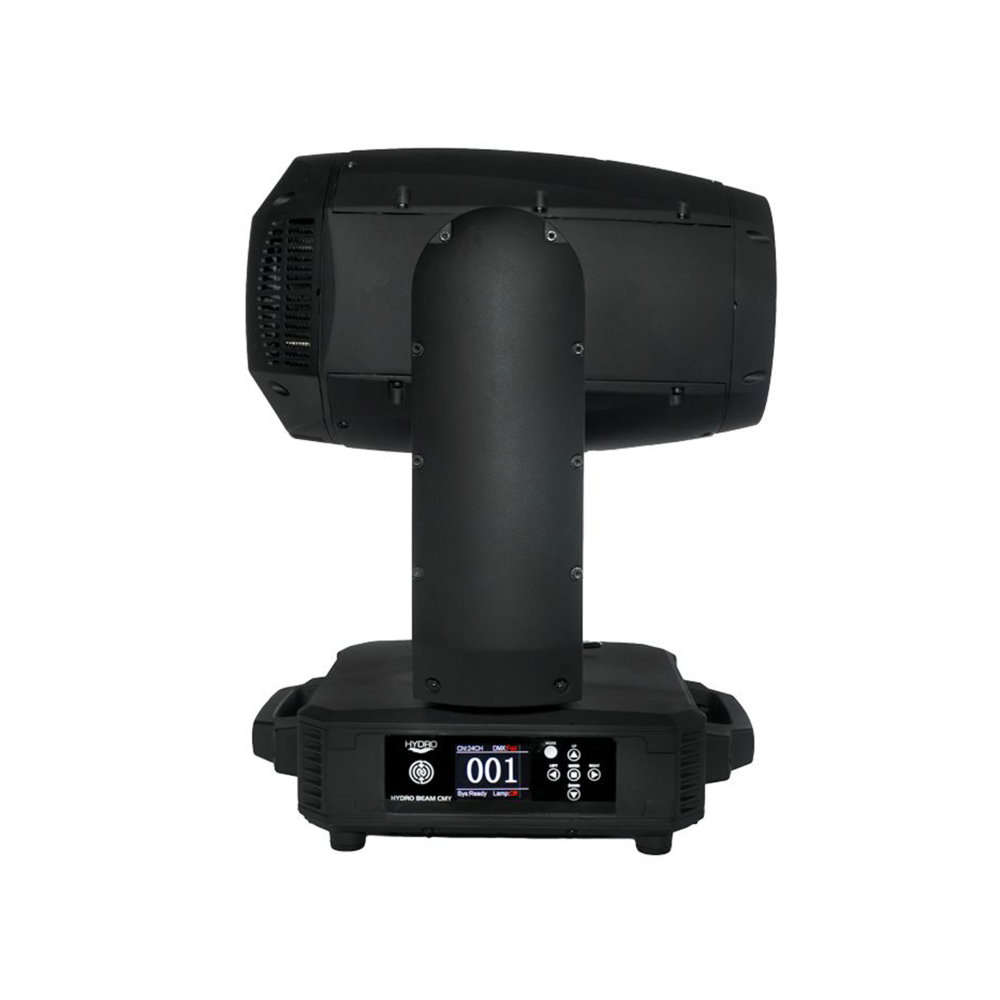

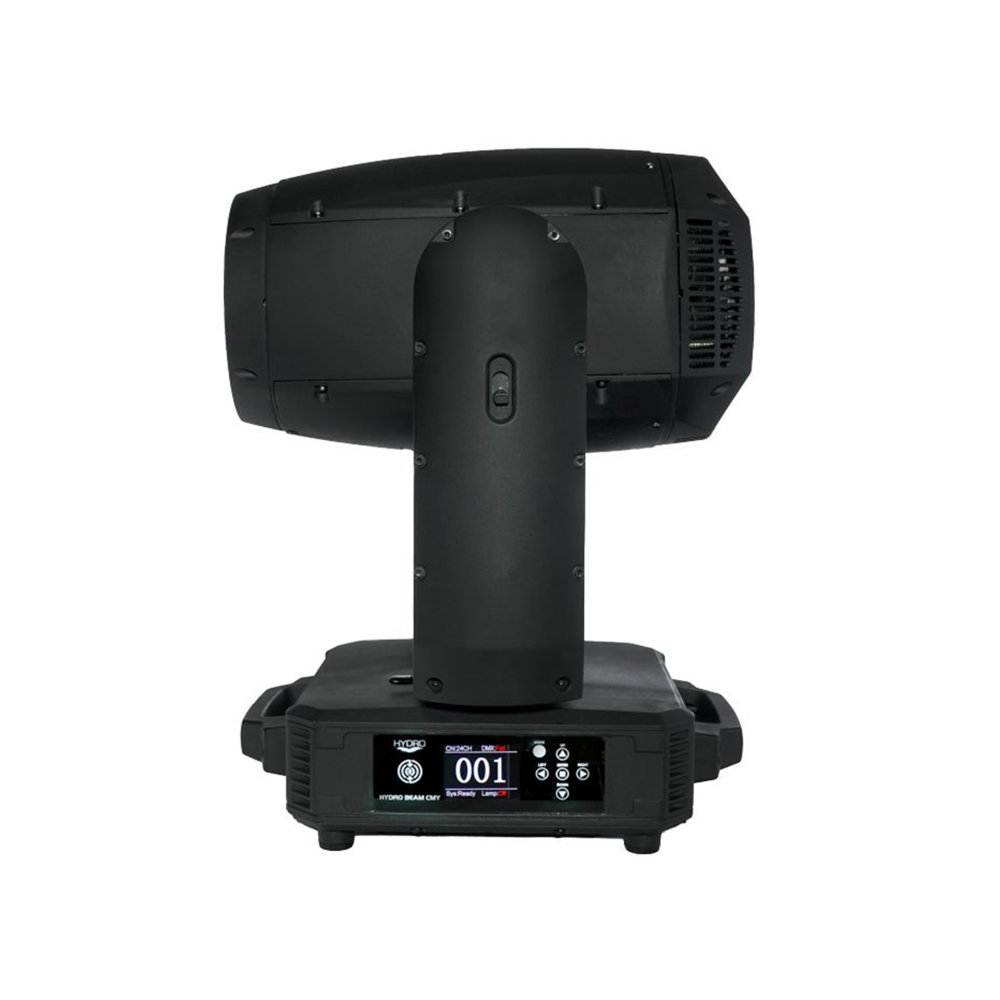

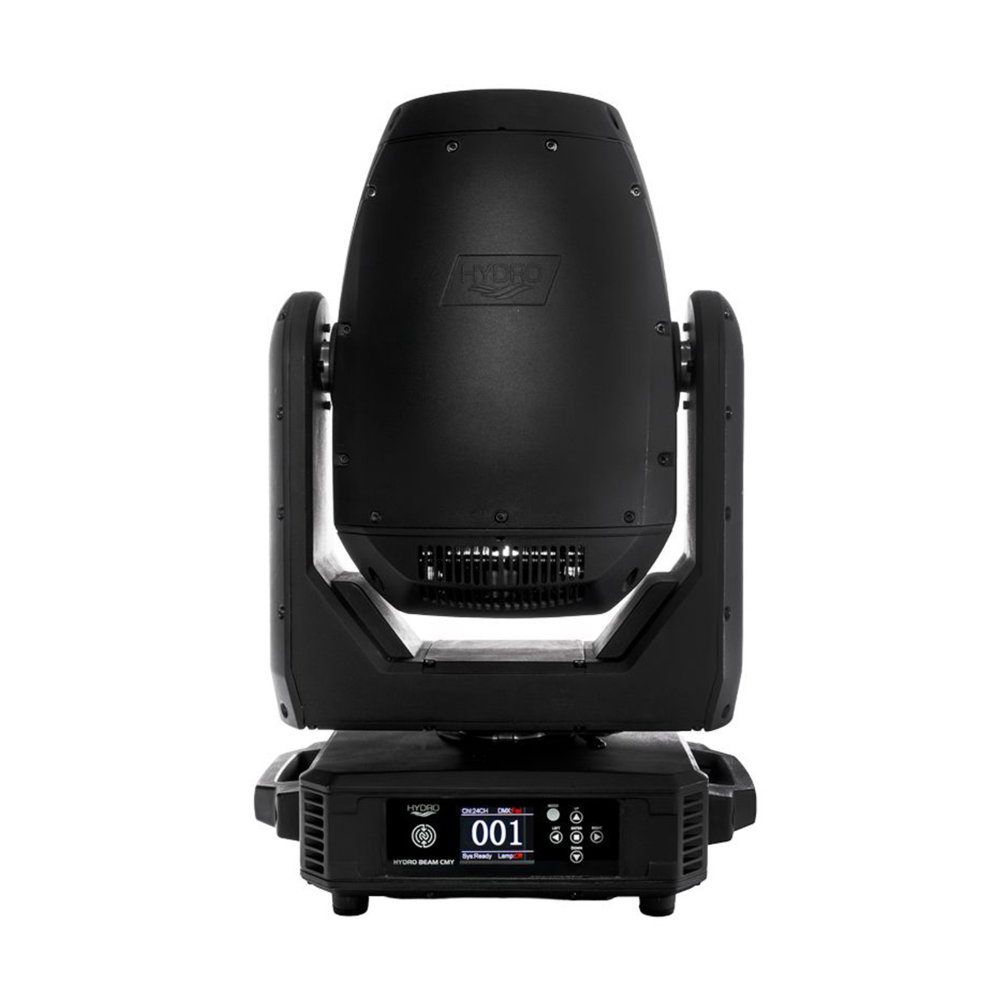

The Hydro Beam CMY is ADJ's IP65 beam moving head for rigs that stay out in the weather: festival stages, outdoor tours, theme parks and permanent exterior installations. An OSRAM Sirius HRI 310W PRO discharge lamp through a glass lens produces a 2° beam that cuts through daylight, haze and fog, with motorised focus to keep gobos sharp at any throw. CMY mixing, a 14-colour wheel, 17 gobos and two rotating prisms that can be overlaid give it the palette of an indoor beam, and the frost turns it into a soft-edged wash. It takes cabled DMX with RDM, or wireless DMX through the built-in Aria X2 system, and joins the rest of the ADJ Hydro range.
2°
Beam angle
310W
OSRAM Sirius HRI
IP65
Outdoor rated
CMY
Plus 14 colours
Keep the seals closedThe IP65 rating relies on every unused connector being capped and on IP65-rated power and DMX cables. Fit the rubber caps whenever a socket is not in use. Two Hydro Beam CMY fixtures fit in the ADJ DRC MHX road case (sold separately).
Features
OSRAM Sirius HRI 310W PRO discharge lamp, 6,000 hour rated life
Tight 2° beam through a high-quality glass lens
Motorised focus with 16-bit fine focus
CMY colour mixing plus 14 dichroic colours and white, including CTO, CTB and UV
Indexable colour wheel for split colours
17 static gobos plus open, 4 of them beam reducers, with gobo shake
16-facet circular and 6-facet linear rotating prisms, usable together
Frost filter for a soft-edged wash
540° pan and 270° tilt on high-speed 3-phase motors, 16-bit fine
Pan and tilt locks for transport
Built-in Aria X2 wireless DMX and fixture management, with NFC
Over-the-air wireless firmware updates

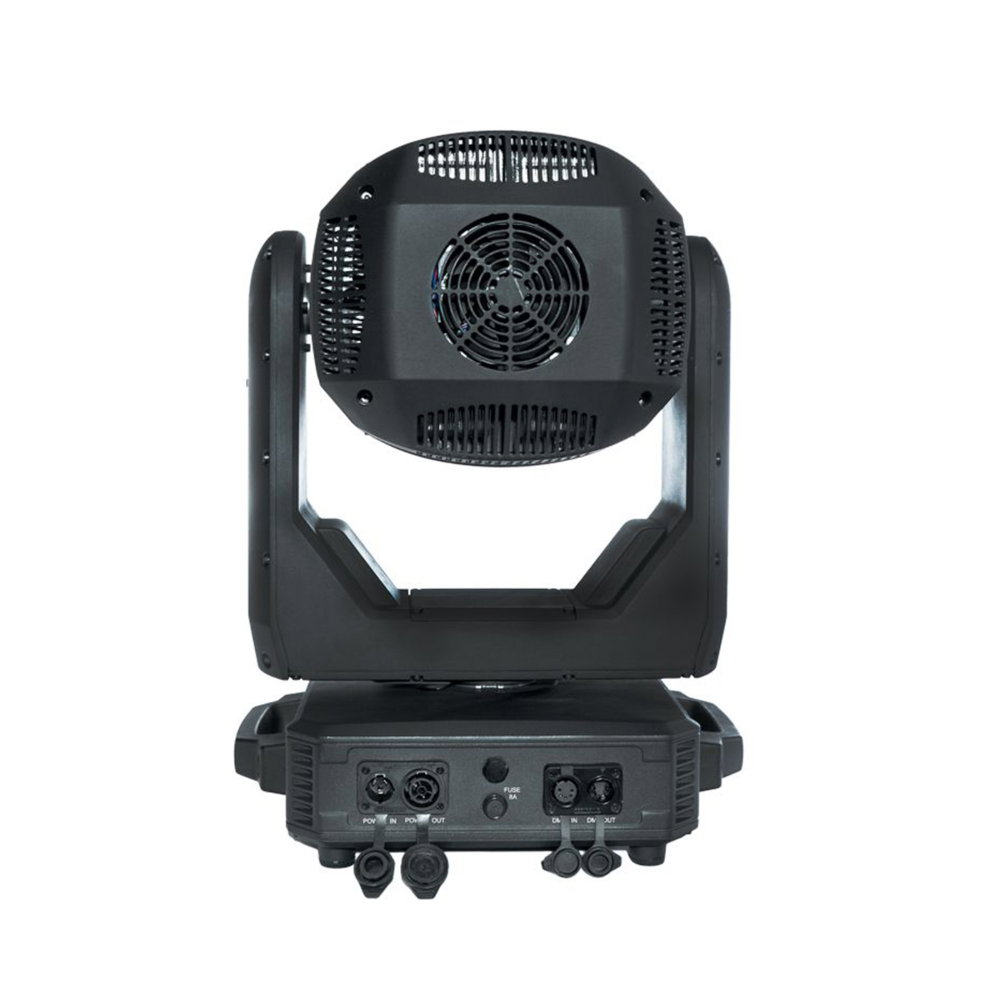

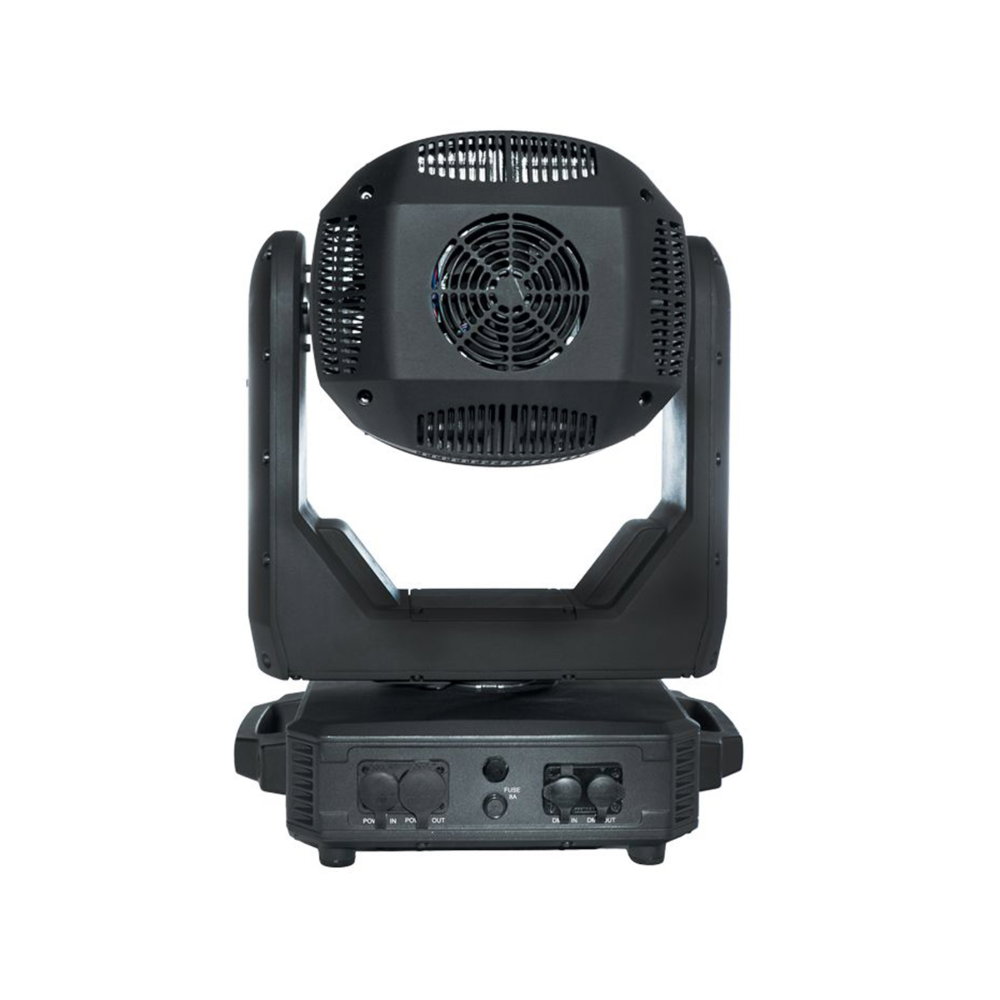

IP65 locking power and DMX in/out for daisy-chaining outdoors
Specifications
| Type | IP65 beam moving head |
| Light source | OSRAM Sirius HRI 310W PRO discharge lamp, 6,000 hr |
| Colour temperature | 7850K (+/- 500K), CRI 86 |
| Beam angle | 2° |
| Colour | CMY mixing; 14 dichroic colours plus white (CTO 3200K, CTB 9000K, UV) |
| Gobos | 17 static plus open (4 beam reducers), shake effect |
| Prisms | 16-facet circular and 6-facet linear, rotating, overlay |
| Effects | Frost, motorised focus, 0-100% dimming, variable strobe |
| Pan / tilt | 540° / 270°, 16-bit fine, 3-phase motors, locks |
| Control | DMX512, RDM, Aria X2 wireless DMX, NFC |
| DMX modes | 20 or 24 channels |
| Display | Colour LCD with menu buttons |
| Data connections | Seetronic IP65 5-pin DMX in/out (max 32 fixtures per link) |
| Power connections | IP65 locking power in/out |
| Power | 100-240V, 50/60Hz; max 430W at 230V; 6.5A fuse |
| Dimensions | 568.5 mm high x 381.6 mm wide x 284.5 mm deep |
| Weight | 25.6 kg |
| Rating | IP65 |
| In the box | 2 x omega brackets, 2 m outdoor locking power cable |
| Part number | 1237000414 |
