ADJ Mirage Q6 Pak Battery Uplighter Kit

Product code: 45606

£2,400.00 inc VAT
£2,000.00 ex VAT

SKU: ADJ1226100382
8 available online
Delivered by TuesdayOrder by 3pm tomorrow
Click & Collect tomorrow ›Collect from us in Wembley
Pallet delivery - Restrictions apply. Click here for details
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The ADJ Mirage Q6 Pak is a complete six-fixture battery uplighting kit supplied in a charging flight case. Each Mirage Q6 IP fixture uses four 10W RGBA LEDs through an 11 degree beam and runs up to 40 hours on a single colour, with Aria X2 wireless DMX reaching up to 760 m. IP65 rated for outdoor use, with an anti-theft alarm mode for unattended deployments.

6 fixtures
Pak Contents · in charging case
4 x 10 W
LEDs per Fixture · RGBA
Up to 40 h
Runtime · single colour
IP65
IP rating · weatherproof
Aria X2
Wireless DMX · up to 760 m

Features

6 x battery-powered RGBA uplighters in a charging flight case
4 x 10W RGBA LEDs per fixture
11 degree beam ideal for narrow uplighting and wall washing
IP65 weatherproof for outdoor and exposed use
Aria X2 wireless DMX reaching up to 760 m line of sight
Up to 40 hours runtime on a single colour (14 hours colour changing)
7 hour battery charge time
Built-in feet and kickstand for floor angling

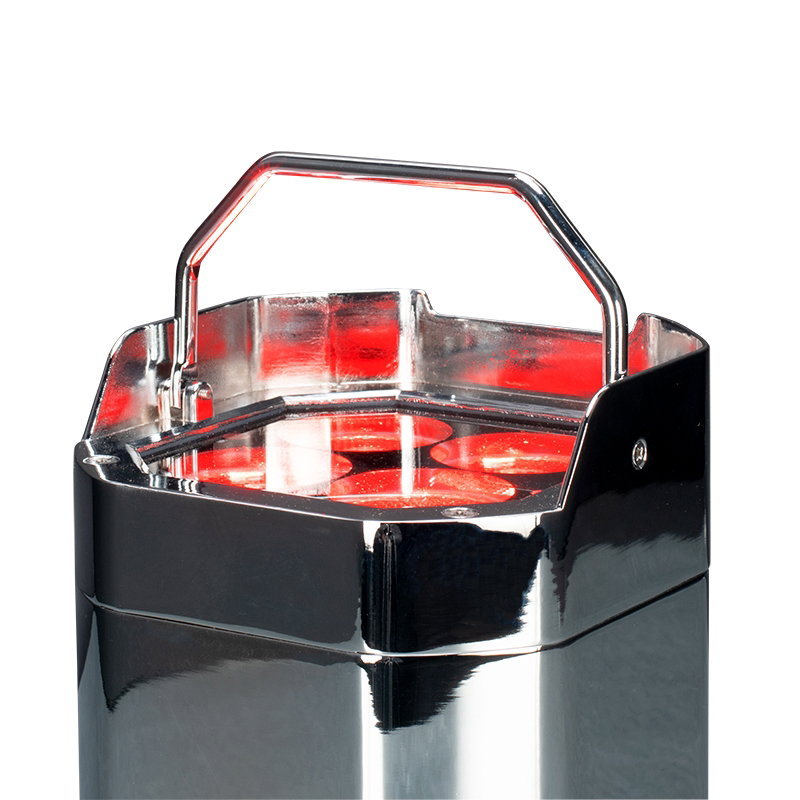

Integrated carry handle
Anti-theft alarm mode (red strobe and beep if moved)
Onboard charging inside the flight case
Outdoor UseIP65 rating means full dust ingress protection and resistance to low pressure water jets – safe for typical UK weather, marquee perimeters and outdoor weddings. Not designed for submersion.

Specifications

ADJ Mirage Q6 Pak Battery Uplighter Kit specifications
Pak contents 6 fixtures in charging flight case
LED source 4 x 10W RGBA per fixture
Beam angle 11 degrees
Runtime 40 h single colour / 14 h colour changing
Charge time 7 hours
Wireless DMX Aria X2 (up to 760m line of sight)
IP rating IP65
Security Anti-theft alarm mode

Full features

Please note: Shipping charges may apply

Specification
Mirage Q6 Pak includes:
  • (6) MIRAGE Q6 IP Fixtures

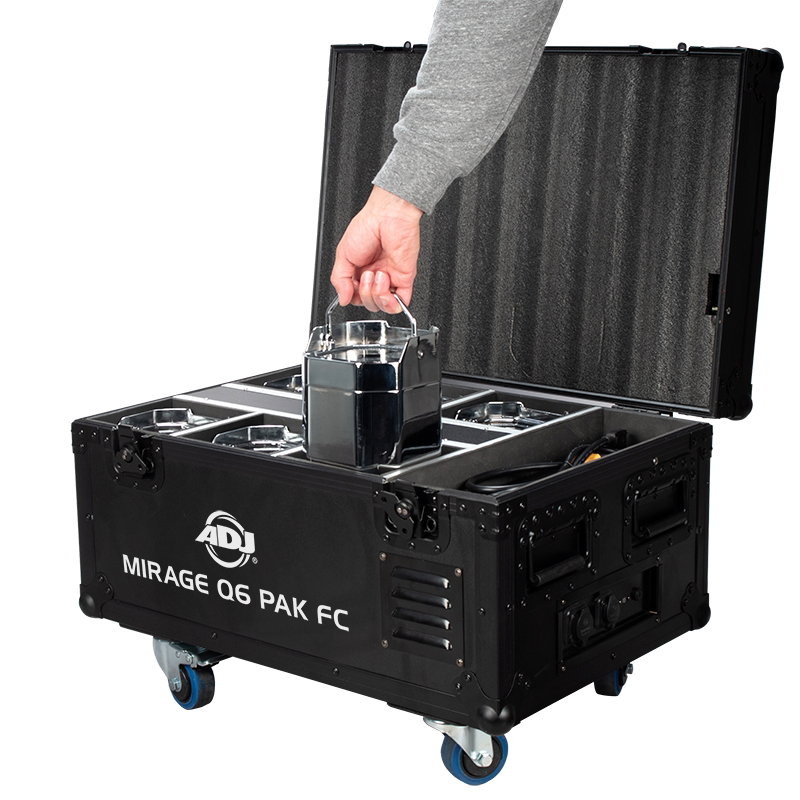

  • (1) MIRAGE Q6 FC Flight Case
  • (6) MIRAGE Q6 IPCB Charging bases and power supplies
  • (1) UC-IR Wireless Infrared Controller
  • (1) IP65 Locking Power Cable
Mirage Q6 Pak Features:
  • Houses / Transports and Charges (6) MIRAGE Q6 IP™ fixtures
Mirage Q6 Pak Dimensions & Weight (with 6 fixtures):
  • Length: 26.4” (671mm)
  • Width: 18.2” (461mm)
  • Vertical Height: 18.1” (459mm)
  • Loaded Weight: 97.9 lbs. (44.4 kg)
Pak Electrical & Thermal:
  • Power Input: AC100VAC~240VAC, 50/60Hz
  • IP65 Power Locking Input and Output
  • Max Power Consumption: 400 Watts
  • Power Draw: 4A
  • Charge status indicator
  • 14°F to 113°F (-10°C to 45°C)

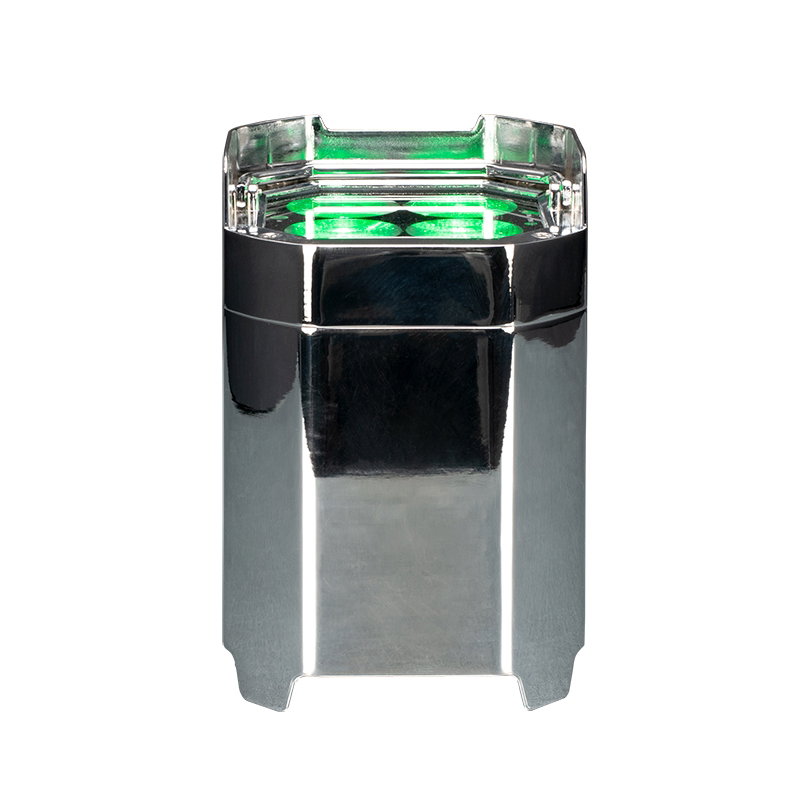

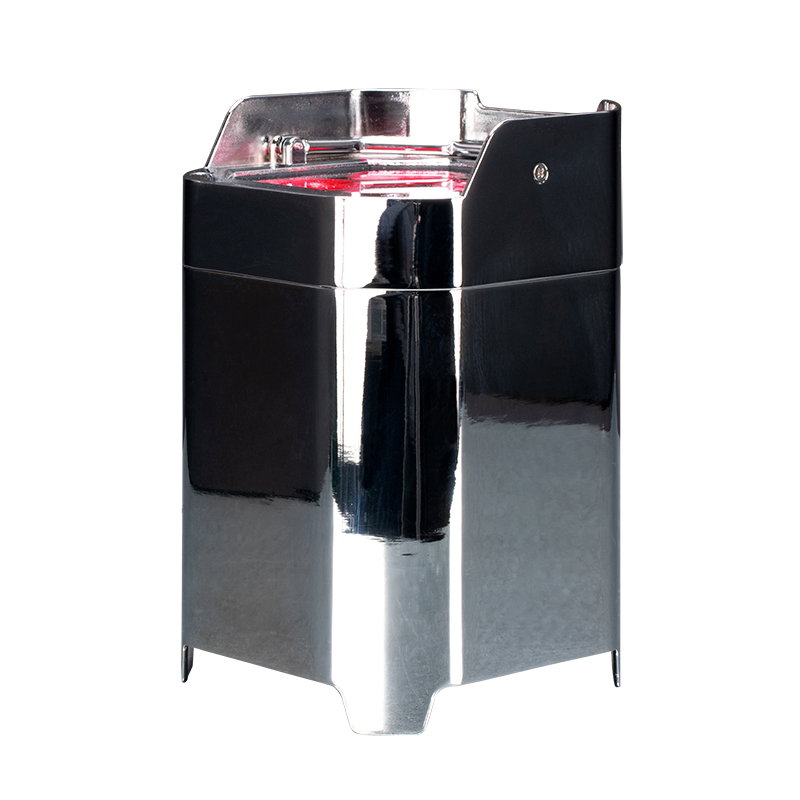

MIRAGE Q6 IP FIXTURE
Source:
  • 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
  • 50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometrics:
  • LUX: 9903 @ 2M; 2303 @ 4M
Optics:
  • 11-degree beam angle
Control & Connections:
  • Control protocol: WiFLY EXR Wireless DMX
  • Control protocol: Aria X2 Wireless Management System
  • 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
  • Remote control: Aria X2 BLE App and UC-IR24 (Included)
  • Remote control: WiFLY EXR DMX, UC-IR24 (Included)
  • 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 colour/fade combo mode); Static Colour mode; and Wireless DMX Control
  • Contact Charging system. 6x Charging bases and power supplies included in flight case
Features:
  • IP65 Outdoor Rated

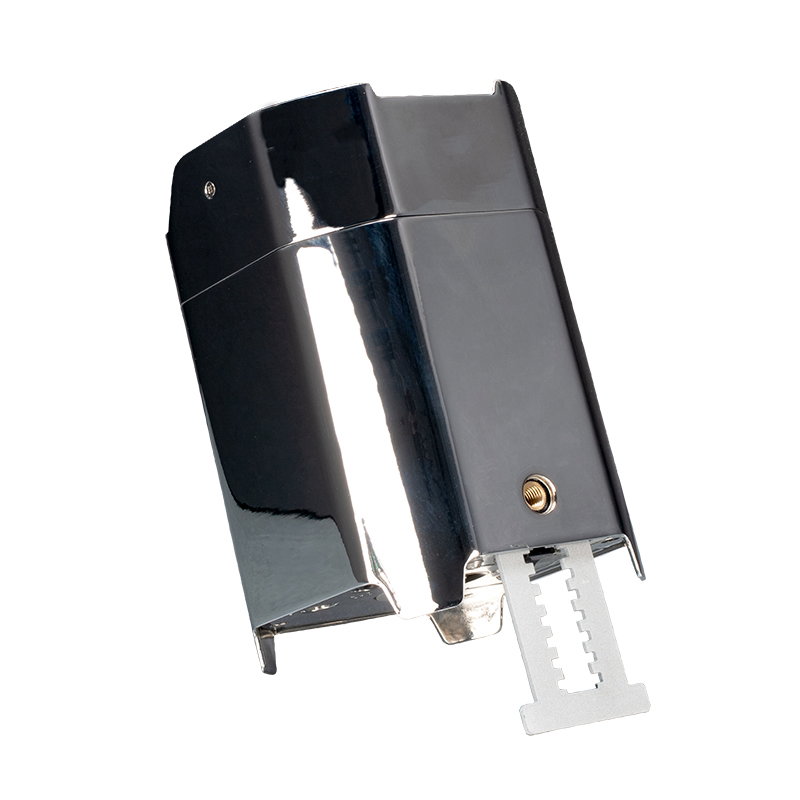

  • Built-in kickstand to angle fixture when sitting on the floor

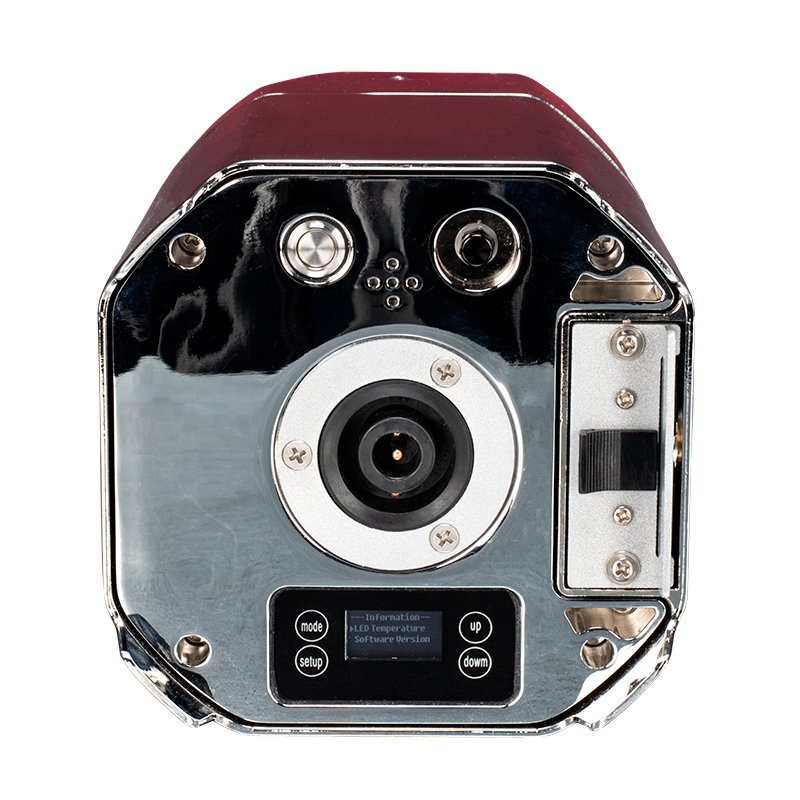

  • 4-touch button OLED display on rear panel
  • Built-in Aria X2 Wireless Management System allows for the fixtures to communicate with a lighting controller up to 760M away
  • Aria X2 BLE App (Compatible with iPhone and iPad)
  • Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR
  • Battery Transceiver
  • 64 built-in Colour Macros
  • Variable RGBA colour mixing offers a smooth, seemingly unlimited colour palette - Great for Wall Washing!
  • LED pulse and strobe effect (0.2Hz-11Hz)
  • Flicker Free Operation
  • Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
  • Run all night – No duty cycle
  • Energy Save Mode
  • Built-in alarm system with On/Off
  • Battery charge indicator on each fixture
  • Die-cast aluminium housing
Battery:
  • Battery Type: Fixed lithium battery
  • Battery Energy: 162.8WH (Watt Hours)
  • Battery Weight: 0.84 kg.
  • Battery Voltage: 14.8V
  • Battery Capacity: 11000mAh (Typical Capacity)
  • Total Lithium Ion Cells: 20 pieces
  • Battery Wrap Material: PVC sleeving + highland barley paper
  • Battery Charge Time: 7 Hours
  • Battery Life: 14 hours (When colour changing in Battery Saver Mode 14); 40 hours (When set to a single colour in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
Dimensions & Weight:
  • Length: 143.2mm
  • Width: 143.2mm
  • Vertical Height: 211mm
  • Weight: 4.01kg
Electrical & Thermal:
  • Power Input: DC 17.3V
  • Power Draw: 2A
  • 40W Max Power Consumption (each unit)
  • -10°C to 45°C
  • Manufacturer Part Number: 1226100382
  • Dimensions (L x W x H): 65.5 x 46.0 x 46.0cm
