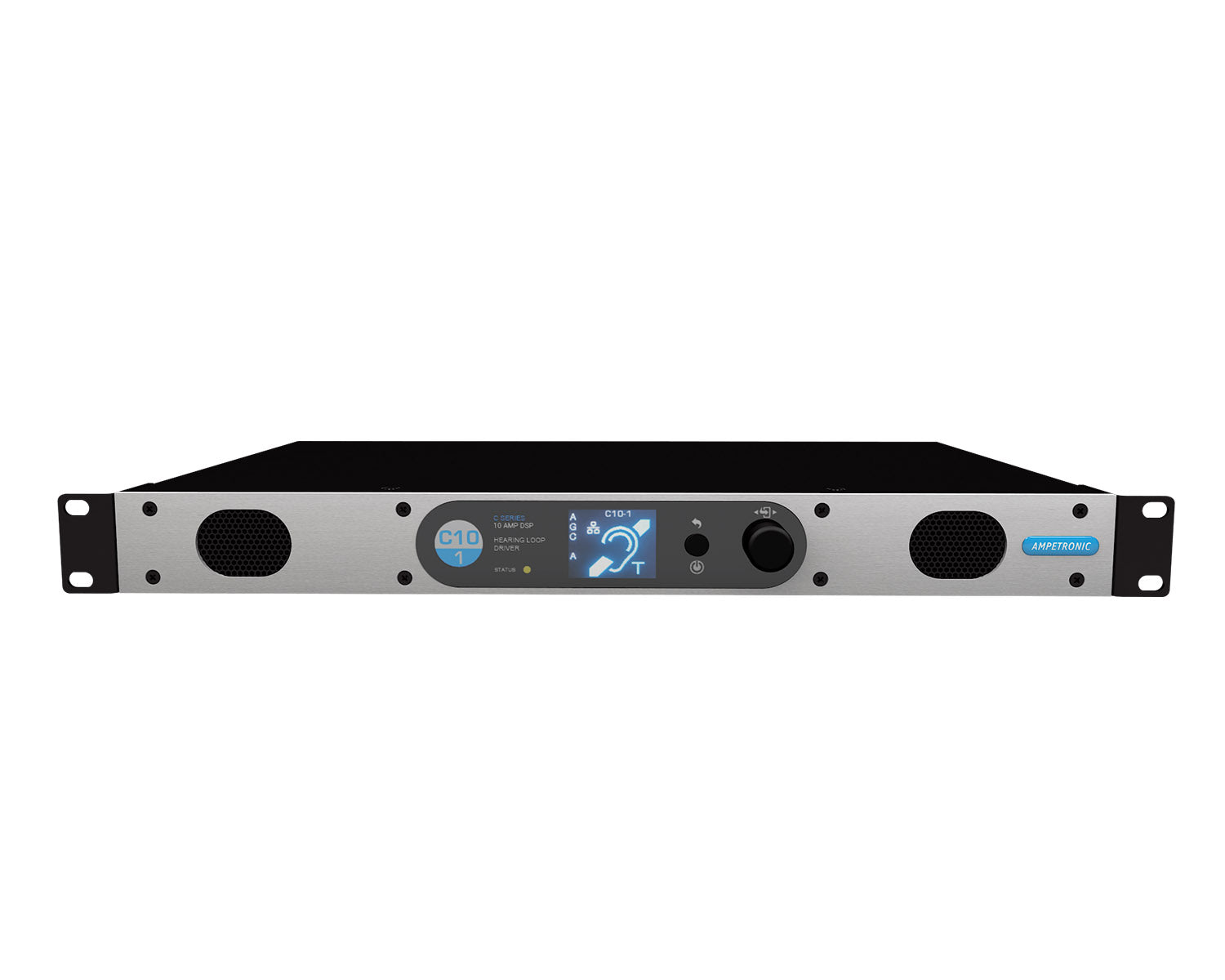

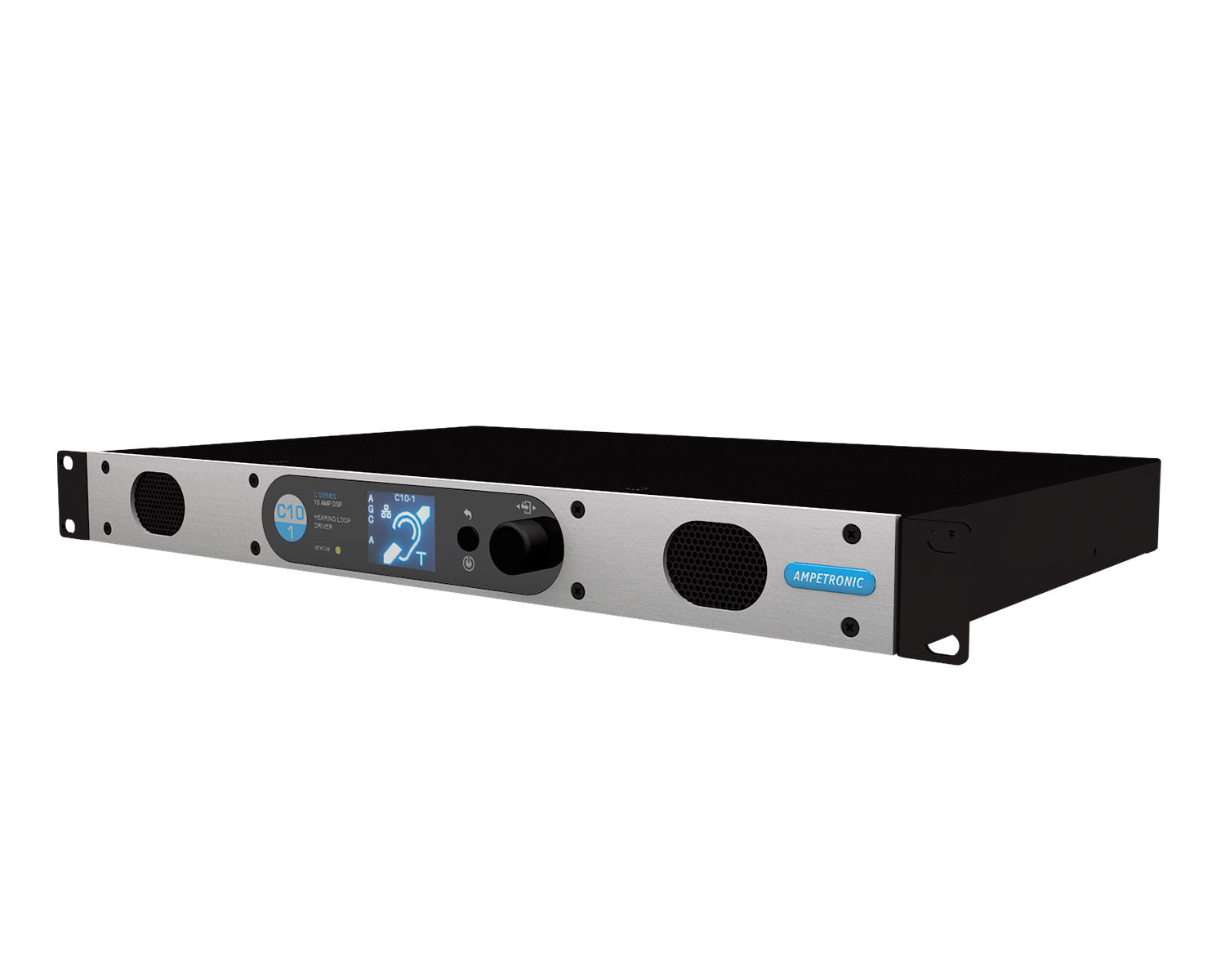

The Ampetronic C10-1N is a networked, single-output perimeter hearing loop driver delivering 10 A RMS of loop current from a 1U rack unit. Network control lets installers and facilities teams adjust the driver remotely, monitor loop resistance and induction, and receive fault alerts by email. It suits larger single spaces such as lecture theatres, theatres, conference rooms, sports halls and transport concourses, where a system needs to meet BS EN 60118-4 field strength.
10 A RMS
Loop current
1U
Rack height
Network
Control and monitoring
4.2 kg
Weight
Metal loss correctionMLC corrects the frequency response tilt caused by metal in the building. It does not make up the overall signal loss, which can be large, so loops in steel-framed buildings still need a proper design.
Features
Single loop output, 10 A RMS (14.1 A peak) at 1 kHz
Ethernet control via hosted web server, Telnet and SNMP
Remote monitoring of driver status, loop resistance and induction, with fault alerts by email or Telnet
Priority input option and custom dual-slope metal loss correction (network models)
Two balanced mic/line inputs with switchable 24V phantom power, plus a 100V line input
Status relay that opens on fault, for connection to building management or alarm panels
Compatible with Loopworks Measure LoopLink for automated driver control
Built-in test tones and speech optimised AGC
Variable speed fan, front inlet and rear exhaust
Specifications
| Loop output current | 10 A RMS (14.1 A peak), 1 kHz sine; 4.7 A RMS pink noise |
| Output voltage | 33.9V RMS (48V peak) |
| Loop outputs | 1x 4-pin 5 mm Euroblock (supplied), for twisted pair or star-quad feed cable |
| Inputs 1 and 2 | Balanced mic or line, 3-pin 3.5 mm Euroblock, selected by rear panel switch, switchable 250 Hz low cut |
| Mic input | 200 to 600 ohm, sensitivity -67 dBu, switchable 24V phantom power |
| Line input sensitivity | -42 dBu |
| 100V line input (input 2) | 2-pin 5 mm Euroblock, sensitivity +7 dBu |
| Network | RJ45 Ethernet, hosted web server, Telnet and SNMP |
| Line output | Balanced, post AGC, 3-pin 3.5 mm Euroblock |
| DC output | 12V 0.1 A, resettable fuse protected, can follow amplifier status |
| Status relay | Normally closed isolated contacts, open on fault; 0.5 A at 125V AC, 2 A at 30V DC |
| USB | Firmware updates, or 200 mA power for a wireless router |
| Frequency response | 80 Hz to 6.5 kHz |
| Distortion | THD+N <0.3% (1 kHz sine at full current) |
| Automatic gain control | Speech optimised, dynamic range >36 dB |
| Metal loss correction | 0 to 4 dB per octave in 0.25 dB steps, gain constant at 1 kHz |
| Power | 230V / 120V nominal, 45 to 65 Hz, 70W, mains voltage switchable |
| Dimensions (W x D x H) | 430 x 305 (inc. knob) x 44 mm, 1U 19 inch |
| Weight | 4.2 kg |
| Mounting | Freestanding or 1U rack (brackets fitted); wall brackets available separately |
| Cooling | Variable speed fan, front to rear |
| Environment | IP20, 0 to 35°C, 20 to 90% relative humidity |
