Ampetronic CLD1-CD Compact Hearing Loop Driver Kit with Desktop Microphone

Product code: 191587

£267.00 inc VAT
£222.50 ex VAT

SKU: CLD001CD

4 in stock (more available subject to additional lead time)

5 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

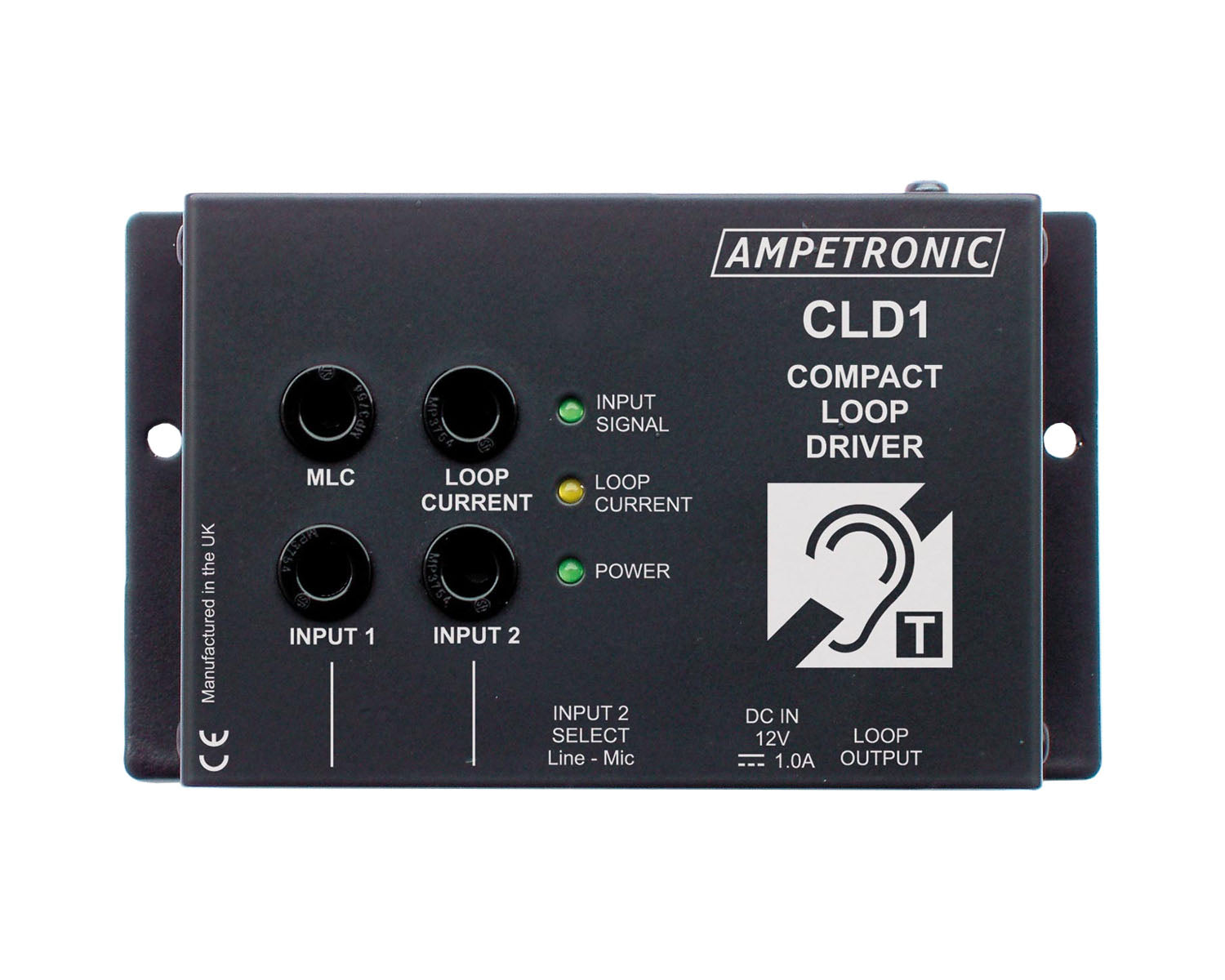

The Ampetronic CLD1-CD is a counter hearing loop kit built around the CLD1 compact loop driver, supplied with a desktop microphone and a pre-formed loop. The driver delivers 2.4 A RMS and mounts out of sight under a counter or on a wall. It is used at reception desks, ticket and service counters, information kiosks, interview rooms and small meeting rooms.

2.4 A RMS
Loop current
128 x 74 x 35 mm
Driver size
2
Inputs
5 years
Warranty

Features

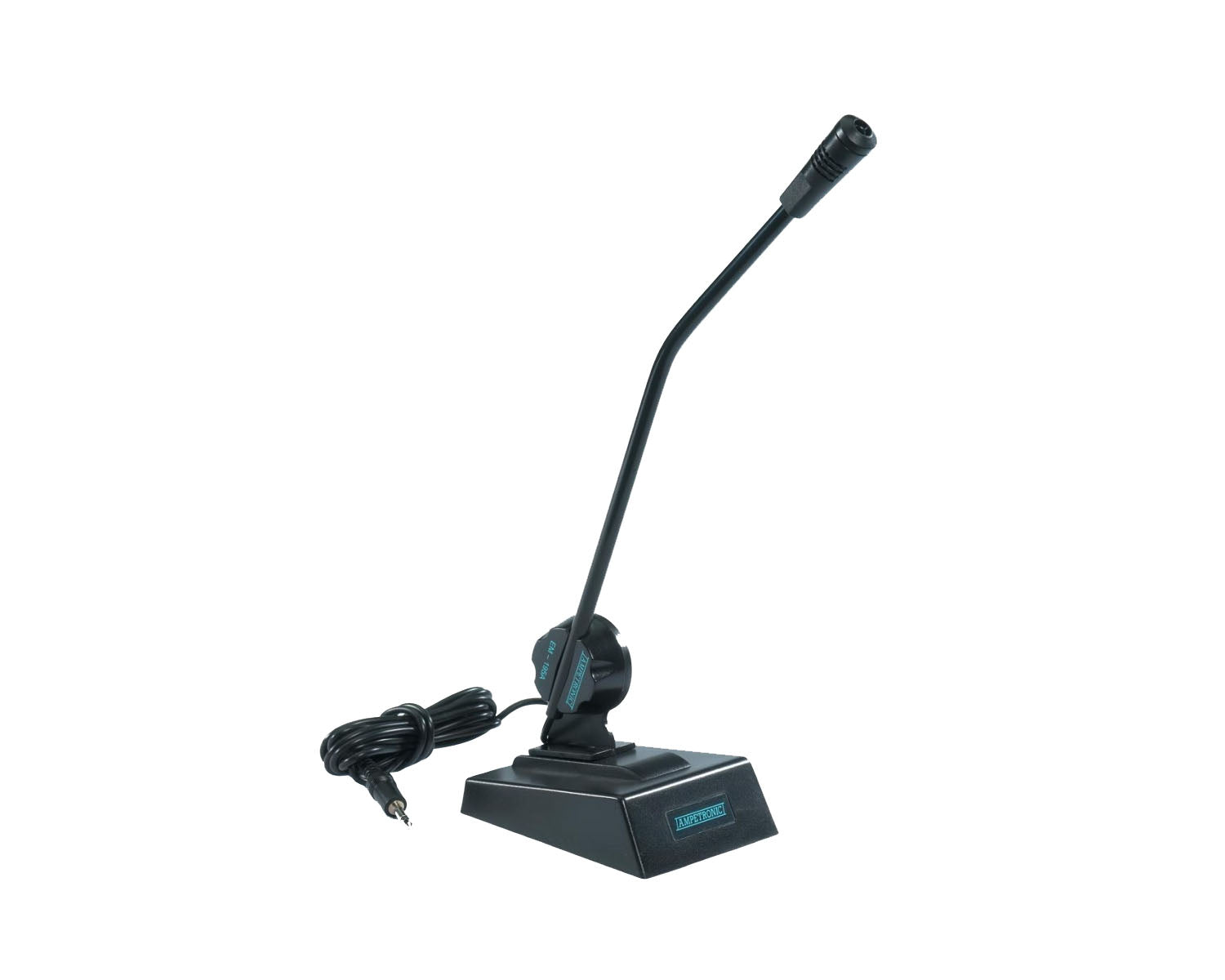

Kit contents: CLD1 driver, desktop microphone, pre-formed loop, A6 loop sign, installation guide and power supply
Compact driver, 2.4 A RMS loop current
Two inputs with independent level controls: one mic, one switchable mic/line
Speech optimised automatic gain control
Metal loss correction on a recessed front panel control
All cable connections on one face of the unit
Natural convection cooling, no fan
5 year Ampetronic warranty

Specifications

Ampetronic CLD1-CD Compact Hearing Loop Driver Kit with Desktop Microphone specifications
Loop output current 2.4 A RMS (3.4 A peak) continuous, 1 kHz sine; short-term peak >4.8 A
Drive voltage >3.2V RMS (>4.5V peak) at maximum current
Loop resistance 0.3 to 1.0 ohm
Loop connector Vibration-proof clamps, 0.5 to 1.3 mm² wire
Input 1 Unbalanced electret mic, 3.5 mm mono jack, 6V bias, sensitivity -60 dBu
Input 2 Switchable mic or line; line sensitivity -20 dBu, overload >+20 dBu
Frequency response 80 Hz to 6.3 kHz (±1.5 dB)
Automatic gain control Speech optimised, dynamic range >36 dB
Metal loss correction 0 to 4.5 dB per octave
Power 12V DC, 1.0 A max (external supply included)
Dimensions 128 x 74 x 35 mm
Weight 280 g
Mounting Wall or panel, horizontal or vertical, 2 screw fixings
Environment IP20, -20 to 50°C, 20 to 90% relative humidity

Full features

  • CLD1 with Desktop Microphone
  • Low lifetime cost
  • 2 independent inputs
  • 1 mic input and 1 switchable mic/line input
  • Metal loss compensation
  • All connections to a single face for installation convenience

Applications

  • Ticket and service counters
  • Retail counters
  • Information kiosks
  • Reception desks
  • Interview rooms
  • Small meeting rooms
  • Taxis and private cars

Full specifications

INPUTS

  • Power
    • 12V DC @ 1.0A max.
    • Fuse fitted to PCB, type T 1.6A L
    • Green LED Power indicator
  • Input 1
    • Microphone input
    • Suitable for unbalanced electret microphone
    • 3.5mm mono jack socket
    • Input impedance 8kΩ.
    • 6v bias via 10kΩ source
    • Sensitivity -60 dBu for max output
    • Overload level -14 dBu.
    • Recessed control on front panel
  • Input 2
    • Switchable line / microphone
    • Recessed switch on connector panel
    • Microphone as for input 1
    • Line input:
      • Input impedance 820kΩ
      • Sensitivity -20dBu for max output
    • Overload: >+20dBu

OUTPUTS

  • Drive voltage: >3.2VRMS >4.5Vpk at maximum output current
  • Drive current
    • 2.4ARMS 3.4Apk continuous 1kHz sine wave
    • Short term peak >4.8Apk
    • LED indicator on front panel
  • Loop resistance: 0.3Ω to 1.0Ω resistive or <1.3Ω maximum reactive impedance
  • Loop connector: Vibration proof clamps, accept 0.5 to 1.3mm2

AUDIO SYSTEM

  • Frequency response: 80Hz to 6.3kHz ±1.5dB
  • Automatic gain control
    • AGC optimised for speech
    • Dynamic range >36dB
    • Green LED indicator on front panel
  • Metal loss correction
    • 0 to 4.5dB/octave
    • Recessed control on front panel

PHYSICAL

  • Cooling: Natural convection
  • Dimensions: 128mm, 74mm, 35mm
  • Weight: 280g
  • Environment: IP20 : 20 to 90% relative humidity, -20ºC to 50ºC
  • Mounting: Horizontal or vertical panel or wall mount, with 2 screw fixings
