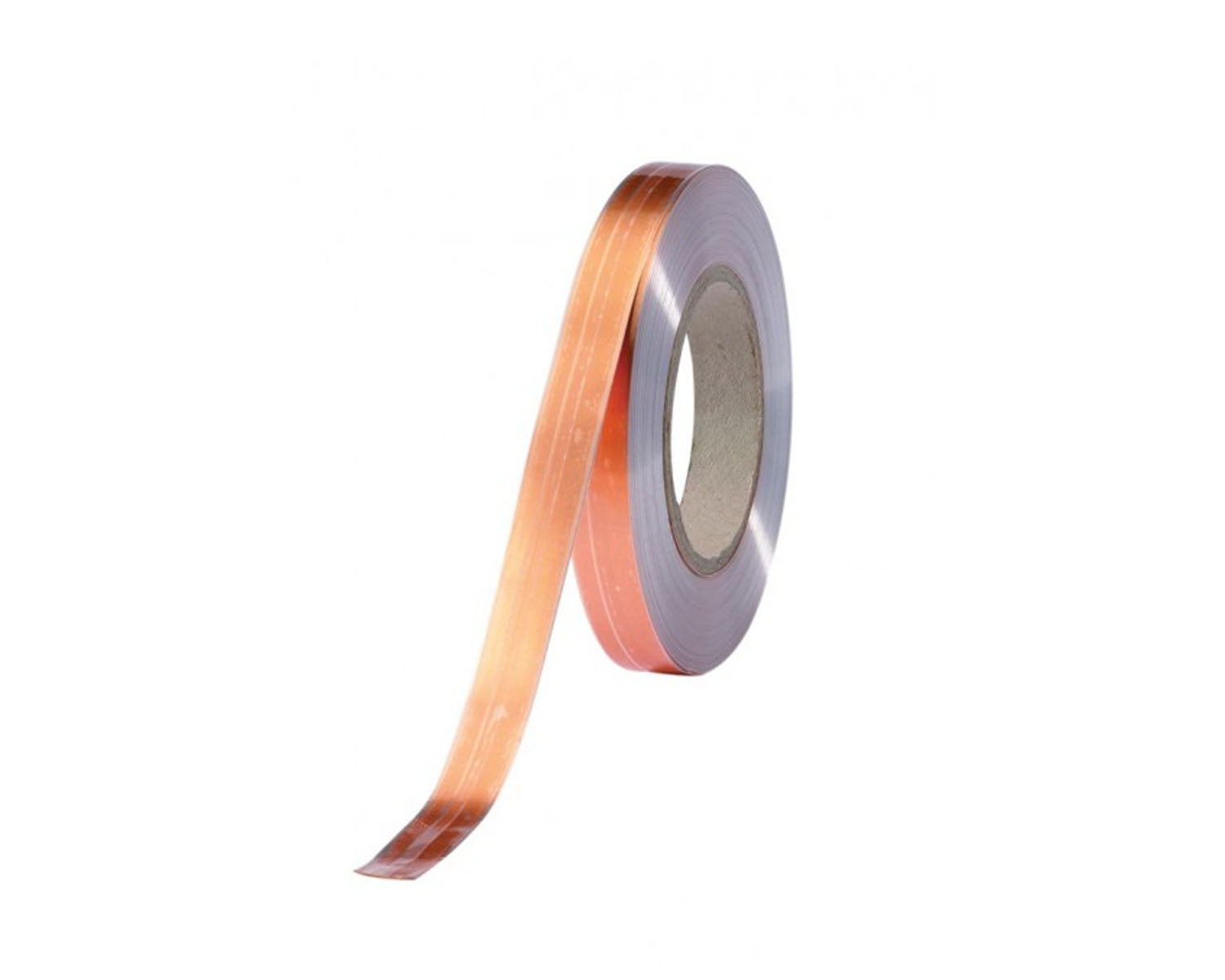

Ampetronic FB1.8 is flat copper loop tape for laying hearing loop cable under floor finishes, here on a 50 m reel. At 0.1 mm thick it sits under most coverings without showing, and works for both perimeter loops and MultiLoop phased arrays. It is used in meeting rooms, places of worship, theatres, lecture halls and council chambers.
1.8 mm²
Cross section
18 mm
Width
18 A
Max current
50 m
Reel
Protect and mark itCover the tape with PWT printed warning tape so floor fitters can see it. Laying on metal decking is possible but needs a high power driver and a proper loop design.
Features
Flat 18 mm copper conductor, 1.8 mm² cross section, rated to 18 A
Sealed in adhesive-backed polyester film, bonded to the copper
Folds flat around corners
Laid under carpet, vinyl, linoleum, wood, laminate and ceramic or porcelain tiles
Suits perimeter loops and MultiLoop phased array layouts
Joins to feeder cable by crimp or solder
Specifications
| Width | 18 mm |
| Thickness | 0.1 mm |
| Cross-sectional area | 1.8 mm² |
| Maximum current | 18 A |
| Length | 50 m |
| Weight | 0.96 kg |
| Conductor | Copper, 99.9% minimum |
| Insulation | Polyester film, 0.05 mm, 5000V breakdown, heat class B (130°C) |
| Adhesive | Polyacrylate |
