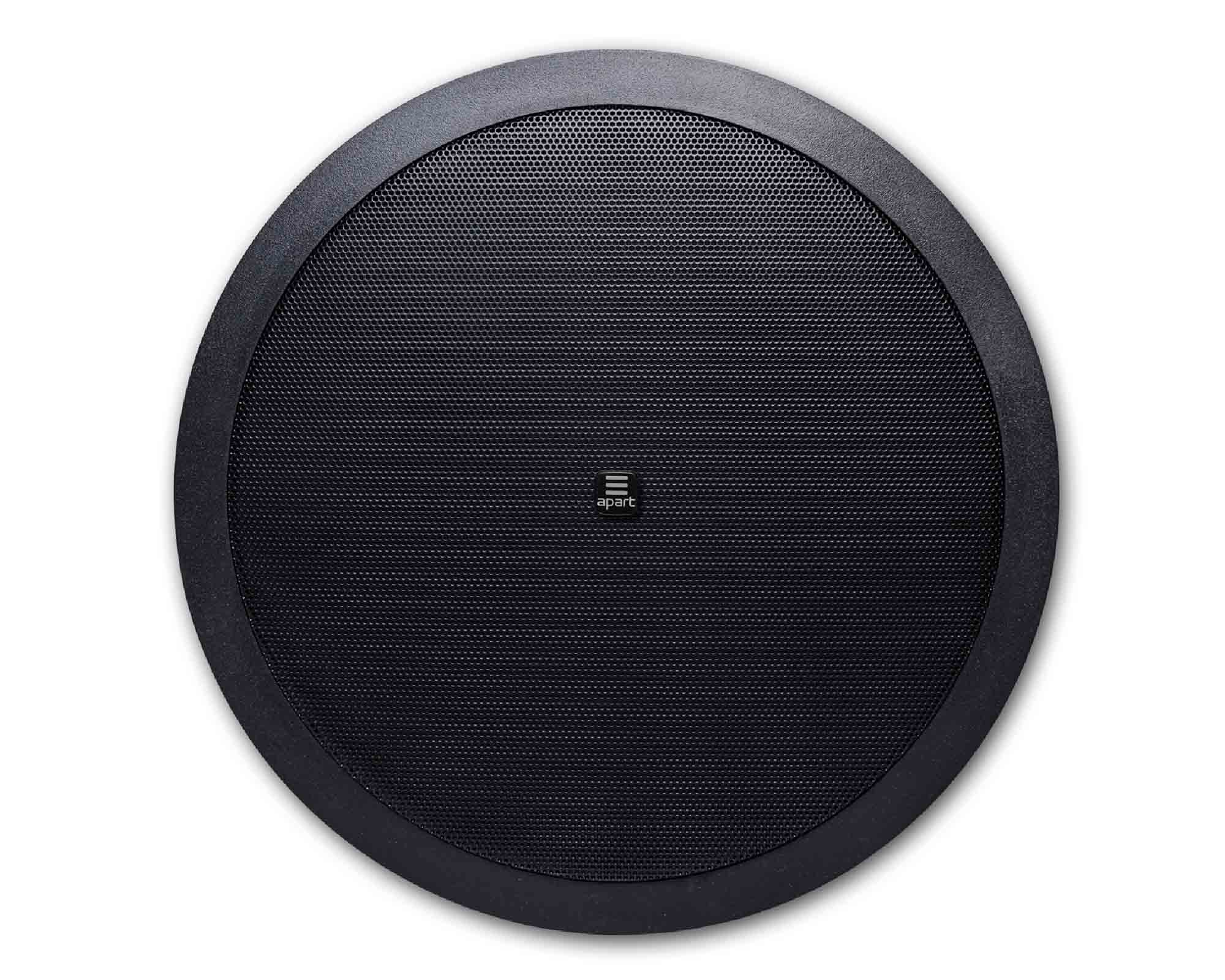

Biamp Apart CMX20T Black 2-Way 'HiFi' Ceiling Speaker 100V/16Ω 20W

Product code: 154430

£72.00 inc VAT
£60.00 ex VAT

SKU: 920-01586-10000
76 available online
More available from supplier in 1–3 weeks
Delivered by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
Other colours available
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 20 / 10 / 5W) or low impedance (16Ω).

Apart CMX20T Black install ceiling speaker, HiFi 2-way driver, designed for distributed audio in commercial spaces. 20W 100V line operation with multiple power tappings, plus low-impedance alternate.

CMX20T
Model · HiFi 2-way
20W
Power · 100V
HiFi 2-way
Driver
Quick fix
Install · Apart system

Features

HiFi-grade 2-way
100V line
Fixing screws hidden behind the grille
Black finish
Compatible with standard 100V install amps
Paintable / discreet finishes

Specifications

Biamp Apart CMX20T Black 2-Way ‘HiFi’ Ceiling Speaker 100V/16Ω 20W specifications
SKU 920-01586-10000
Type 2-way 8-inch 70V/100V ceiling loudspeaker
System 2-way
Drivers LF 1 x 8 inches enforced polypropylene; HF 1 x 1 inch
Power 50W continuous; 200W peak
Transformer 70V: 20W, 10W, 5W, 2.5W; 100V: 20W, 10W, 5W
Impedance 16Ω
Frequency range 50 Hz to 20 kHz
Sensitivity 88 dB (1W/1m)
Maximum Output 108 dB; 114 dB peak
Dispersion 180° conical
IP rating IP54
Operating Environment High humidity
Mounting 3 screws
Material Main construction material: ABS plastic; Grille main material: Aluminium
Weight 1.4 kg

Full features

  • Two-way built-in loudspeaker with an 8" woofer and 1" tweeter
  • Housing - ABS; woofer - polypropylene; grille - aluminium
  • Woofer features a rubber edge making moisture-proof
  • Suitable for use in bathrooms and kitchens
  • Connect 4 loudspeakers in parallel on a 4 ohms amplifier
  • Optimised installation with new Quick Fix connector

Full specifications

General

  • Loudspeaker system: 2-way
  • Woofer size: 8 inch
  • Woofer cone material: polypropylene
  • Tweeter size: 1 inch
  • Mounting system: 3 screws
  • 100V transformer power taps: 20 - 10 - 5 watts
  • 70V transformer power taps: 20 - 10 - 5 - 2.5 watts
  • Impedance: 16 ohms
  • Low impedance dynamic power: 100 watts
  • SPL 1W/1m: 88 dB
  • Max SPL 1m: 108 dB
  • Frequency response: 50 - 20K Hz
  • Main construction material: ABS plastic
  • Grille main material: aluminium
  • IP rating: 54
  • Applicable low impedance: yes
  • Applicable in 100V: yes
  • Vertical dispersion angle 1000 Hz: 180°

Physical & Dimensions

  • Outside diameter: 244mm
  • Depth: 87mm
  • Cutout: 223mm
  • Weight: 1.4kg
