Rated 4.9 (120 reviews)

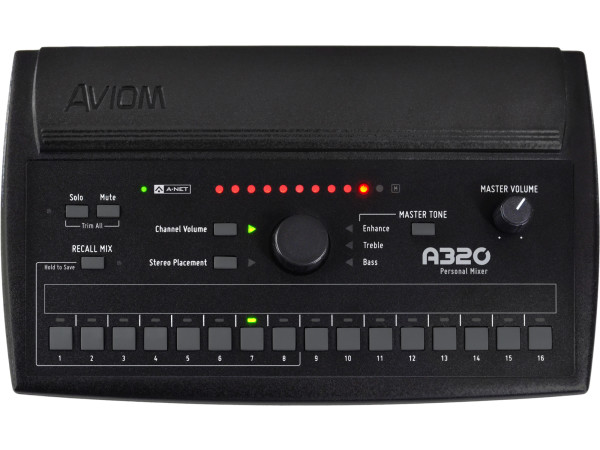

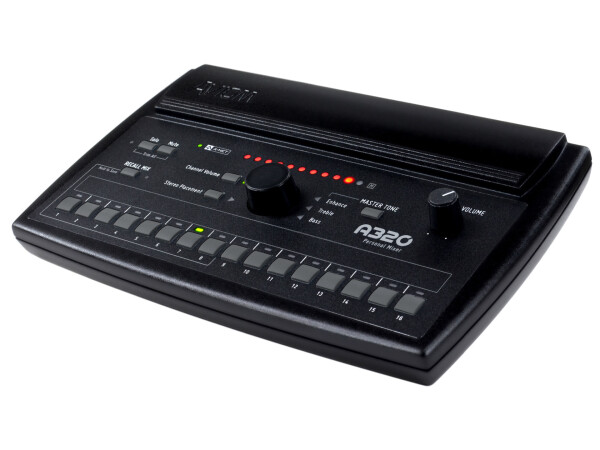

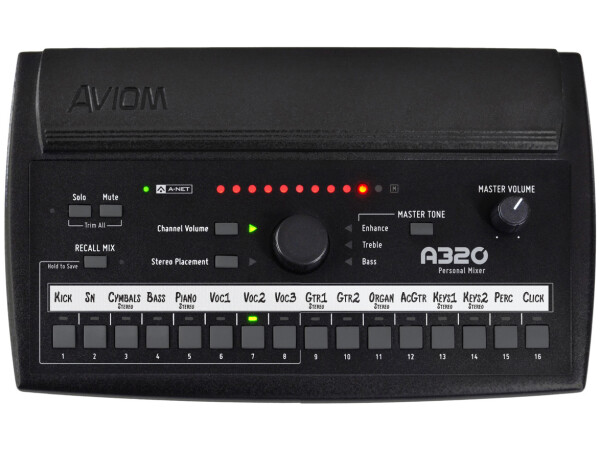

The Aviom A320 is a personal monitor mixer for Aviom Pro16 and Pro16e systems, giving each performer control of up to 16 mono or stereo sources through a 32-channel mix engine. It has per-channel volume, stereo placement, solo and mute, three-band master tone and eight presets, with a 1/4″ stereo output for in-ear monitors or headphones. Typical uses are houses of worship, live bands, theatre pits and recording studios.
16
Mono or stereo sources
32
Channel mix engine
8
Mix presets
0.59 kg
Weight
Needs an A-Net DistributorThe A320 is powered over its Cat-5e cable and must be connected to an Aviom A-Net Distributor (D400, D800 or A-16D series). It does not accept an external DC power supply.
CompatibilityWorks with Pro16 and Pro16e devices (AN-16/i, AN-16/i v.2, AN-16/i-M, Y1 card, partner console cards) and can be mixed in the same system with A640, A360 and A-16II mixers. On Pro64 networks an ASI interface is needed.
Features
16 mono or stereo sources on a 32-channel mix engine
Pro16 mode (16 channels) or Pro16e mode (32 channels) for older or larger systems
Per-channel volume and stereo placement (pan and spread)
Per-channel solo and mute
Three-band master tone controls
Eight mix presets

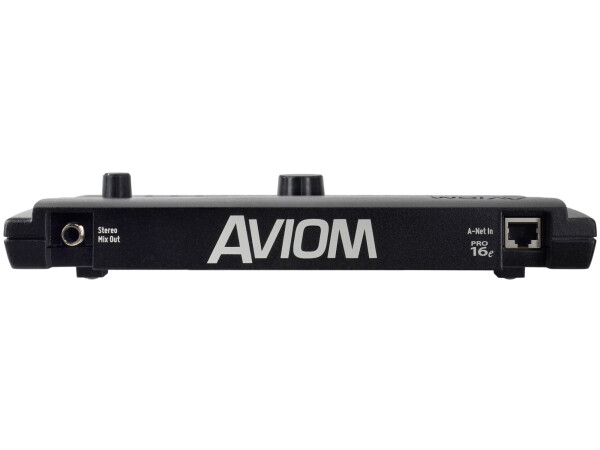

1/4″ TRS stereo output for headphones, in-ears or line level
Power and audio over a single Cat-5e cable from an A-Net Distributor
Specifications
| Output | 1/4″ TRS stereo, headphone or line level |
| Headphone output | 275 mW per side into 50 ohm, both sides driven |
| Output impedance | 5 ohm |
| D/A conversion | 44.1/48 kHz, 24-bit |
| Frequency response | 3 Hz to 22 kHz, +0.2/-3 dB at 50 ohm |
| THD+N | <0.003% |
| Signal-to-noise | 106 dB unweighted |
| Latency | 0.88 ms, analogue input to analogue output |
| A-Net | 1x A-Net in, RJ45; Pro16e; up to 122 m (400 ft) between devices |
| Power | 24 V DC, 0.5 A over Cat-5e from an A-Net Distributor |
| Dimensions (W x D x H) | 260.6 x 156 x 48.5 mm |
| Weight | 0.59 kg |

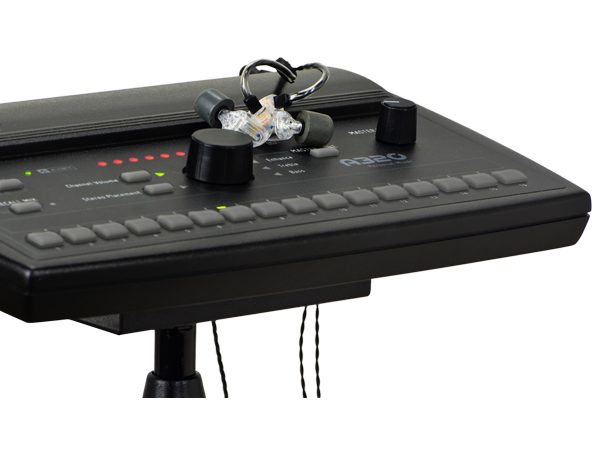

| Options | MT-1a mic stand mount |
