The Aviom AN-16/o v.4 is a 1U Pro16 output module that converts a 16-channel A-Net stream to 16 balanced analogue outputs on two DB25 multipins. Output level is switchable per channel pair to +24, +18 or +4 dBu, or mic level. It is used for digital snake splits, recording feeds and, with A360/A640 mixers on a D800, to feed wireless in-ear transmitters via Network Mix Back, in houses of worship, touring and studios.
16
Balanced outputs
+24 dBu
Max output level
48 kHz
24-bit D/A
1U
Rack height
Pro16 systemThis is a Pro16 A-Net device for use with Aviom personal mixers, AN-16 modules and D400/D800 A-Net Distributors. To use it on a Pro64 network, an ASI A-Net Systems Interface is required.
Serial number noteAviom states that AN-16/o v.4 units with serial numbers 51162 and lower (2013 and earlier) only support the original Pro16 A-Net protocol, not the Pro16e protocol used by the AN-16/i v.2, D800 and D400.
Not includedDB25 breakout cables are not included.
Features

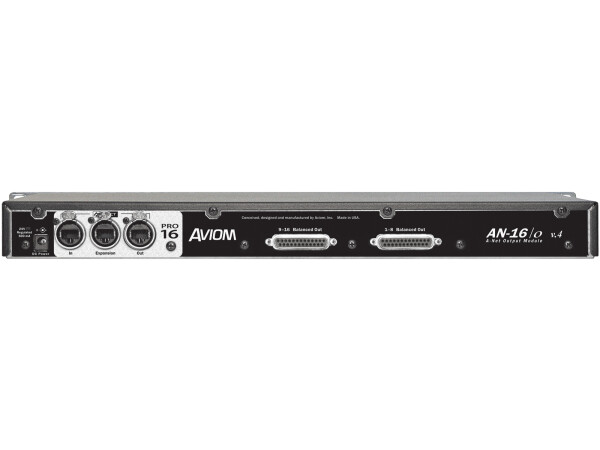

16 balanced analogue outputs on two DB25 multipins (Tascam analogue pinout)
Four-position output level switch per channel pair: +24, +18, +4 dBu or mic
48 kHz, 24-bit D/A converters

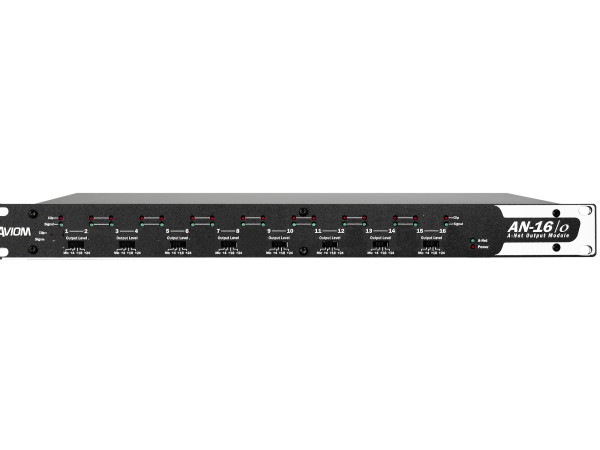

Signal present and clip LEDs per channel
Connects to any Pro16 input module, console card or A-Net Distributor
A-Net expansion port for 32-channel streams on one cable; SB4 System Bridge for up to four streams
Outputs Network Mix Back stereo mixes from up to eight A360 mixers via a D800
Specifications
| Outputs | 16, balanced, 2x DB25 (Tascam analogue pinout) |
| Output levels | +24 dBu, +18 dBu, +4 dBu, mic (per channel pair) |
| Maximum output level | +24 dBu |
| Output impedance | 226 ohm (+18 and +24 dBu); 100 ohm (+4 dBu and mic) |
| D/A conversion | 48 kHz, 24-bit |
| Frequency response | 4 Hz to 22 kHz, +0.2/-3 dB |
| THD+N | <0.004% |
| Crosstalk | -90 dB |
| Signal-to-noise | 92 dB typical, unweighted, AN-16/i to AN-16/o |
| Latency | <0.62 ms, analogue input to analogue output |
| A-Net | A-Net in, A-Net out and A-Net expansion, Neutrik EtherCon |
| Power | External 24 V DC, 0.5 A supply (100 to 240 V AC, 30 VA) |
| Dimensions | 482.6 mm wide x 146 mm deep, 1U |
| Weight | 3.08 kg |
