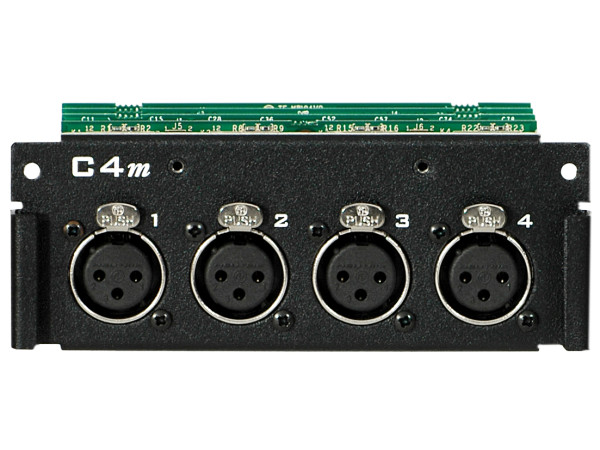

The Aviom C4m is a four-channel mic/line input card for the AllFrame F6 Modular I/O Frame, using the same preamp circuitry as the 6416m. Gain, phantom power, low cut, phase and pad can be controlled remotely from an RCI and MCS, Yamaha consoles via m-control, or Pro64 Network Manager. Up to six cards fit one F6, giving 24 remote-controlled preamps in a stage box, wall box or rack for theatres, schools, conference centres and touring.
4
Mic/line inputs
0 to 55 dB
Gain, 1 dB steps
-127 dBu
EIN
+48V
Per channel
AllFrame systemThis card fits the Aviom F6 Modular I/O Frame (sold separately), which holds up to six cards and connects to a Pro64 A-Net network.
Pro64 systemThis is a Pro64 A-Net device. It works with other Pro64 products (6416 modules, AllFrame, MH10/MH10f, RCI/MCS). Pro16 personal mixers and Pro16 output modules connect to a Pro64 network through an ASI A-Net Systems Interface.
Features
Four mic/line inputs on female XLR
Gain in 1 dB steps, +48V phantom power, 85 Hz low cut, phase and -24 dB pad per channel
Remote control from RCI/MCS, Yamaha consoles (m-control) or Pro64 Network Manager
Same preamp design as the 6416m Mic Input Module
Up to six cards per F6 frame (24 inputs)
User-installable and reconfigurable in the field
Specifications
| Inputs | 4, XLR female, mic or line level |
| Input impedance | 3.6 kohm differential |
| Gain range | 0 to 55 dB, 1 dB steps |
| Maximum input level | +24 dBu (0 dB gain, pad on); 0 dBu (0 dB gain, pad off) |
| Pad | -24 dB per channel |
| Low cut filter | -3 dB at 85 Hz, 18 dB per octave |
| Phantom power | +48V per channel |
| Frequency response | 20 Hz to 23 kHz ±0.3 dB at 48 kHz |
| THD+N | 0.0015% at 1 kHz, -10 dBFS |
| Dynamic range | 112 dB |
| EIN | -127 dBu |
| CMRR | 78 dB at 1 kHz |
| Dimensions | 132.1 x 48.3 x 76.5 mm |
| Weight | 0.22 kg |
