Rated 4.9 (84 reviews)

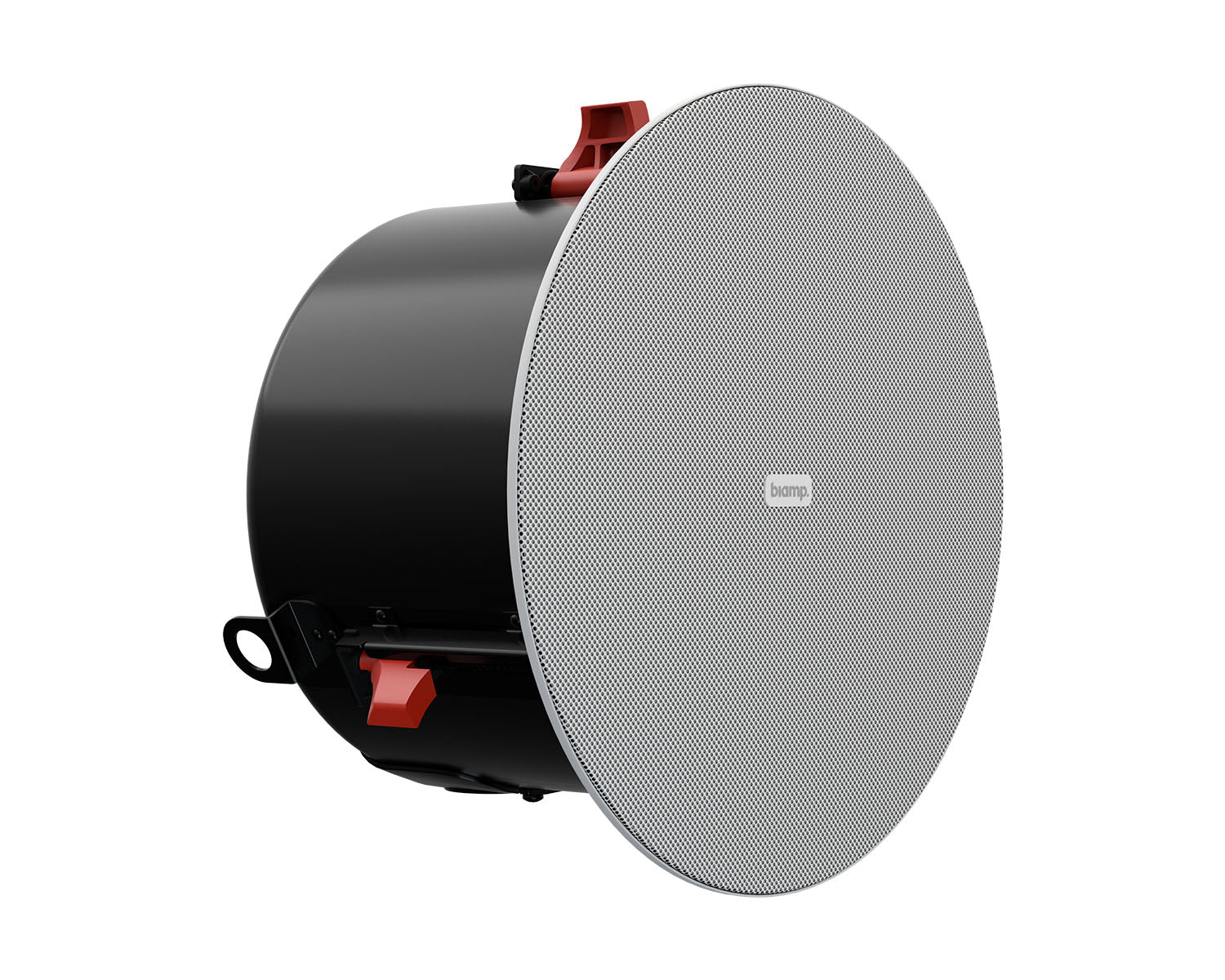

The Biamp Desono DX-IC6 is a high-efficiency two-way ceiling speaker for paging and music in installations where sonic quality matters. A genuine coaxial design with separate magnets for the 6.5 inch LF driver and 1 inch exit compression driver keeps distortion low, while 94 dB sensitivity delivers 3 to 6 dB more output from half the amplifier power of comparable products. It runs passive at 8 ohms or on 70V/100V lines via the built-in autoformer, and SpringLock mounting clamps make for a fast, tool-light install with uniform 115-degree conical coverage.
94 dB
Sensitivity (1W/1m)
120 dB
Peak SPL
115°
Conical beamwidth
60 W
Max 100V tap
Installation notesA 65 Hz electronic high-pass filter is a required accessory for this speaker. The DX-IC6 is ETL listed to UL1480, UL2043 and CSA62368-1, and its conduit knock-outs on the input cover mean it is suitable for use in air handling (plenum) spaces per NFPA 70 and NFPA 90.
Features
Genuine coaxial design with separate LF and HF magnets
High intelligibility with exceptionally uniform coverage
Consistent, wide dispersion up to 16 kHz
Fast installation with SpringLock mounting clamps
Attractive edgeless magnetic grille design
Front-face wattage and low-impedance selector switch
Voiced to match the rest of the Desono DX family
Pairs with the DX-IC10SUB for demanding systems
White finish; also available in black
Specifications
| Operating mode | Passive with DSP |
| Operating environment | Indoor |
| Operating range (-10 dB) | 65 Hz to 20 kHz |
| Nominal beamwidth | 115° conical |
| Transducers | LF 1 × 6.5″ (165 mm); HF 1 × 1″ (25 mm) exit compression driver |
| Sensitivity | 94 dB (2.83 V), 94 dB (1 W at rated impedance 8Ω) |
| Continuous power handling | Passive, 28 V (100 W at 8Ω) |
| Nominal maximum SPL | Peak 120 dB, continuous 114 dB (passive) |
| Autoformer taps | 70V: 60 / 30 / 15 / 7.5 W; 100V: 60 / 30 / 15 W |
| Recommended amplifier | Passive, 100 to 200 W at 8Ω (31 to 44 V) |
| Crossover frequency | 1.2 kHz |
| Required accessory | 65 Hz electronic high-pass filter |
| Input connection | 4-position Euroblock connector |
| Controls | Front-face wattage / low-impedance selector switch |
| Mounting provisions | 3 SpringLock mounting clamps with 3 inch grip range |
| Certifications | ETL listed to UL1480, UL2043 and CSA62368-1; suitable for air handling spaces per NFPA 70 and NFPA 90 |
| Dimensions (W × D) | 291 × 171 mm (11.46″ × 6.75″) |
| Weight | 5.4 kg |
| Included accessories | C-ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver |
