Biamp Tesira EX-UBT 8-Channel USB and Bluetooth AVB Expander, PoE (920-00443-00001)

Product code: 180316

£862.00 inc VAT
£718.33 ex VAT

SKU: 920-00443-00001

0 in stock

Ordered from supplier, allow 1–3 weeks
FREE delivery by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Biamp Tesira EX-UBT is a PoE-powered expander that transports USB digital audio and Bluetooth wireless audio anywhere on a Tesira network. Because it is not bound by the 5 m maximum USB cable length, it suits installations where the USB connection point is nowhere near the rack, projects needing multiple USB audio inputs, and Tesira SERVER or SERVER-IO systems that have no on-board USB. Bluetooth support adds cable-free soft-codec conferencing, mobile call hand-off into a meeting room, or background music feeds in hospitality settings.

8
USB audio channels
16/24-bit
48 kHz USB audio
30 m
Bluetooth range
7 W
PoE powered

Features

Up to 8 channels of configurable USB audio
Bluetooth 4.2 Classic with HFP 1.7 and A2DP 1.3 profiles
Supports mSBC, SBC, AAC and aptX codecs
Enabled and configured through Tesira software
Powered over the network connection via PoE

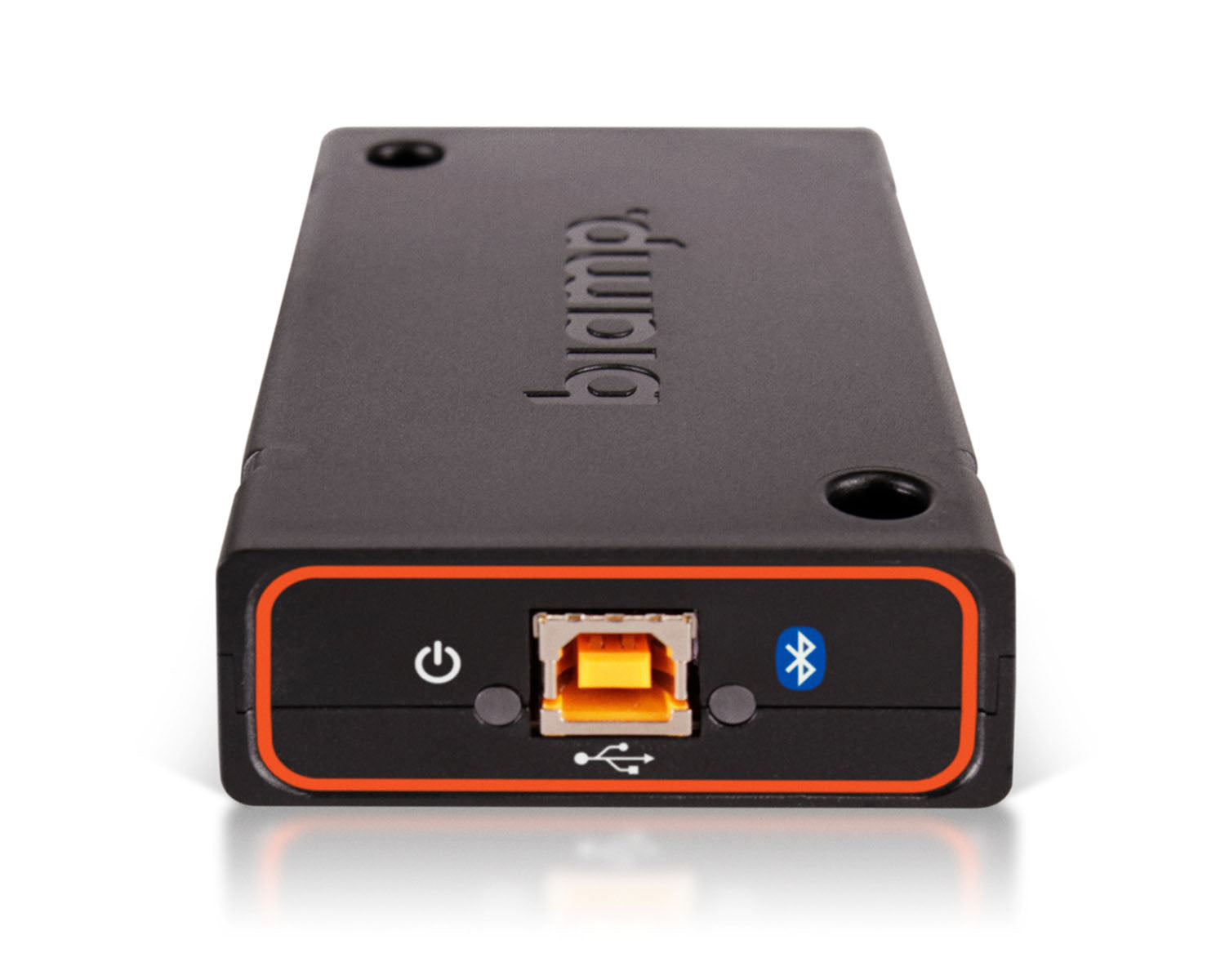

LED indicators for power and wireless status
CE marked, UL listed and RoHS compliant
Covered by Biamp’s five-year warranty

Specifications

Biamp Tesira EX-UBT 8-Channel USB and Bluetooth AVB Expander, PoE (920-00443-00001) specifications
USB audio Up to 8 channels, 16- or 24-bit, 48 kHz
Bluetooth version 4.2, Class 2, Bluetooth Classic mode
Supported profiles Hands-Free Profile 1.7 (HFP), Advanced Audio Distribution Profile 1.3 (A2DP)
Supported codecs mSBC (16 kHz), SBC (48 kHz), AAC (48 kHz), aptX (48 kHz)
Wireless range Up to 30 m
Frequency band 2,402 to 2,480 MHz
Maximum transmit power BER/EDR 6.43 dBm (EIRP); BLE 7.69 dBm (EIRP)
Receive sensitivity (0.1% BER) -88 dBm

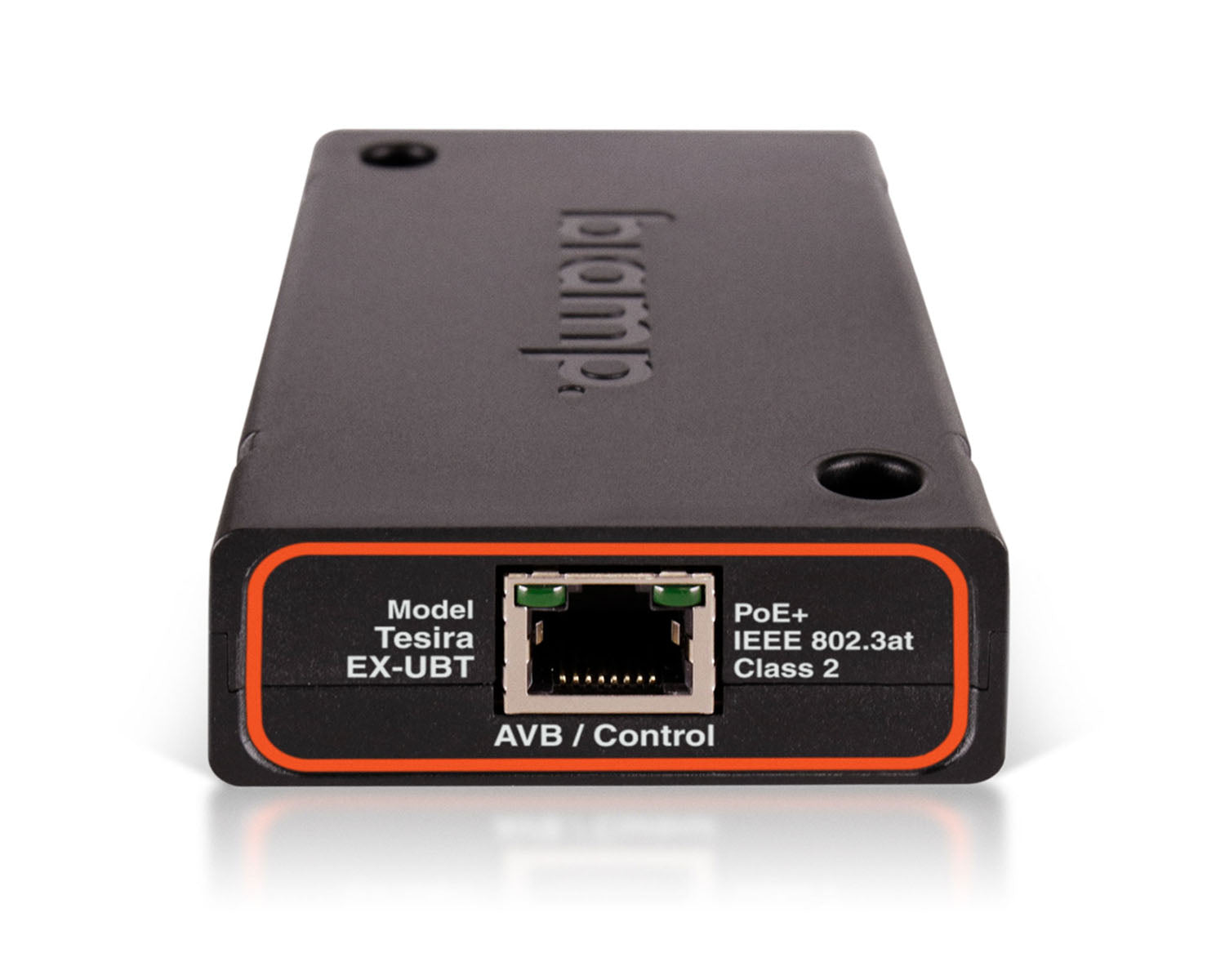

Network connection RJ-45, Cat 5e cable and above
Power PoE (IEEE 802.3at Class 2, 7 W)
Operating temperature 0 to 40°C
Humidity 0 to 95% relative humidity, non-condensing
Dimensions (W × H × D) 64 × 24 × 106 mm
Weight 0.1 kg

Full features

  • Supports up to 8 channels of configurable USB audio
  • Supports Bluetooth wireless technology
  • LED indicators for power and wireless status
  • Configurable via Tesira software
  • PoE powered
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Full specifications

General

  • Network Connection: RJ-45 with Ethernet cable
    • (Cat 5e and above)
  • Indicators:
    • Power Indicator (Green/Red LED)
    • Wireless Indicator (Blue/Red LED)
  • Bluetooth Wireless Technology:
    • Version: 4.2, Class 2
    • Mode: Bluetooth Classic
    • Supported Profiles:
      • Hands-Free Profile 1.7 (HFP)
      • Advanced Audio
      • Distribution Profile 1.3 (A2DP)
    • Supported Codecs:
      • mSBC (16 kHz),
      • SBC (48 kHz),
      • AAC (48 kHz),
      • aptX (48 kHz)
    • Maximum Transmit Power:
      • BER/EDR: 6.43 dBm (EIRP)
      • BLE: 7.69 dBm (EIRP)
      • Receive Sensitivity (0.1% BER): -88 dBm
      • Frequency Band: 2,402 to 2,480 MHz
      • Wireless Range: Up to 100 feet (30 m)
  • Power: PoE (IEEE 802.3at Class 2, 7W)
  • USB:
    • Bit Depth: 16-bit / 24-bit
    • Number of Channels: up to 8
    • Sample Rate: 48kHz
  • Environmental:
    • Ambient Operating
    • Temperature Range: 32 - 104° F (0 - 40° C)
    • Humidity: 0-95% relative humidity (non-condensing)
    • Altitude: 0-10,000 ft (0-3000m) MSL

Overall Dimensions

  • Height: 0.9 inches (24mm)
  • Width: 2.5 inches (64mm)
  • Depth: 4.2 inches (106mm)
  • Weight: 0.2 lbs (0.1 kg)

Compliance

  • FCC Part 15B (USA)
  • CE marked (Europe)
  • UL and C-UL listed (USA and Canada)
  • RoHS Directive (Europe)
