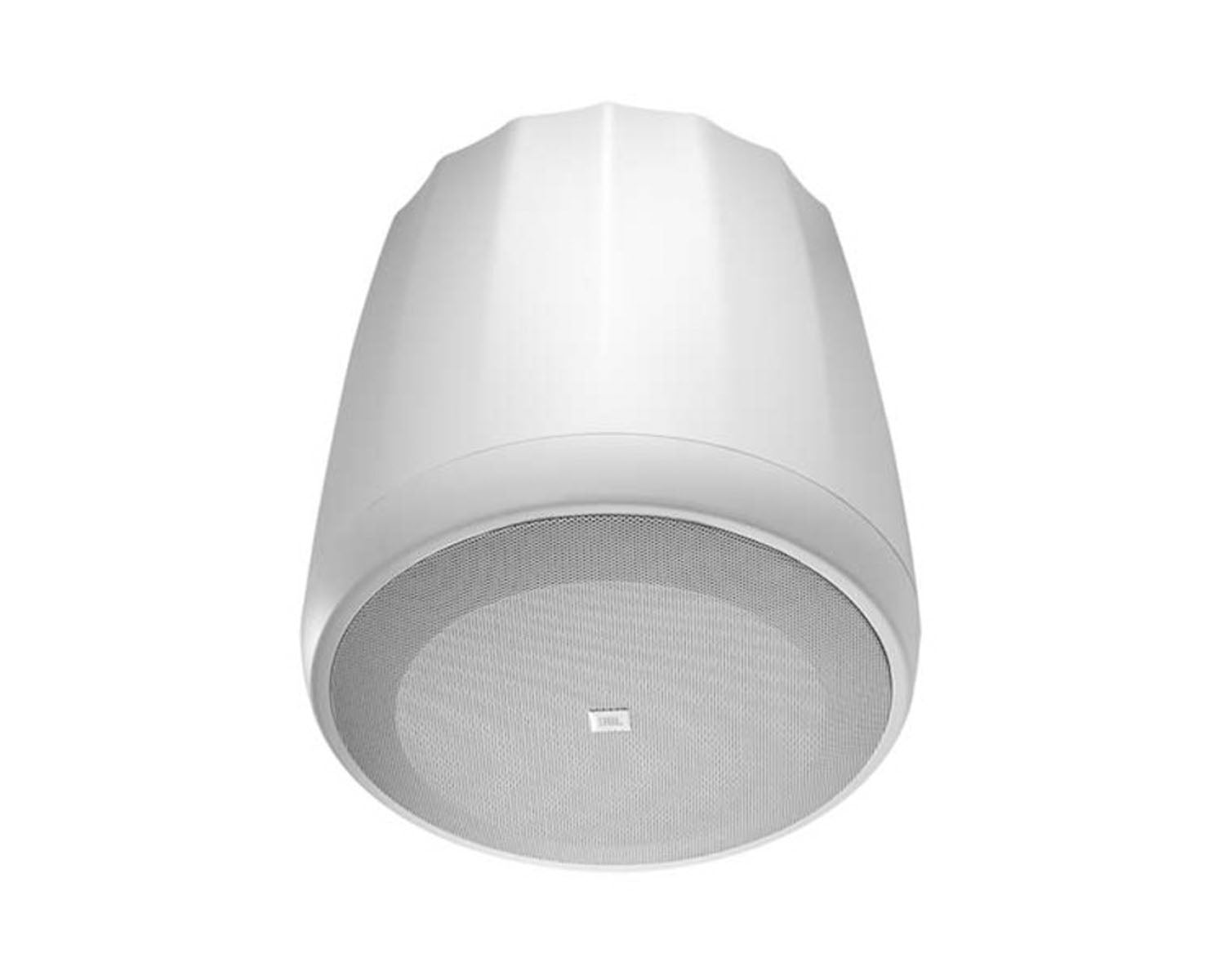

JBL Control 60PS/T Pendant Subwoofer 100V White

Product code: 192019

£598.00 inc VAT
£498.33 ex VAT

SKU: C60PS/T-WH

1 in stock

Ordered from supplier, allow 1–3 weeks
FREE delivery by Tue 15th DecOrder by 3pm tomorrow
Click & Collect Mon 14th Dec ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Connection: 100V line (taps 110 / 55 / 30W) or low impedance (8Ω).

The JBL Control 60PS/T is an 8in pendant subwoofer for open-ceiling spaces, with a built-in passive crossover that feeds either two or four low-impedance satellite speakers. It has a 110W transformer for 100V and 70V lines plus an 8 ohm setting. It suits restaurants, retail, bars, gyms and leisure venues running foreground music. This is the white version.

8in
Subwoofer
42 Hz
Low limit (-10 dB)
110W
Max 100V tap
4
Satellite outputs

Features

200 mm (8 in) long-excursion driver with butyl rubber surround and 50 mm (2 in) voice coil
Built-in passive crossover for two or four 8-16 ohm satellites (not one or three)
Taps at 110W, 55W and 30W on 100V and 70V, plus 15W on 70V, via rotary switch
8 ohm direct setting, 150W continuous pink noise
Six locking euroblock connectors (input, loop out, four satellites) with rubber covers
Two 4.5 m galvanised steel suspension cables with Gripple adjusters, one as a safety, rated SWL 45 kg
IP44 rated
Removable grille for painting
White finish
Sold individually

Specifications

JBL Control 60PS/T Pendant Subwoofer 100V White specifications
Frequency response (-10 dB) 42 Hz to 350 Hz
Frequency response (±3 dB) 55 Hz to 125 Hz
Power rating 300W continuous programme, 150W continuous pink noise (100 hrs)
Sensitivity (2.83V, 1 m) 88 dB
Maximum SPL 107 dB average, 113 dB peak at 1 m
Impedance 8 ohms
100V taps 110W, 55W, 30W
70V taps 110W, 55W, 30W, 15W
Environmental IP44
Dimensions 333 mm diameter, 344 mm to top of cabinet, 369 mm to top of bracket
Weight 7.6 kg

Full features

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers.
  • 200 mm (8 in) long-excursion driver.
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation.
  • Hanging hardware with 4.5 m (15 foot) galvanised steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).

Full specifications

General

  • Frequency Response (-10dB): 42 Hz – 350 Hz
  • Frequency Response (±3 dB): 55 Hz – 125 Hz
  • Power Rating: 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs
  • Nominal Sensitivity (2.83V/1m): 88 dB
  • Maximum SPL (1m): 107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Impedance: 8 ohms
  • Transformer Taps: 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
  • Transformer Insertion Loss: 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
  • Drivers: 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating
  • Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension: Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
  • Safety Agency: Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.

Physical

  • Dimensions (H x W x D): 333 mm (13.1 in) diameter, 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
  • Net Weight (each): 7.6 kg (16.7 lb)
  • Shipping Weight: 17.6 kg (38.7 lbs) per pair-packed carton
  • Included Accessories: Two suspension cable systems (see “suspension”, above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.
  • Optional Accessories: MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
  • Colours: Available in black or white (-WH).
  • Enclosure Material: High impact polystyrene
  • Grille: Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
