Biamp Tesira AMP-450P 4-Channel PoE+ Conferencing Amplifier 4×50W Burst (920-00010-00001)

Product code: 180327

£837.00 inc VAT
£697.50 ex VAT

SKU: 920-00010-00001

1 in stock (more available subject to additional lead time)

1 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

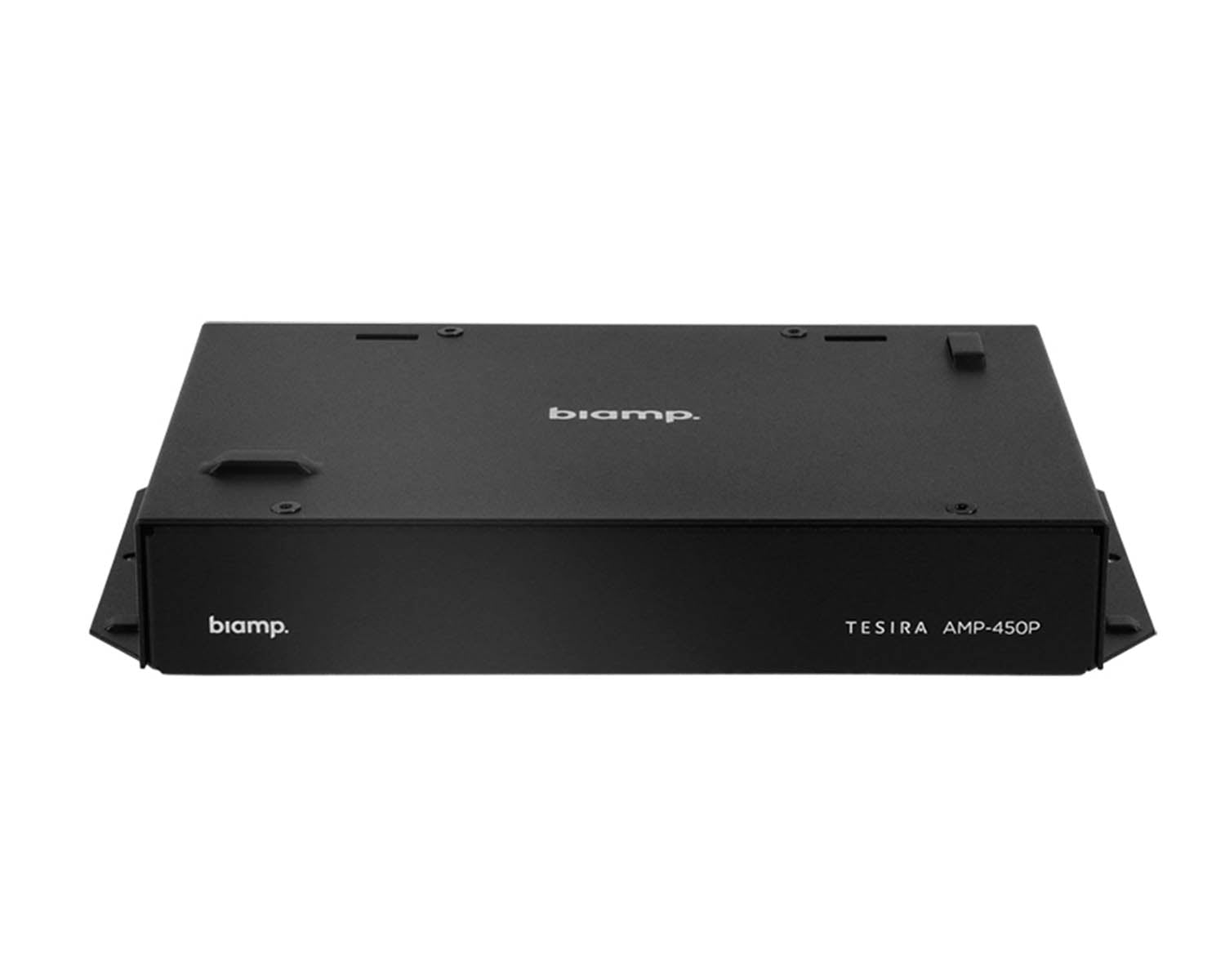

The Biamp Tesira AMP-450P is a four-channel Class D conferencing amplifier powered entirely over PoE+ (IEEE 802.3at Class 4, 30 W), designed as a dedicated endpoint in Tesira systems. It delivers 3 W of continuous power per channel with a burst mode handling peaks up to 50 W into 4 Ω or 30 W into 8 Ω per channel, with output channels software-configurable for power versus channel count. With no mains feed required and fanless convection cooling, it can be placed right next to the ceiling loudspeakers it drives, which simplifies cabling in TesiraFORTE-equipped conference rooms.

4
Output channels
50 W
Burst per channel (4Ω)
PoE+
Single-cable power
Fanless
Convection cooled
Plenum installationThe AMP-450P is evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces, so it can be mounted above the ceiling close to the loudspeakers rather than back at the rack.

Features

Four channels with 3 W continuous power per channel
Burst mode to ANSI/CTA-2006-B: up to 50 W (4 Ω) or 30 W (8 Ω) per channel
Powered by PoE+ (IEEE 802.3at Class 4, 30 W)
Class D amplifier topology, fanless operation
Internal limiter function
Software-selectable power versus channel count
Configurable via Tesira software
LED indicators for power and amplifier status
CE marked, UL listed and RoHS compliant
Covered by Biamp’s five-year warranty

Specifications

Biamp Tesira AMP-450P 4-Channel PoE+ Conferencing Amplifier 4×50W Burst (920-00010-00001) specifications
Amplifier topology Class D
Channels 4
Burst power output (ANSI/CTA-2006-B, 1 kHz) 50 W per channel (4 Ω), 30 W per channel (8 Ω)
Continuous power output (4 Ω / 8 Ω) 15 W single channel, 7 W dual channel, 3 W all four channels
Minimum load 4 Ω
THD+N (20 Hz to 20 kHz, continuous power) <0.3%
Frequency response (20 Hz to 20 kHz) ±1 dB
Dynamic range >90 dB
Crosstalk (channel to channel, 1 kHz) <-90 dB

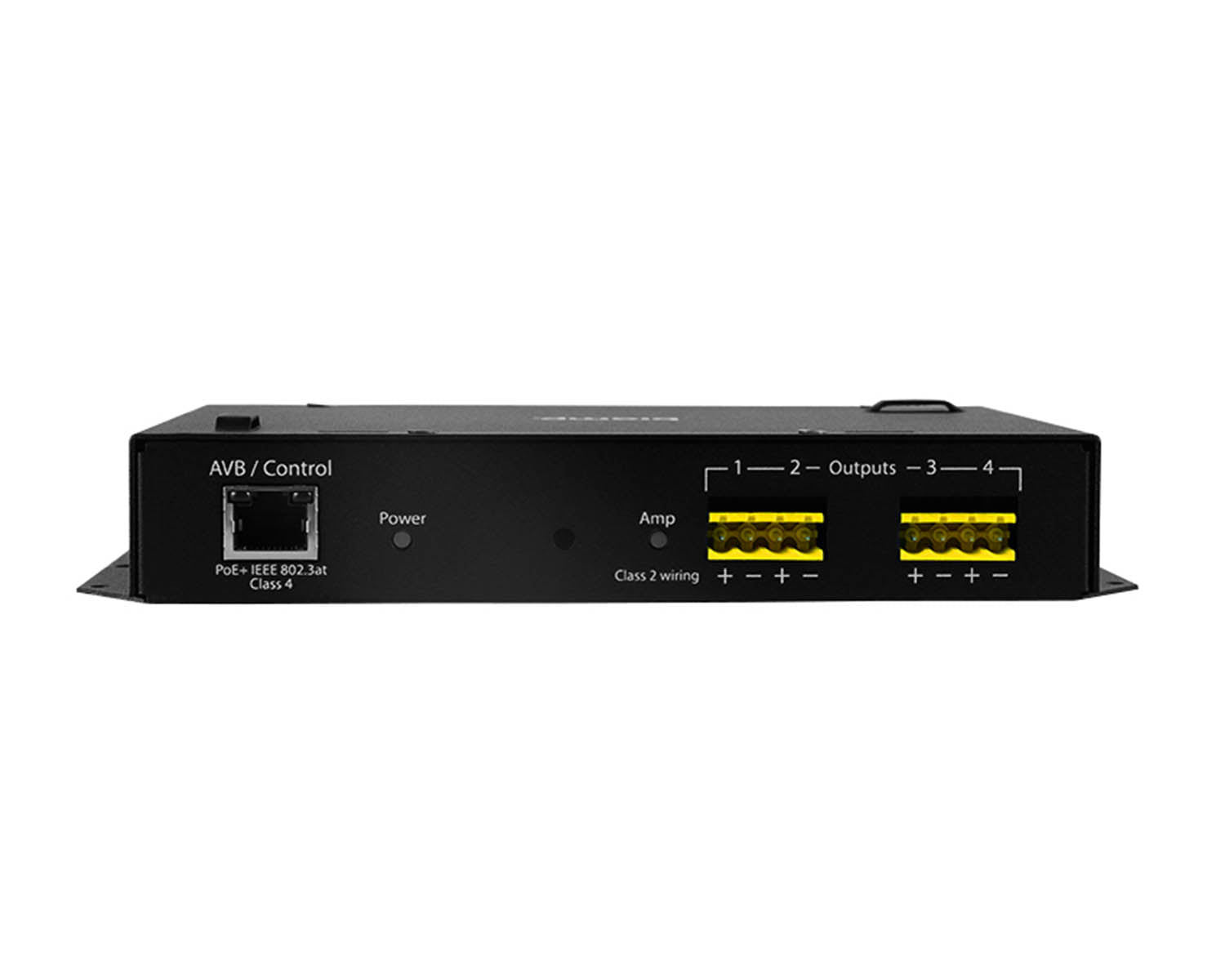

Connectors RJ-45 network (Cat 5e or above); 4-pin 5.08 mm Phoenix outputs
Power PoE+ (IEEE 802.3at Class 4, 30 W)
Cooling Convection, fanless
Dimensions (H × W × D) 30 × 195 × 120 mm
Weight 0.7 kg
Operating environment 0 to 40°C, 0-95% RH non-condensing

Full features

  • Four channels; 3 watts of continuous power per channel
  • Burst mode to handle peak signals in accordance with ANSI/CTA-2006-B; supports up to 50 watts (4Ω load) or 30 watts (8Ω load) per channel
  • Powered by PoE+ (IEEE 802.3at Class 4, 30W)
  • Class D amplifier topology
  • Fanless operation
  • Includes internal limiter function
  • Software-selectable power versus channel count
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
  • LED indicators for power and amplifier status
  • Configurable via Tesira software
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ five-year warranty

Full specifications

General

  • Network Connection: RJ-45 with Ethernet cable (Cat 5e and above)
  • Number of Channels: 4
  • Connectors:
    • 4-pin 5.08 mm
    • Phoenix connectors
  • Amplifier Topology: Class D
  • Burst Power Output (per ANSI/CTA-2006-B @ 1kHz):
    • 4Ω (per channel): 50W
    • 8Ω (per channel): 30W
  • Continuous Power Output:
    • Single Channel Driven (4Ω, 8Ω): 15W
    • Dual Channel Driven, (4Ω, 8Ω): 7W
    • Four Channel Driven, (4Ω, 8Ω): 3W
  • THD+N (20Hz-20kHz, at continuous power): < 0.3%
  • Frequency Response (20Hz-20kHz): ± 1dB
  • Dynamic Range (20Hz-20kHz BW): > 90dB
  • Minimum Operational Load: 4Ω
  • Intermodulation distortion (SMPTE): <0.3%
  • Cross Talk (channel to channel @ 1kHz): < -90dB
  • Cooling: Convection
  • Power: PoE+ (IEEE 802.3at Class 4 , 30W)
  • Indicators:
    • Power Indicator (Green/Yellow/Red LED)
    • Amp Status Indicator (Green/Yellow/Red LED)

Physical

  • Dmensions:
    • Height: 1.2 inches (30mm)
    • Width: 7.7 inches (195mm)
    • Depth: 4.7 inches (120mm)
    • Weight: 1.5 lbs (0.7 kg)
  • Environmental:
    • Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
    • Humidity: 0-95% relative humidity (non-condensing)
    • Altitude: 0-10,000 ft (0-3000m) MSL
  • Compliance:
    • FCC Part 15B (USA)
    • UL and C-UL listed (USA and Canada)
    • CE Marked (Europe)
    • KCC (Korea)
    • RoHS Directive (Europe)
    • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
