Lab Gruppen E 40:4 Energy Efficient Class-D Amplifier 4×1000W 19″ 1U (000-D5L01-00010)

SKU: 000-D5L01-00010
Lab Gruppen E 40:4 Energy Efficient Class-D Amplifier 4×1000W 19″ 1U (000-D5L01-00010)
Lab Gruppen E 40:4 Energy Efficient Class-D Amplifier 4×1000W 19″ 1U (000-D5L01-00010)
Lab Gruppen E 40:4 Energy Efficient Class-D Amplifier 4×1000W 19″ 1U (000-D5L01-00010)
Lab Gruppen E 40:4 Energy Efficient Class-D Amplifier 4×1000W 19″ 1U (000-D5L01-00010)
Lab Gruppen E 40:4 Energy Efficient Class-D Amplifier 4×1000W 19″ 1U (000-D5L01-00010)
Click to enlarge

    £1,887.00 inc VAT
    £1,572.50 ex VAT

    3 in stock (more available subject to additional lead time)

    3 available
    More available from supplier in 1–3 weeks
    Order in 22h 30m 51s for FREE delivery by ThursdayClick & Collect available Wed 19th Aug from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Lab Gruppen E 40:4 delivers 4 × 1,000 W, 4,000 W in total, from a single rack unit for installed sound. Built on the IDEEA Class-D platform with the Rail Sense Limiter, each channel runs Lo-Z loads down to 2 Ω or Hi-Z 70 V / 100 V constant-voltage lines, and asymmetric loading lets you mix subs, full-range pairs and long distributed ceiling runs across the four channels of one chassis. High efficiency keeps mains draw and heat low, easing demands on the installation’s power distribution and cooling.

    4 × 1,000 W
    Output power
    4,000 W
    Total output
    2 Ω-100 V
    Lo-Z and Hi-Z
    1U
    19″ rack, 7.9 kg
    Features
    4,000 W across 4 flexible output channels in a 1U form factor
    4 × 900 W into 2 Ω; 4 × 1,000 W into 4 Ω, 8 Ω, 70 V or 100 V; 4 × 625 W into 16 Ω
    Asymmetric channel loading mixes different impedances on one amplifier
    Proprietary IDEEA Class-D output stage
    Rail Sense Limiter (RSL) greatly reduces signal clipping and simplifies configuration
    Low power consumption and heat generation ease demands on mains and cooling
    Auto-standby and auto-power-on cut consumption in non-operating cycles
    Built-in 50 Hz high-pass filter, switchable per channel on the rear panel
    Per-channel attenuation knob and signal LED on the rear panel for commissioning
    Temperature-controlled fan with front-to-back airflow
    Aluminium front panel with power, temperature and per-channel signal/limit LEDs
    GPIO connector with power control and indication for system integration

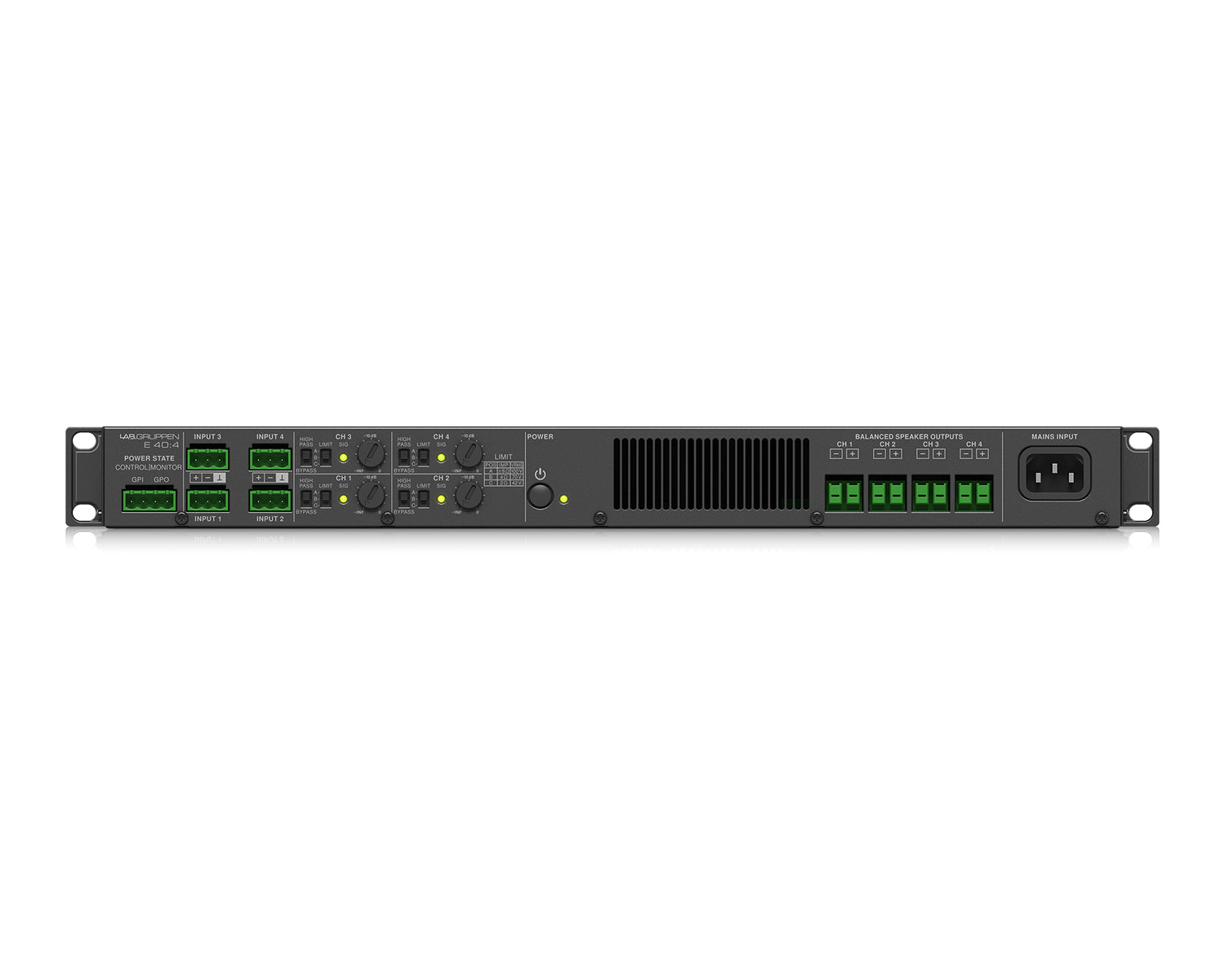

    Balanced analogue inputs and amplifier outputs on detachable screw terminals
    Comprehensive fail-safe circuit protection
    Specifications
    Amplifier channels 4
    Total output, all channels driven 4,000 W
    Output per channel 900 W into 2 Ω; 1,000 W into 4 Ω, 8 Ω, 70 V or 100 V; 625 W into 16 Ω
    Max output voltage per channel 141 Vp / 100 Vrms
    Max output current per channel 16.3 Arms
    THD (20 Hz – 20 kHz @ 1 W into 8 Ω) <0.1%
    THD (@ 1 kHz, 1 dB below clipping) <0.05%
    Signal-to-noise ratio >106 dBA
    Channel separation @ 1 kHz >70 dB
    Frequency response 2 Hz – 40 kHz
    Input impedance 20 kΩ
    Common mode rejection 50 dB
    Output impedance 25 mΩ
    Mains 100-240 VAC, standard IEC receptacle
    Power consumption 600 W
    Standby consumption <2.5 W
    Dimensions (H × W × D) 44 × 483 × 417 mm (1U, 19″)
    Weight 7.9 kg
    Finish Dark grey aluminium front, black steel chassis
    Warranty 1 year

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • 4,000 W amplifier carrying 4 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost
    • Energy efficient for supreme green credentials and exceptionally low lifetime running costs
    • 4 x 900 Watts into 2 Ohms, 4 x 1,000 Watts into 4 Ohms, 4 x 1,000 Watts into 8 Ohms, 4 x 625 Watts into 16 Ohms, 4 x 1,000 Watts into Hi-Z 70 V, 4 x 1,000 Watts into Hi-Z 100 V
    • Asymmetric channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization
    • High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' mains distribution and cooling systems
    • IDEEA outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance
    • Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions
    • Auto-standby and auto-power on reduces power consumption in non-operating cycles
    • Rail Sense Limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads
    • Built in 50 Hz high pass filter selectable per channel available on rear panel switch
    • Per-channel attenuation knob and signal LED on rear panel for simple commissioning
    • Efficient cooling with temperature-controlled fan with front to back airflow
    • Aluminium front panel with power and temperature LEDs and per-channel signal and limit LEDs
    • GPIO connector with power control and indication for further system integration
    • Balanced high-quality analogue inputs and amplifier outputs on detachable screw terminals
