The Biamp Tesira EX-OUT is a half-rack output expander for AVB-enabled Tesira server-class devices, adding four channels of balanced mic or line level output wherever the network reaches. Audio, configuration and control all travel over the Tesira AVB network, and the unit is powered by PoE+, so a single category cable is the only connection back to the rack. It suits installs where amplifiers, recorders or assistive listening feeds sit away from the main DSP.
4
Mic/line outputs
+24 dBu
Maximum output
24-bit
48 kHz conversion
PoE+
Single-cable power
Features
Four channels of balanced mic or line level output
-100 to +12 dB fader range for level
Signal invert for reverse polarity
Selectable full-scale output reference level (+24, +18, +12, +6, 0 or -31 dBu)
Audio and control networking over AVB/TSN
Powered by PoE+

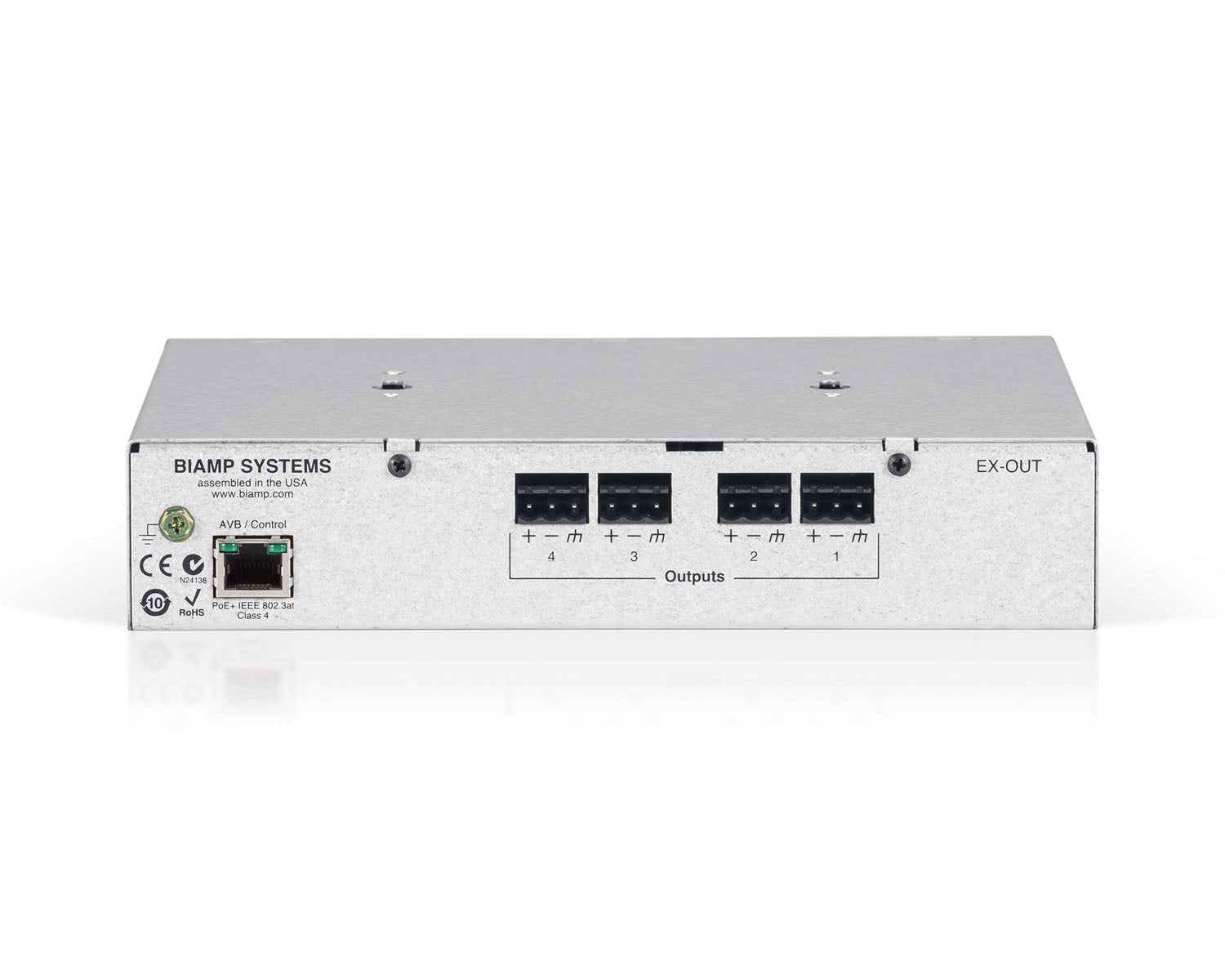

Plug-in barrier strip connectors

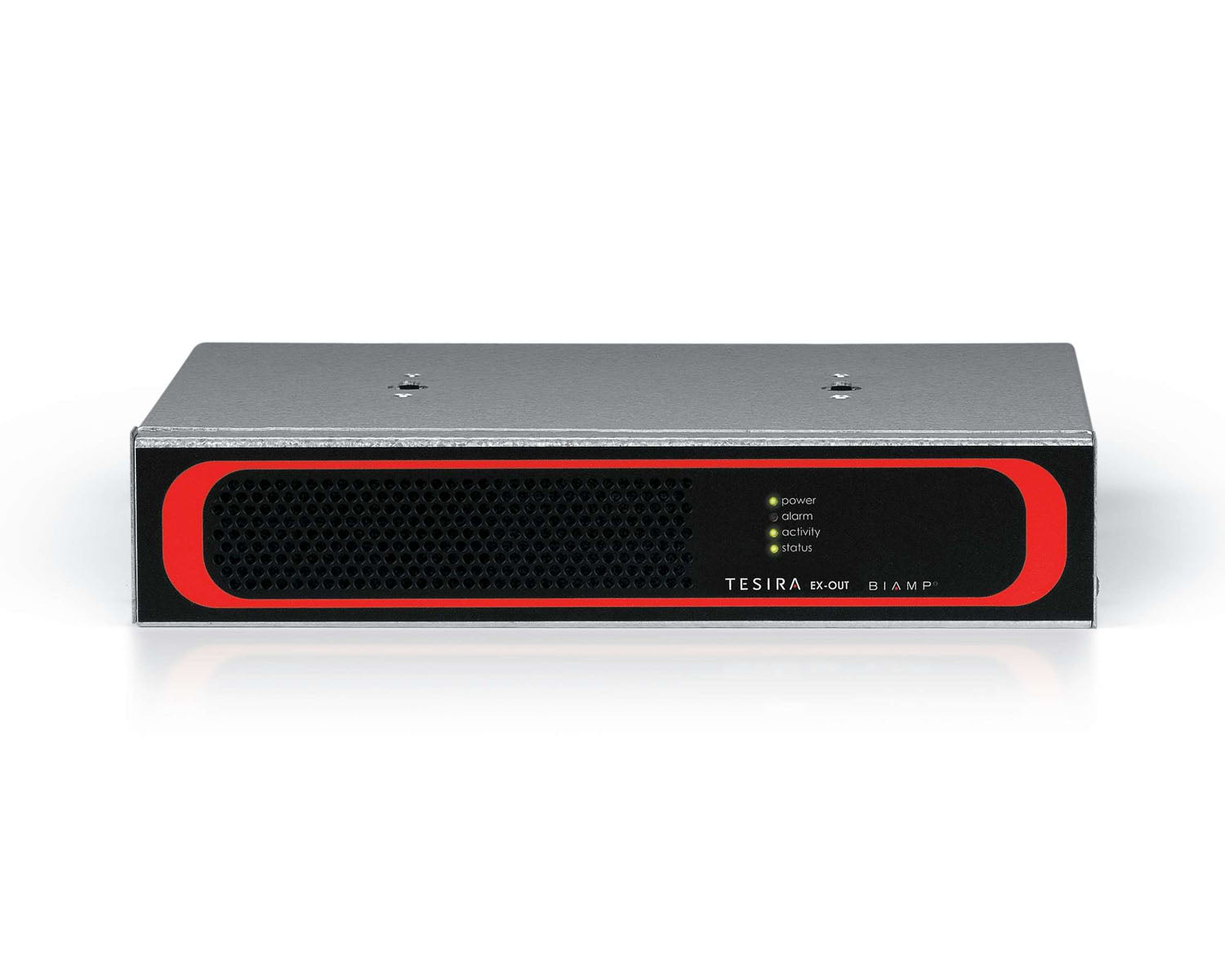

Front panel LEDs for device status
Half-rack chassis
RoHS compliant and AES grounded
Covered by Biamp’s five-year warranty
Specifications
| Frequency response (20 Hz to 20 kHz at +4 dBu) | +0/-0.25 dB |
| THD+N (20 Hz to 20 kHz, 0 dB gain, +4 dBu) | <0.006% |
| Dynamic range (20 Hz to 20 kHz, 0 dB) | >108 dB |
| Output impedance (balanced) | 200 Ω |
| Maximum output | +24 dBu |
| Full-scale reference level (selectable) | +24, +18, +12, +6, 0 or -31 dBu |
| Sampling rate / converters | 48 kHz, 24-bit D/A |
| Power | PoE+ (IEEE 802.3at Class 4, 30 W) |
| Dimensions (H × W × D) | 44 × 216 × 197 mm (half-rack, 1U height) |
| Weight | 1.4 kg |
