Biamp TesiraCONNECT TC-5 5-Port Expander 5 × RJ-45, 4 × PoE+ (920-00039-00003)

SKU: 920-00039-00003
Biamp TesiraCONNECT TC-5 5-Port Expander 5 × RJ-45, 4 × PoE+ (920-00039-00003)
Biamp TesiraCONNECT TC-5 5-Port Expander 5 × RJ-45, 4 × PoE+ (920-00039-00003)
Click to enlarge

    £1,124.00 inc VAT
    £936.67 ex VAT

    11 in stock (more available subject to additional lead time)

    11 available
    More available from supplier in 1–3 weeks
    Order in 19h 25m 48s for FREE delivery by ThursdayClick & Collect available Wed 19th Aug from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Biamp TesiraCONNECT TC-5 is the central connection point for Biamp devices in a conference room, carrying power and AVB media over a single category cable to Tesira DSPs, USB extenders, PoE+ amplifiers and microphones. It works out of the box with Tesira conferencing products with no device configuration, removing the need for a third-party network switch. The compact chassis mounts to a wall, under a table, above the ceiling or inside a credenza.

    5
    Gigabit RJ-45 Ports
    4
    PoE+ Ports (30 W)
    120 W
    Total PoE Budget
    150
    Max AVB Streams
    Features
    Five 1 Gbps RJ-45 ports
    Four ports supply PoE+ power (IEEE 802.3at Class 4, 30 W)
    Daisy-chain up to 4 TesiraCONNECT TC-5 devices

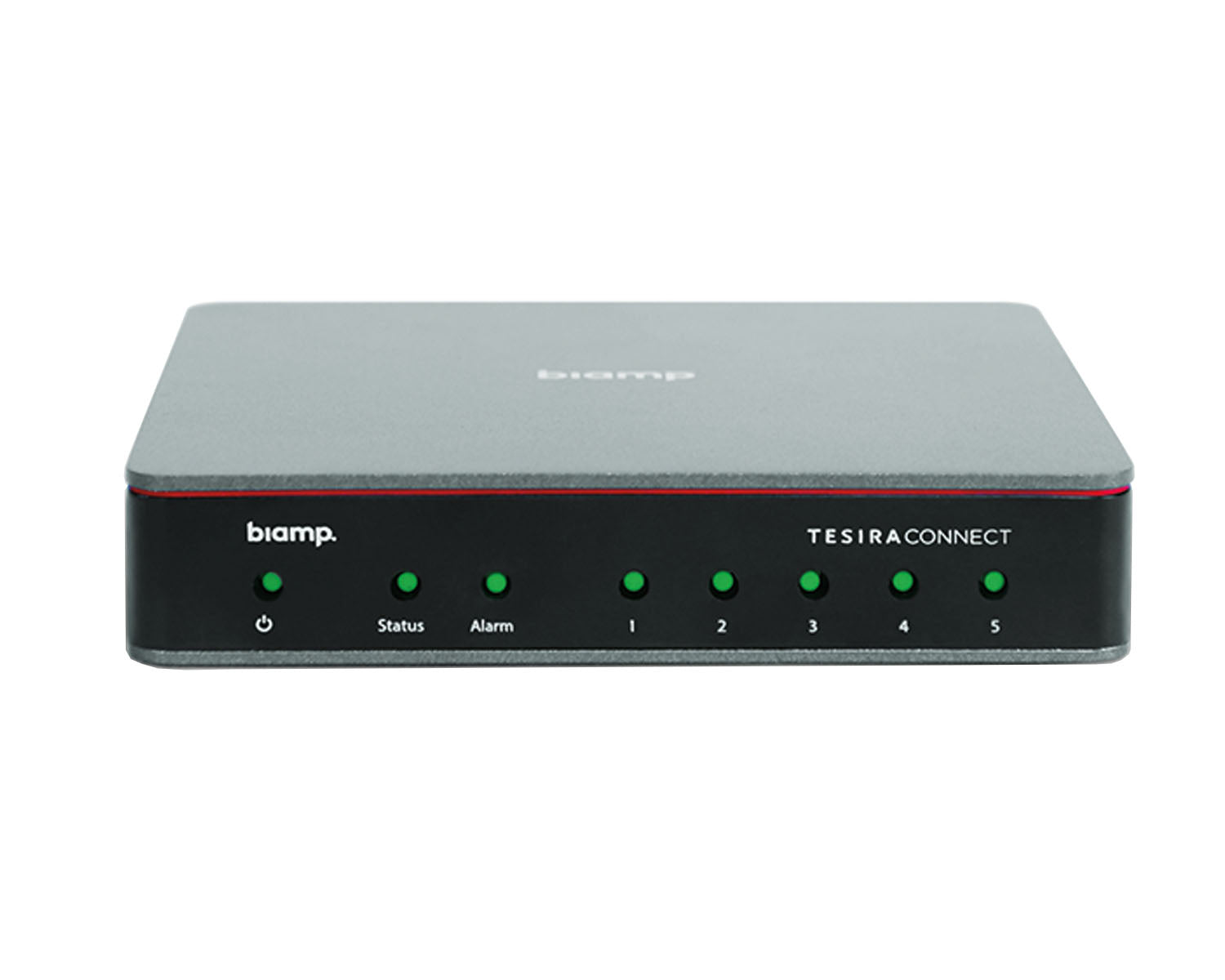

    Front panel LEDs show port connections, device status and faults
    Fault reporting and device monitoring in SageVue
    Out-of-the-box compatibility with Tesira conferencing products
    External universal power supply
    Evaluated to UL 2043, suitable for air handling spaces
    CE marked, UL listed and RoHS compliant
    Covered by Biamp’s five-year warranty
    Specifications

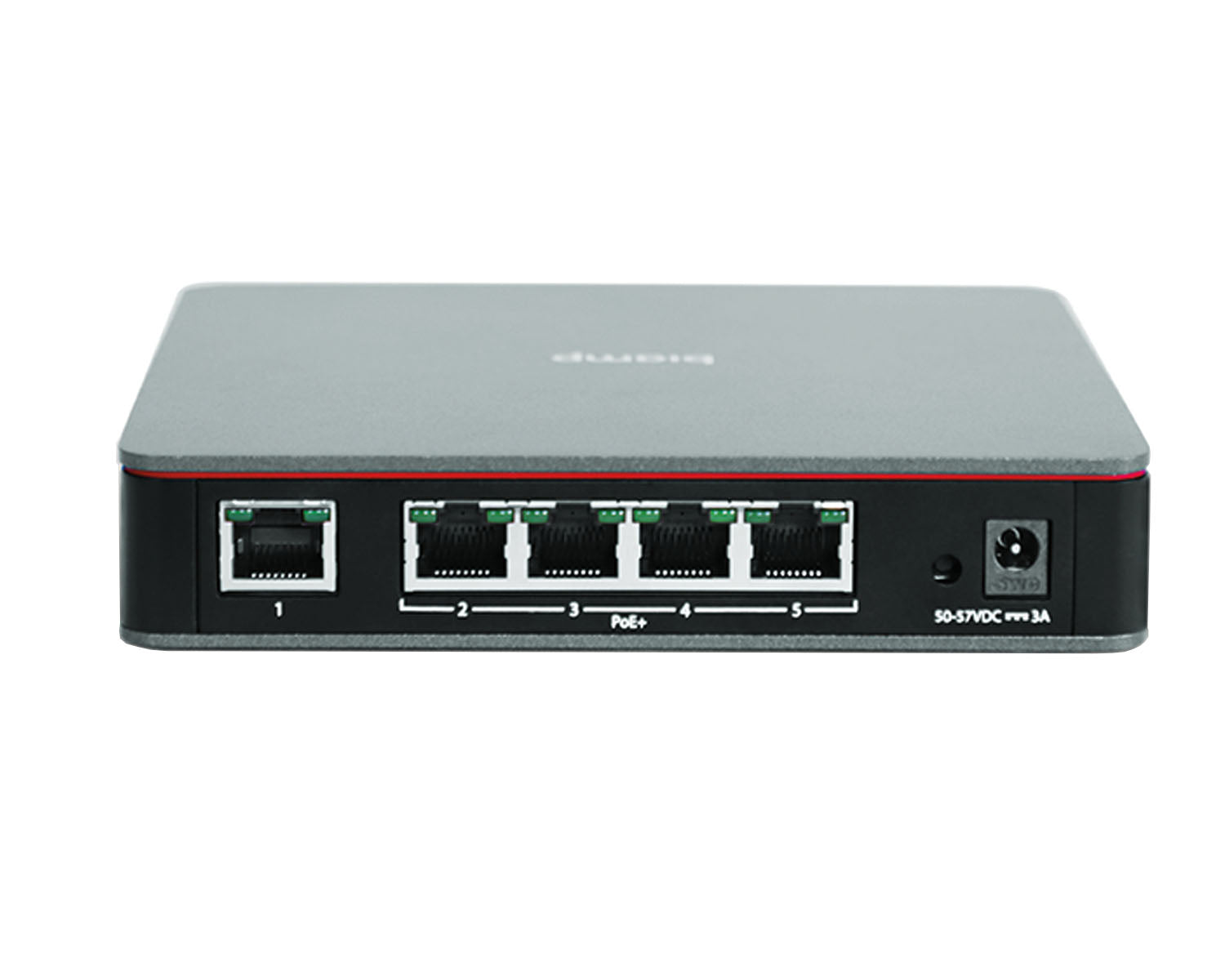

    Ports 5 × RJ-45
    Connection speeds 100 Mbps, 1 Gbps
    PoE+ powered ports 4 (IEEE 802.3at Class 4, 30 W)
    Total PoE power budget 120 W
    Maximum AVB streams 150
    Maximum daisy-chained devices 4
    Maximum supported endpoints 13
    Power 100 – 240 VAC 50/60 Hz, < 132 W
    Cooling Convection
    Operating temperature 0 – 40°C
    Humidity 0 – 95% RH, non-condensing
    Dimensions (H × W × D) 48 × 147 × 147 mm
    Weight 0.7 kg
    Compliance FCC Part 15B, UL and C-UL listed, CE marked, RoHS, UL 2043 evaluated

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • Five 1 Gbps RJ-45 ports
    • Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
    • Up to 4 TesiraCONNECT TC-5 devices can be daisy-chained together
    • Front panel LEDs indicate port connections, device status, and fault conditions
    • Fault reporting and device monitoring supported in SageVue
    • Out-of-the-box compatibility with Tesira conferencing products
    • External universal power supply
    • CE marked, UL listed, and RoHS compliant
    • Covered by Biamp Systems’ five-year warranty
