Martin Audio DX0.4 Networked Loudspeaker Management System

SKU: DX0.4
Martin Audio DX0.4 Networked Loudspeaker Management System
Martin Audio DX0.4 Networked Loudspeaker Management System
Martin Audio DX0.4 Networked Loudspeaker Management System
Click to enlarge

    £584.00 inc VAT
    £486.67 ex VAT

    21 available online
    More available from supplier in 1–3 weeks
    FREE delivery by WednesdayOrder by 3pm Monday
    Click & Collect Tuesday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    5 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The DX0.4 is the ideal processing tool to partner the ADORN, CDD and BlacklineX ranges or indeed any system where comprehensive system control and protection is required, perhaps where there may be budget constraints. The DX0.4 offers a substantial array of processing options. Routing is freely assignable from the 2 inputs to the 4 outputs.

    Applications

    Ideal for:

    Fixed installations
    Touring systems
    Portable PA
    System Compatibility

    Works with:

    ADORN
    Features
    The DX0.4 offers a substantial array of processing options
    Routing is freely assignable from the 2 inputs to the 4 outputs
    Input and output equalisation is available with a choice of 14 filter options
    An input noise gate will help deal with noisy signal sources
    Input and output delay is available to time align components in a system
    Network control via Ethernet
    Specifications
    SKU DX0.4
    In the box Detachable IEC power cable
    Control software Free Windows desktop app (DX0.4 and DX0.6 Control Software); macOS not supported
    PC connection USB or direct Ethernet (one unit), Ethernet network (any number of units), RS-485 (up to 32 units)
    RS-485 network IN and OUT RJ45 ports for daisy chaining, cable runs up to 1,200m
    Output relays Prevent pops and noise at power on and off
    Shipping weight 3.5kg (approx.)
    Compare the Range
    Martin Audio DX0.4 Networked Loudspeaker Management System
    Martin Audio DX0.4 Networked Loudspeaker Management System
    £584.00 inc VAT
    £486.67 ex VAT
    Viewing Now
    Martin Audio DX0.6 Networked Loudspeaker Management System
    Martin Audio DX0.6 Networked Loudspeaker Management System
    £756.00 inc VAT
    £630.00 ex VAT
    View →
    Martin Audio DX4.0 4i/p 8o/p Networked Loudspeaker Management System
    Martin Audio DX4.0 4i/p 8o/p Networked Loudspeaker Management System
    £2,228.00 inc VAT
    £1,856.67 ex VAT
    View →
    Martin Audio DX4.0-DANTE Networked Loudspeaker Management System
    Martin Audio DX4.0-DANTE Networked Loudspeaker Management System
    £2,522.00 inc VAT
    £2,101.67 ex VAT
    View →

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • Professional 2-input, 4 output system processor for a wide range of system applications
    • Comprehensive, sophisticated processing options including EQ, gate, delay and limiting to optimise and protect a system
    • Fully assignable matrix routing of both inputs to any output with attenuation option on each routing node
    • Two balanced XLR inputs with up to 12dB of gain, polarity invert, 600ms of delay, 10 band parametric EQ with a choice of 14 filter types individually selectable for each band
    • Four balanced XLR outputs with 12dB of gain, polarity invert, 200ms delay, high and low pass filters with cut-off slopes from -6dB/oct to -48dB/oct using either Bessel, Butterworth or Linkwitz Riley filters. 8 band parametric EQ with a choice of 14 filter types, Independent Program and Peak Limiters

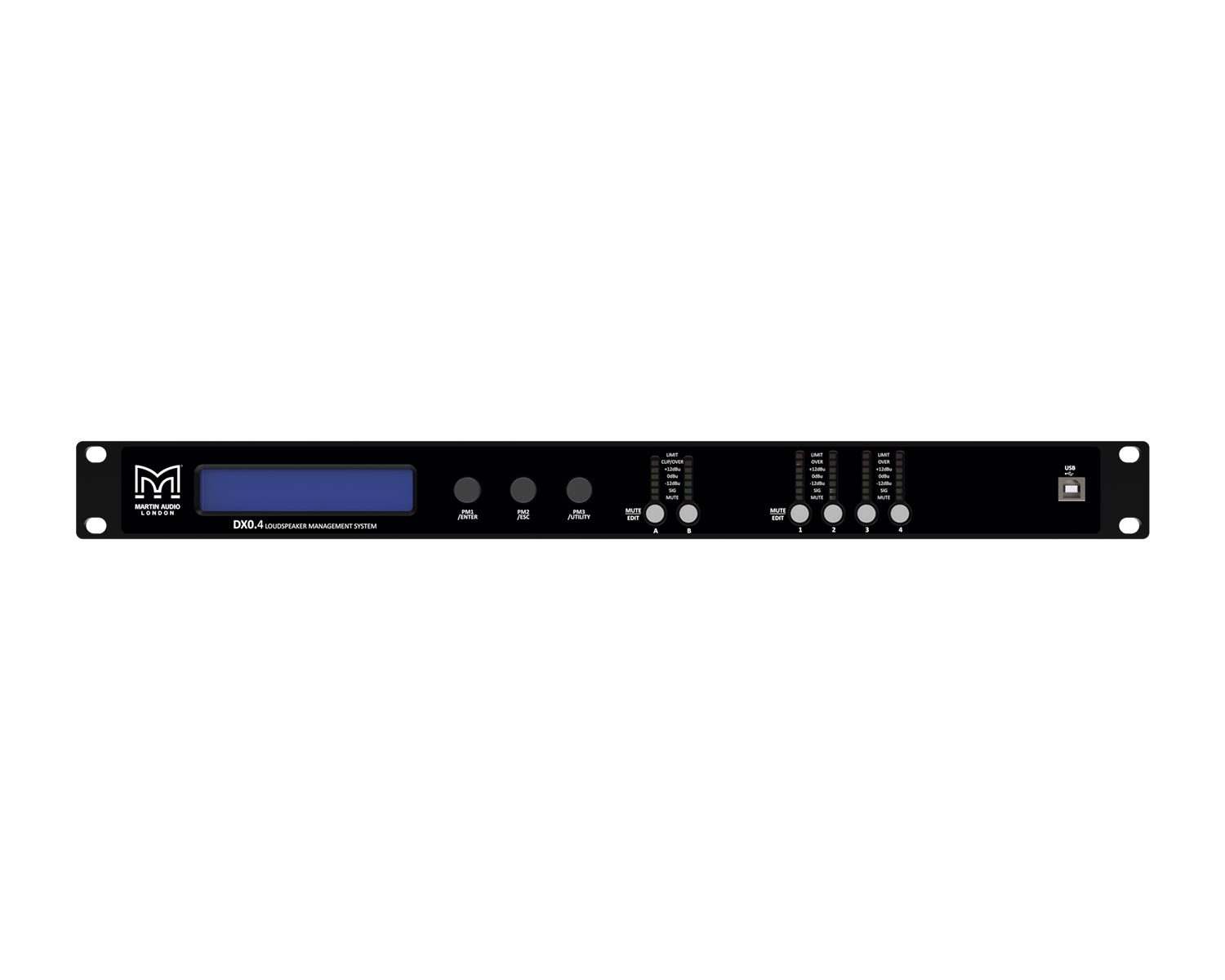

    • Convenient front panel controls and LCD display with an intuitive menu system for programming or modifying settings. One press mute buttons for all inputs and outputs
    • Front panel USB port for quick and easy PC connection
    • Networking option using either Ethernet or RS485 for larger systems
    • Output channel preset import function to quickly and easily compile a system to suit any application utilising a library of Martin Audio product channel presets
    • Six segment LED metering for input and output levels and limiter operation
    • 32 User Presets to store system configurations
    • 3-level customisable user modes with individual password protection
    • Universal switch mode mains PSU accepts 90 to 240V, 50/60Hz
    • Compact 1 rack unit design

    Manuals & Downloads

    PDFDatasheetPDF
    PDFUser GuidePDF
