The BSS BLU-BOB1 is a Soundweb London break-out box providing eight channels of analogue line-level output expansion via the BLU Link digital audio bus. It is the half-rack width, desk- or wall-mount version aimed at fixed installs, conferencing and distributed audio systems that need extra analogue outputs away from the host processor.
Outputs
8 Channels
Analogue line level
Bus
BLU Link
256 channels
Form Factor
Half Rack
Desk / wall mount
Power
12V DC
Adapter included
Channel Configuration

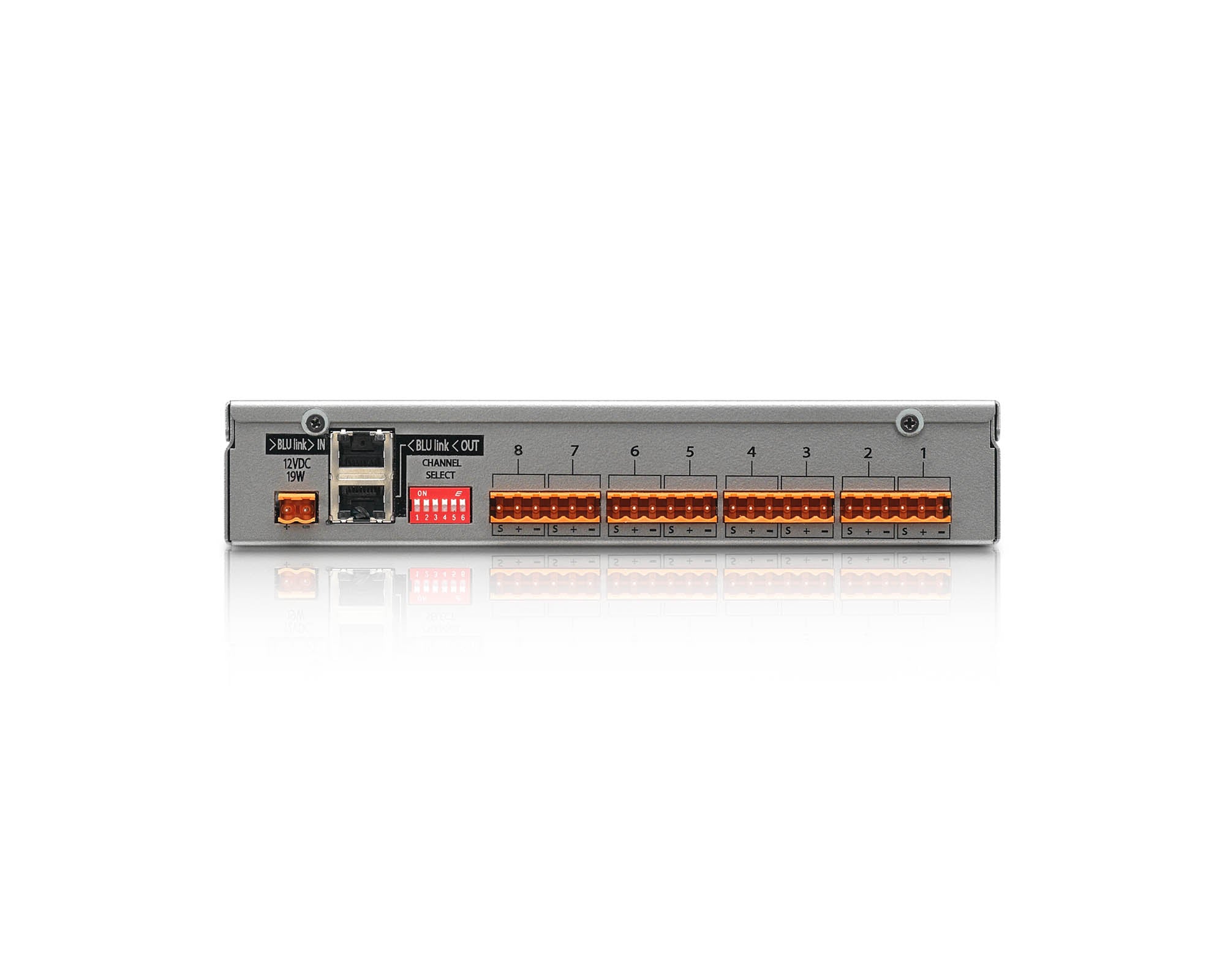

Output channels are set by six rear-panel DIP switches, selecting any consecutive block of eight from the 256 channels on the BLU Link bus. Configuration is by DIP switch only – the BLU-BOB1 is not configured through HiQnet London Architect.
Features
✓8 analogue line-level outputs on terminal block connectors
✓Connects over the low-latency, fault-tolerant BLU Link bus
✓256-channel bus over standard Cat 5e, up to 100m between devices
✓Six DIP switches select any 8-channel block from the bus

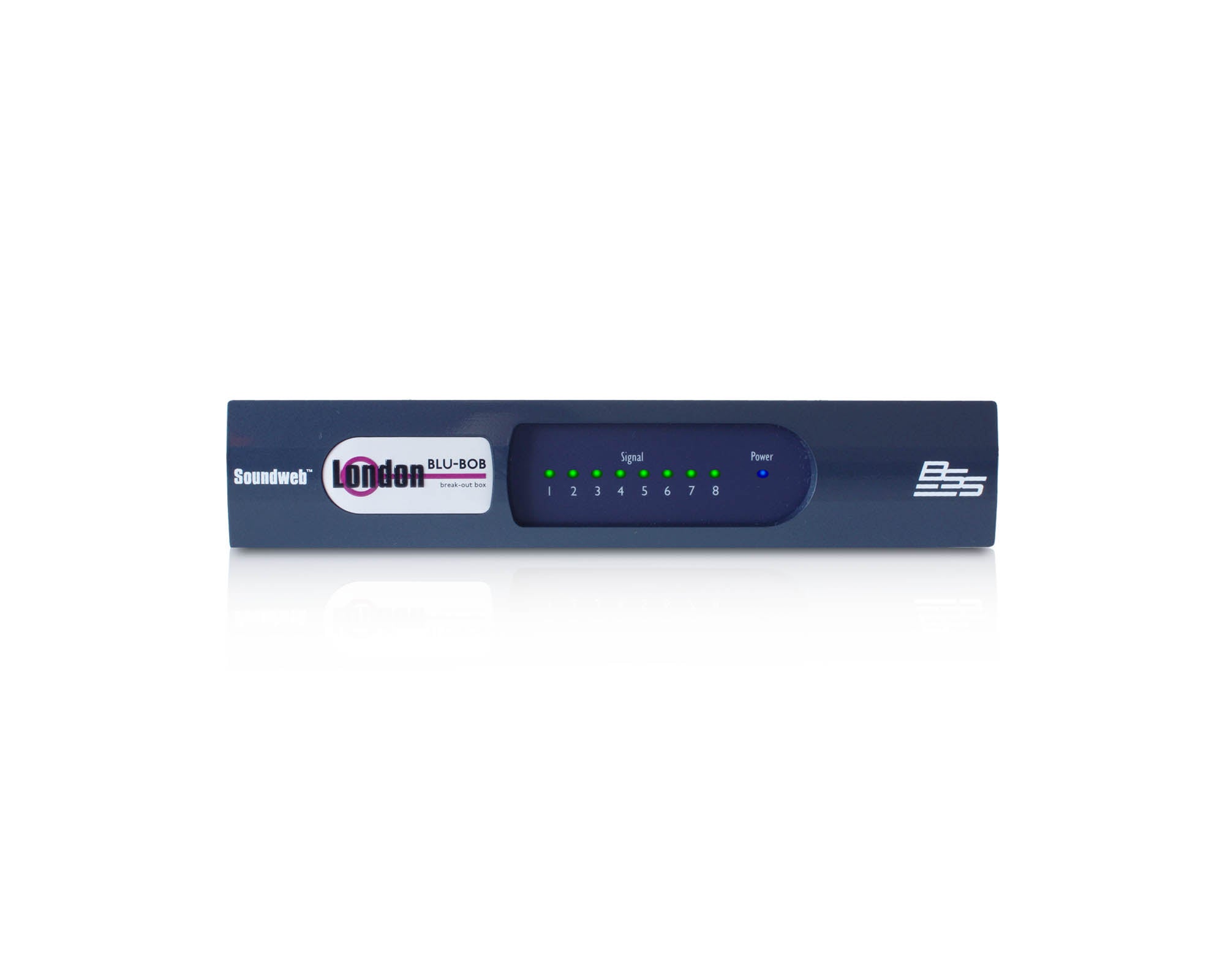

✓Front-panel signal-present and power status LEDs
✓Distance extendable beyond 10km with the BSS MC-1 fibre converter
✓Same terminal-block connectors as the wider Soundweb London family
✓Half-rack chassis for desk or wall mounting
Note
This is the half-rack BLU-BOB1 supplied without the rack-mounting kit. For a full 19″ 1U rack chassis choose the BLU-BOB2; to rack the BLU-BOB1 use the BLURACK mounting kit (fits 1 or 2 units).
Specifications
| Type | Analogue output break-out box (expander) |
| Outputs | 8 x analogue line level, terminal block |
| Audio bus | BLU Link, 256 channels, Cat 5e, 100m between devices |
| Configuration | 6 rear DIP switches (8-channel block select) |
| Indication | Front-panel signal-present and power LEDs |
| Form factor | Half rack, desk or wall mount (rack kit not included) |
| Power | 12V DC adapter (included) |
