The BSS BLU-BOB2 “break-out box” adds 8 channels of analogue line-level output expansion to any Soundweb London system over the BLU link high-bandwidth, fault-tolerant digital audio bus. This is the full 19″ 1U rack version with mounting ears, configured entirely by DIP switch – no HiQnet London Architect programming required – making it a straightforward way to feed remote amplifiers or zones from a networked install.
Outputs
8
Analogue line level
BLU link
256 ch
Digital audio bus
Reach
100m
Cat 5e; 10km via fibre
Format
Full 1U
19″ rack, with ears
Configuration

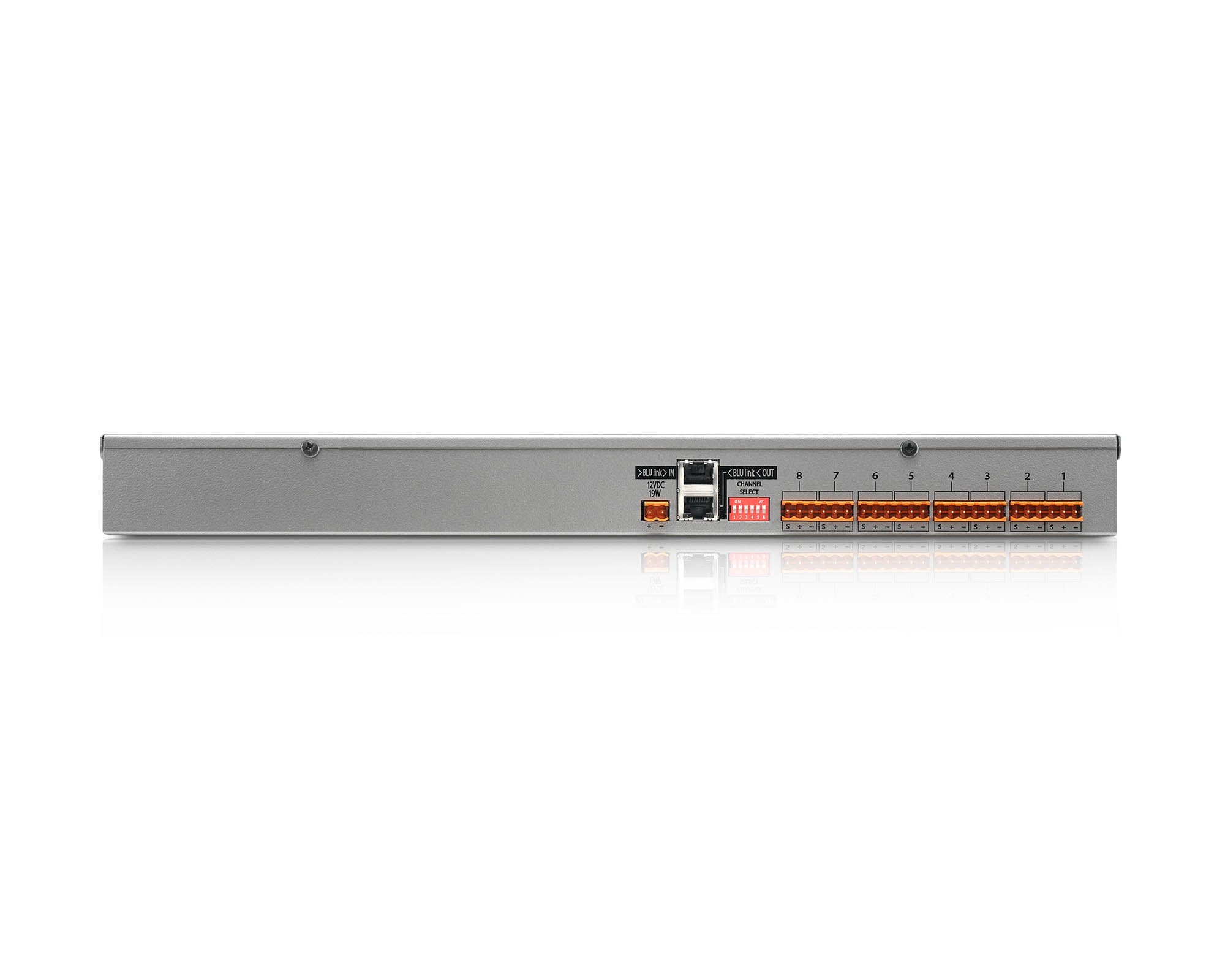

Six rear DIP switches select consecutive channels in groups of eight, assigning the outputs to any 8-channel range within the 256 available on the BLU link bus. The BLU-BOB2 is not configured in HiQnet London Architect.
Features
✓8 analogue line-level outputs on terminal-block connectors
✓256-channel fault-tolerant BLU link audio bus
✓DIP-switch channel assignment, no software needed
✓Full 19″ 1U rack chassis with mounting ears

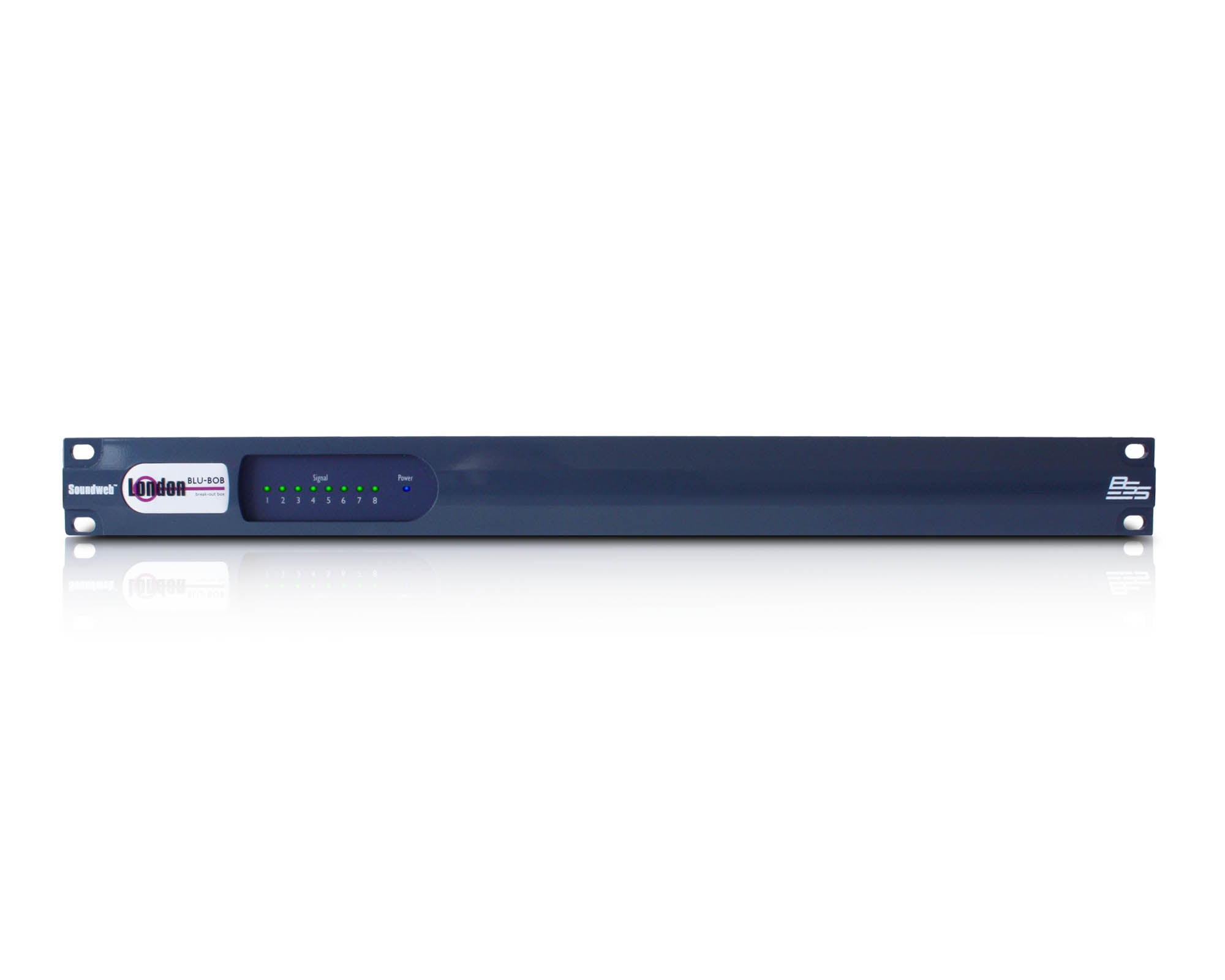

✓Front-panel signal-present and power-status LEDs
✓100m over Cat 5e; over 10km via BSS MC-1 fibre converter
✓Same terminal-block connectors as the Soundweb London family
✓Included 12V DC power adapter
Note
This is the BLU-BOB2 full 19″ single-rack-space version with mounting ears. The BLU-BOB1 is the half-rack, desk or wall-mounted variant – front-panel indication and rear-panel connections are identical on both.
Specifications
| Type | Soundweb London BLU link output expander |
| Outputs | 8 x analogue line level, terminal block |
| Bus | 256-channel BLU link over Cat 5e |
| Distance | 100m Cat 5e; over 10km via BSS MC-1 fibre converter |
| Power | Included 12V DC adapter |
| Format | Full 1U, 19″ rack with ears |
| SKU | BSSBLU-BOB2-M-UK |
