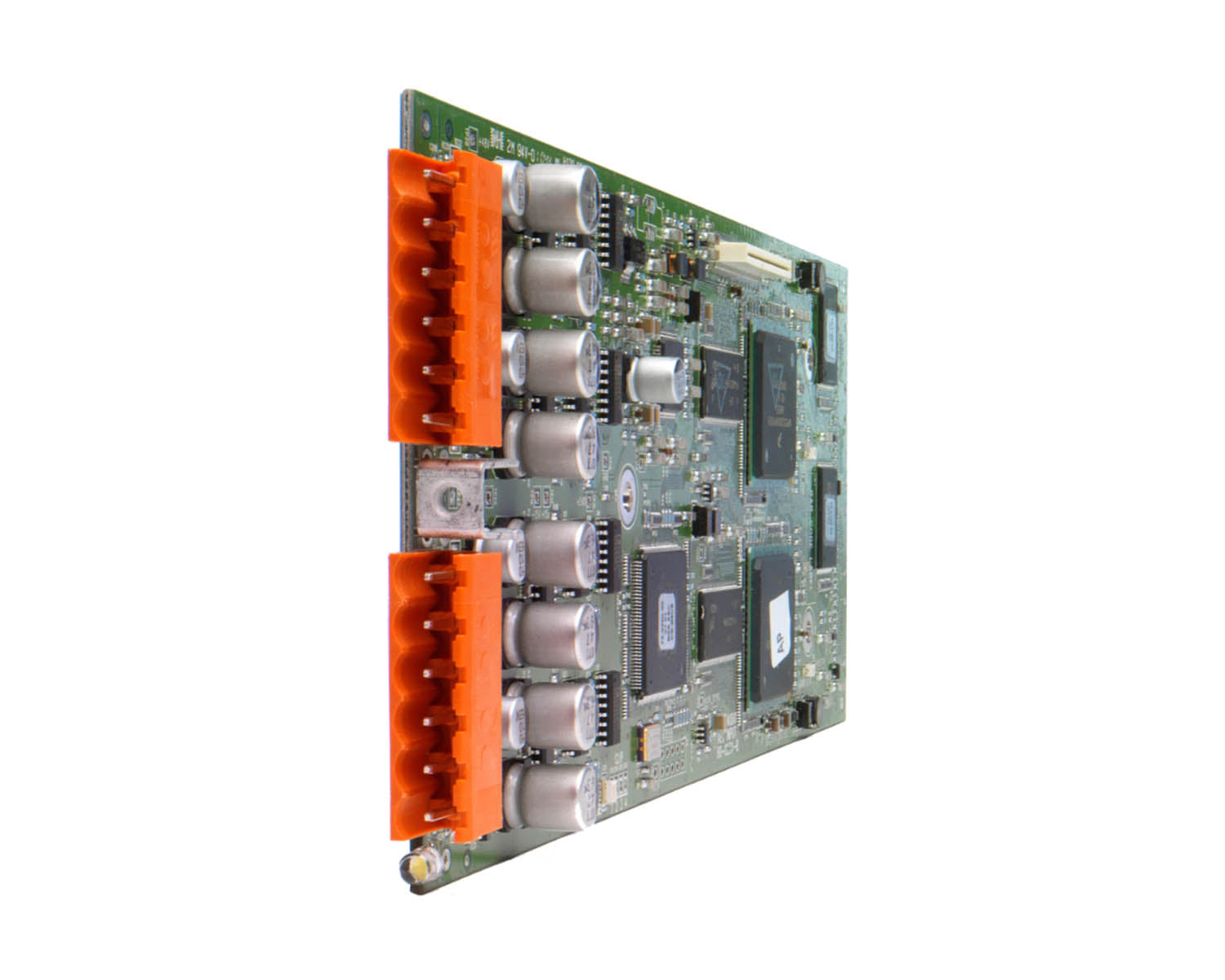

BSS BLUCARD-OUT Soundweb London Analogue Output Card - 4-Channel Mic/Line (BLUCARD-OUT)

Input Card (sold separately)

• Analog Inputs: Up to 4 electronically balanced on Phoenix/Combicon removable screw connectors
• Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB,in +6dB steps
• Input Impedance: 3.5kΩ
• Maximum Input Level: +20dBu with 0dB input gain,+8dBu with 12dB gain
• CMRR: >75dB at 1KHz
• Input Noise (E.I.N.): <-128dBu typical with 150Ω source
• Phantom Power: 48V nominal, selectable per input
• A/D Latency (Rev. A):* 41/Fs [0.85ms@48k, 0.43ms@96k]
• A/D Latency (Rev. B): 12/Fs [0.25ms@48k, 0.13ms@96k]

Output Card

• Analog Outputs: Up to 4 electronically balanced on Phoenix/Combicon removable screw connectors
• Maximum Output Level: +19dBu
• Output Impedance: 40 Ohms balanced, 20 Ohms unbalanced
• Frequency Response: 20Hz-20KHz (+0.5dB/-1dB)
• THD: <0.01% 20Hz to 20KHz, +10dBu output
• Dynamic Range: 108dB typical, 22Hz-22KHz unweighted
• Crosstalk: <-75dB
• D/A Latency: 28/Fs [0.58ms@48k, 0.29ms@96k]

*Rev. A Analog Input Cards are no longer shipping.
