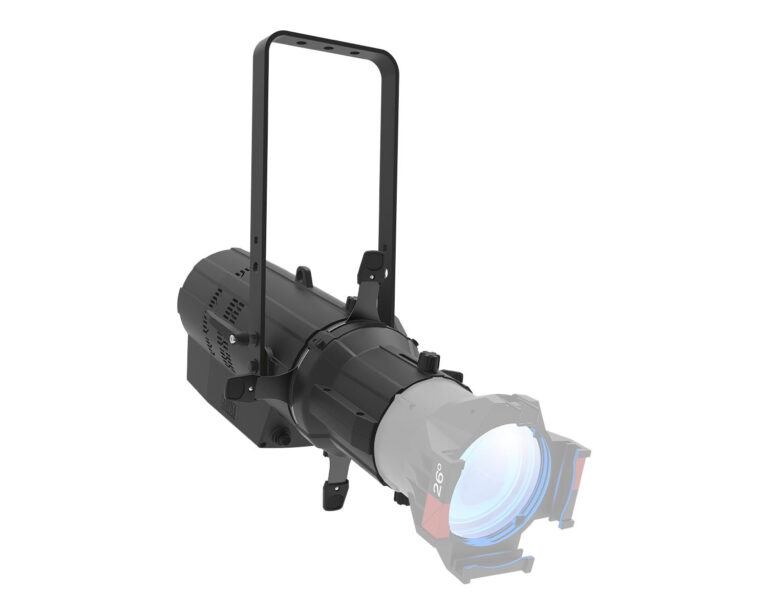

Chauvet Professional Ovation E-910FC IP Full-Colour LED Ellipsoidal Black

Product code: 36786

£1,820.00 inc VAT
£1,516.67 ex VAT

SKU: OVATIONE910FCIP
10 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
2 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

The Chauvet Professional Ovation E-910FC IP is an IP65-rated full-colour LED ellipsoidal bringing the RGBA-Lime colour mixing performance of the indoor E-910FC to outdoor and wet environments. It offers colour temperature presets from 2800K to 6500K that closely match tungsten sources, along with a virtual colour wheel, 16-bit dimming, selectable PWM, and RDM support. This is a light engine and barrel only, lens tubes are sold separately.

IP65
IP Rating · Outdoor rated
RGBA-Lime
LED System · Full colour mixing
2800-6500K
Colour Temp · Tunable presets
16-bit
Dimming · Per colour + master
ImportantThis listing is for the light engine and barrel only. Lens tubes are sold separately, select the appropriate lens tube for your required beam angle. Uses standard Chauvet Professional shutter assembly and lenses.

Features

IP65 rated for outdoor and wet environment use
RGBA-Lime colour mixing for full-spectrum output
Colour temperature presets from 2800K to 6500K
Virtual colour wheel matching popular gel colours
16-bit dimming per colour and master channel
Selectable PWM for flicker-free camera work
RDM-enabled for remote configuration
On-board dimming curve selection

Specifications

Chauvet Professional Ovation E-910FC IP Full-Colour LED Ellipsoidal Black specifications
Brand Chauvet Professional
SKU OVATIONE910FCIP
LED System RGBA-Lime
IP Rating IP65
Colour Temperature Presets 2800K to 6500K
Dimming 16-bit (per colour and master)
RDM Yes
PWM Selectable
Colour Black
Lens Tube Sold separately

Full features

  • Full Colour LED (RGBAL) ERS-style lighting fixture for theatre, film and production
  • Fully IP65 rated for seasonal use indoors or out
  • Use of CHAUVET Professional standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
  • Virtual Colour wheel with colour matched to popular gel colours
  • Colour Temperature Presets from 2800 K to 6500 K with high CRI and CQS
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Full specifications

OPTICAL

  • Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
  • Colour Temperature (range): 2800 to 6500 K
  • Colour Temperature (at full): 6031 K
  • CRI (3200 K): 86
  • Beam Angle (w/5° lens): 7°
  • Beam Angle (w/10° lens): 10°
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 19°
  • Beam Angle (w/26° lens): 24°
  • Beam Angle (w/36° lens): 28°
  • Beam Angle (w/50° lens): 41°
  • Beam Angle (w/15°–30° lens)(Narrow): 13°
  • Beam Angle (w/15°–30° lens)(Wide): 24°
  • Beam Angle (w/25°–50° lens)(Narrow): 23°
  • Beam Angle (w/25°–50° lens)(Wide): 36°
  • Field Angle (w/5° lens): 7°
  • Field Angle (w/10° lens): 10°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens):19°
  • Field Angle (w/26° lens): 26°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 51°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 50°
  • Lumens (w/19° lens): 3,236
  • Lumens (w/26° lens): 4,316
  • Lumens (w/36° lens): 3,918
  • Lumens (w/50° lens): 3,813
  • Illuminance (w/5° lens): 16,300 lux @ 5 m
  • Illuminance (w/10° lens): 7,430 lux @ 5 m
  • Illuminance (w/14° lens): 4,420 lux @ 5 m
  • Illuminance (w/19° lens): 2,530 lux @ 5 m
  • Illuminance (w/26° lens): 1,720 lux @ 5 m
  • Illuminance (w/36° lens): 1,020 lux @ 5 m
  • Illuminance (w/50° lens): 457 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 28 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 26 x 11.33 x 10.4 in (660 x 287.9 x 264.6 mm)
  • Dimensions (w/5° lens extended): 47.04 x 14.17 x 14.48 in (1195 x 360 x 368 mm)
  • Dimensions (w/10° lens extended): 38.3 x 12.16 x 12.48 in (973 x 309 x 317 mm)
  • Dimensions (w/14° lens extended): 35.2 x 11.33 x 10.4 in (894.2 x 287.9 x 264.6 mm)
  • Dimensions (w/26° lens extended): 32.37 x 11.33 x 10.4 in (822.3 x 287.9 x 264.6 mm)
  • Dimensions (w/15°–30° lens): 38.6 x 11.33 x 10.4 in (980.6 x 287.9 x 264.6 mm)
  • Dimensions (w/25°–50° lens): 31.3 x 11.33 x 10.4 in (795.1 x 287.9 x 264.6 mm)
  • Weight (fixture only): 23.2 lb (10.5 kg)
  • Weight (w/14° lens): 28.6 lb (12.9 kg)
  • Weight (w/26° lens): 27.4 lb (12.4 kg)
  • Weight (w/15°–30° lens): 35.8 lb (16.2 kg)
  • Weight (w/25°–50° lens): 32.8 lb ( 14.8 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
  • Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 6, 8, 11, 13, 14, 16 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 6, 8, 11, 13, 14, 16 or HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
  • Power and Current: 225 W, 1.88 A @ 120 V, 60 Hz
  • Power and Current: 236 W, 1.14 A @ 208 V, 60 Hz
  • Power and Current: 241 W, 1.05 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Compare the Range
Chauvet Professional Ovation E-910FC IP Full-Colour LED Ellipsoidal Black
Chauvet Professional Ovation E-910FC IP Full-Colour LED Ellipsoidal Black
£1,820.00 inc VAT
£1,516.67 ex VAT
  • LED Ellipsoidal E-910FC IP
  • Full-Colour Outdoor
Viewing Now

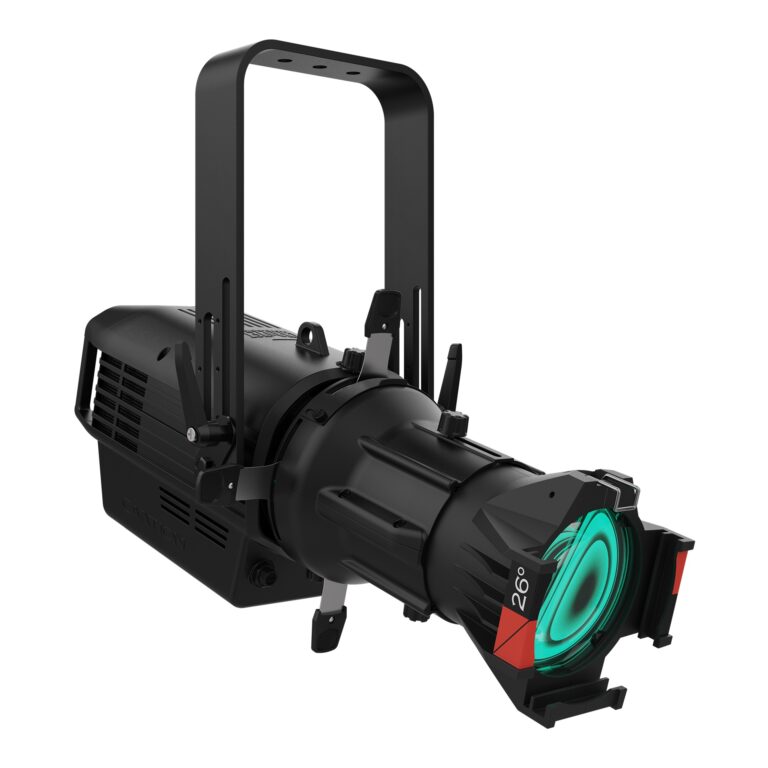

Chauvet Professional Ovation Reve E-3 Full-Colour LED Ellipsoidal Black
£1,999.00 inc VAT
£1,665.83 ex VAT
  • LED Ellipsoidal Reve E-3
  • Full-Colour Theatre
View →

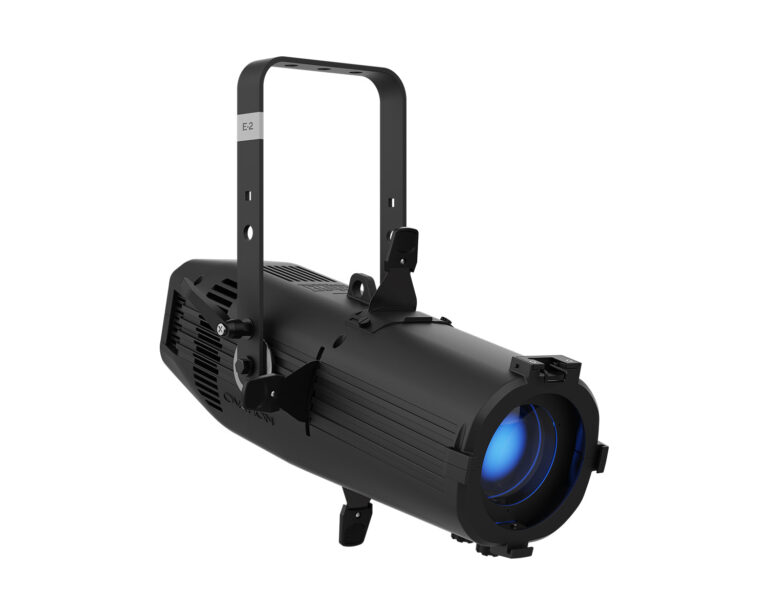

Chauvet Professional Ovation E-2 FC Compact Full-Colour LED Ellipsoidal Black
