Cloud MA40E Energy Star Mini Amplifier with RS232 2x20W @ 4Ω

Product code: 153967

£416.00 inc VAT
£346.67 ex VAT

SKU: MA40EEK
2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: Low impedance.

The Cloud MA40E is the stereo, network-controlled member of the MA40 family, with an Ethernet web server, DSP (7-band room EQ, 5-band speaker EQ, high-pass filter) and an RS232 port for automation controllers or touch panels. Delivers 2×20W and retains Energy Star certification.

2×20W
Power · 4Ω
Ethernet + RS232
Control · web + serial
Energy Star
Standard · certified

Features

Two stereo line inputs with gain trims, plus RJ45 facility port for LM-2 or BT-1 modules
Energy Star certified, low idle consumption

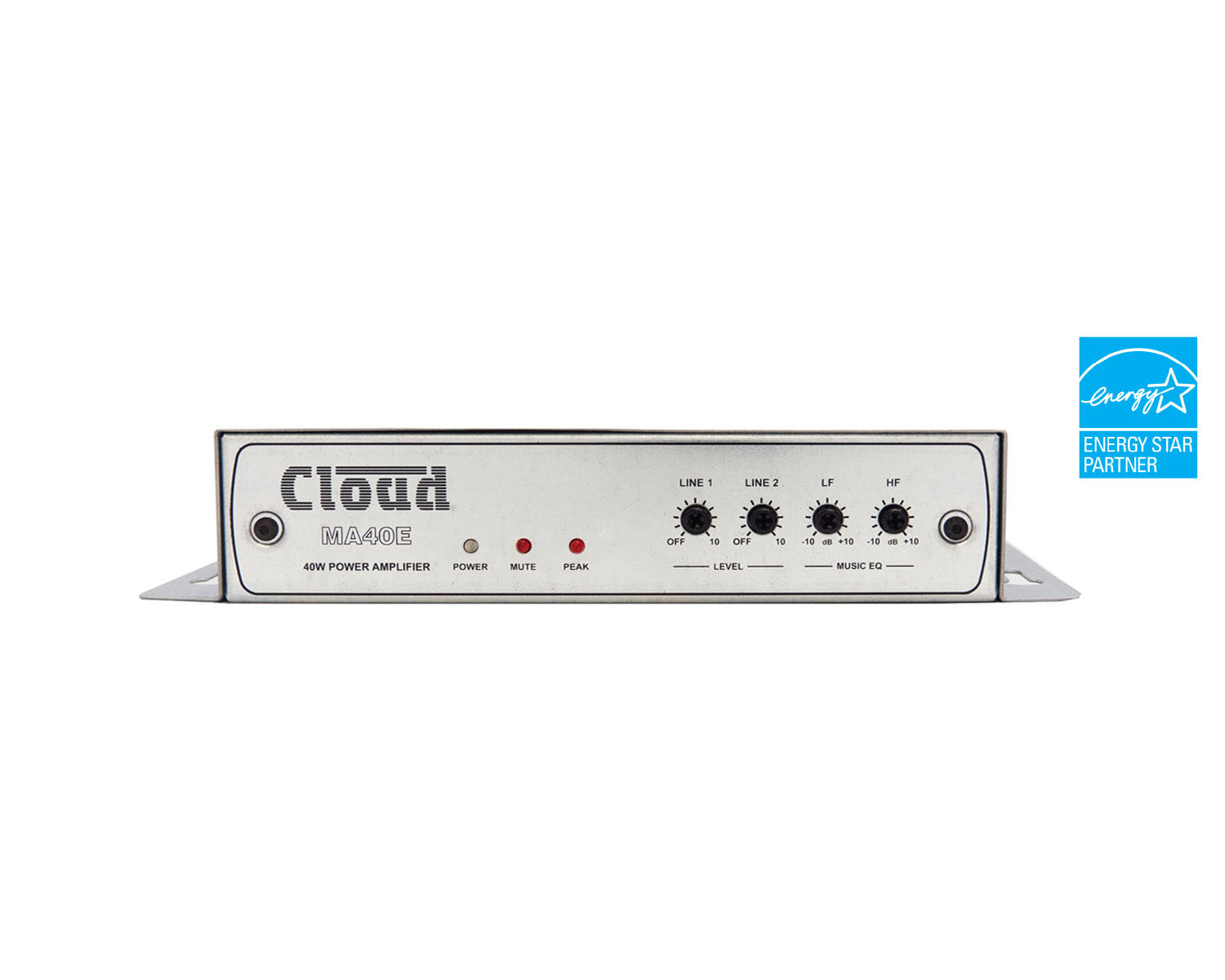

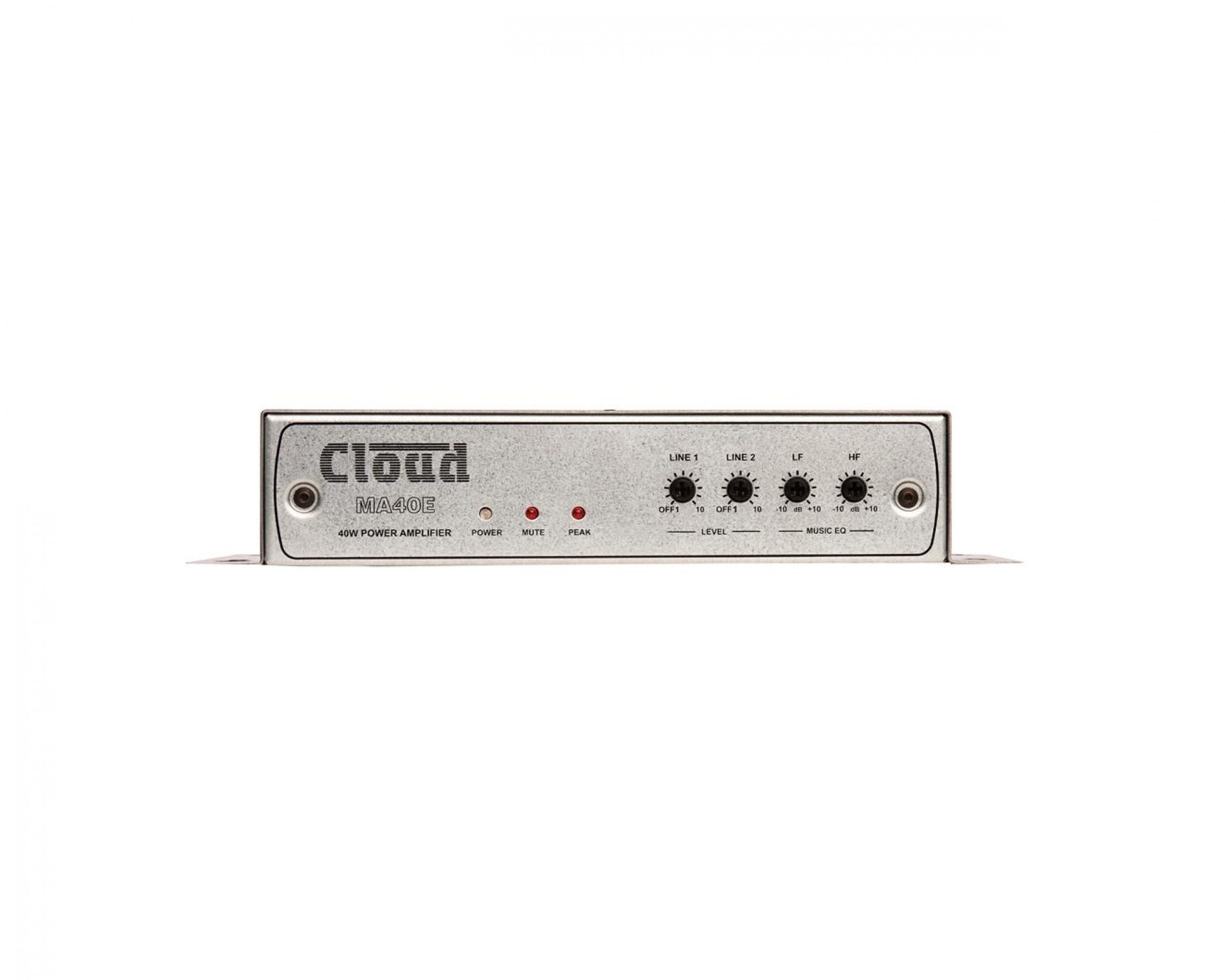

Front-panel level and tone controls
Selectable Line 1-over-Line 2 priority
Peak (clip) and standby/active status LEDs
Compact desktop/wall-mount format

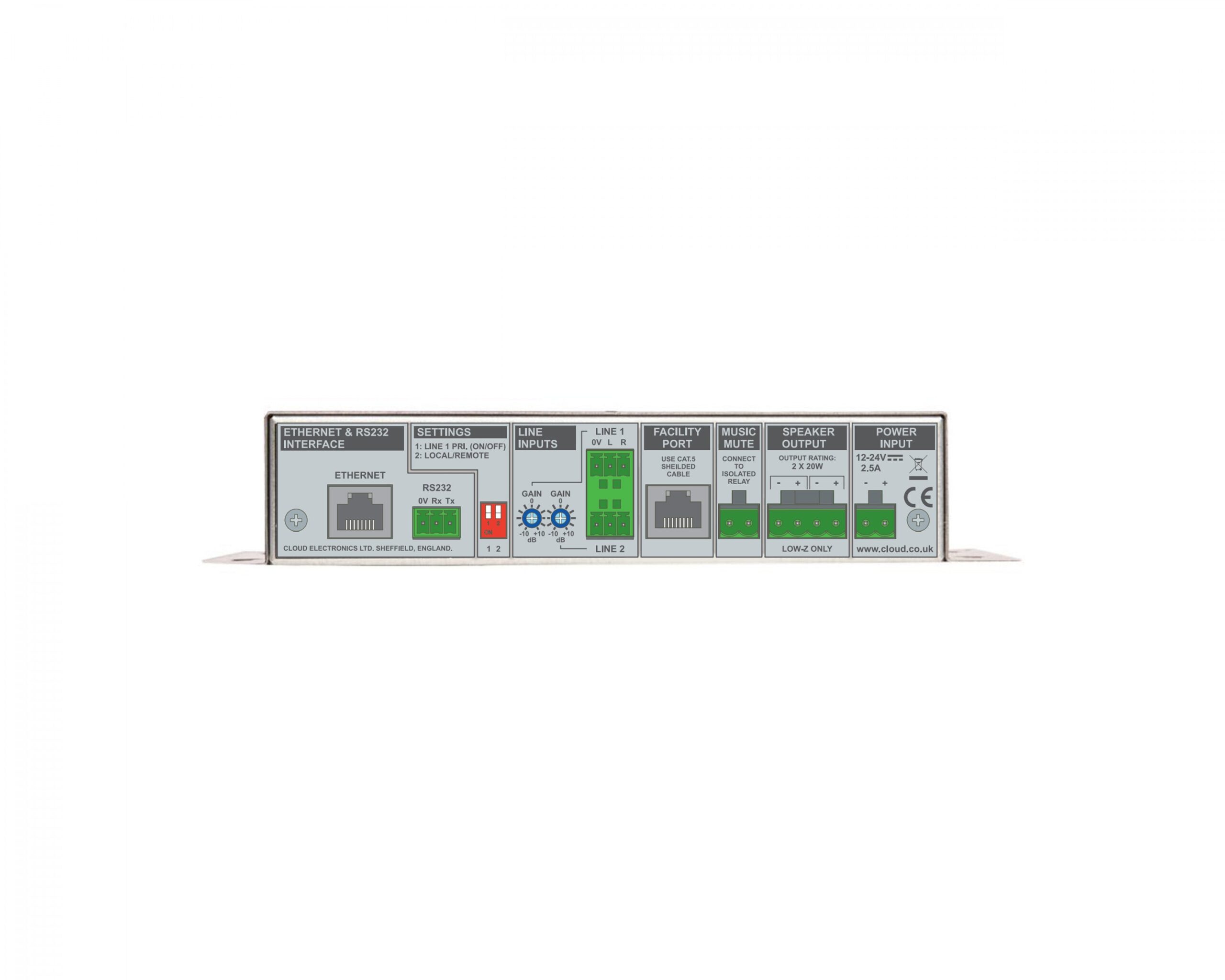

Ethernet web control and RS232 port for automation integration

Specifications

Cloud MA40E Energy Star Mini Amplifier with RS232 2x20W @ 4Ω specifications
Output Power 2×20W @ 4Ω
Control Ethernet (web server), RS232
Inputs 2× stereo line, facility port (RJ45)
Standard Energy Star

Full features

  • 2 x 20W 4Ω Output (<1% THD @ Full Power)
  • Ethernet / RS-232 Level / Source / EQ Control
  • 2 Stereo Line Inputs with Individual Input Gain
  • Facility Port Input (For LM-2 Connection)
  • Line 1 Priority Input Option
  • Music Mute
  • 12-24V Power Supply

Full specifications

General

  • Line inputs
    • Frequency Response ±1 dB, 20 Hz to 20 kHz
    • Distortion <0.1 %
    • Sensitivity 0.2 V (-12 dBu) to 1.95 V (+8 dBu)
    • Input Gain Control 20 dB range
    • Input Impedance 10 kohms (unbalanced)
    • Headroom >12 dB
    • Noise <-90 dB
    • Equalisation LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz
  • Facility input
    • Input Impedance 10 kohms (balanced)
    • Sensitivity 0.775 V (0 dBu)
  • Output
    • Output Power (1 kHz continuous sine wave) 2 x 20 W, DC input >15 V
  • General
    • Power Input: 12 V to 24 V DC
    • Power consumption 47 W
    • External AC PSU adaptor Universal type, 100 V to 240 V, 47 to 63 Hz
    • Amplifier protection Fixed level signal limiter, Protection against DC, PSU overcurrent, amplifier overcurrent, over-temperature, supply voltage under/over-voltage, Resettable internal breaker (no fuses)

Physical & Dimensions

  • Height: 41mm
  • Width: 220mm
  • Depth: 144.5mm
  • Weight: 750 g
