Cloud MA40F Energy Star Mini Amplifier with Facility Port 40W @ 4Ω

Product code: 153971

£344.00 inc VAT
£286.67 ex VAT

SKU: MA40FEK
3 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: Low impedance.

The Cloud MA40F is the facility port variant of the MA40 mini amplifier, adding a facility port connector for use with Cloud’s remote wall panels and volume controls. Delivers 40W at 4Ω with Energy Star certification and 2-line/1-mic inputs.

40W
Power · 4Ω
Facility Port
Port · wall panels
Energy Star
Standard · certified

Features

2-line and 1-mic input with individual level controls
Energy Star certified, low idle consumption
Front-panel level and tone controls
Selectable mic-over-music and Line 1-over-Line 2 priority
Peak (clip) and standby/active status LEDs
Compact desktop/wall-mount format
Facility port for Cloud wall panel / volume control accessories

Specifications

Cloud MA40F Energy Star Mini Amplifier with Facility Port 40W @ 4Ω specifications
Output Power 40W @ 4Ω
Facility Port Yes (Cloud wall panels)
Inputs 2× line, 1× mic
Standard Energy Star

Full features

  • Compact mono amplifier modules for “install-and-forget” situations
  • Two (unbalanced) stereo line inputs with individual sensitivity trims
  • Electronically-balanced mic input with separate gain control
  • Phantom power selectable by internal jumper
  • Front panel control of music level and mic levels
  • HF & LF EQ adjustments for music sources
  • MIC input configurable for direct connection to 100/70 V-line system: allows amplifier to receive announcements from main building PA/VA system
  • MIC input can be used with paging mics
  • Paging configurable as automatic voice-over-music (VOX mode) or contact closure via access port
  • Selectable LINE 1-over-LINE 2 priority
  • Facility port for connection of LM-2 remote mic/line input module via screened Cat 5 cable; also allows remote control of music level
  • 40W power amplifier
  • Music Mute control input (N/O or N/C) for interface to emergency system
  • Selectable 65 Hz high-pass filter for use with 100/70/25 V-line systems
  • Optional EQ cards available to suit various popular installation loudspeakers
  • Automatic power-down function (user-selectable)
  • Less than 1 W power consumption in sleep mode
  • Convection cooled – silent in operation.
  • PSU meets US DoE Level VI energy requirements
  • Power requirements: 12 to 24 V DC, 47 W
  • Universal AC adaptor included (both models), operates from 100 to 240 V AC

Full specifications

General

  • Line inputs
    • Frequency Response ±1 dB, 20 Hz to 20 kHz
    • Distortion <0.1 %
    • Sensitivity 0.2 V (-12 dBu) to 1.95 V (+8 dBu)
    • Input Gain Control 20 dB range
    • Input Impedance 10 kohms (unbalanced)
    • Headroom >12 dB
    • Noise <-90 dB
    • Equalisation LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz
  • Facility input
    • Input Impedance 10 kohms (balanced)
    • Sensitivity 0.775 V (0 dBu)
  • Microphone input
    • Frequency Response -3dB @ 120 Hz (filter) to 20 kHz ±1 dB
    • Distortion <0.1%
    • Gain 10 dB to 50 dB
    • Input Impedance >2 kohms (balanced)
    • Headroom >12 dB
    • Noise <-90 dB
    • Phantom Power +12 V (internal jumper)
  • Output
    • Output Power (1 kHz continuous sine wave) 40 W, DC input >18 V
  • General
    • Power Input: 12 V to 24 V DC
    • Power consumption 47 W
    • External AC PSU adaptor Universal type, 100 V to 240 V, 47 to 63 Hz
    • Amplifier protection Fixed level signal limiter, Protection against DC, PSU overcurrent, amplifier overcurrent, over-temperature, supply voltage under/over-voltage, Resettable internal breaker (no fuses)

Physical & Dimensions

  • Height: 41mm
  • Width: 220mm
  • Depth: 144.5mm
  • Weight: 750 g

Need help understanding which Cloud wall panel accessories are compatible with their range of amplifiers or mixers? Download our free guide now.

Compare the Range
Cloud MA40F Energy Star Mini Amplifier with Facility Port 40W @ 4Ω
Cloud MA40F Energy Star Mini Amplifier with Facility Port 40W @ 4Ω
£344.00 inc VAT
£286.67 ex VAT
  • Output Power: 40W @ 4Ω
Viewing Now

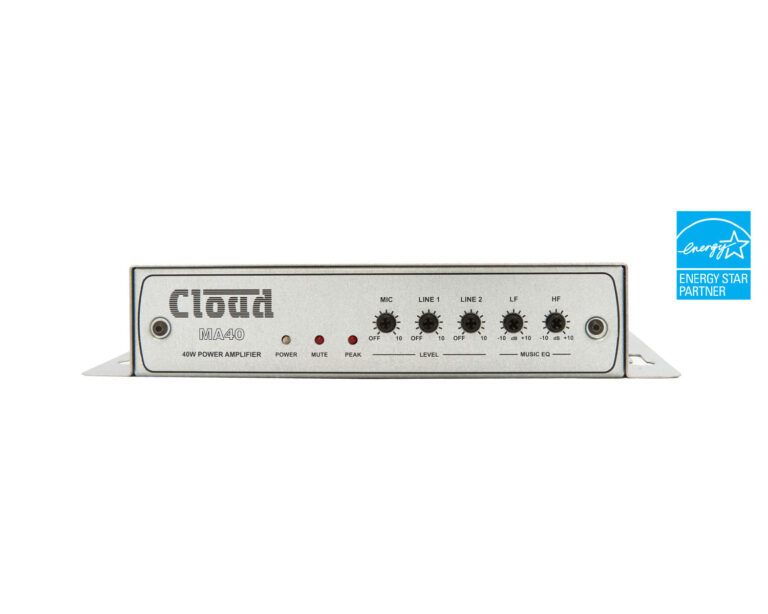

Cloud MA40 Energy Star Mini Amplifier 2-Line+1-Mic Input 40W @ 4Ω
£287.00 inc VAT
£239.17 ex VAT
  • Output Power: 40W @ 4Ω
View →

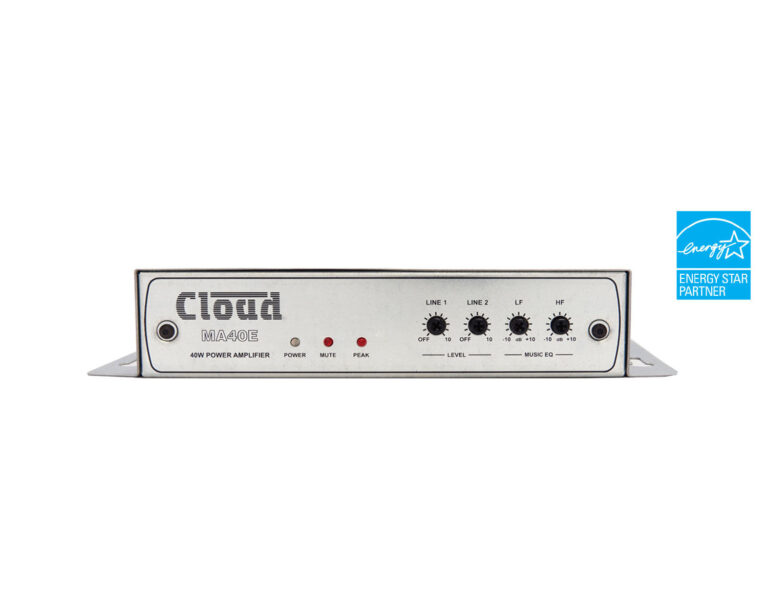

Cloud MA40E Energy Star Mini Amplifier with RS232 2x20W @ 4Ω
£416.00 inc VAT
£346.67 ex VAT
  • Output Power: 2×20W @ 4Ω
View →

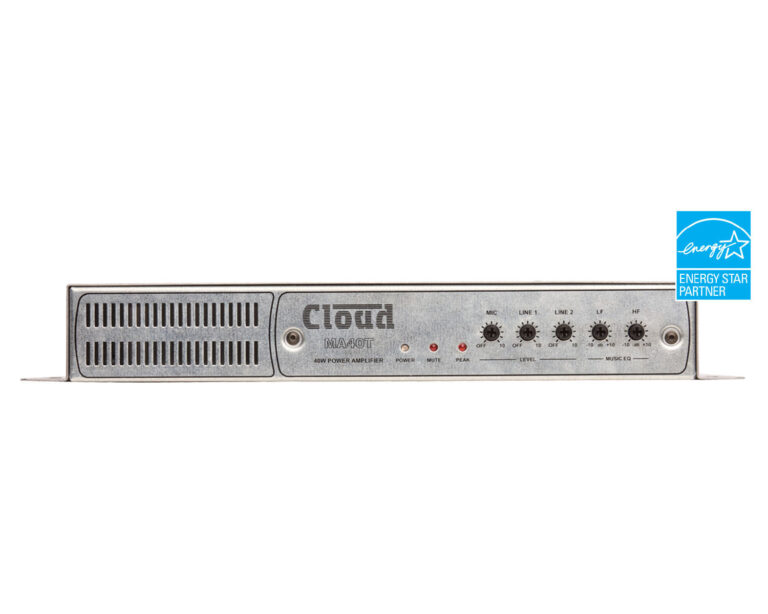

Cloud MA40T Energy Star Mini Amplifier with Facility Port 40W 100V
£414.00 inc VAT
£345.00 ex VAT
  • Output Power: 40W
View →

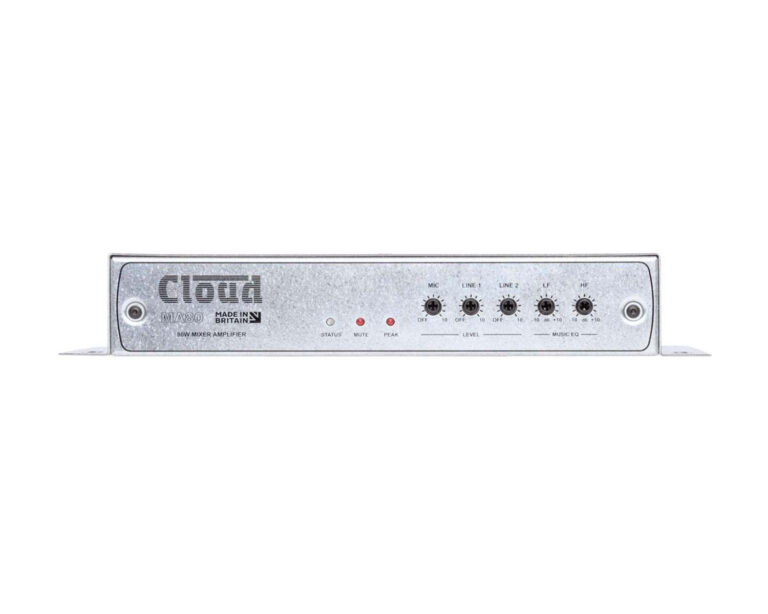

Cloud MA80 Energy Star Mini Amplifier 2-Line+1-Mic Input 80W @ 4Ω
£400.00 inc VAT
£333.33 ex VAT
  • Output Power: 80W @ 4Ω
View →

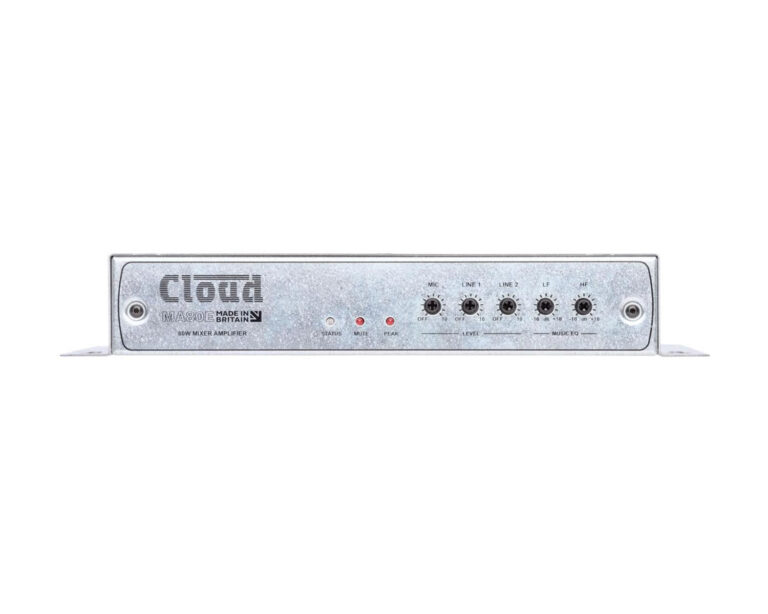

Cloud MA80E Energy Star Mini Amplifier with RS232 Control 80W @ 4Ω
£618.00 inc VAT
£515.00 ex VAT
  • Output Power: 80W @ 4Ω
View →

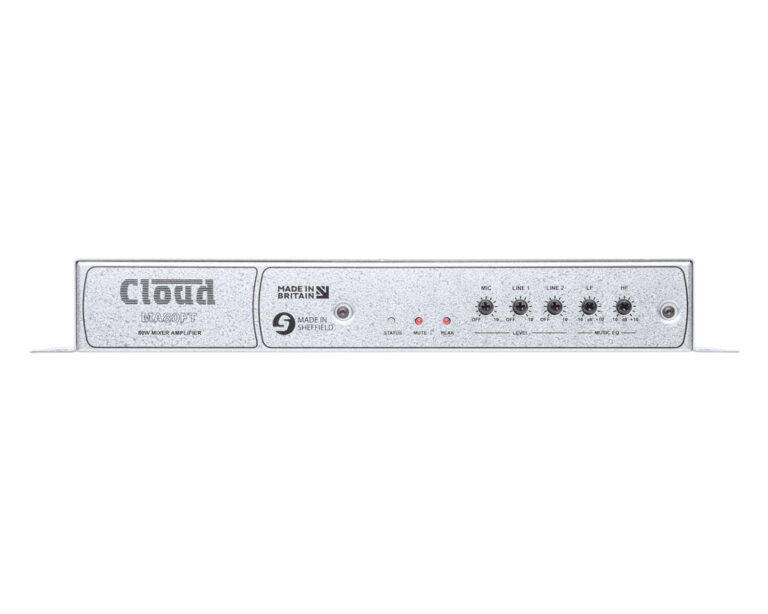

Cloud MA80FT Energy Star Mini Amplifier with Facility Port 80W 100V
