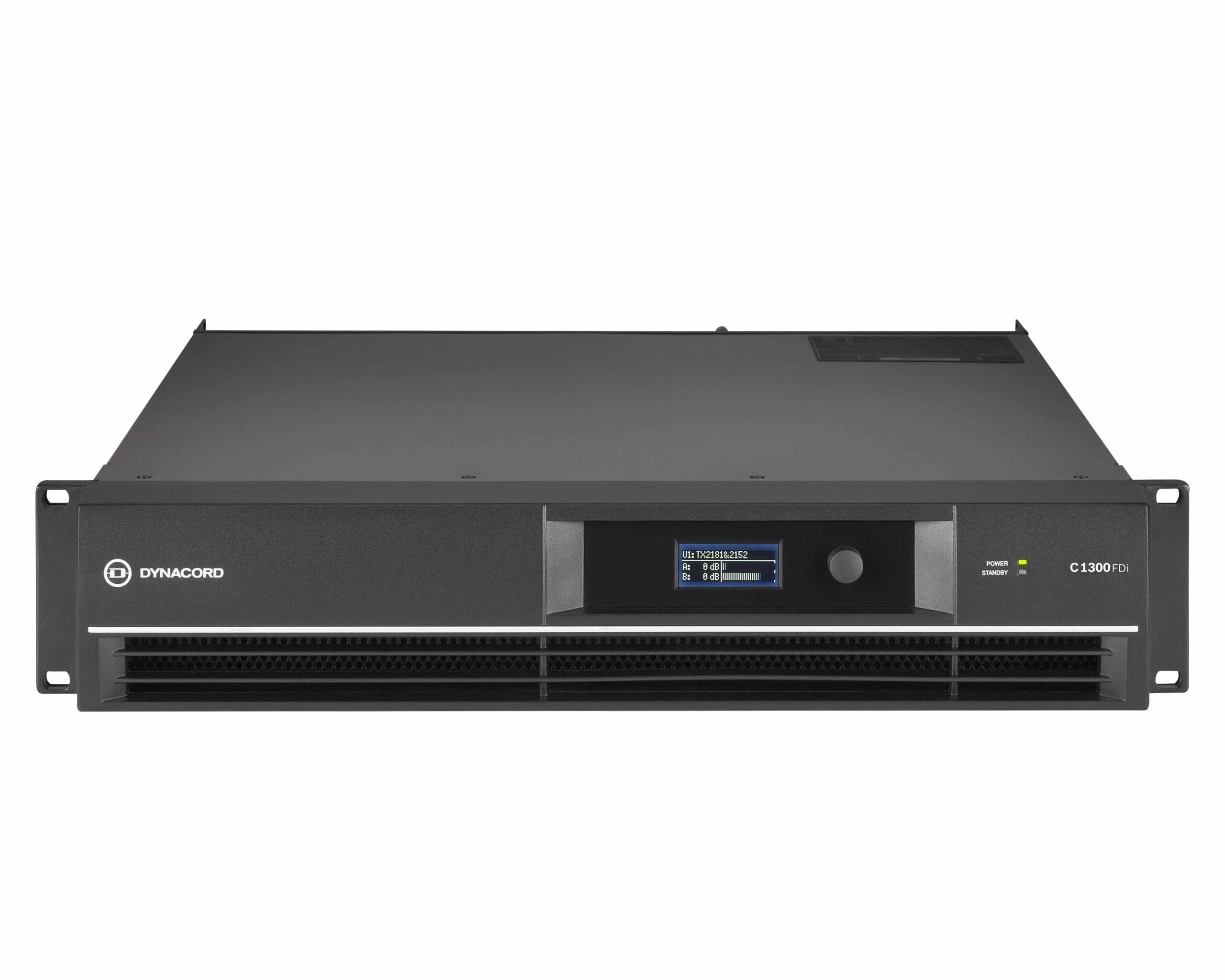

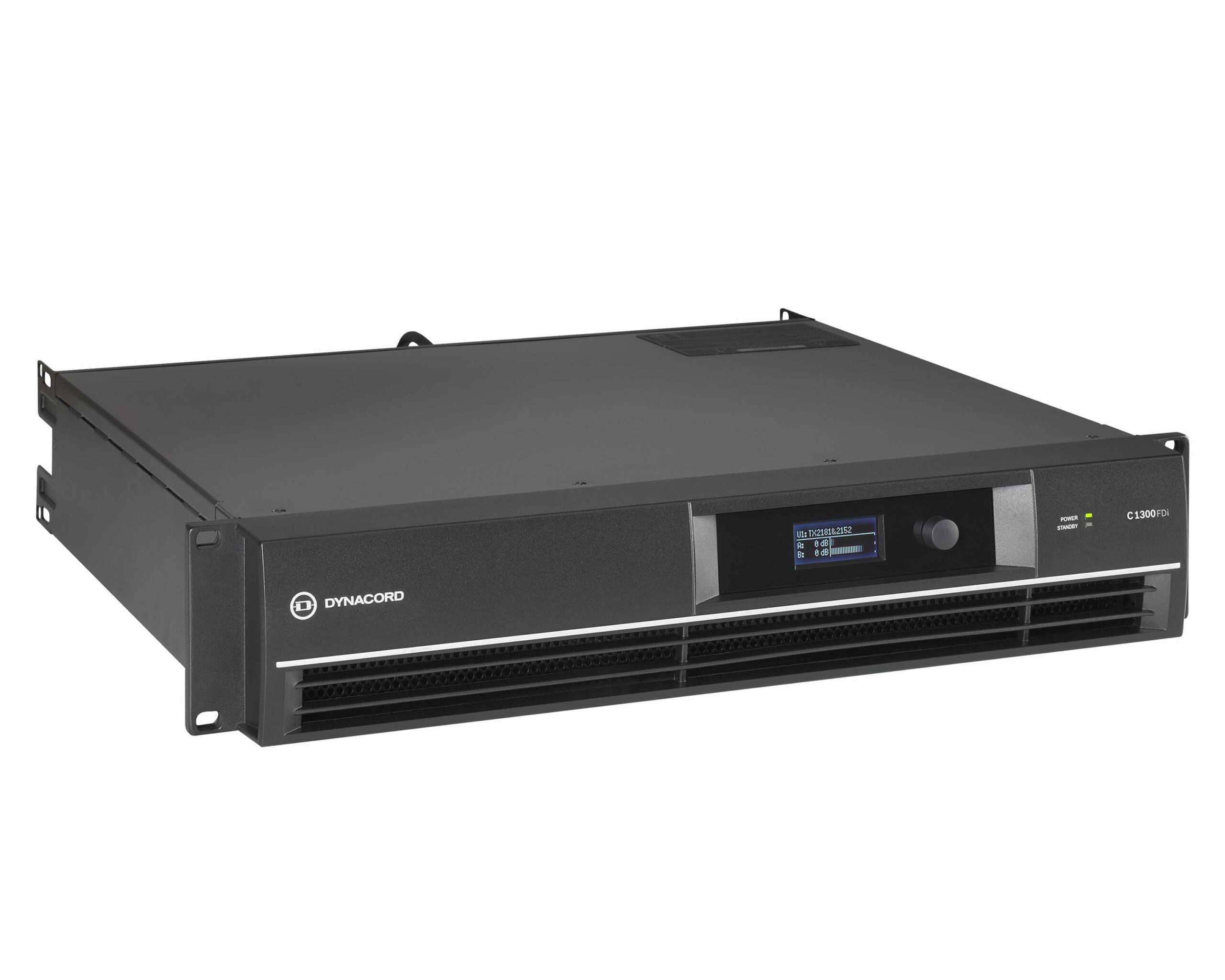

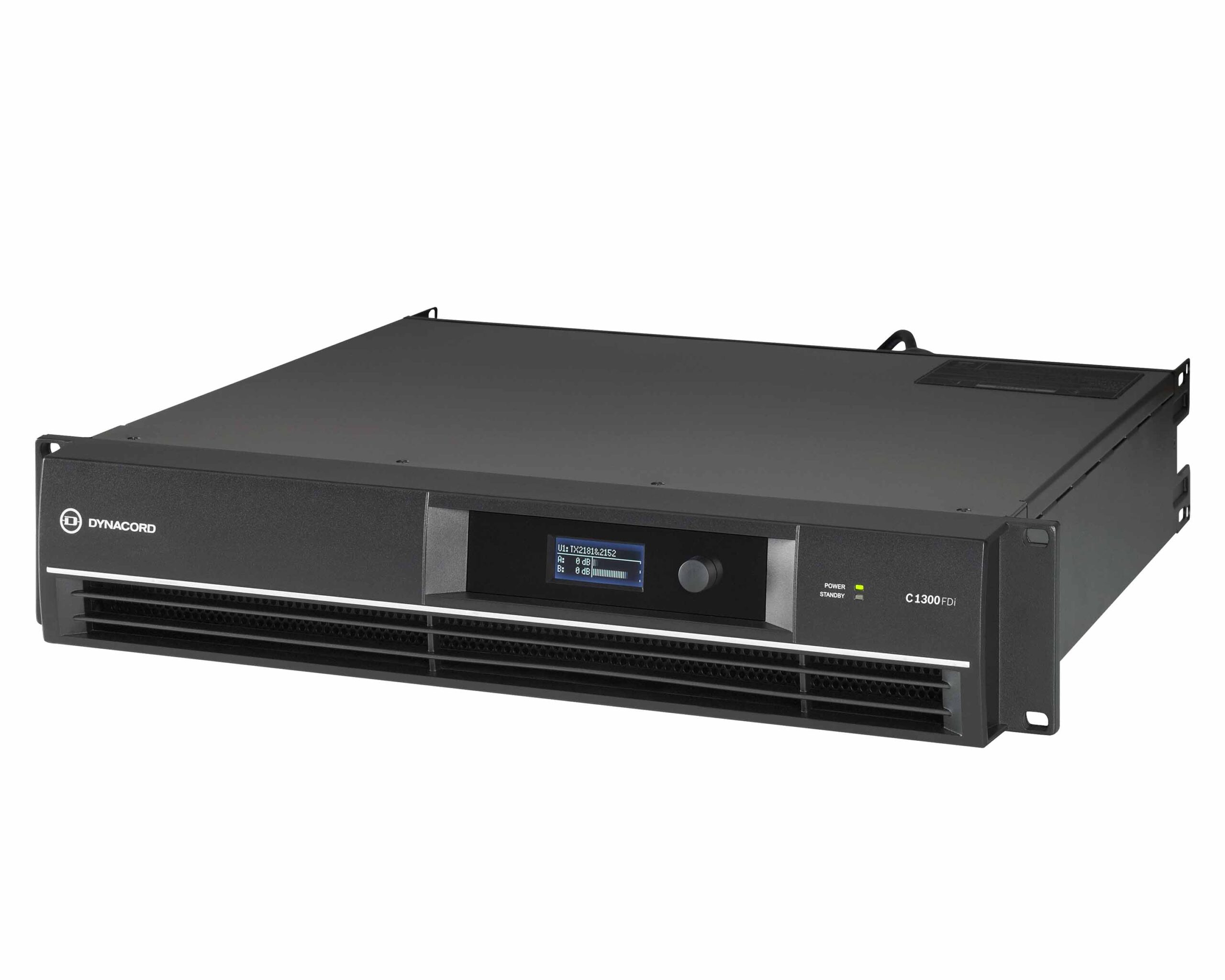

Dynacord C1300FDi Install DSP Power Amplifier 2x600W 2U

Product code: 191877

£848.00 inc VAT
£706.67 ex VAT

SKU: F.01U.322.276

3 in stock (more available subject to additional lead time)

4 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

Output: 100V line or low impedance.

The Dynacord C1300FDi is a two-channel Class AB DSP power amplifier for permanent installation, rated at 2x 600W into 4 ohms and stable down to 2 ohms. It has Euroblock connections, onboard FIR-Drive speaker processing and remote power and preset control, and suits bars, restaurants, houses of worship, sports halls and performing arts venues.

2x 600W
Into 4 ohms
2x 1000W
Into 2 ohms
Euroblock
Connections
2U
Rack height

Features

Two channels, 2x 600W into 4 ohms, 2x 1000W into 2 ohms
Bridged output of 2000W into 4 ohms

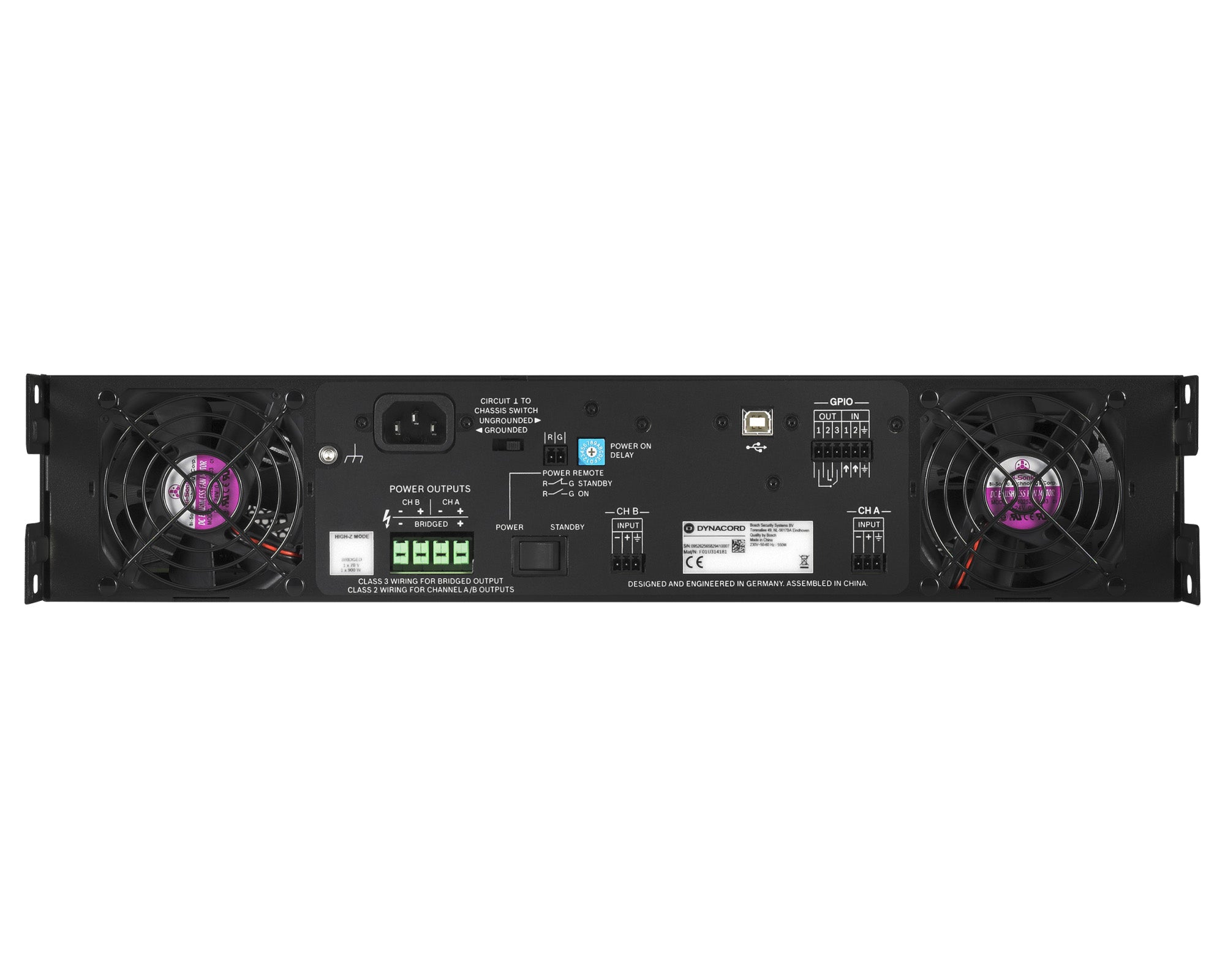

Euroblock input and output connections for fixed installation
Onboard DSP per channel: PEQ, 31-band GEQ, limiters and output delay, with FIR-Drive filters
Remote power on via switch with selectable delay, inputs for preset selection and floating relay contacts for protect status
Power-saving standby mode
Protection against over-temperature, DC, HF, back-EMF and peak current, plus inrush limiting and turn-on delay
Front-to-rear cooling with three-stage fans

Specifications

Dynacord C1300FDi Install DSP Power Amplifier 2x600W 2U specifications
Output power, both channels driven 2 ohm: 1000W, 2.6 ohm: 850W, 4 ohm: 600W, 8 ohm: 320W
Output power, single channel 2 ohm: 1100W, 2.6 ohm: 950W, 4 ohm: 660W, 8 ohm: 350W
Bridged output 4 ohm: 2000W, 8 ohm: 1200W
Output stage Class AB
Frequency response 10 Hz to 21 kHz (±1 dB)
Signal-to-noise ratio >104 dB (A-weighted)
THD <0.05%
Voltage gain 32 dB
Maximum input level +21 dBu
Input impedance 20 kohm, active balanced
Power consumption 550W at 1/8 maximum output into 4 ohms
Mains 240, 230, 120 or 100 V, 50/60 Hz (factory configured)
Cooling Front to rear, three-stage fans
Dimensions (H x W x D) 88 x 483 x 462.4 mm, 2U rack
Weight 12.9 kg

Full features

  • C1300FDI DSP Power Amplifier
  • Installation DSP amplifier, Euroblock connectors
  • Fully integrated professional speaker processing with FIR Drive technology
  • Market leading acoustic performance and rock solid reliability
  • Low Z and 70V operation and power saving standby mode
  • Intuitive system control software, makes setup and control easy

Full specifications

General

  • Maximum Output Power, SIngle Channel: 2Ω=1100W; 2.6Ω= 950W; 4Ω= 660W; 8Ω= 350W (Load Impedance)
  • Maximum Output Power, Dual Channel: 2Ω=1000W; 2.6Ω= 850W; 4Ω= 600W; 8Ω= 320W (Load Impedance)
  • Maximum Output Power, Bridged: 4Ω=2000W; 8Ω=1200W;
  • Maximum RMS Voltage Swing, THD = 1%, 1kHz: 55.3V
  • Voltage Gain ref.1kHz: 32.0dB
  • IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
  • DIM 30: < 0.05%
  • Maximum Input Level: +21 dBu
  • Crosstalk: < -80dB
  • Frequency Response: 10 Hz to 21 kHz (±1 dB)
  • Input Impedance, active balanced: 20kΩ
  • Signal-to-Noise Ratio (A-weighted): >104dB
  • Output Noise , A-weighted: < -68dBu
  • Output Stage Topology: Class AB
  • Power Requirement: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
  • Power Consumption: 550 W
  • Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
  • Cooling: Front-to-rear, 3-stage-fans
  • Safety Class: I
  • Available Colour: Black
  • Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
  • Direct Drive Load Capability: 70V: 1 x 625W (0.0 dB)*
  • High Impedance Operation: 70V (in bridged mode)
  • Operating Temperature Range: +5°C to +40°C (40°F to +105°F)
  • Total Harmonic Distortion: < 0.05%

Physical & Dimensions

  • Height: 88mm
  • Width: 483mm
  • Depth: 462.4mm
  • Weight: 12.9kg
