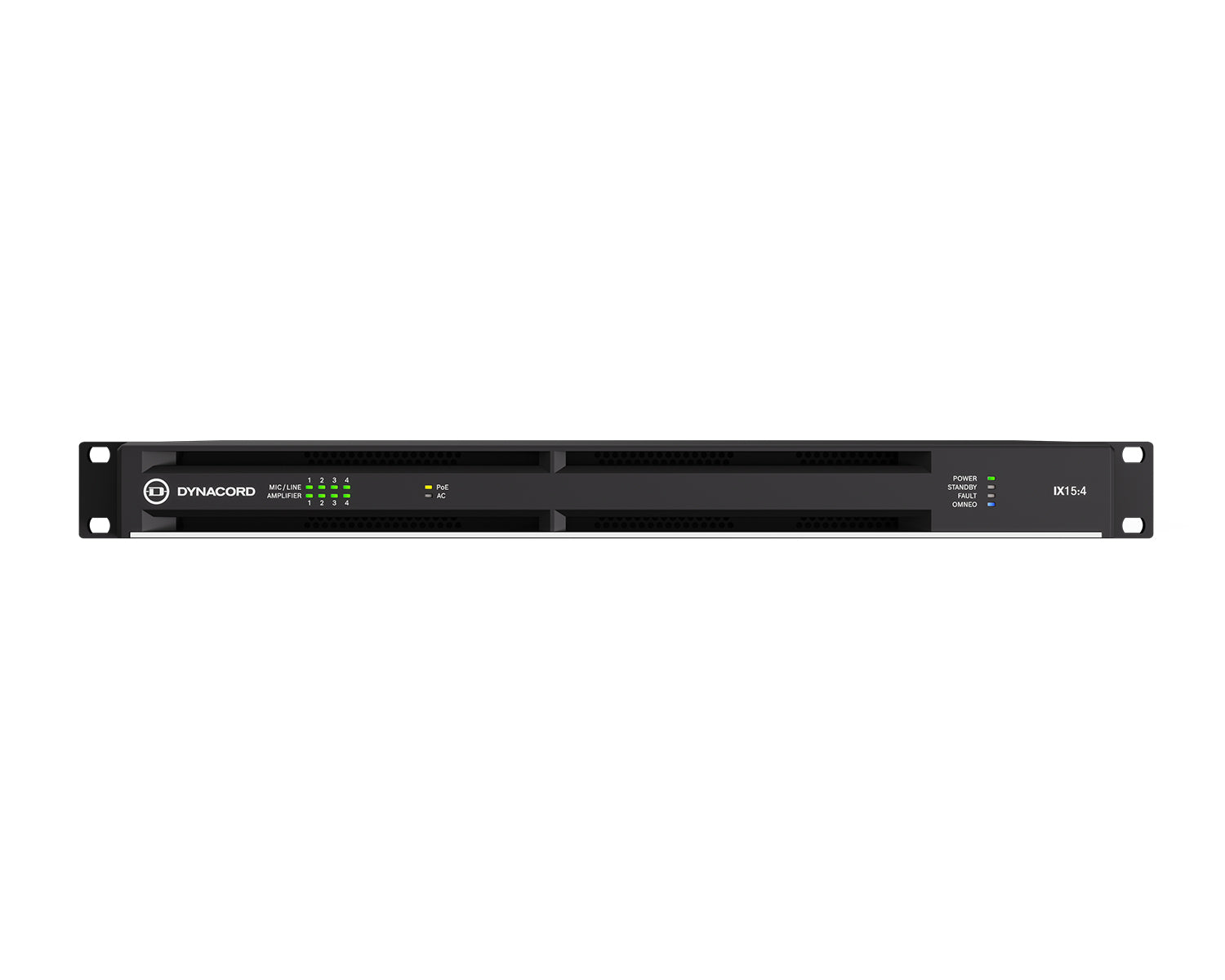

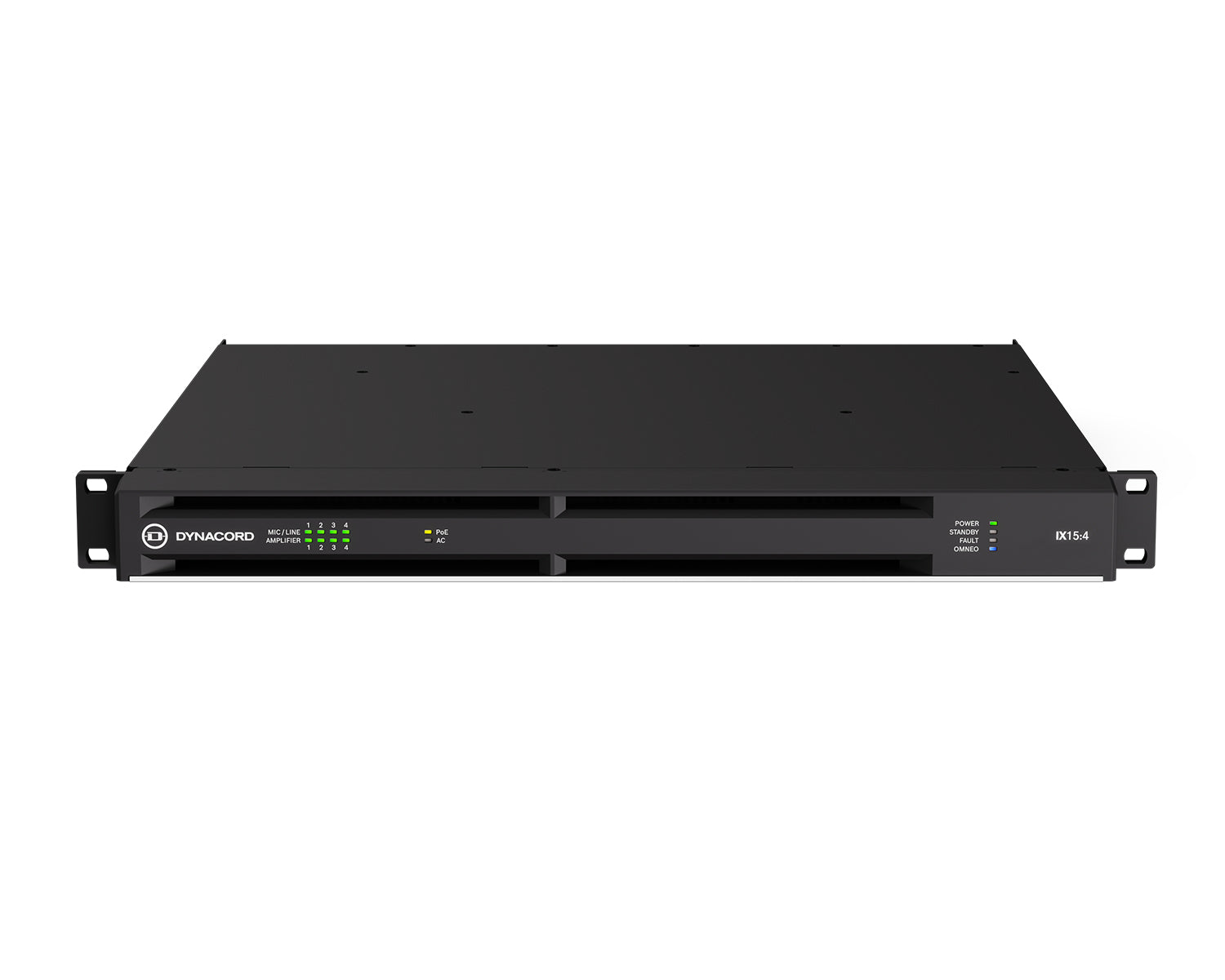

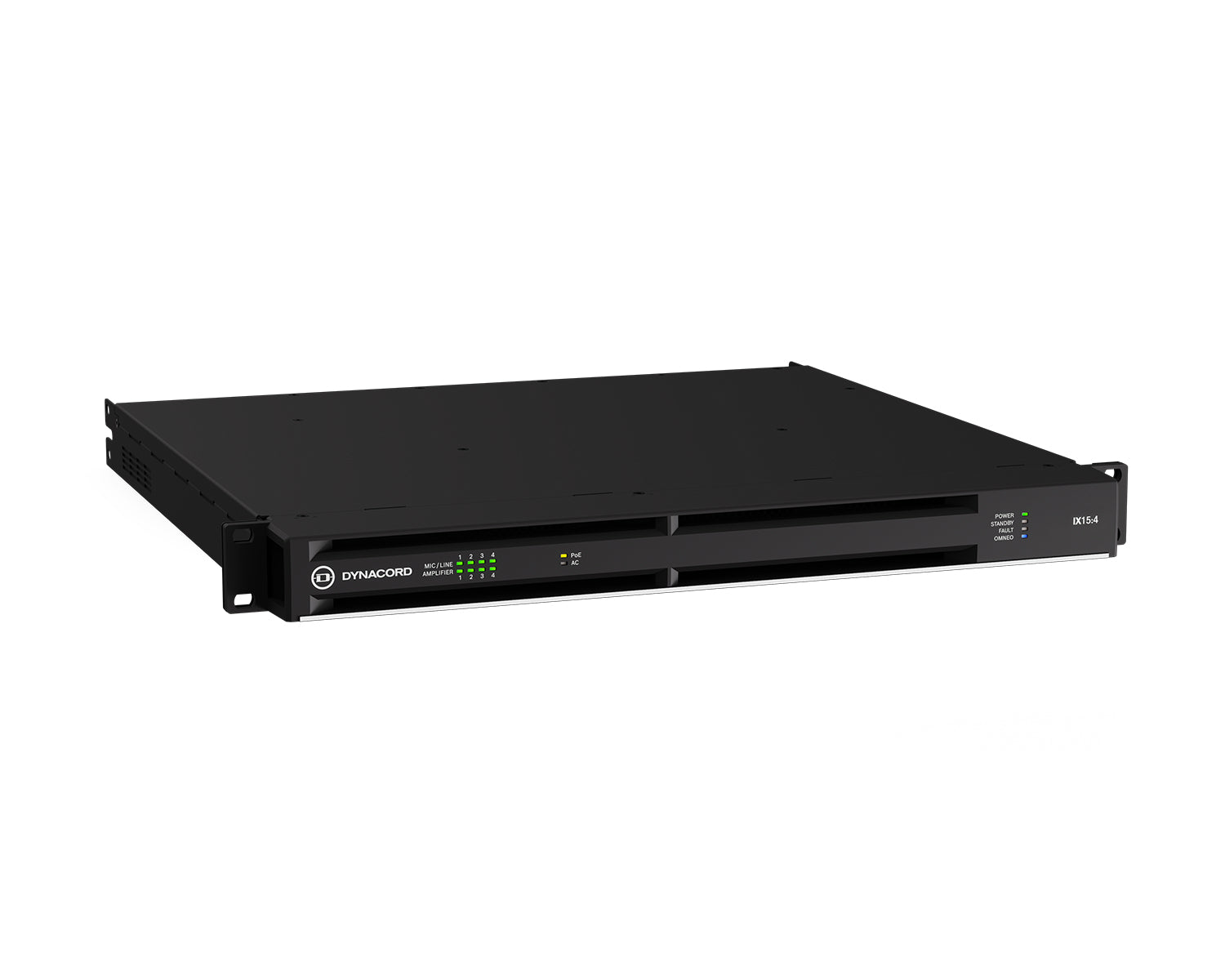

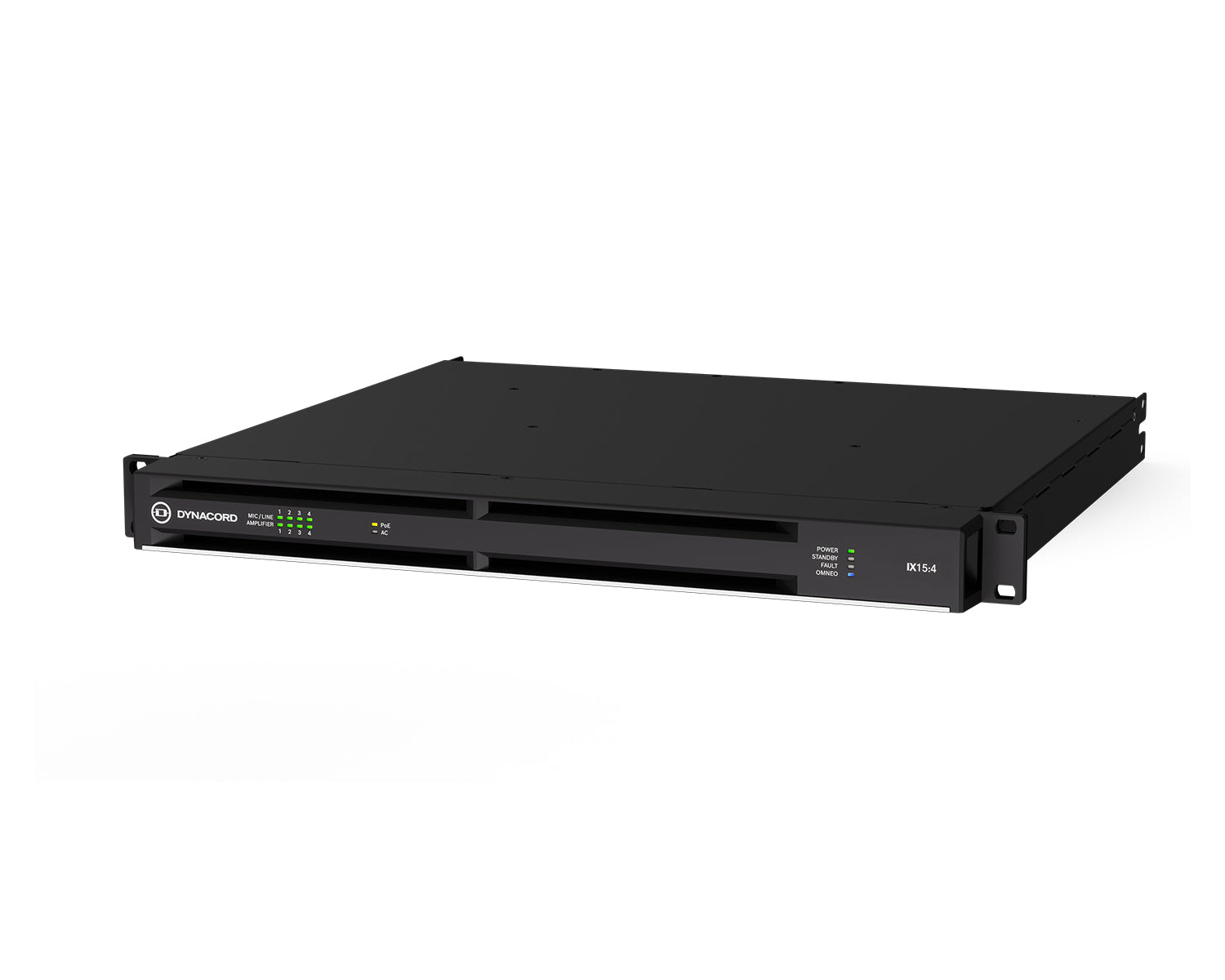

The Dynacord IX15:4 is a 4-channel networked DSP amplifier in 1U with 1500W of total power, rated at 4x 375W into any load from 2 ohms to 100V lines. Built-in Dante, a 12 x 12 DSP matrix with FIR-Drive and 4 mic/line inputs let it act as amplifier and processor in one. It suits sports venues, houses of worship, performance spaces, hotels and conference venues.
4x 375W
All load types
8 x 8
Dante
4
Mic/line inputs
1U
Rack height
SoftwareConfiguration and control are through Dynacord SONICUE Sound System Software; the amplifier can also act as a SONICUE control server for wall panels, TPC-1 touch panels, iOS and Windows devices.
Features
Four channels, 4x 375W with all channels driven into 2, 2.7, 4 or 8 ohms, 70V or 100V
powerTANK sharing: a single channel can deliver up to 1000W into 8 ohms or 100V; channel pairs bridge to 750W into 4 ohms
Drives low-impedance or 70V/100V loads without transformers
8 x 8 Dante at 48 or 96 kHz with glitch-free redundancy (primary/secondary) or RSTP
4 mic/line inputs with 48V phantom power, usable as Dante break-in points
96 kHz DSP with 12 x 12 matrix mixer, EQ, dynamics, FX and FIR-Drive speaker processing
Pilot-tone detection on all inputs and pilot-tone generation up to 30 kHz
ghostPOWER: PoE on the primary port keeps DSP, Dante and mic/line inputs running without mains
TaskEngine for logic, scheduling and third-party control; AES70/OCA remote control
3 GPIO ports and a ready/fault relay
Specifications
| Output power, all channels driven | 2 ohm, 2.7 ohm, 4 ohm, 8 ohm, 70V, 100V: 375W each |
| Maximum per channel | 8 ohm: 1000W, 100V: 1000W, 70V: 750W |
| Bridged output | 4 ohm: 750W |
| Total rated output | 1500W |
| Maximum output voltage / current per channel | 145 Vpk / 33 Apk |
| Voltage gain | 32 dB, adjustable 20 to 44 dB |
| Frequency response | 20 Hz to 20 kHz (±1 dB) |
| THD+N | <0.1% (3 dB below max, 1 kHz) |
| Latency, analogue in to speaker out | 0.77 ms |
| Mic/line inputs | 4, 2x 5-pin Euroblock; 0 to 60 dB gain, +18 dBu max, 48V phantom |

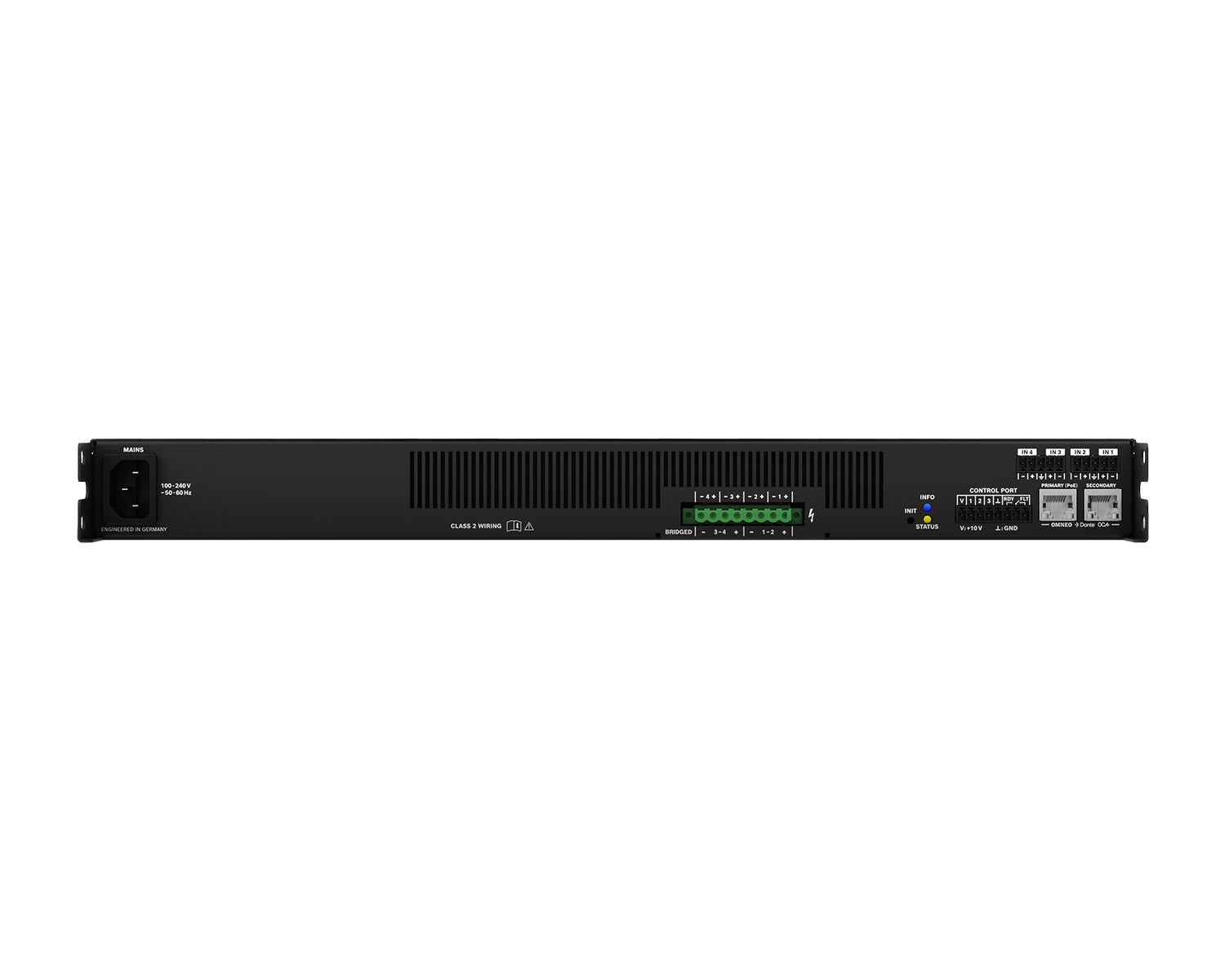

| Speaker outputs | 1x 8-pin Euroblock (2.5 mm²) |
| Network | 2x RJ45, 1000/100 Mbit, integrated switch; Dante 8 x 8 |
| Control port | 8-pin Euroblock: 3 GPIO, ready/fault relay |
| Power consumption | 300W at 1/8 max output; eco 25W; standby <15W |
| Mains | 100 to 240 V AC, 50/60 Hz, PFC, IEC C14 |
| Cooling | Front to rear, temperature-controlled fan |
| Dimensions (H x W x D) | 44.1 x 483 x 447 mm, 1U |
| Weight | 7.45 kg |
