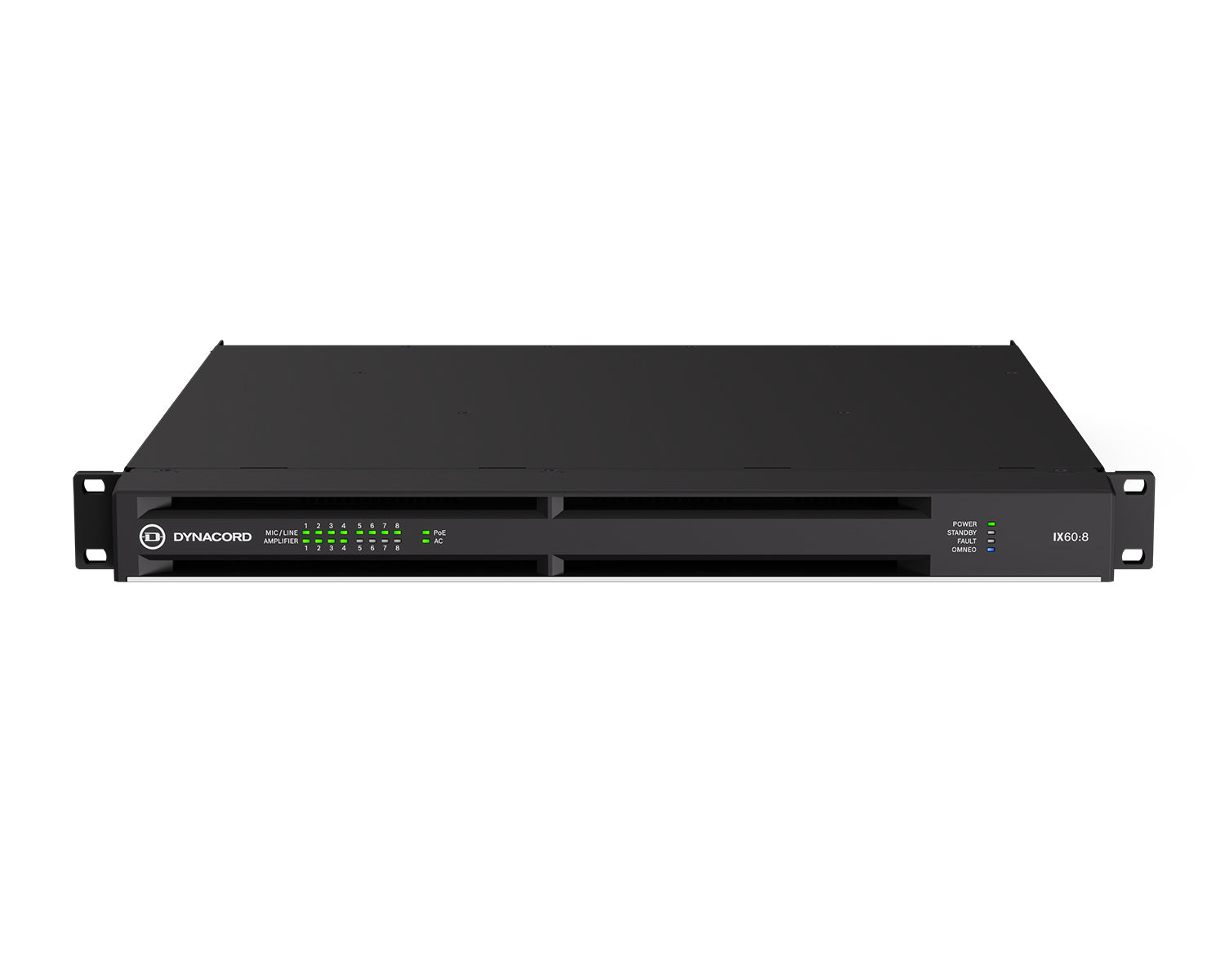

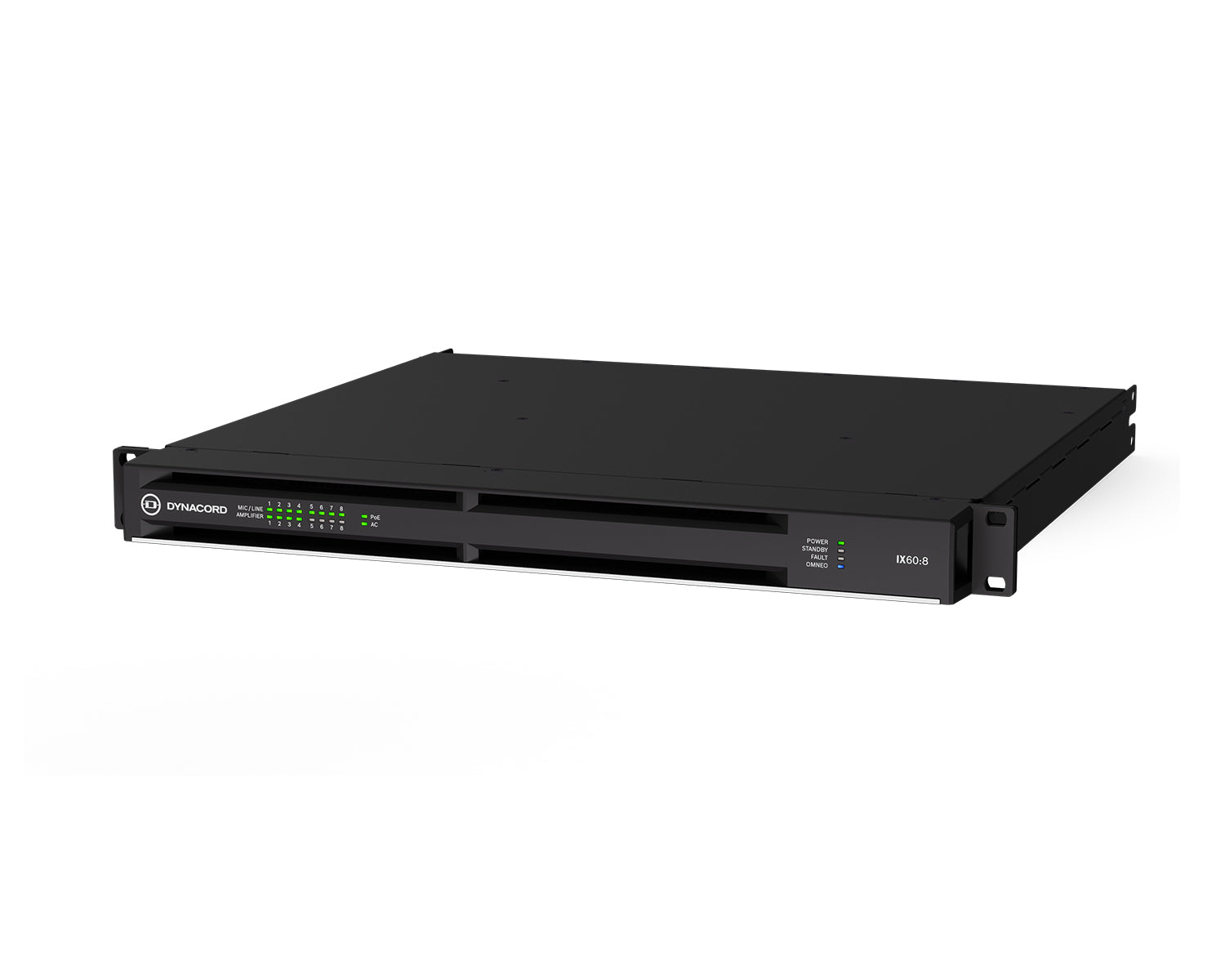

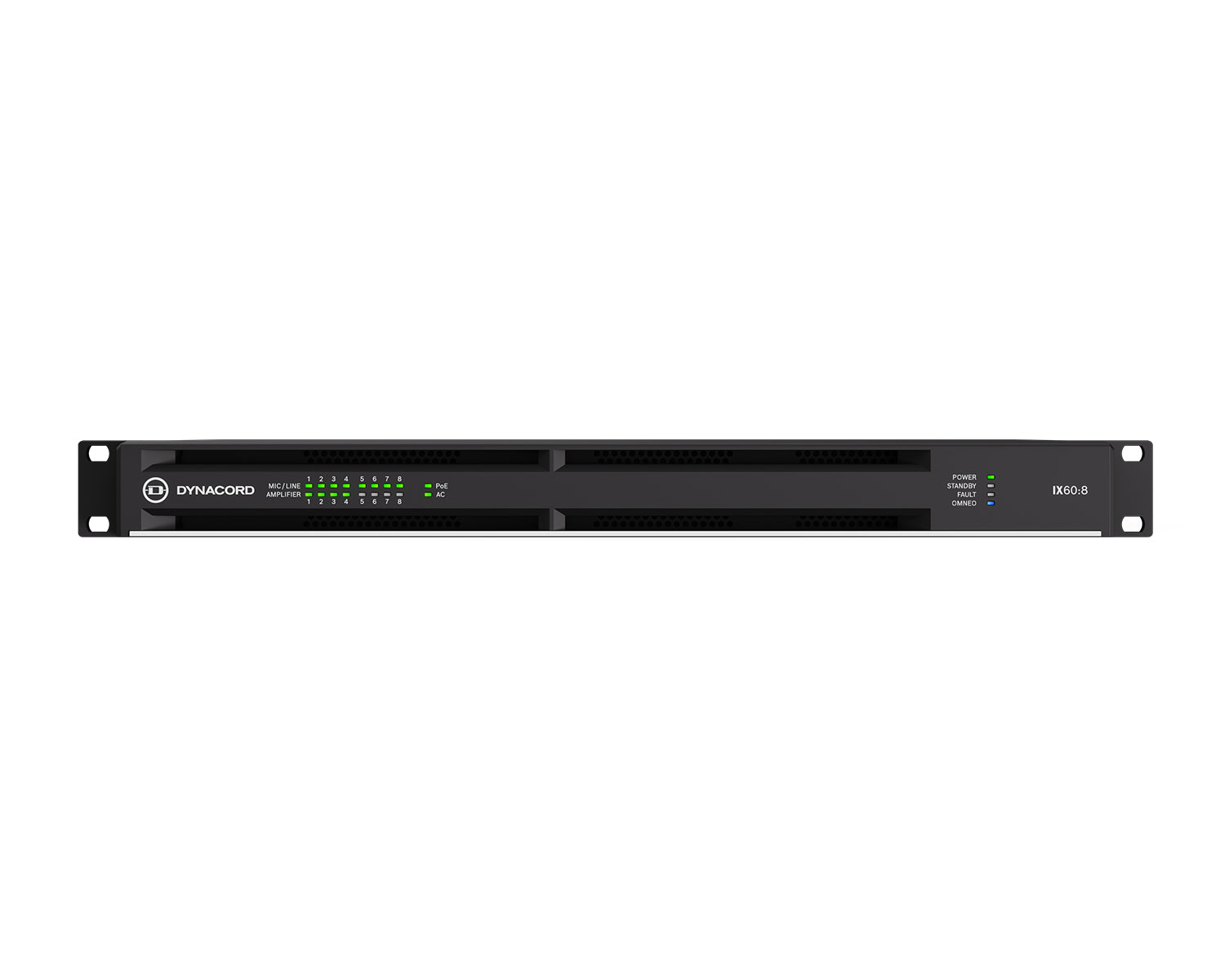

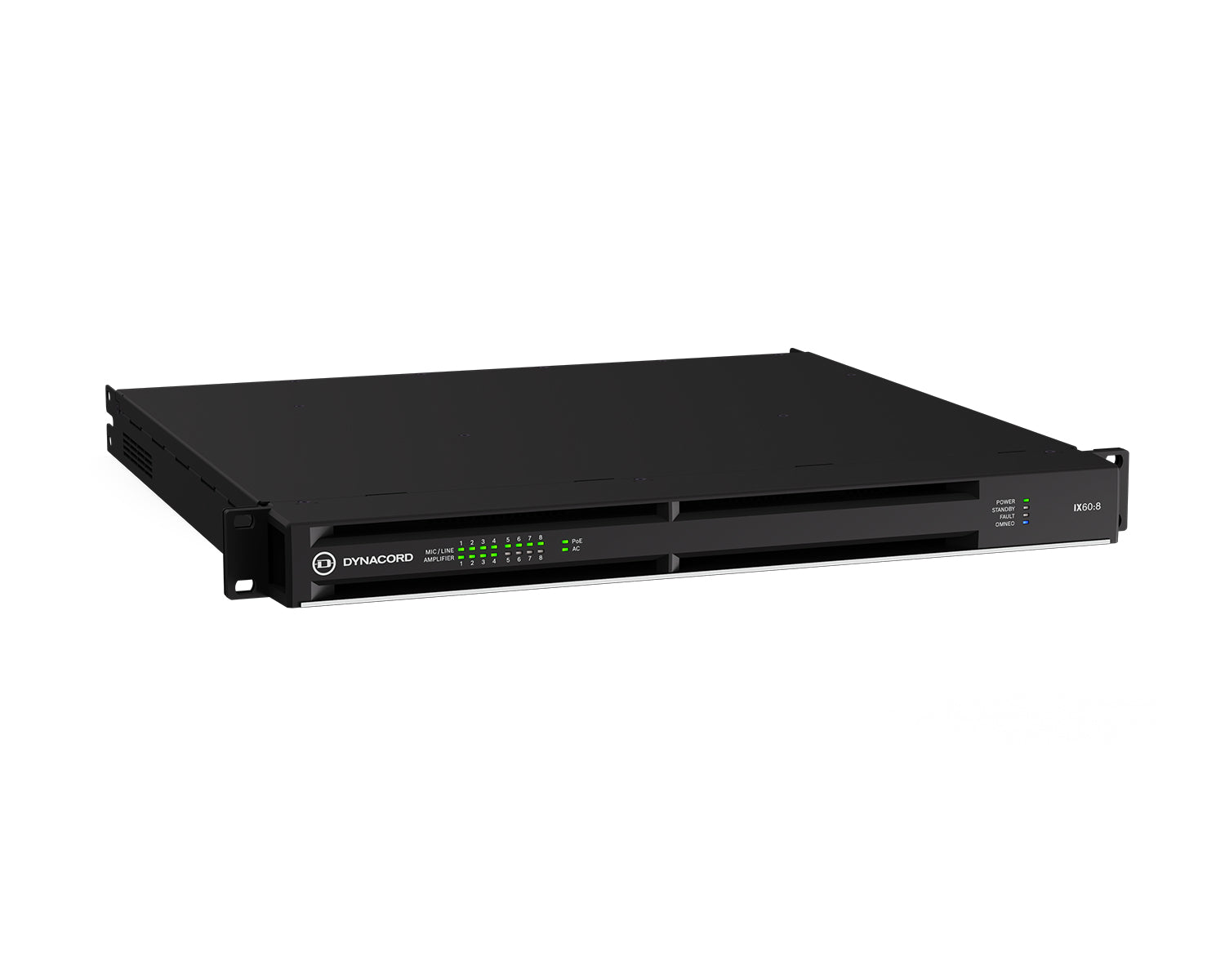

Dynacord IX60:8 Networked DSP Power Amplifier 8x600W Dante 1U

• 8-channel networked DSP amplifier with 6 kW powerTANK for Hi-Z and Lo-Z operation
• 8 x 8 Dante with OCA/AES70 remote control, 8 mic/line inputs usable as Dante break-in
• 96 kHz fully featured DSP matrix mixer and MXE-style TaskEngine for system logic, automation, scheduling and integration
• ghostPOWER via PoE to maintain DSP, Dante network and mic/line inputs
• High efficiency ecoRAIL technology for lower operating costs

Output Power

• Total rated output power: 6,000
• Number of amplifier channels: 8
• All channels driven equally:
  • 2 Ω: 750 W
  • 2.7 Ω: 750 W
  • 4 Ω: 600 W
  • 8 Ω: 750 W
• Maximum per channel:
  • 2 Ω: 1.000 W
  • 2.7 Ω: 800 W
  • 4 Ω: 600 W
  • 8 Ω: 1.000 W
• Bridge:
  • 2 Ω: 1000 W
  • 2.7 Ω: 1.300 W
  • 4 Ω: 1.500 W
  • 8 Ω: 1.200 W
• All channels driven equally:
  • 70 V: 750 W
  • 100 V: 750 W
• Maximum per channel:
  • 70 V: 750 W
  • 100 V: 1.000 W
• Max. output voltage Hi-Z/8Ω mode, per channel: 145 Vpk
• Max. output current Lo-Z/4Ω mode, per channel: 33 Apk

Amplifier

• Voltage Gain Lo-Z mode, ref. 1 kHz: 32 dB, adjustable 20.0 - 44.0 dB
• Input sensitivity, direct drive mode: +6 dBu ( 1.55 V), fixed
• THD+N (3 dB below max. AES17, 1 kHz) : <0,1 %
• Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω): < -80 dB
• Frequency response (ref. 1 kHz, analogue in-speaker out): 20 Hz to 20 kHz (±1 dB)
• Sampling rate: 96 kHz internal, Dante 48/96 kHz switchable
• Latency (analogue in-speaker out): 0.77 ms
• Number of mic/line inputs: 4
• Gain: 0 to 60 dB
• Maximum input level: +18 dBu
• Phantom power: + 48 V, switchable per input
• Input impedance: >10 kΩ
• E.I.N (A-weighted) @ 150Ω: -127 dBu
• Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω): <-80 dB

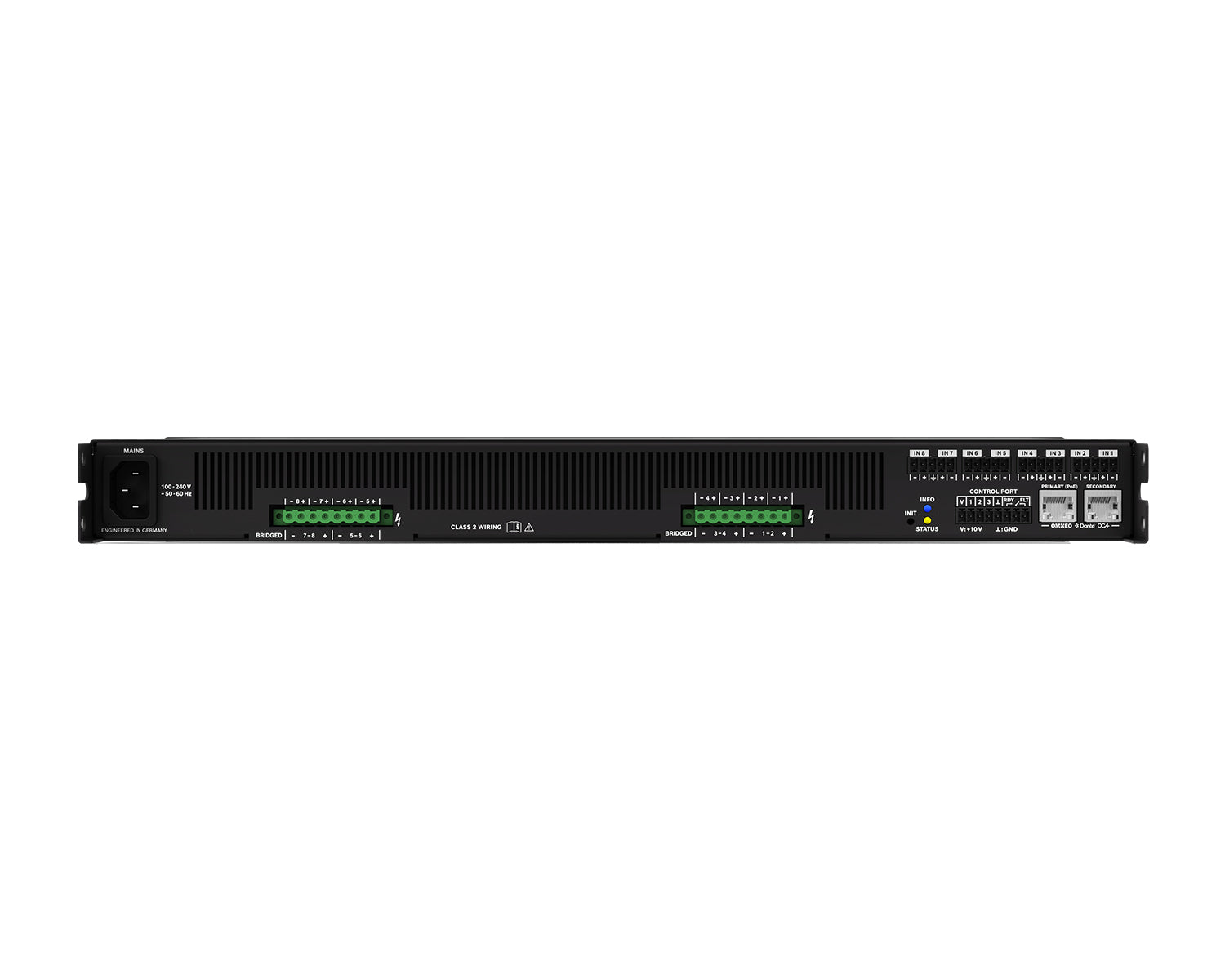

Connectivity

• Mic/Line inputs: 4 x 5-pin Euroblock-style, male
• Speaker outputs: 2 x 8-pin Euroblock-style, 2.5 mm² (12 AWG)
• Network: 2 x RJ45
• Control port: 1 x 8-pin Euroblock-style
• Mains power input: 1 x IEC C14

Network

• General: 1000base-T/100base-TX, integrated switch
• Redundancy modes: Glitchfree (PRIMARY/SECONDARY), RSTP
• Backup power supply (ghostPOWER): 1 x PoE (IEEE802.3af) on PRIMARY port
• Network audio (inputs x outputs): 8 x 8, 48/96 kHz, Dante

Control Port

• GPIO control port: 3 ports, switchable: analogue in/digital in/digital out
• Analogue input range: 0 V to +13 V, 133 kΩ input resistance
• Digital input limits
  • ON: <1,5 V
  • OFF: >2,0 V, internal pull-up (10kΩ / 10V)
• Digital outputs
  • ON: output switched to GND, max. 200 mA
  • OFF: open collector
• Reference voltage output: +10V, max. 200 mA, supervised, short circuit protected
• READY/FAULT: Galvanic isolated relay, max. 30 VDC/500 mADC

General

• Rated power consumption (1/8 max. output power): 1.050 W
• Eco mode: 39 W
• Stand-by mode: <15 W
• Power requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
• Power Supply Technology: Switching mode power supply with digitally controlled power factor correction
• Protections: Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Lim colspan="4"iters, Mains Over-/Under Voltage Protection
• Cooling: Front-to-rear, temperature controlled fan, supervised
• Ambient Temperature Limits: +5 °C to +40 °C (+40 °F to +105 °F)
• Dimensions: 483 mm x 44,1 mm x 447 mm
• Weight: 8,75 kg (19.3 lbs)
