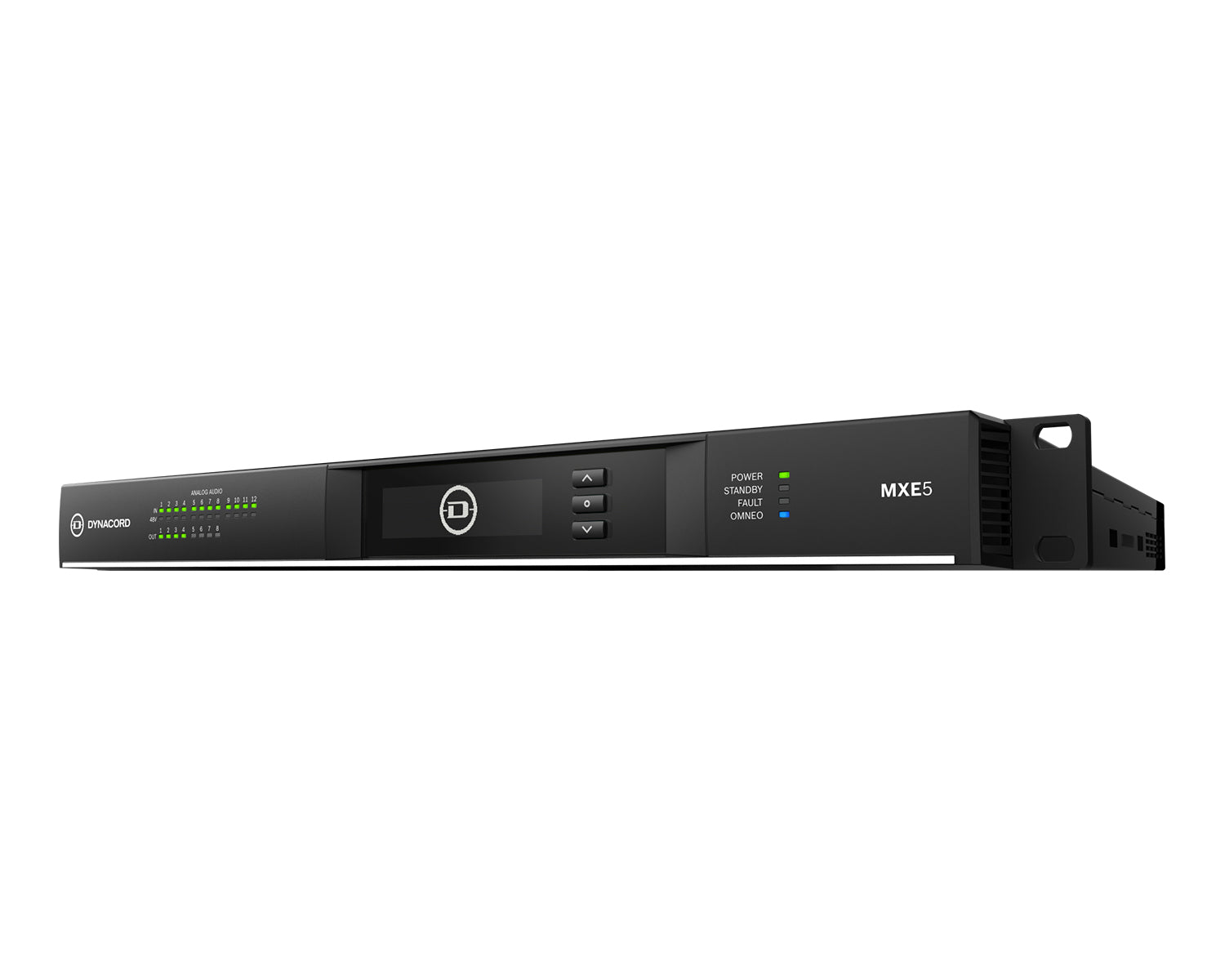

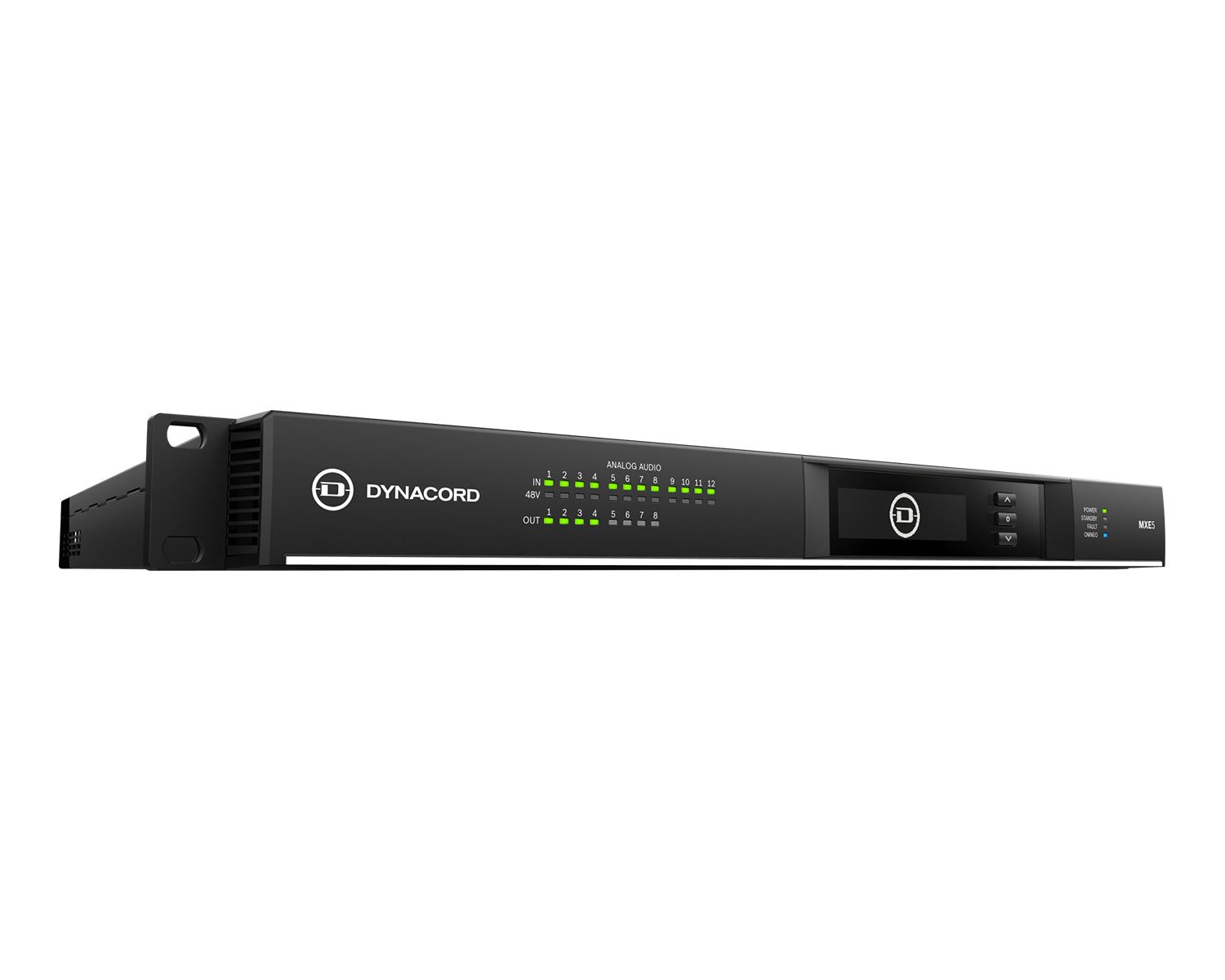

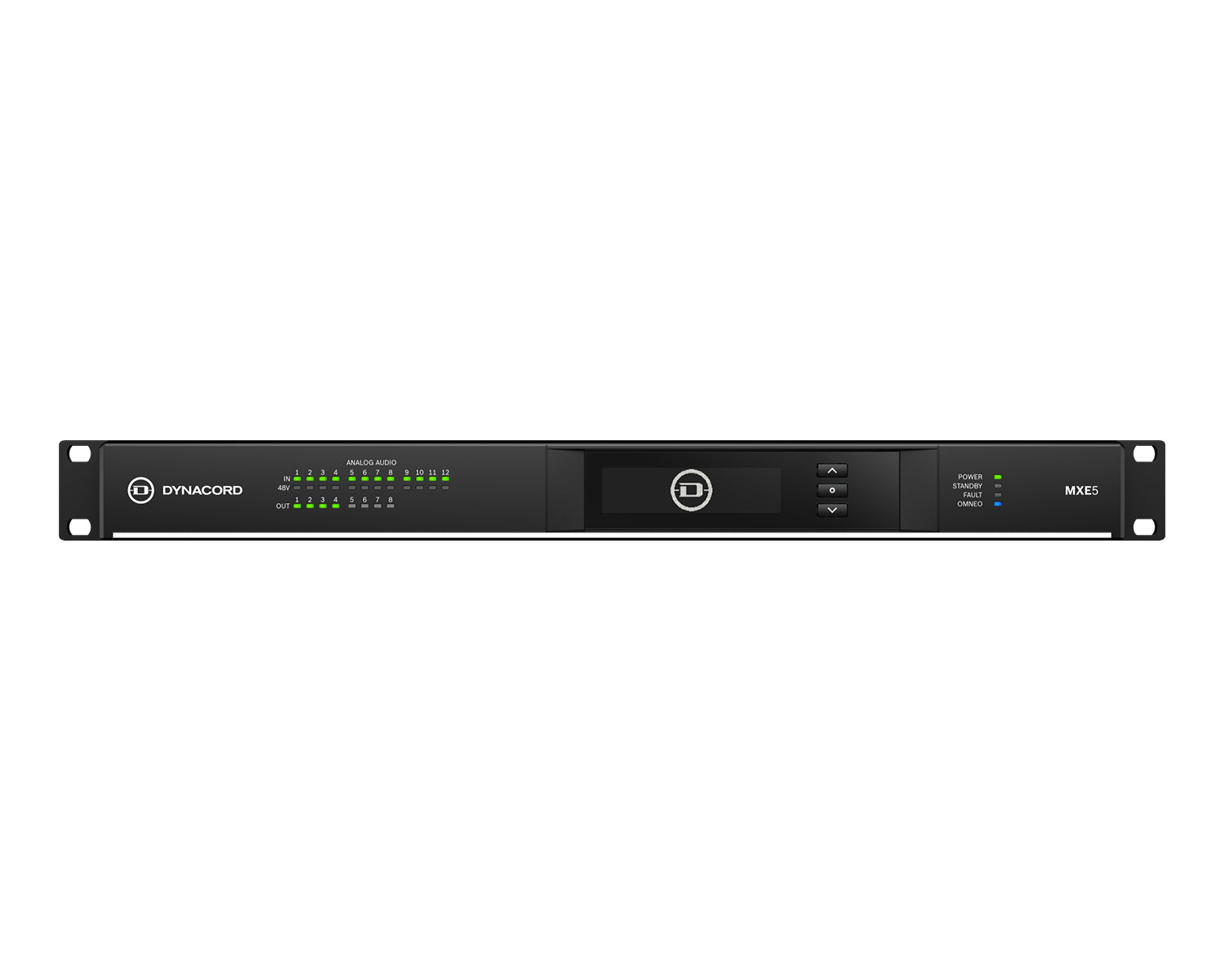

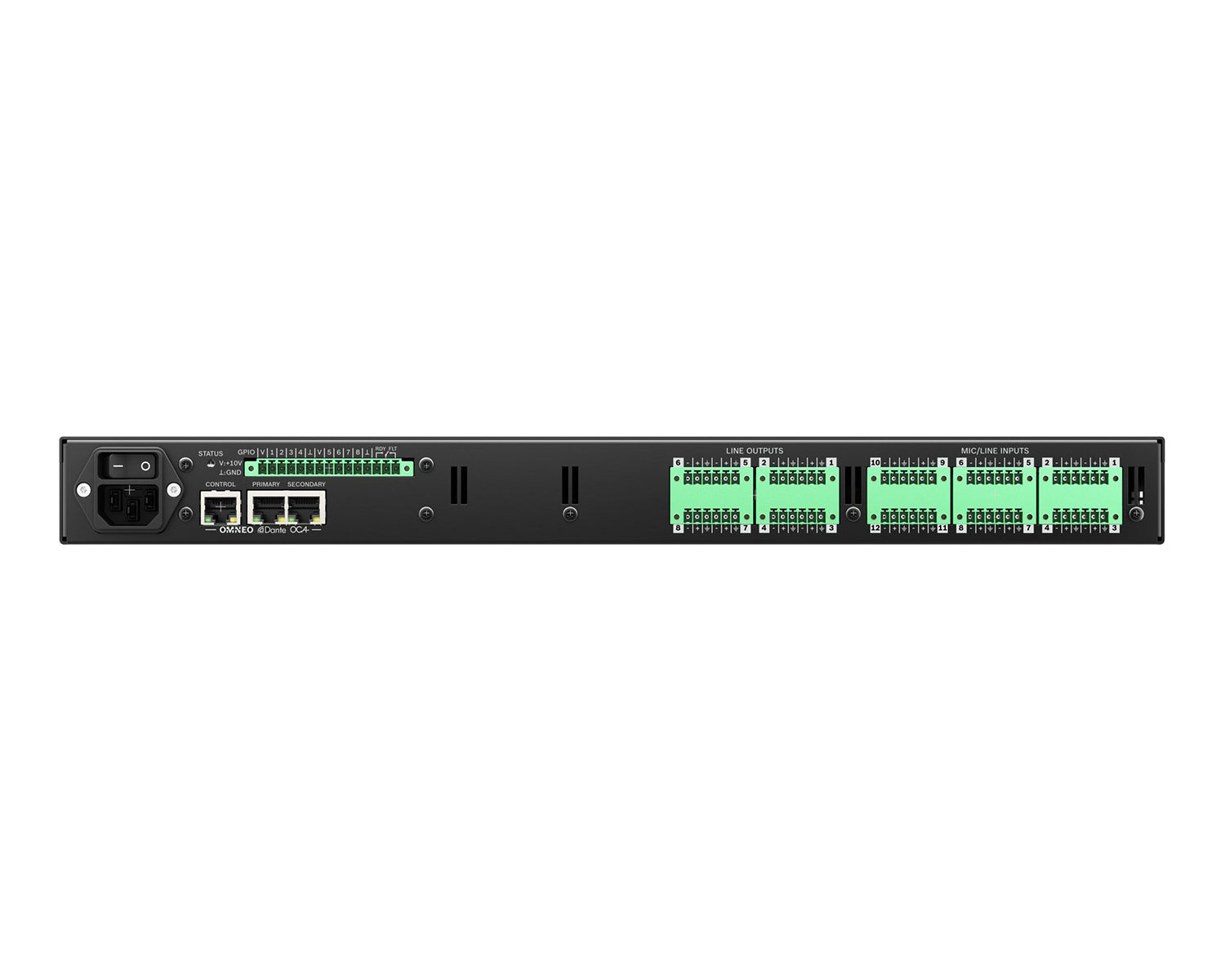

Dynacord MXE5-64 DSP Matrix Mix Engine 12-In 8-Out 64x64 Dante

Product code: 191909

£3,023.00 inc VAT
£2,519.17 ex VAT

SKU: F.01U.424.586

2 in stock (more available subject to additional lead time)

2 available online
More available from supplier in 1–3 weeks
FREE delivery by WednesdayOrder by 3pm tomorrow
Click & Collect Tuesday ›Collect from us in Wembley
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included

About this Product

The Dynacord MXE5-64 is a 1U open-architecture DSP matrix with 12 analogue mic/line inputs, 8 line outputs and 64 x 64 channels of Dante. It runs at 96 kHz or 48 kHz and handles mixing, speaker processing with FIR-Drive, automixing, ambient noise compensation and system control through its TaskEngine. It is used as the central processor in larger fixed installations such as conference centres, stadiums, houses of worship, theatres and campuses.

12 x 8
Analogue I/O
64 x 64
Dante channels
96 kHz
Sample rate
1U
Rack height
SONICUE software requiredThe MXE5-64 is designed and configured in Dynacord SONICUE Sound System Software, which also builds custom control panels for TPC-1 touch panels, iOS devices and PCs.

Features

12 analogue mic/line inputs with 48V phantom power
8 balanced line outputs
64 x 64 Dante channels at 48 or 96 kHz
Open-architecture DSP with configurable matrix blocks and up to 256 internal signal paths
Processing blocks: EQ, crossover, FIR-Drive, compressor, PA and RMS limiters, gate, ducker, AGC, ambient noise compensation, automixer, delay and router
TaskEngine for logic, scheduling, scene handling and OCA/HTTP control of third-party devices
8 GPIO (digital in/out, analogue in)
Internal supervision, watchdog, fault output and audio redundancy support

Specifications

Dynacord MXE5-64 DSP Matrix Mix Engine 12-In 8-Out 64×64 Dante specifications
Analogue inputs 12x mic/line, 48V phantom
Analogue outputs 8x line
Dante 64 x 64 channels, 48/96 kHz
Control ports 8x GPIO
Signal-to-noise ratio >118 dB (A-weighted)
THD+N <0.002%
Maximum input/output level +22 dBu
Latency, analogue in to out <0.22 ms (96 kHz), <0.45 ms (48 kHz)
Processing 32/40-bit floating point
Dimensions (W x H x D) 483 x 43.5 x 471 mm, 1U
Weight 6.0 kg

Full features

  • Open architecture DSP matrix for high performance audio applications
  • 12 mic/line inputs, 8 line outputs, 8 configurable GPIOs
  • 64 x 64 Dante channels
  • TaskEngine for sophisticated system control and integration
  • Integrated into SONICUE Sound System Software

Full specifications

  • DSP Matrix Mix Engine: Open architecture DSP, sound system manager, system control and supervision
  • Matrix Size: Flexible with 3860 cross-points, 256 signal paths
  • Dante audio (48/96 kHz): 64 x 64 channels (64 Flows)
  • Analog Inputs: 12 mic / line w. 48V phantom power
  • Analog Outputs: 8 line
  • Control ports: 8 GPIO (digital in/out, analogue in)
  • Signal to Noise Ratio (A-weighted): > 118 dB
  • THD+N: < 0.002 %
  • Sampling rate: 96 kHz / 48 kHz
  • Latency (analogue in/out, 96/48 kHz): < 0.22 ms / 0.45 ms
  • Signal Processing: 32/40-bit floating point
  • Max. input/output level: + 22 dBu
  • DSP blocks: EQs, x-over, FIR drive, compressor, PA & RMS limiter, noise gate, ducker, automatic gain control, ambient noise compensation, mix-matrix, router, auto mixer, delay, generators, detectors, VU meters, polarity, level, mute
  • TaskEngine (system logic): Analog, logic and text operations, scheduler, scene handling, OCA & HTTP protocol
  • Safety / Redundancy: Int. supervision, system monitoring, watchdog, fault output, audio redundancy supported
  • Dimensions (w x h x d): 483 x 43.5 x 471 mm (19”, 1RU)
  • Weight: 6.0 kg (13.2 lbs)
